LD Systems DQOR CB B - Cluster Mounting Bracket for DQOR Speakers, Black

NEW

Preview: LD Systems DQOR CB B - Cluster Montage Halterung für DQOR Lautsprecher, Schwarz

LD Systems DQOR CB B - Cluster Montage Halterung für DQOR Lautsprecher, Schwarz

Sale to reseller only

Availability:

Currently not available

Product inquiry

Item number: 210906160

EAN: 4049521743238

MPN: LDDQORCB

NEW

Cluster Mounting Bracket for DQOR Speakers, Black Mounting bracket for up to four DQOR... more

Back to the overview

All information about the product:

"LD Systems DQOR CB B - Cluster Mounting Bracket for DQOR Speakers, Black"

Cluster Mounting Bracket for DQOR Speakers, Black

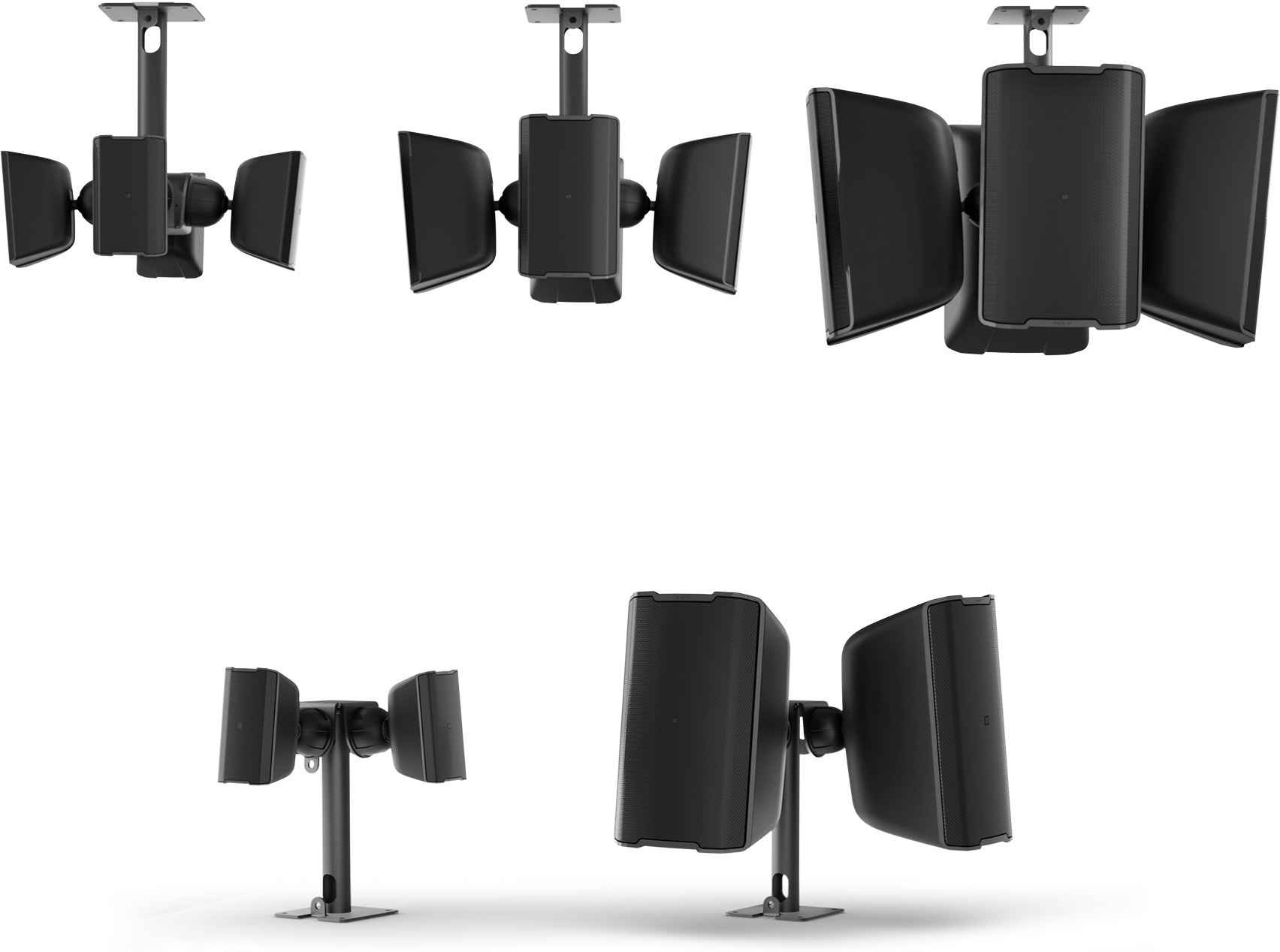

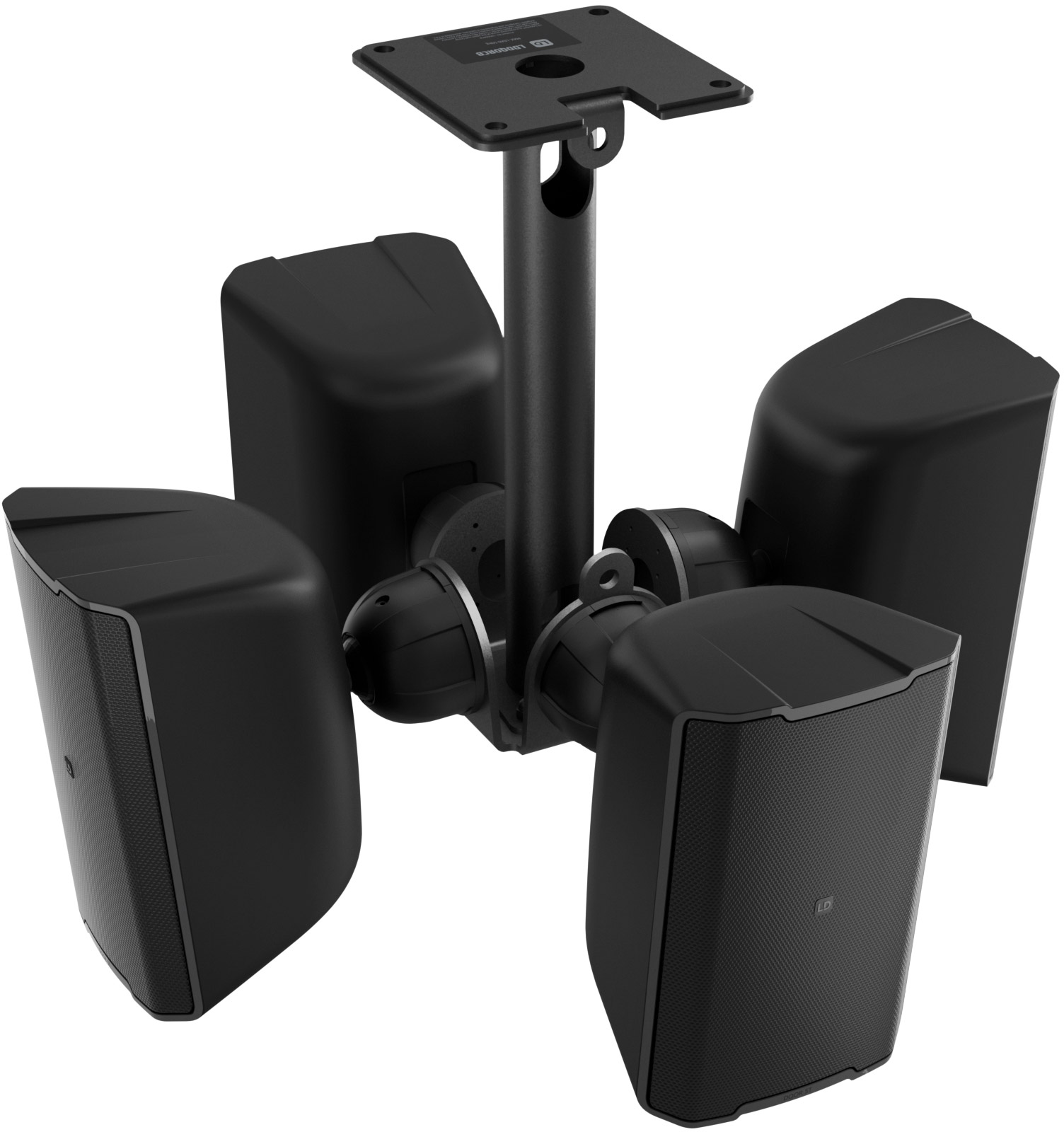

Mounting bracket for up to four DQOR speakers
Optimal for even 360° sound coverage
Suitable for ceiling and floor mounting

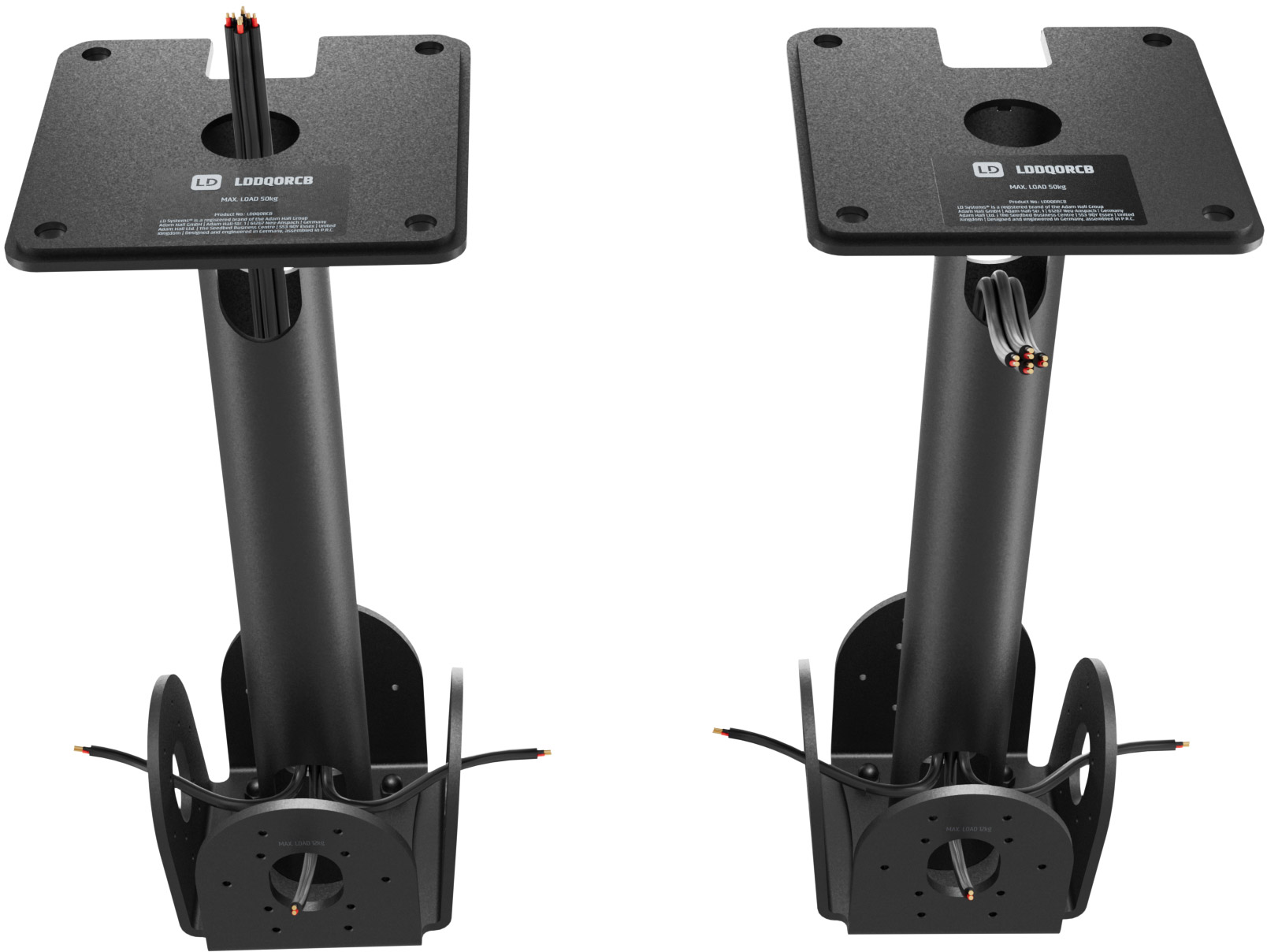

internal cable routing
Compatible with DQOR wall mount, CURV500 WMB, SAT WM10B and SUWMB10(W/B)
Typical applications: shopping centers, supermarkets, warehouses, amusement parks and much more

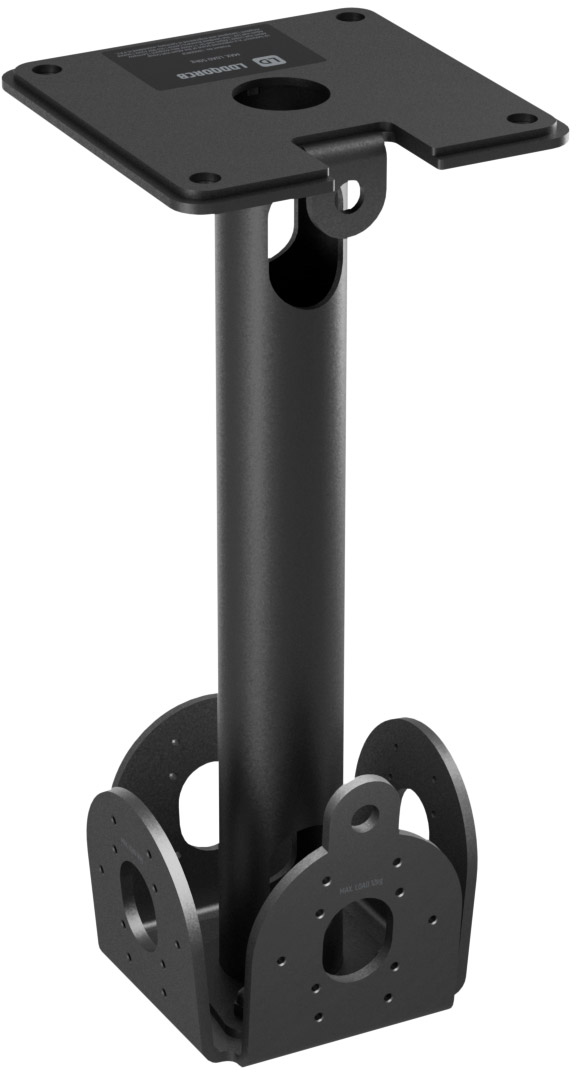

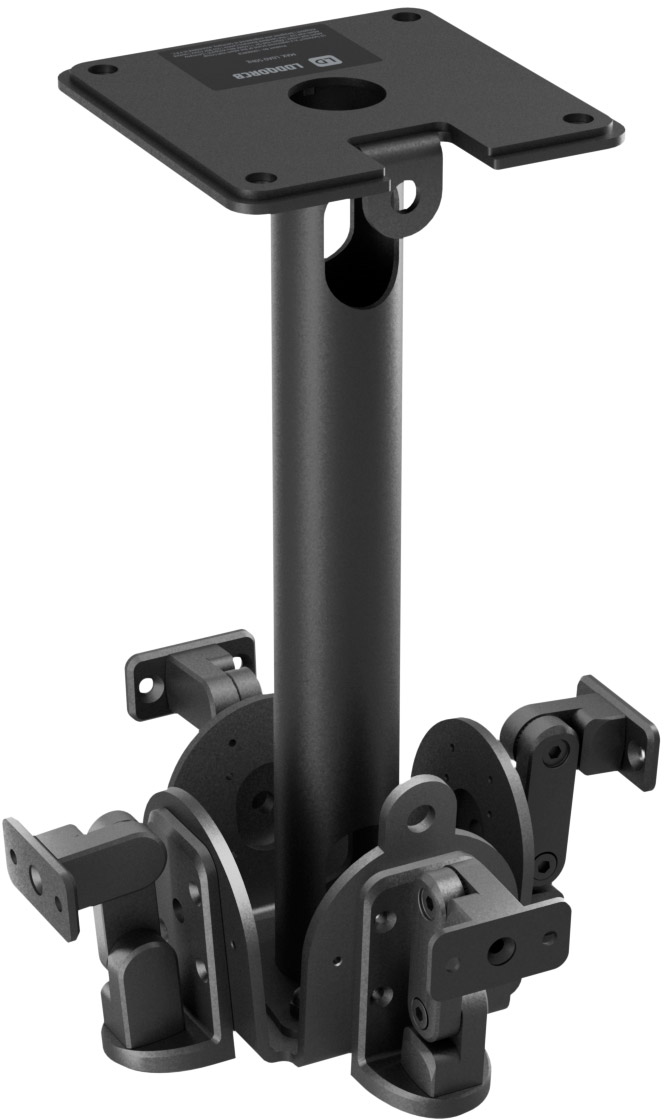

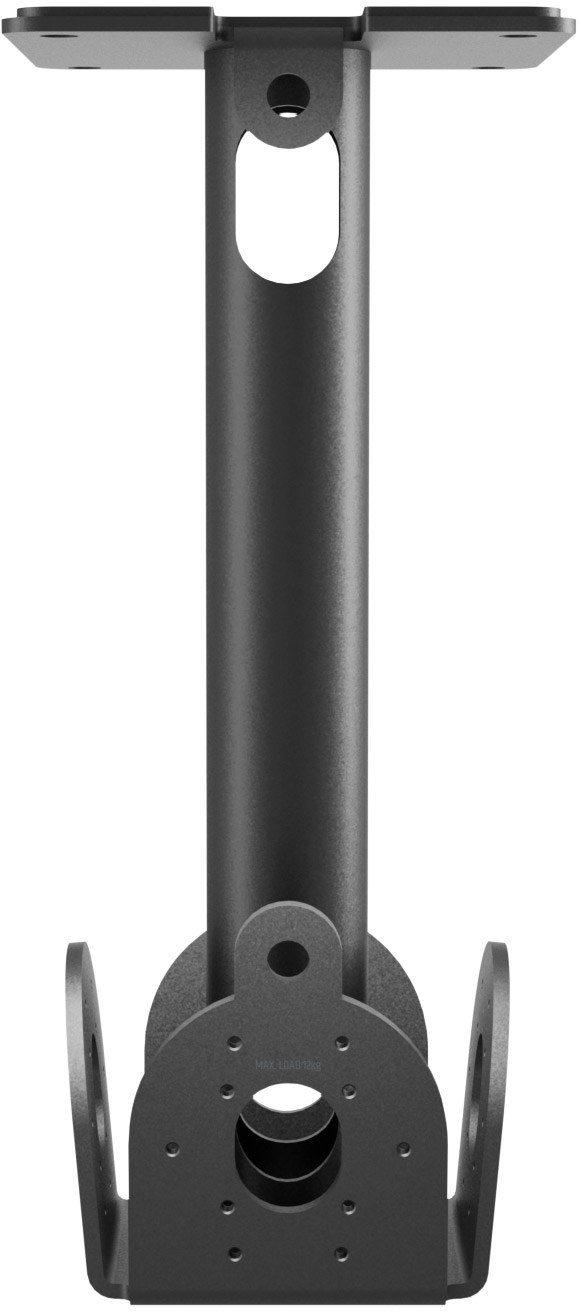

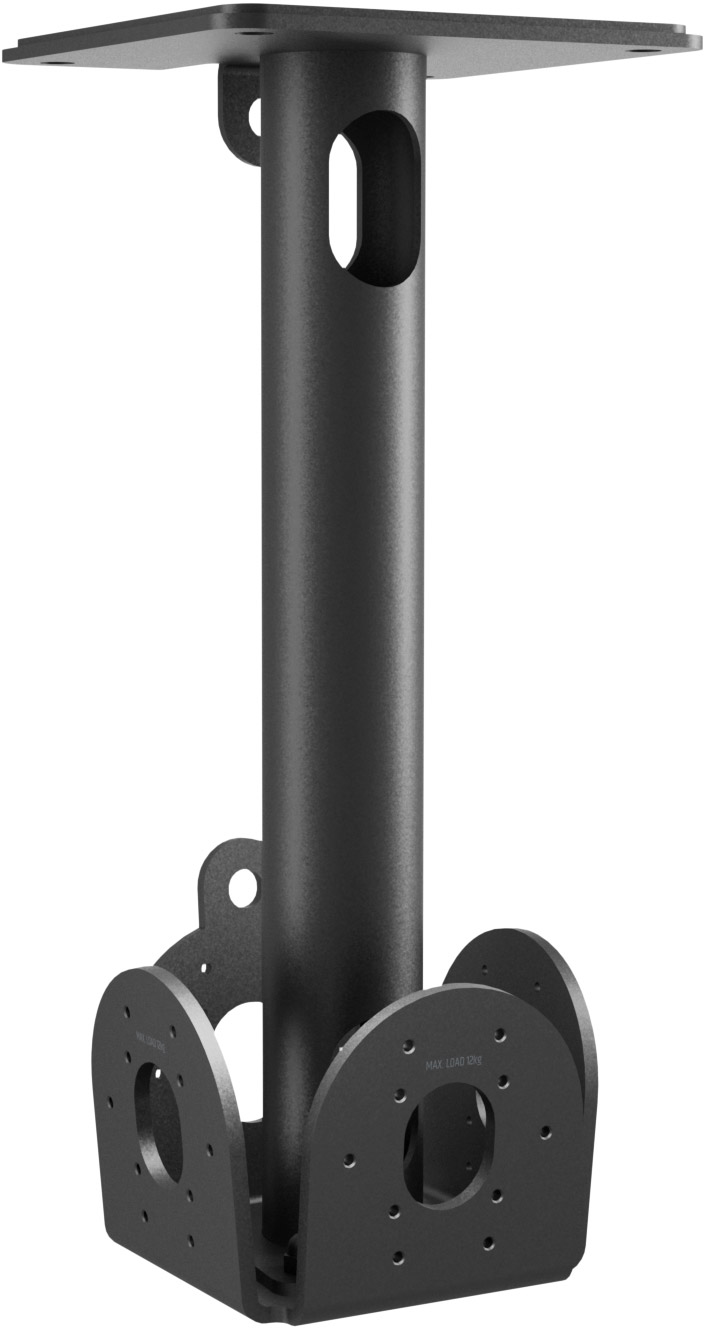

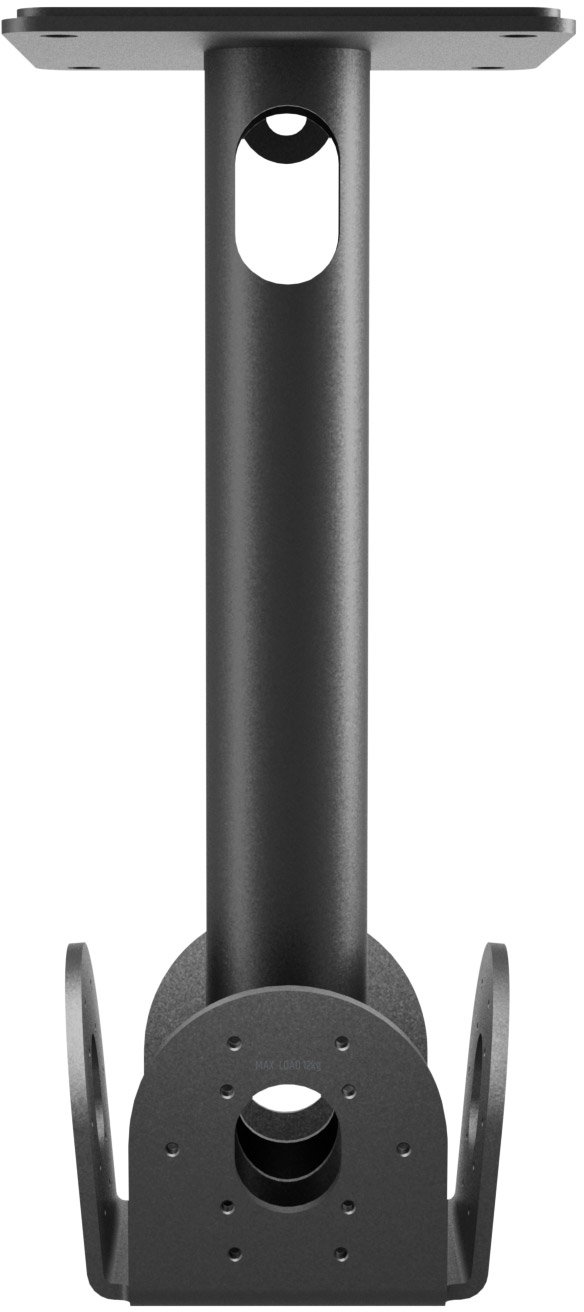

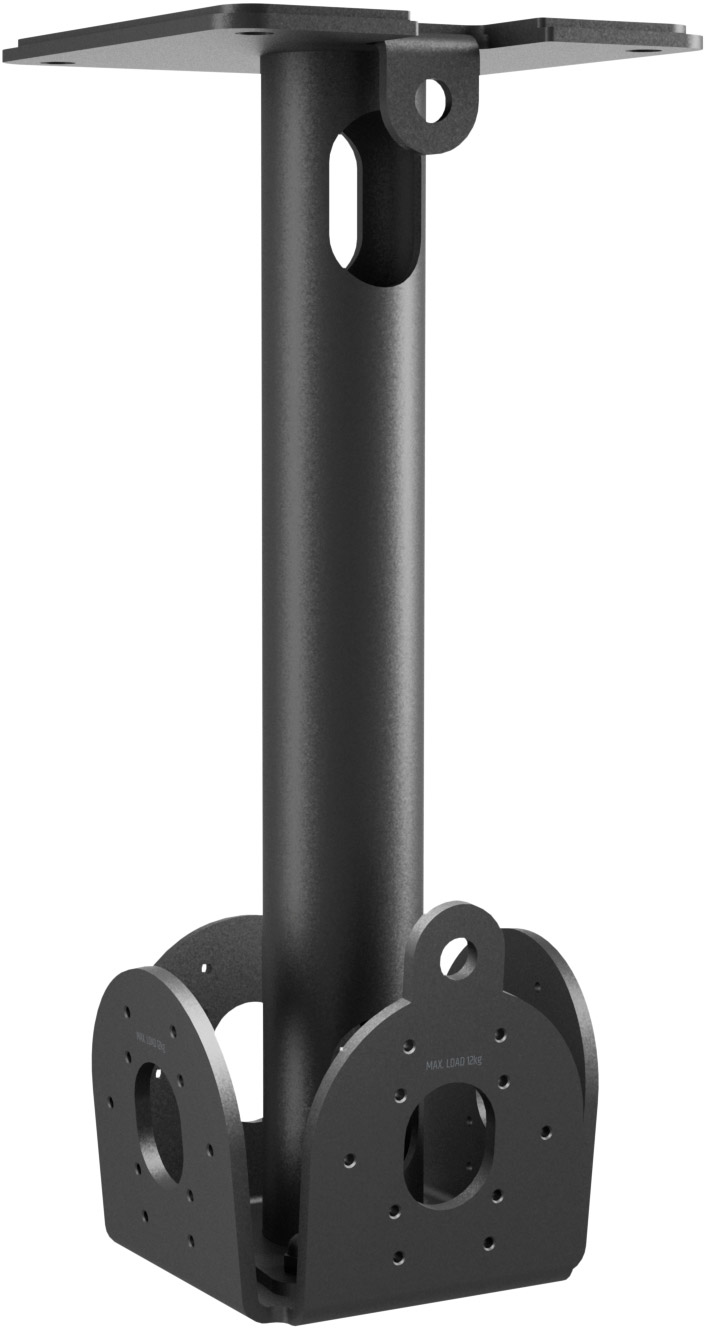

The robust mounting bracket for DQOR speakers for ceiling or floor mounting is made of powder-coated steel. With internal cable routing, it provides a clean and elegant solution for both indoor and outdoor applications. In addition, the bracket has two safety eyelets for securing the mounted speakers. The bracket is available in black (LDDQORCB) and white (LDDQORCBW). The mounting holes in the carrier plates are compatible with the wall brackets CURV500 WMB(W), LDSATWMB10(W/B) and SUWMB10(W/B).

Technical data:

Product type:	Cluster mount for the DQOR series
Material:	steel
color:	Black.
Surface:	powder coated
Max. total carrying capacity (centered):	50 kg

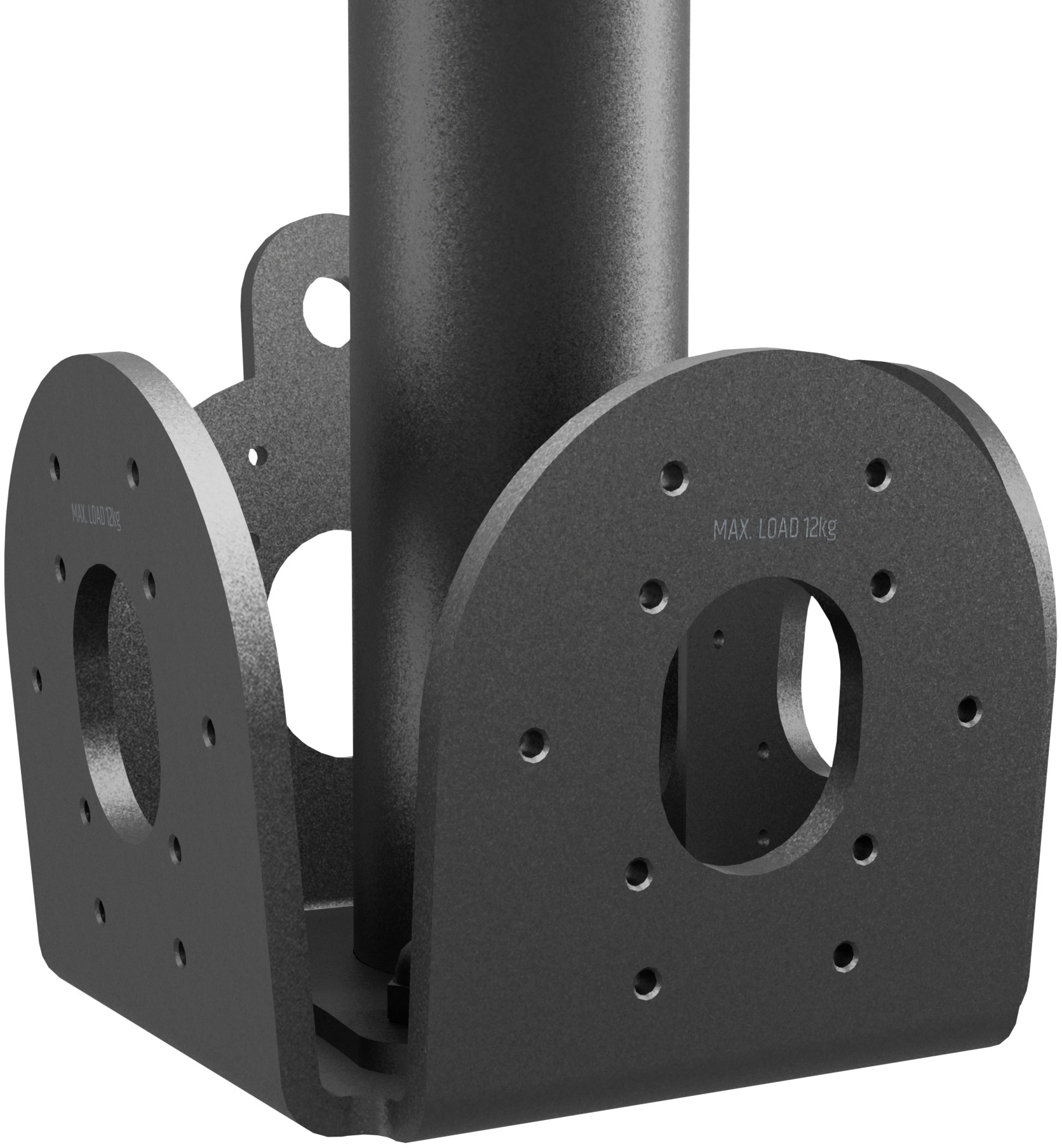

Maximum load capacity per carrier plate:	12 kg
width:	155 mm
Height:	363 mm
Depth:	155 mm
Weight:	2.95 kg
