LD Systems MAUI G2 IK 2 W - Installation Kit For MAUI G2 Columns (Tilt And Swivel Wall Mount)
€179.00 *
Availability:
Currently not available
Currently not available
Item number: 210902785
EAN: 4049521214196
Installation Kit For MAUI G2 Columns (Tilt And Swivel Wall Mount) Installing and aiming MAUI... more
All information about the product:
"LD Systems MAUI G2 IK 2 W - Installation Kit For MAUI G2 Columns (Tilt And Swivel Wall Mount)"

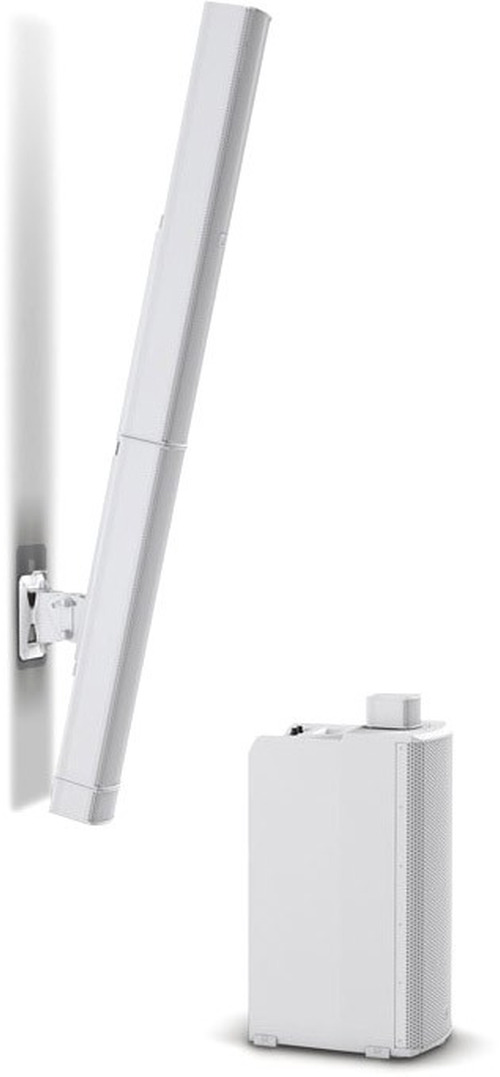

Installation Kit For MAUI G2 Columns (Tilt And Swivel Wall Mount)
Installing and aiming MAUI columns is a cakewalk with this kit. It features a slim column bracket that bolts to a wall mount providing 160° swivel and 22° (LDMAUI11G2) or 12° (LDMAUI28G2) maximum down tilt for precise, adjustable horizontal and vertical orientation. They are made of heavy-gauge steel and available in black (LDMG2IK2) or white (LDMG2IK2W) powder coating finish. The kit also includes two adapters for the system’s multipin connectors which provide loudspeaker and terminal block connectors to hook up the column and sub.
Technical data:| Product type: | PA Loudspeakers Accessories |
| Type: | Wall bracket |
| Weight: | 3,8 kg |
| Material Wall Mount Bracket: | Steel |
| Surface Wall Mount Bracket: | Powder coated |
| Colour Wall Mount Bracket: | white |
| Mar. Load Wall Mount Bracket: | 12 kg |
| Dimensions Wall Mount Bracket (W x H x D): | 75mm x 810mm x 135mm |
| Weight Wall Mount Bracket: | 2.6 kg |
| Features Column Adapter: | M20 Thread |
| Features Column Adapter: | Speakon compatible |
| Features Column Adapter: | Terminal Block Connector |
| Material Column Adapter: | Aluminium |
| Surface Column Adapter: | Powder coated |
| Colour Column Adapter: | white |
| Dimensions Column Adapter (B x H x T): | 100mm x 65mm x 105mm |
| Weight Column Adapter: | 0.7 kg |
| Features Subwoofer Adapter: | Speakon compatible |
| Features Subwoofer Adapter: | Terminal Block Connector |
| Material Subwooferadapter: | Aluminium |
| Subface Subwoofer Adapter: | Powder coated |
| Colour Subwoofer Adapter: | Black |
| Dimensions Subwoofer Adapter (W x H x D): | 100mm x 105mm x 105mm |
| Weight Subwoofer Adapter: | 0.5 kg |
| Colour Terminal Block Connector: | green |
| Features Terminal Block Connector: | 4 pole |
| Quantity Terminal Block Connector: | 2 pcs. |
