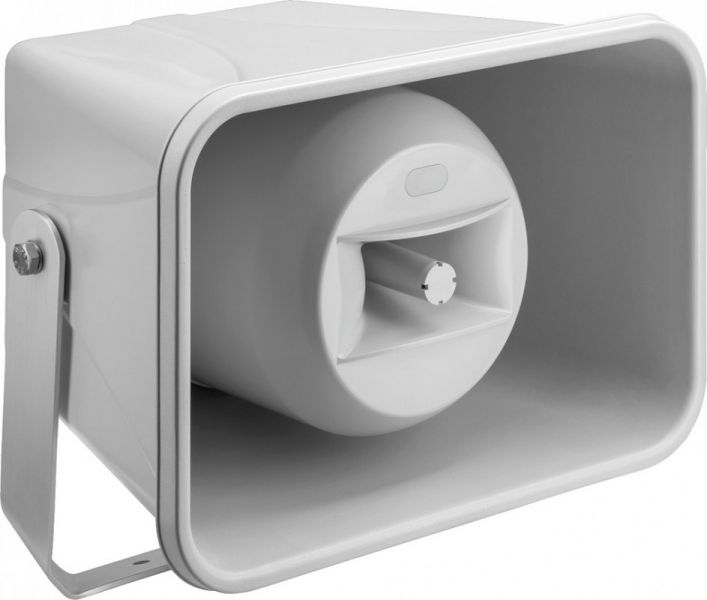

MONACOR IT-350/EN Weatherproof horn speaker (music horn), 2-way technology and EN 54-24

MONACOR IT-350/EN Wetterfester 2-Wege-Druckkammerlautsprecher (Musikhorn)
Sale to reseller only
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250137215
EAN: 4007754263947
Weatherproof horn speaker (music horn), 2-way technology and EN 54-24 certification 100 V... more
All information about the product:
"MONACOR IT-350/EN Weatherproof horn speaker (music horn), 2-way technology and EN 54-24"
Weatherproof horn speaker (music horn), 2-way technology and EN 54-24 certification
  • 100 V line technique with 4 power taps: 30/15/7.5/3.75 W
  • Weatherproof and IP66 certified
  • High-quality music reproduction
  • 16 cm bass-midrange speaker and 25 mm (1") horn
  • Robust light grey ABS plastic housing
  • Supplied with mounting bracket and stainless steel screws
Technical data:
Active/passive:passive
Transmission method:100 V
Total power rating:30 W
Power rating (RMS):30/15/7.5/3.75 W
Frequency range:100-20,000 Hz
Bass speaker:16 cm (6")
Tweeter:25 mm (1")
Number of speakers:2
Speaker size:16 cm
Sensitivity:101 dB/W/m
Max. rated SPL:116 dB
Beam angle:H100°/V60°
Radiation angle, horizontal:100°
Radiation angle, vertical:60°
Features:2-way
Housing material:ABS
Colour:light grey
Mounting device:mounting bracket
Protection class:IP66
Admiss. ambient temp.:-20 °C to +90 °C
Dimensions:370 x 250 x 330 mm
Width:370 mm
Height:250 mm
Depth:330 mm
Weight:4.5 kg
Other features:weatherproof, EN 54
Packing dimensions (W x H x L):0.27 x 0.41 x 0.39 m
Gross weight:5.73 kg
Net weight:4.79 kg
