MONACOR TXA-1022CD Portable high-power amplifier system
€1,783.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250132915
EAN: 4007754243628
MPN: 0174610
Portable high-power amplifier system with integrated adjustable 2-channel multifrequency... more
All information about the product:
"MONACOR TXA-1022CD Portable high-power amplifier system"

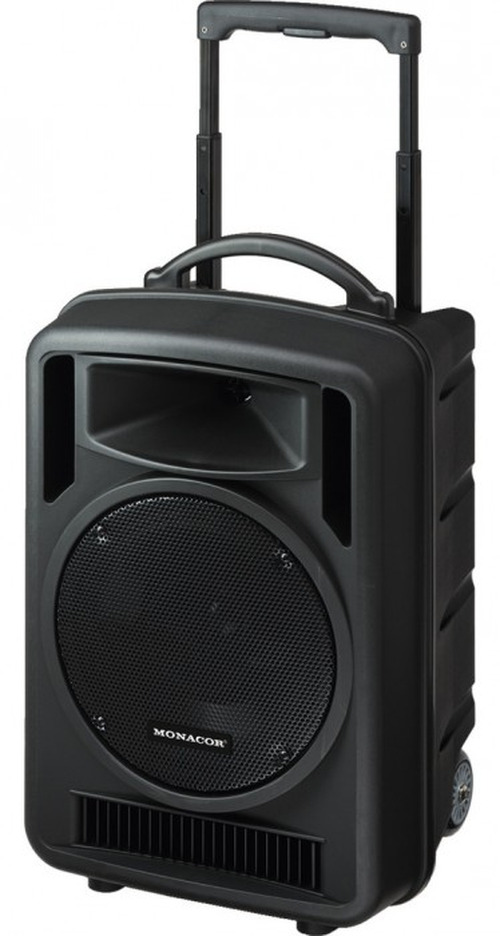

Portable high-power amplifier system
with integrated adjustable 2-channel multifrequency receiver unit with UHF PLL technology and Bluetooth receiver.
- High-performance class D version 120 W, with optimum efficiency
- Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 4 hours), integrated automatic battery charging with charging status indication, deep discharge protection
- For mobile applications, e.g. sales events, lectures
- 2 x 16 selectable UHF frequencies (863.1-864.9 MHz)
- CD player with anti-shock system, MP3 reproduction and slot-in mechanism, pitch control function
- SD card reader, USB interface
- Supplied with remote control for CD player
- 1 radio transmitter for wireless audio link operation of several TXA-1020 systems
- Efficient 2-way speaker system with 25 cm (10") bass speaker

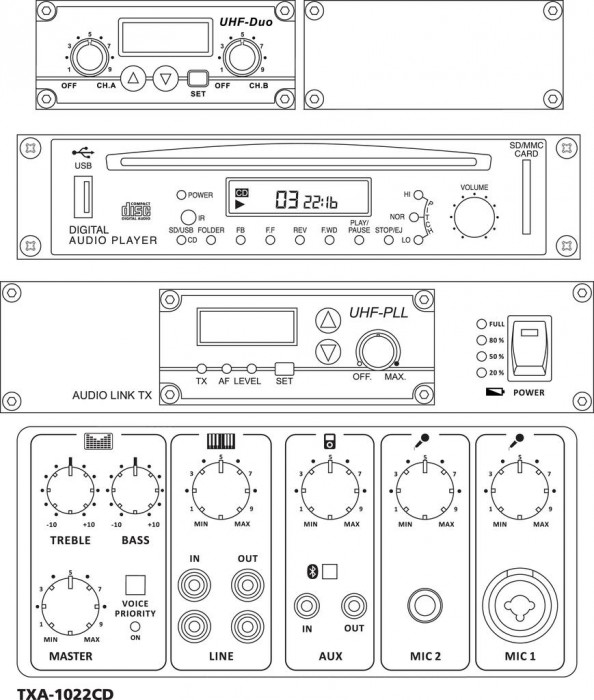

- 1 microphone input via comb. jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack), each input can be adjusted
- Common master control, 2-way tone control
- 1 stereo line output (RCA), 1 aux output (3.5 mm jack)
- Switchable microphone priority circuit
- Due to an extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
- Stand sleeve
Licence-free in the EU.
Matching microphone transmitters or pocket transmitters, e.g. TXA-800HSE, TXA-800HT or multifrequency transmitter module TXA-1020MT are avaiable at option.

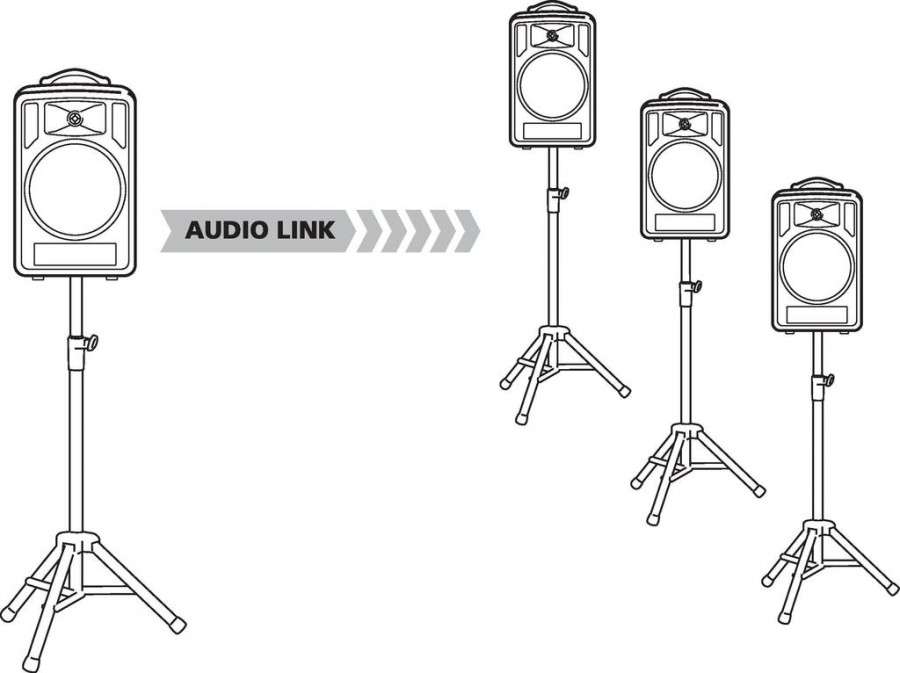

Audio link operation:
The integrated wireless transmitter of the TXA-1022CD transmits audio signals to one or several TXA-1020 systems. Ideally suited for larger indoor PA applications where a consistent sound radiation is required.
Rated power (PRMS): | 120 W |
Peak output power: | 170 W |
Frequency range: | 20-20,000 Hz |
Carrier frequency: | 863.1-864.9 MHz |
Operating range: | ˜ 30 m |
Inputs: | 6 mV (mic), 300 mV (line, aux) |
Link: | wireless |
Equalizer, bass: | ±10 dB/100 Hz |
Equalizer, treble: | ±10 dB/10 kHz |
Power supply: | ˜ 230 V/50 Hz/170 VA, rech. battery: 2 x 12 V/4.5 Ah |
Admiss. ambient temp.: | 0-40 °C |
Dimensions: | 360 x 580 x 320 mm |
Weight: | 18.2 kg |
Connections: | 1 x XLR/6.3 mm jack (mic), 1 x 6.3 mm jack (mic), 1 x RCA L/R (line in), 1 x 3.5 mm jack (line in), 1 x RCA L/R (line out), 1 x 3.5 mm jack (line out) |
