MONACOR TXA-1020USB Portable high-power amplifier systems
€1,367.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250132910
EAN: 4007754243611
MPN: 0174600
Portable high-power amplifier systems, with integrated adjustable 2-channel multifrequency... more
All information about the product:
"MONACOR TXA-1020USB Portable high-power amplifier systems"
Portable high-power amplifier systems,
with integrated adjustable 2-channel multifrequency receiver unit with UHF PLL technology and Bluetooth receiver.
- High-performance class D version 120 W, with optimum efficiency
- Operation via mains connection or built-in rechargeable lead gel battery 2 x 12 V/4.5 Ah (operating time: up to 4 hours), integrated automatic battery charging with charging status indication, discharge protection
- For mobile applications, e.g. sales events, lectures
- 2 x 16 selectable UHF frequencies (863.1-864.9 MHz)
- MP3 player with SD card reader and USB interface
- Supplied with remote control for MP3 player
- Efficient 2-way speaker system with 25 cm (10") bass speaker

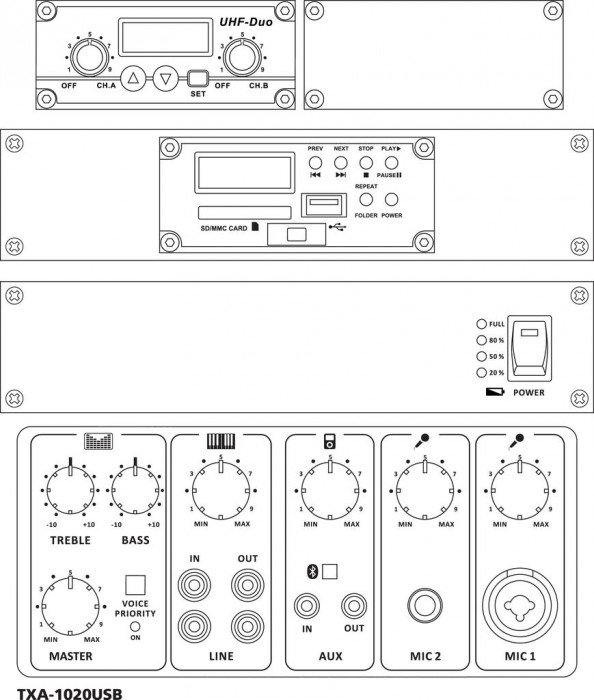

- 1 microphone input via comb. jack (XLR/6.3 mm), 1 microphone input (6.3 mm jack), 1 stereo line input (RCA), 1 aux input (3.5 mm jack), each input can be adjusted
- Common master control, 2-way tone control
- 1 stereo line output (RCA), 1 aux output (3.5 mm jack)
- Switchable microphone priority circuit

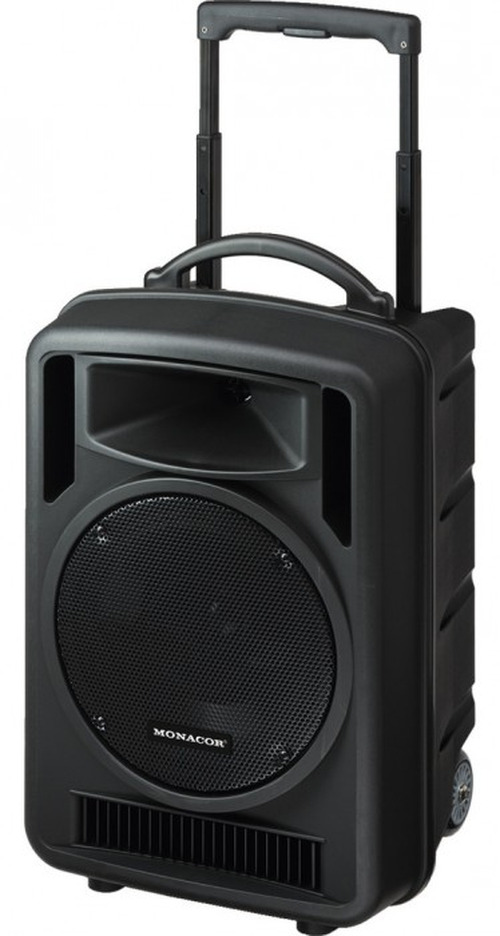

- Due to an extractable telescopic handle and 2 castors, the amplifier system can easily be pulled like a trolley
- Stand sleeve
Licence-free in the EU.
Matching microphone transmitters or pocket transmitters, e.g. TXA-800HSE, TXA-800HT or multifrequency transmitter module TXA-1020MT are avaiable at option.
| Rated power (PRMS): | 120 W |
| Peak output power: | 170 W |
| Frequency range: | 20-20,000 Hz |
| Carrier frequency: | 863.1-864.9 MHz |
| Operating range: | ˜ 30 m |
| Inputs: | 6 mV (mic), 300 mV (line, aux) |
| Link: | optional (TXA-1020MT) |
| Equalizer, bass: | ±10 dB/100 Hz |
| Equalizer, treble: | ±10 dB/10 kHz |
| Power supply: | ˜ 230 V/50 Hz/170 VA, rech. battery: 2 x 12 V/4.5 Ah |
| Admiss. ambient temp.: | 0-40 °C |
| Dimensions: | 360 x 580 x 320 mm |
| Weight: | 17.25 kg |
| Connections: | 1 x XLR/6.3 mm jack (mic), 1 x 6.3 mm jack (mic), 1 x RCA L/R (line in), 1 x 3.5 mm jack (line in), 1 x RCA L/R (line out), 1 x 3.5 mm jack (line out) |
