LD Systems ROADBUDDY 10 HBH 2 B6 - Battery-Powered Bluetooth Speaker with Mixer and Wireless
- Battery-powered speaker solution
- Integrated radio receiver 655 - 679 MHz
- Bluetooth player with USB port and SD card slot
- Class D power amplifier with 480 watts of peak power
- 2 combo sockets for microphone or line inputs
- 3.5 mm Aux input
- Master section with 2-band EQ
- Built-in wheels, pull-out handle and fixing for 35 mm tripod mount

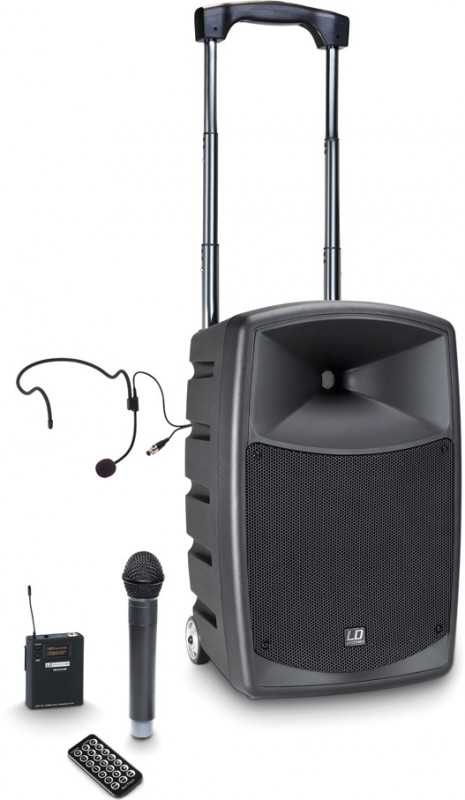

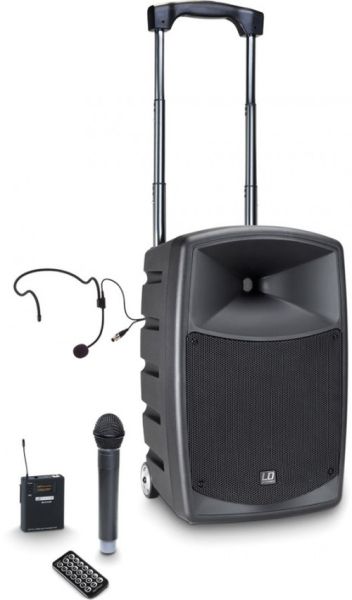

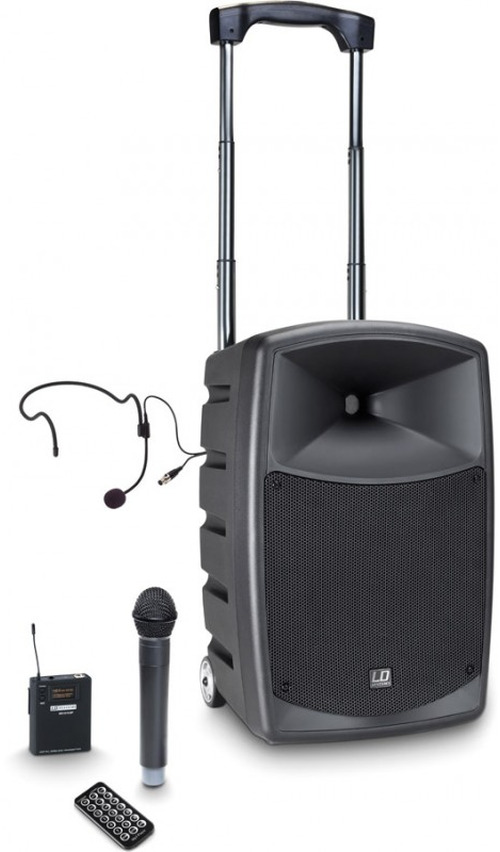

- 2 Wireless microphones and IR-remote control included
The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.
The Roadbuddy relies fully on wireless transmission: it has two UHF radio receiver who operates with 655 - 679 MHz range. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. Two handheld microphone with 10 mW output power(LDRBUD10HHD2B6), two headset microphones with belt pack (LDRBUD10BPH2B6) or as an alternative a handheld microphone and a headset microphone with belt pack (LDRBUD10HBH2B6) and an IR-remote control for the player are included.
For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.
The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
Technical data:Product type: | Battery-powered PA speaker |
Low/mid driver dimensions: | 10 " |
Woofer size: | 254 mm |
Woofer magnet: | Ferrite |
Woofer brand: | Custom-made |
HF driver dimensions: | 1 " |
HF driver size: | 25.4 mm |
HF driver magnet: | Ferrite |
HF driver brand: | Custom-made |
Amplifier: | Class D |
RMS: | 120 W |
Peak power: | 480 W |
Frequency response: | 55 - 18000 Hz |
SPL (1W/1m): | 96 dB |
Max. SPL: | 115 dB |
Protection circuits: | over-current |
Protection circuits: | overload protection |
Protection circuits: | short circuit |
Controls: | AUX / MP3 switch |
Controls: | CD / Tape IN Level |
Controls: | Echo |
Controls: | high |
Controls: | low |
Controls: | Mic 1 Level |
Controls: | Mic 2 Level |
Controls: | Total volume |
Indicators: | Charge/battery status |
Indicators: | Power |
Supported media: | Bluetooth |
Supported media: | SD Card |
Supported media: | USB stick |
Supported formats: | MP3 file |
Supported formats: | WAV-CD |
Supported formats: | WMA file |
Media player controls: | equalizer |
Media player controls: | Mode (Menu / Bluetooth /SD / USB) |
Media player controls: | Next Track |
Media player controls: | Play / Pause |
Media player controls: | Previous Track |
Media player controls: | Repeat |
Media player controls: | Stop |
Media player display elements: | Lighted multifunctional LC display |
Line inputs: | 1 |
Line input connectors: | 2 x RCA |
Line input connectors: | 2 x XLR |
Line input connectors: | 3.5 mm jack |
Line input connectors: | 6.3 mm jack |
Mic inputs: | 2 |
Mic inputs: | 2 x XLR |
Mic inputs: | 6.3 mm jack |
Transmission frequency range: | 655 - 679 MHz |
Modulation Type: | FM |
Channels: | 16 |
Frequency Response Wireless Unit: | 50 - 17000 Hz |
Controllers Wireless Unit: | ASC |
Controllers Wireless Unit: | Mute Level (Squelch) |
Controllers Wireless Unit: | Power / Volume |
Controllers Wireless Unit: | Value Down |
Controllers Wireless Unit: | Value Up |
Indicators Wireless Unit: | AF (LED) |
Indicators Wireless Unit: | LED Display |
Indicators Wireless Unit: | RF (LED) |
Connections Wireless Unit: | nTNC for receiver antenna |
RF Transmitter Power Output: | 10 mW |
Handheld Microphone Weight: | 0.285 kg |
Handheld Microphone Material: | Aluminium |
Bodypack weight: | 0.08 kg |
Bodypack material: | ABS plastic |
Operating voltage: | Switching power supply |
Operating voltage: | 100 V - 120 V / 60 Hz |
Operating voltage: | 220 V - 240 V AC / 50 Hz |
Rechargeable batteries: | 12 V / 5 Ah |
Cabinet material: | Polypropylene |
Cabinet construction: | Bass Reflex |
Width: | 415 mm |
Height: | 525 mm |
Depth: | 328 mm |
Weight: | 16,5 kg |
Other features: | extendable handle |
Other features: | IR Remote for Media Player |
Other features: | Stand mount 36 mm |
Other features: | Transport casters |
Other features: | transport handle |
