LD Systems ROADBUDDY 10 - Battery Powered Bluetooth Speaker with Mixer and Wireless Microphone
- Battery-powered speaker solution
- Integrated radio receiver 863 - 865 MHz for license-free operation
- Bluetooth player with USB port and SD card slot
- Class D power amplifier with 480 watts of peak power
- 2 combo sockets for microphone or line inputs
- 3.5 mm Aux input
- Master section with 2-band EQ
- Built-in wheels, pull-out handle and fixing for 35 mm tripod mount
- Wireless microphone and IR-remote control included

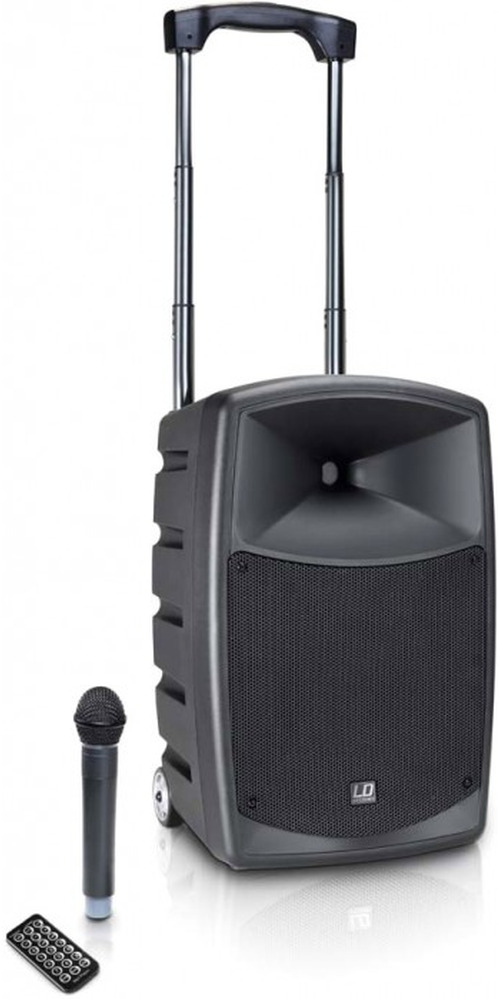

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.
The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the license-free 863 - 865 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10) or as an alternative a headset microphone with belt pack (LDRBUD10HS) and an IR-remote control for the player are included.
For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.
The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
Technical data:Product type: | Battery-powered PA speaker |
Low/mid driver dimensions: | 10 " |
Woofer size: | 254 mm |
Woofer magnet: | Ferrite |
Woofer brand: | Custom-made |
HF driver dimensions: | 1 " |
HF driver size: | 25.4 mm |
HF driver magnet: | Ferrite |
HF driver brand: | Custom-made |
Amplifier: | Class D |
RMS: | 120 W |
Peak power: | 480 W |
Frequency response: | 55 - 18000 Hz |
SPL (1W/1m): | 96 dB |
Max. SPL: | 115 dB |
Protection circuits: | over-current |
Protection circuits: | overload protection |
Protection circuits: | short circuit |
Controls: | AUX / MP3 switch |
Controls: | CD / Tape IN Level |
Controls: | Echo |
Controls: | high |
Controls: | low |
Controls: | Mic 1 Level |
Controls: | Mic 2 Level |
Controls: | Total volume |
Indicators: | Charge/battery status |
Indicators: | Power |
Supported media: | Bluetooth |
Supported media: | SD Card |
Supported media: | USB stick |
Supported formats: | MP3 file |
Supported formats: | WAV-CD |
Supported formats: | WMA file |
Media player controls: | equalizer |
Media player controls: | Mode (Menu / Bluetooth /SD / USB) |
Media player controls: | Next Track |
Media player controls: | Play / Pause |
Media player controls: | Previous Track |
Media player controls: | Repeat |
Media player controls: | Stop |
Media player display elements: | Lighted multifunctional LC display |
Line inputs: | 1 |
Line input connectors: | 2 x RCA |
Line input connectors: | 2 x XLR |
Line input connectors: | 3.5 mm jack |
Line input connectors: | 6.3 mm jack |
Mic inputs: | 2 |
Mic inputs: | 2 x XLR |
Mic inputs: | 6.3 mm jack |
Transmission frequency range: | 863 - 865 MHz |
Modulation Type: | FM |
Channels: | 16 |
Frequency Response Wireless Unit: | 50 - 17000 Hz |
Controllers Wireless Unit: | ASC |
Controllers Wireless Unit: | Mute Level (Squelch) |
Controllers Wireless Unit: | Power / Volume |
Controllers Wireless Unit: | Value Down |
Controllers Wireless Unit: | Value Up |
Indicators Wireless Unit: | AF (LED) |
Indicators Wireless Unit: | LED Display |
Indicators Wireless Unit: | RF (LED) |
Connections Wireless Unit: | nTNC for receiver antenna |
RF Transmitter Power Output: | 10 mW |
Handheld Microphone Weight: | 0.285 kg |
Handheld Microphone Material: | Aluminium |
Operating voltage: | Switching power supply |
Operating voltage: | 100 V - 120 V / 60 Hz |
Operating voltage: | 220 V - 240 V AC / 50 Hz |
Rechargeable batteries: | 12 V / 5 Ah |
Cabinet material: | Polypropylene |
Cabinet construction: | Bass Reflex |
Width: | 415 mm |
Height: | 525 mm |
Depth: | 328 mm |
Weight: | 16,5 kg |
Other features: | extendable handle |
Other features: | IR Remote for Media Player |
Other features: | Stand mount 36 mm |
Other features: | Transport casters |
Other features: | transport handle |
