LD Systems MAUI P900 W - Powered Column PA System by Porsche Design Studio in Cocoon White
- Powered column PA system for live events and install
- Award-winning design by Porsche Design Studio
- Durable aluminium body
- 1,400 watts RMS system power and 131 dB maximum SPL

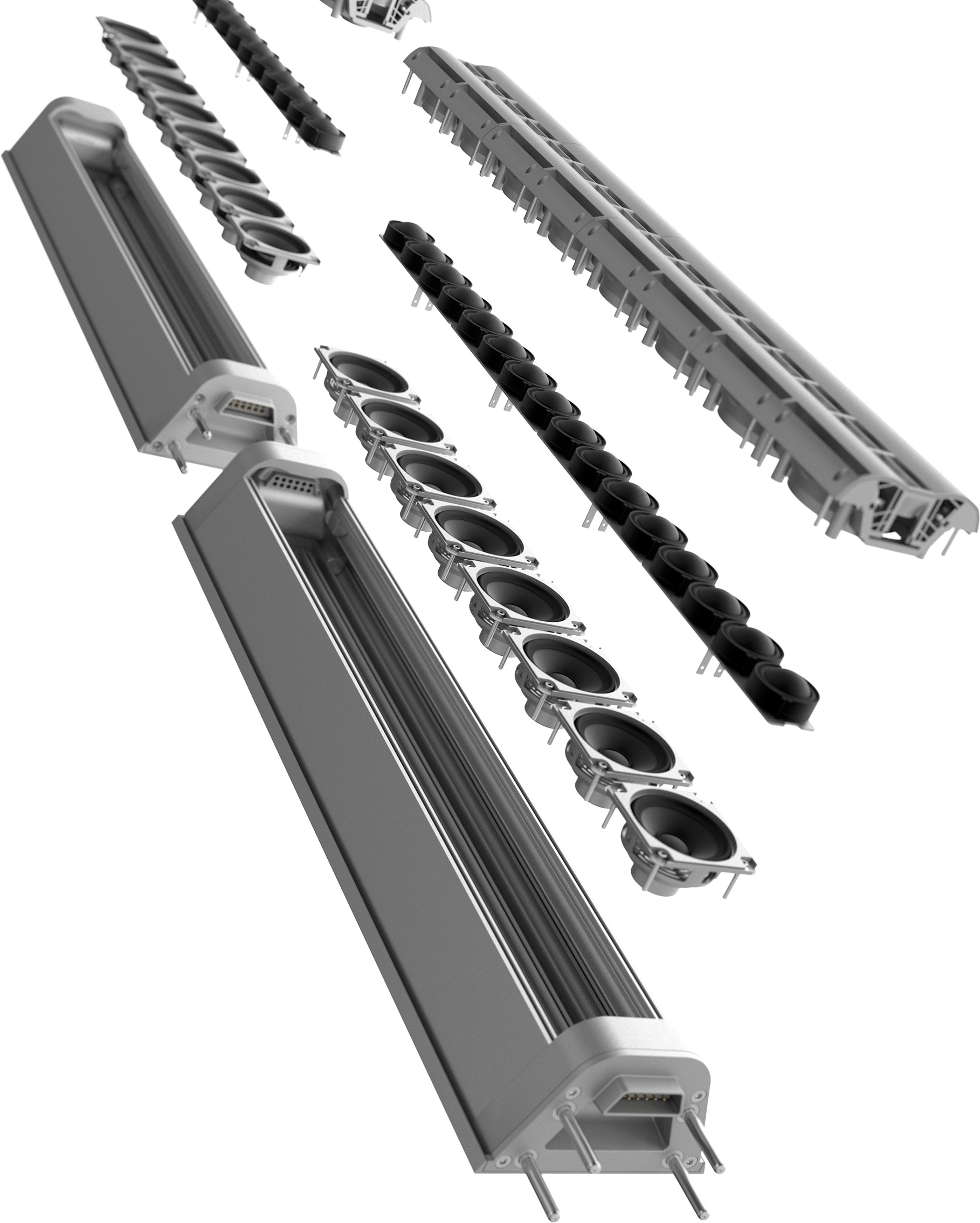

- 50 premium transducers for monumental clarity
- SonicGuide® and WaveAhead® technology for coherent wavefront
- DynX® DSP for distortion free sound
- aptX™ and AAC coding for HD Bluetooth® streaming
- TrueWireless Stereo™ for wireless stereo pairing

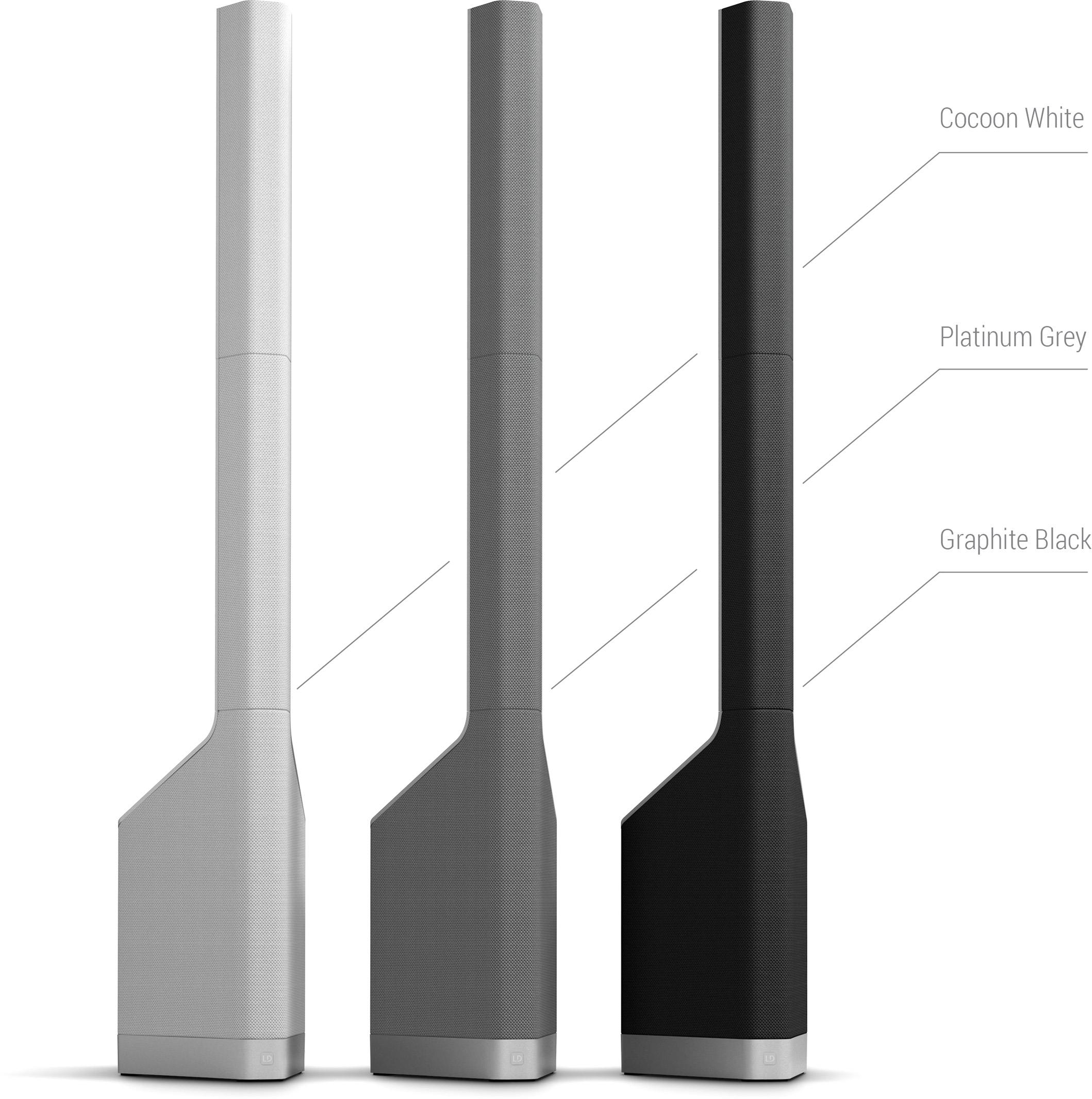

- Available in Cocoon White, Platinum Grey or Graphite Black
Developed in collaboration with Porsche Design Studio, the LD Systems MAUI® P900 provides excellent reproduction clarity and outstanding high-definition sound. Combining state-of-the-art audio technology and eye-catching elegance, the MAUI® P900 is the perfect choice when your live events and installation environments call for stellar sonic performance and style. With a total of 50 neodymium transducers and 1,400 watts RMS of class D power, this groundbreaking column system delivers a maximum sound pressure of 131 dB and 42 to 20,000 Hz frequency response.

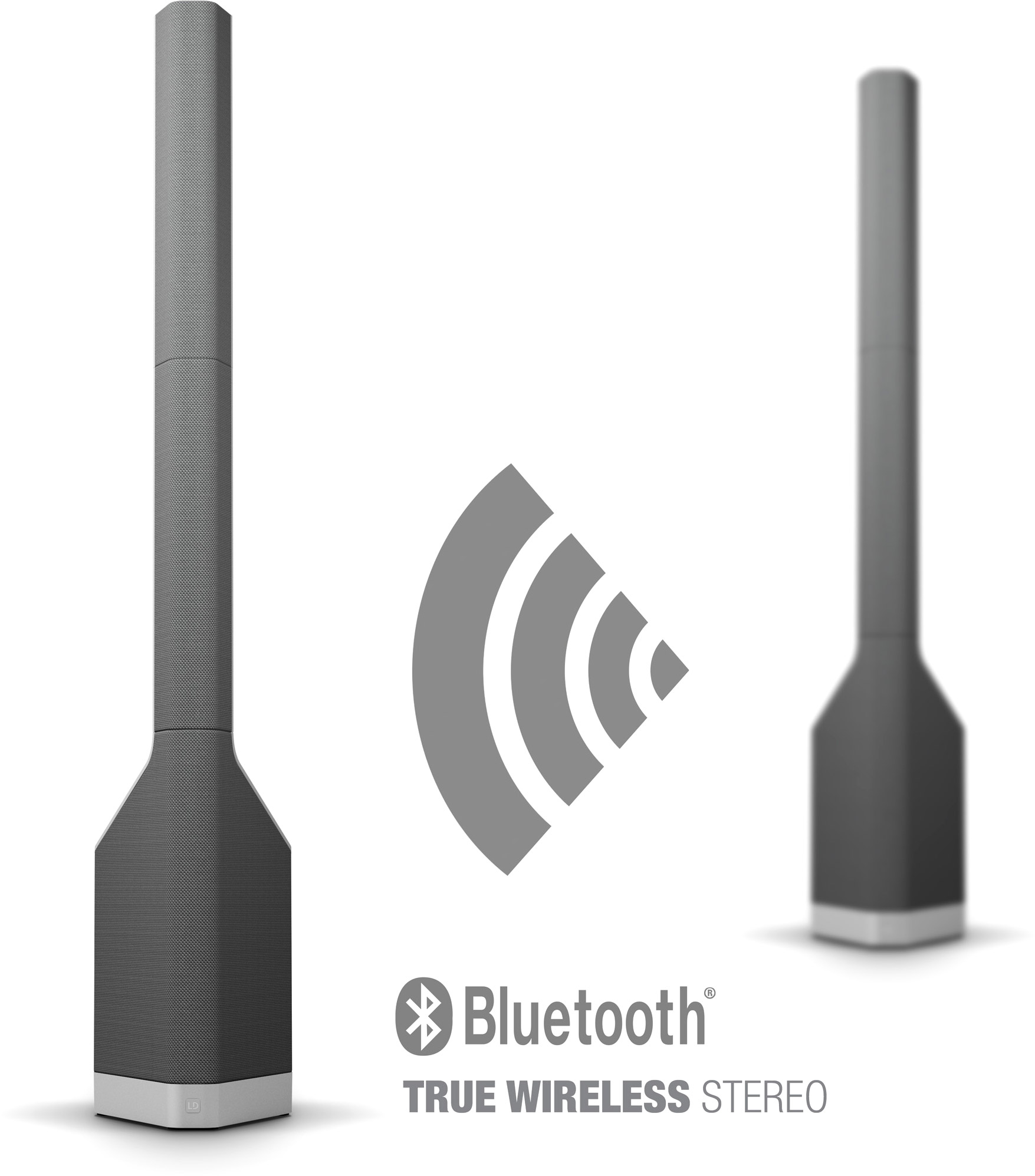

The MAUI® P900 incorporates both our SonicGuide® waveguide technology and WaveAhead® tweeter arrangement to deliver a coherent wavefront. Combining 140° dispersion on the horizontal axis and tightly focused vertical dispersion, the system provides an ultra-long throw and even coverage. Our DynX® 24-bit digital processing results in detailed, dynamic sound reproduction that remains distortion-free even at the highest volume levels. The use of aptX™ and AAC coding ensures high-definition full bandwidth audio over Bluetooth® with a range of 70 m (230 ft.), and the integration of TrueWireless Stereo™ technology enables wireless stereo sound from two MAUI® P900 with up to 15 m (50 ft.) distance between left and right channel systems.

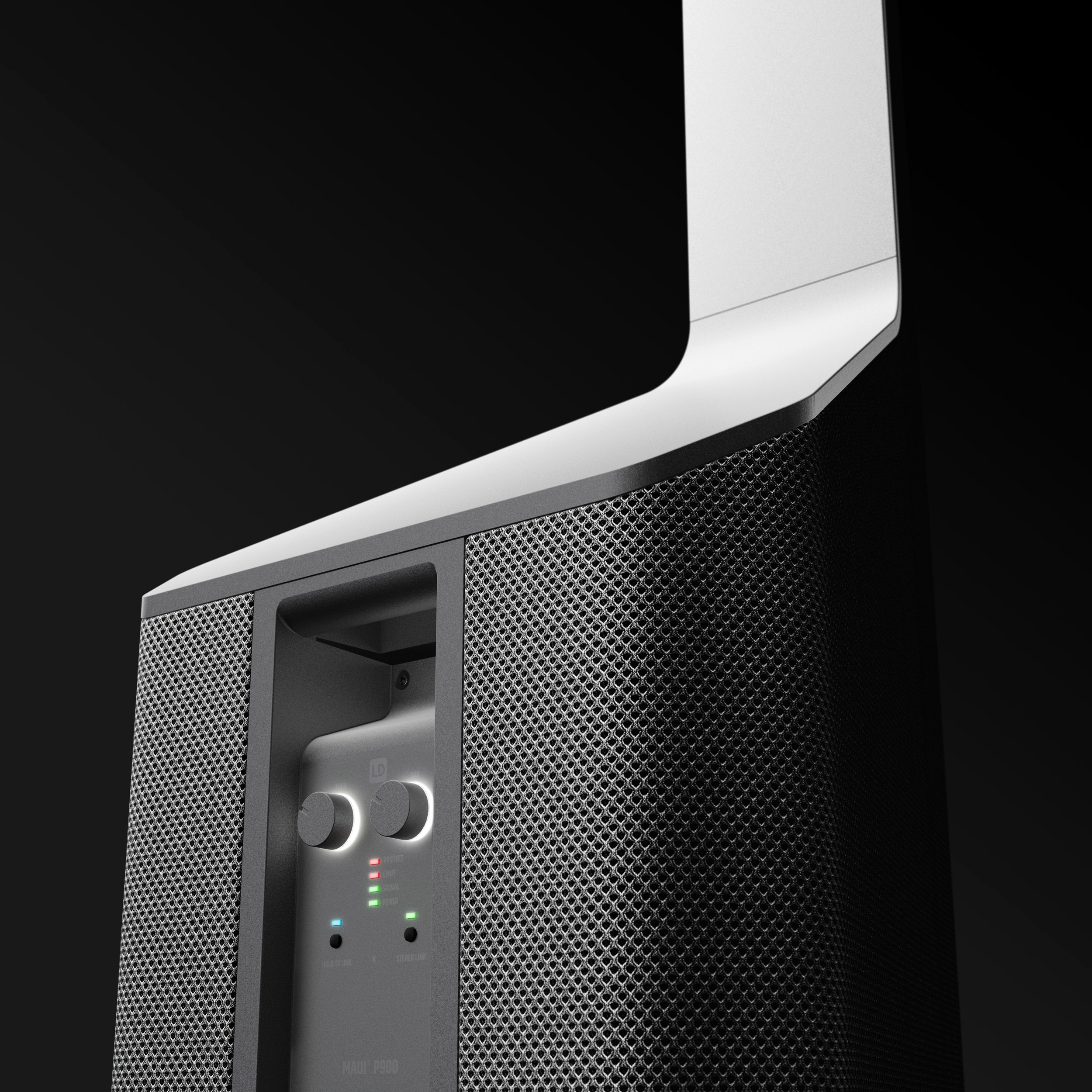

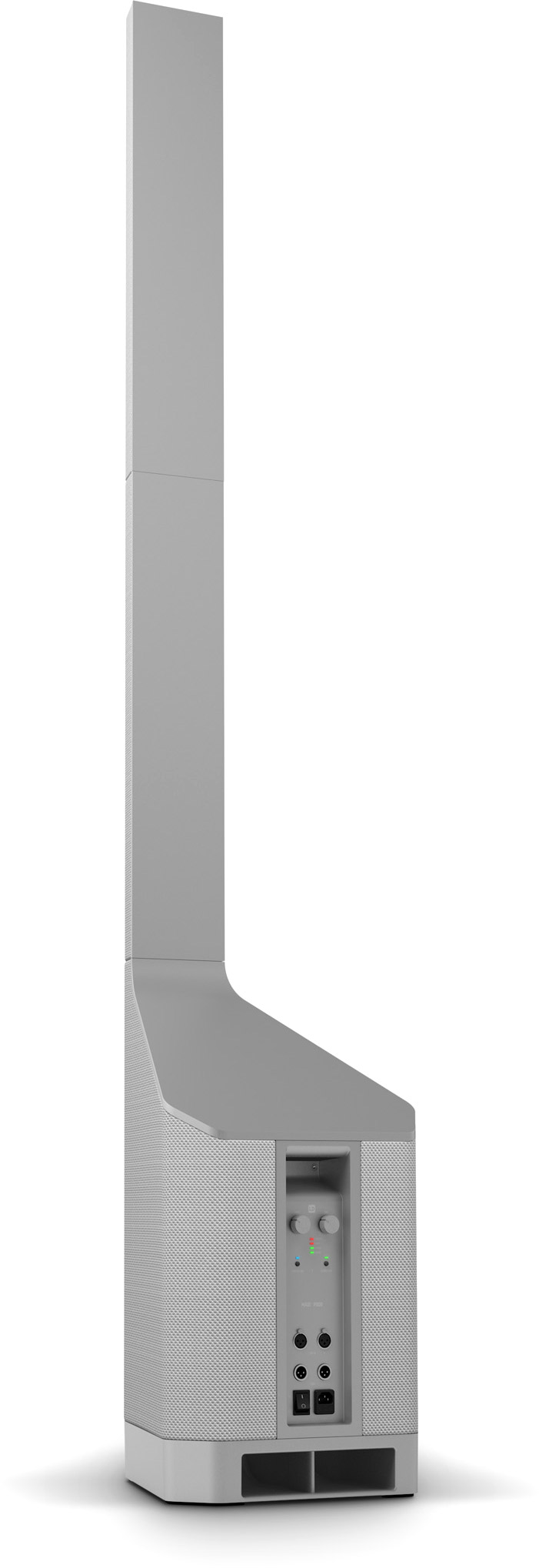

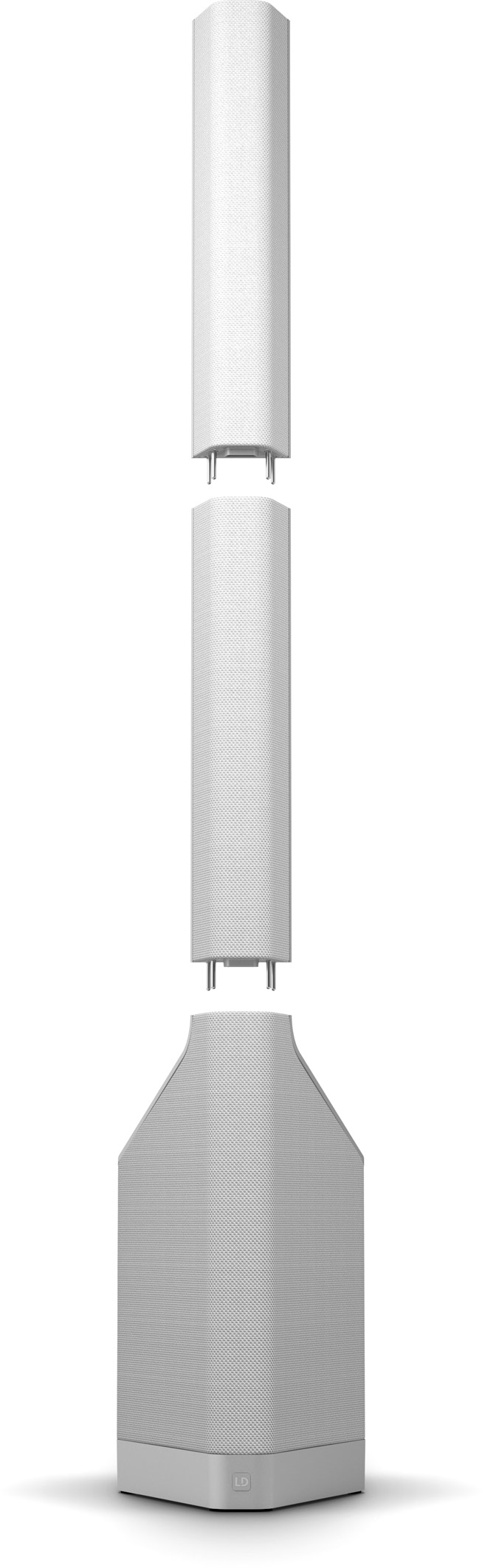

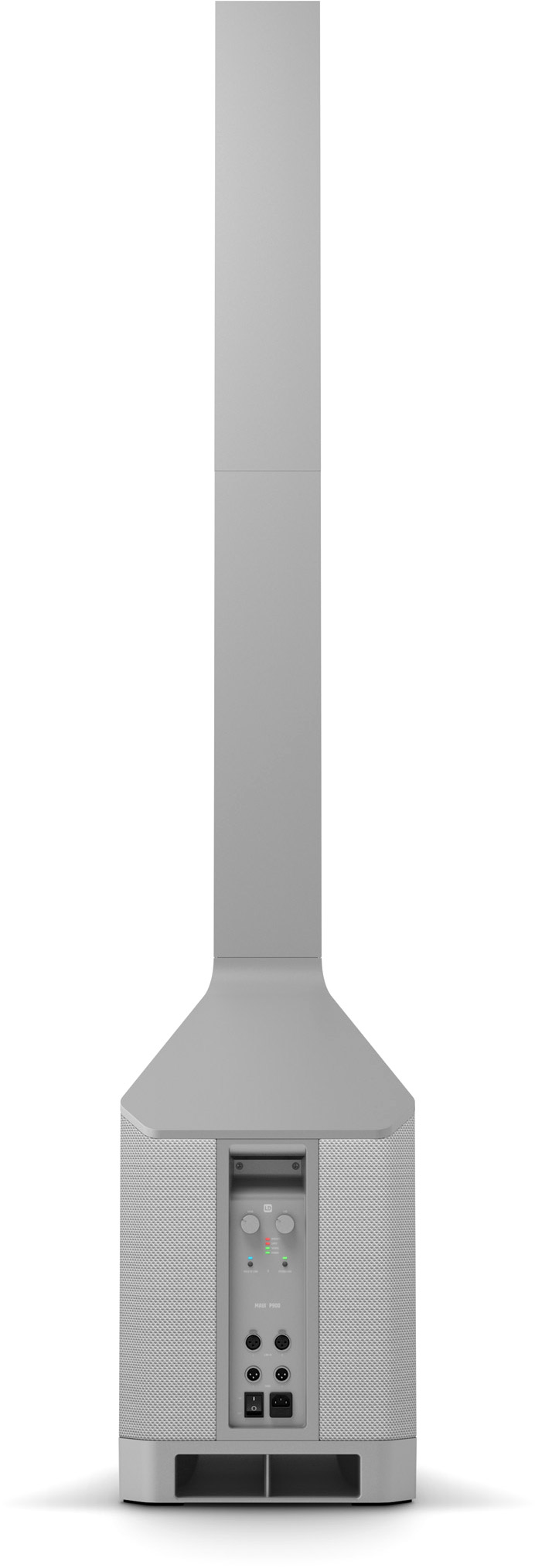

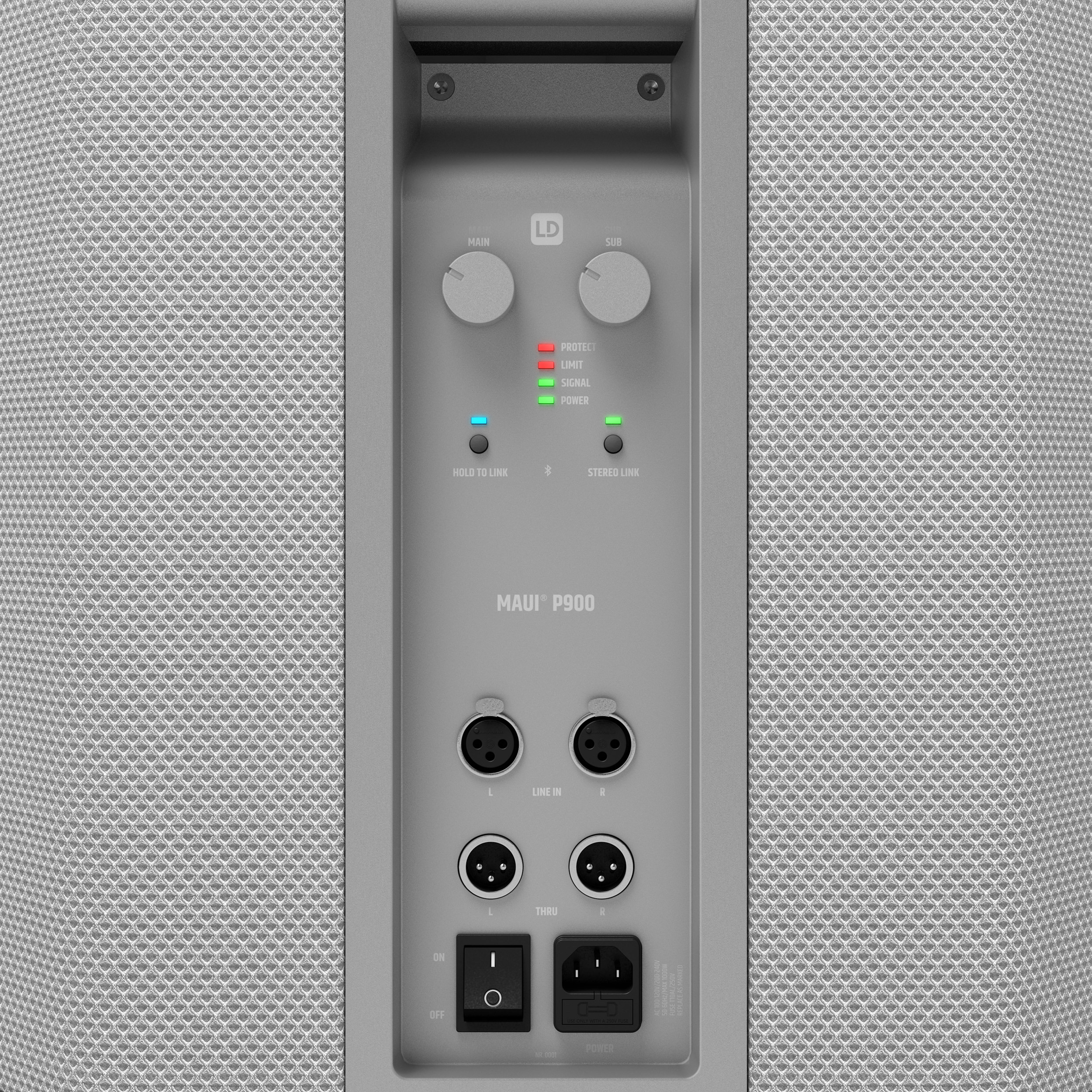

Constructed of high-strength aluminium with a multilayer mesh grille, the unique three-piece MAUI® P900 body features proprietary multi-pin connectors for instant cableless setup. The minimalist connector panel provides main and sub level controls plus XLR stereo line inputs and outputs for wired stereo operation of two systems.

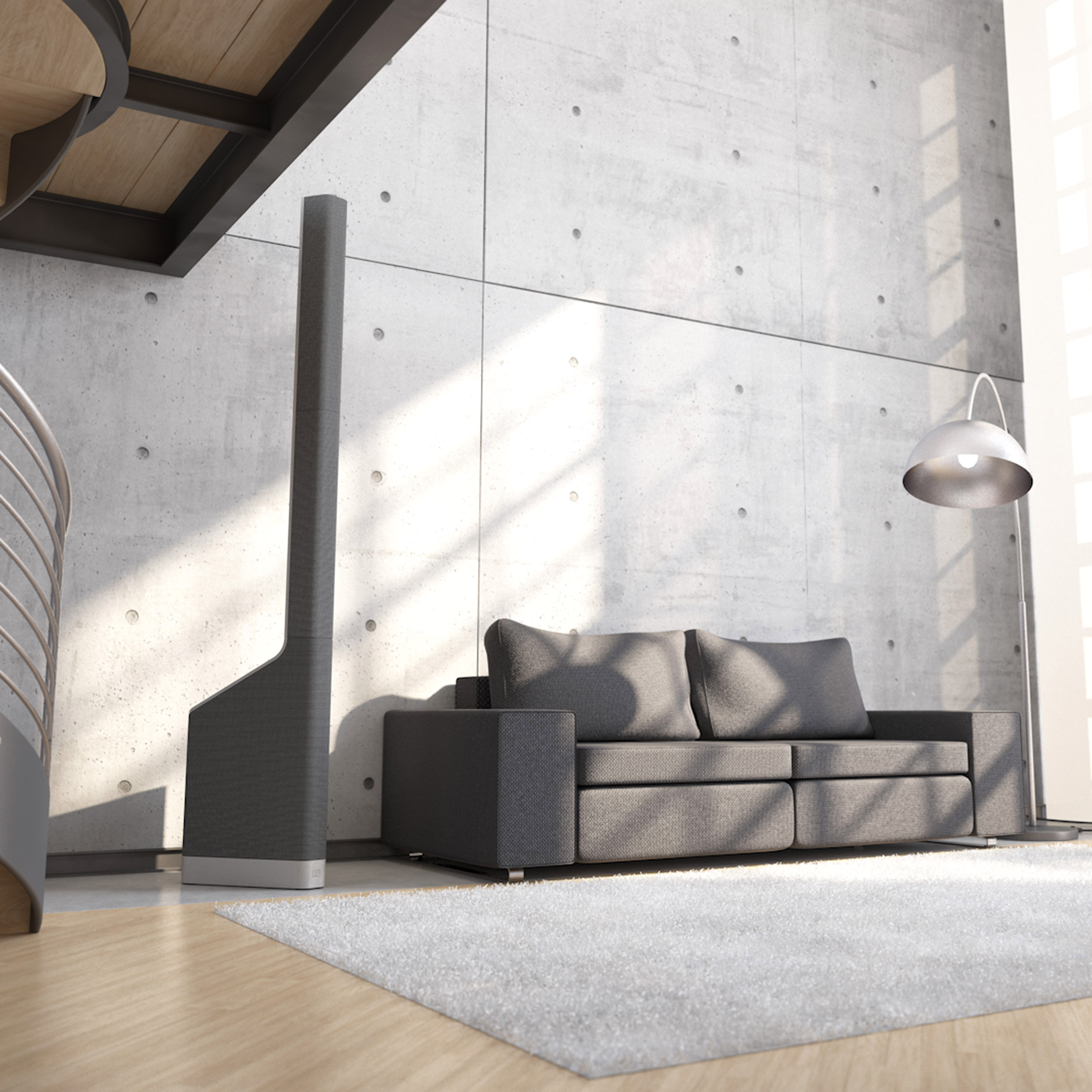

Merging distinctive aesthetics and outstanding audio performance, the MAUI® P900 comes in Cocoon White, Platinum Grey or Graphite Black to elegantly integrate into virtually any ambience.
To facilitate transport and protect the MAUI® P900 from damage, padded carrying bags for the column elements and subwoofer and a dedicated road case are available as accessories.
Technical data:| Product type: | PA Complete Systems |
| Type: | active |
| Color: | Cocoon White |
| Max. SPL (continuous): | 121 dB |
| Max. SPL (peak): | 131 dB |
| Frequency response: | 42 - 20.000 Hz |
| Dispersion (H x V): | 140 x 15 ° |
| Total Height: | 2173 mm |
| Weight: | 46 kg |
| Features: | Bluetooth Audio Streaming |
| Features: | DSP-based Signal Processing |
| Features: | Excellent Sound Dispersion |
| Features: | Mono/ Stereo Application |

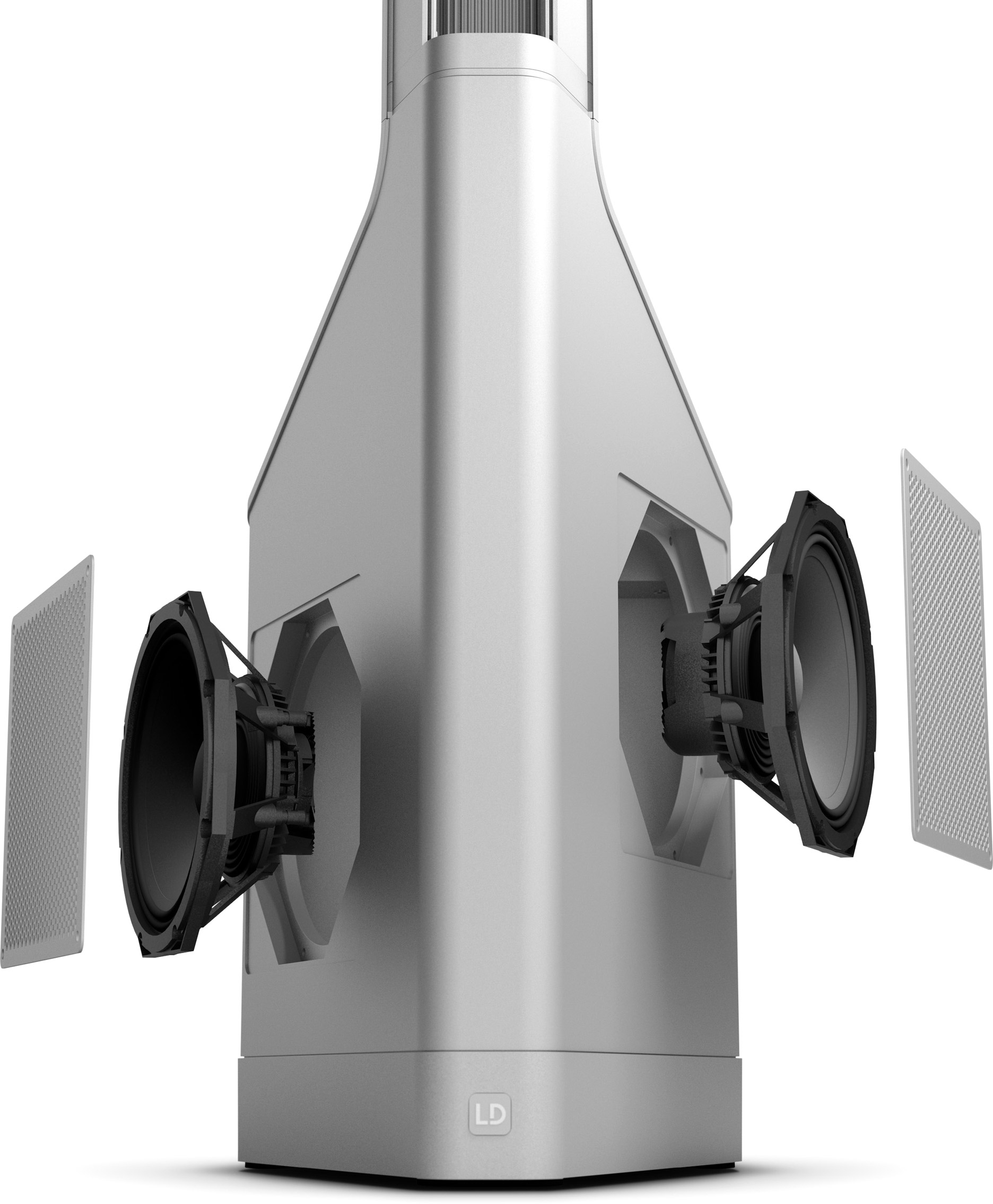

| Woofer dimensions: | 2 x 10 " |
| Woofer size: | 2 x 254 mm |
| Woofer magnet: | Neodymium |
| Woofer brand: | Custom-made |
| Woofer voice coil: | 3 " |
| Woofer voice coil (mm): | 76.2 mm |
| Cabinet construction: | Bass Reflex |
| Housing material: | 15 mm Plywood |
| Cabinet surface: | HD coated aluminum |
| Cabinet surface: | multi layer mesh (cloth) |
| Dimensions Subwoofer (W x H x D): | 400 x 745 x 470 mm |
| Subwoofer weight: | 30.6 kg |
| Midrange size: | 16 x 2.8 " |
| Midrange size: | 16 x 71,1 mm |
| Midrange magnet: | Neodymium |
| Midrange brand: | Custom-made |
| Midrange voice coil: | 0.75 " |
| Midrange voice coil: | 20 mm |
| Tweeter dimensions: | 32 x 1 " |
| Tweeter dimensions (mm): | 25.4 mm |
| Tweeter magnet: | Neodymium |
| Tweeter brand: | Custom-made |
| Tweeter voice coil: | 1 " |
| Tweeter voice coil (mm): | 25.4 mm |
| Wave Guide: | SonicGuide® Technology |
| MF / HF Transducer Arrangement: | Patented WaveAhead® Technology |
| Loudspeaker inputs: | 1 |
| Speaker input connections: | Custom-made multipin |
| Cabinet construction mid/high: | Closed |
| Mid/Hi system cabinet material: | Aluminium |
| Mid/Hi system cabinet surface: | HD coated aluminum |
| Mid/Hi system cabinet surface: | multi layer mesh (cloth) |
| Mid/Hi system width: | 157 mm |
| Mid/Hi system height: | 1428 (2 x 714) mm |
| Mid/Hi system depth: | 91 mm |
| Mid/Hi system weight: | 2 x 7.7 kg |
| Amplifier: | 3 x class D |
| System output (RMS): | 1400 W |
| System output (Peak): | 2800 W |
| Protection circuits: | DC protection |
| Protection circuits: | Multiband limiter |
| Protection circuits: | short circuit |
| Protection circuits: | thermal protection |
| Cooling: | Convection |
| Controls: | Bluetooth HOLD TO LINK button |
| Controls: | Bluetooth STEREO LINK button |
| Controls: | Main level |
| Controls: | Power On/Off |
| Controls: | Sub level |
| Indicators: | Bluetooth |
| Indicators: | Bluetooth STEREO LINK |
| Indicators: | Limit |
| Indicators: | Power |
| Indicators: | Protect (protection circuit engaged) |
| Indicators: | Signal |
| Mains connector: | IEC power cable (included) |
| Operating voltage: | 100 V AC - 120 V AC, 50 - 60 Hz |
| Operating voltage: | 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion) |
| Operating voltage: | Switching power supply |
| Power Consumption (On / Off / Max.): | 0 W / 11 W / 1000 W |
| Ambient temperature (operating): | 0 - 40 °C |
| Relative Humidity: | 10 % - 80 % |
| Line Inputs: | 1 x stereo |
| Line Input Connectors: | Neutrik XLR |
| Line Outputs: | 1 x Stereo Thru |
| Line Output Connectors: | Neutrik XLR |
| Number of speaker outputs: | 1 |
| Loudspeaker Output Connectors: | Custom-made multipin |
| Bluetooth Standard: | A2DP |
| Bluetooth Audio Decoder: | AAC |
| Bluetooth Audio Decoder: | aptX |
| Bluetooth Audio Decoder: | SBC |
| Bit depth AD/DA converter: | 24 bit |
| Sampling frequency: | 48 kHz |
| Signal-to-noise ratio: | 106 dB |
