LD Systems MAUI 28 G2 W - Compact Column PA System with Mixer and Bluetooth white
- All-in-one column speaker for PA and monitor applications
- 2,000 watts peak Class-D system power offers high performance with a low weight
- Powerful bass reproduction with 2 x 8" woofers
- Balanced mids thanks to the 16 x 3" full-range speakers
- Precise and silky highs with 2 x 1" high-frequency drivers
- Increased range and wider coverage through the array arrangement
- Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
- Distortion-free sound even at the highest volume thanks to LD Systems DynX® DSP technology
- Full control through a 4-channel mixer including Bluetooth® Stereo Audio Streaming
- Two-piece column for compact transport
- Secure plug-and-play connection thanks to the wireless multi-pin mechanism
- A wide range of application options through dismountable columns
- Easy operation with presets for mono or stereo configuration
- Extensive and smart accessories for installation and transport

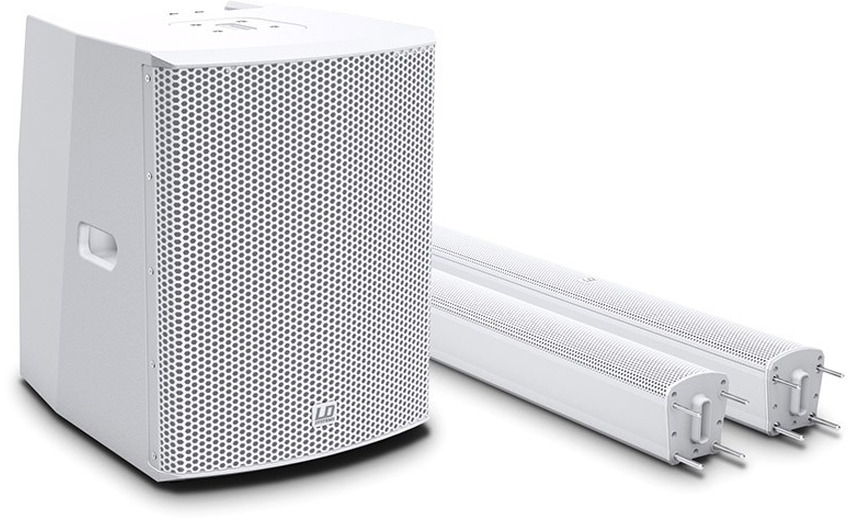

A complete sound system that you can carry together with your instrument: introducing the MAUI 28 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 28 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed with year-long experience in the design of the column systems as a user-friendly solution for medium sized gigs and fixed installations.
The MAUI 28 G2 is equipped with two 8" woofers, sixteen 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier with an enormous 2,000 watts peak power and produce a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides a top-class performance every time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way crossover with run time correction.
The design of the MAUI 28 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.
With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer, DJ or musician in a small band, you will be thrilled with the extraordinary sound and portability of the MAUI 28 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 28 G2 is a well thought out overall solution, down to the last details.
Technical data:Weight: | 30,9 kg |
Product type: | PA Complete Systems |
Type: | active |
Color: | white |
Max. SPL (peak): | 126 dB |
Frequency response: | 45 - 20000 Hz |
Dispersion (H x V): | 120° x 20 ° |
Overall height: | 2059 mm |
Low/mid driver dimensions: | 2 x 8 " |
Woofer size: | 2 x 203 mm |
Woofer magnet: | Ferrite |
Woofer brand: | Custom-made |
Woofer voice coil: | 2 " |
Woofer voice coil (mm): | 50.8 mm |
Cabinet construction: | Bass Reflex |
Cabinet material: | 15 mm Plywood |
Cabinet surface: | texture paint |
Subwoofer width: | 370 mm |
Subwoofer height: | 484 mm |
Subwoofer depth: | 480 mm |
Subwoofer weight: | 19.7 kg |
Midrange size: | 16 x 3 " |
Midrange size: | 16 x 76.2 mm |
Midrange magnet: | Ferrite |
Midrange brand: | Custom-made |
Midrange voice coil: | 1 " |
Midrange voice coil: | 25.4 mm |
Horn: | Waveguide |
Tweeter dimensions: | 2 x1 " |
Tweeter dimensions (mm): | 25.4 mm |
Tweeter magnet: | Neodymium |
Tweeter brand: | Custom-made |
Tweeter voice coil: | 1 " |
Tweeter voice coil (mm): | 25.4 mm |
Loudspeaker inputs: | 1 |
Speaker input connections: | Custom-made multipin |
Cabinet construction mid/high: | Closed |
Mid/Hi system cabinet material: | Aluminium |
Mid/Hi system cabinet surface: | HD coating |
Mid/Hi system width: | 96 mm |
Mid/Hi system height: | 780 / 795 mm |
Mid/Hi system depth: | 104 mm |
Mid/Hi system weight: | 5.6 / 5.6 kg |
Amplifier: | Class D |
Amplifier output system (RMS): | 1000 W |
Amplifier output system (peak): | 2000 W |
Protection circuits: | DC protection |
Protection circuits: | Multiband limiter |
Protection circuits: | short circuit |
Protection circuits: | thermal overload |
Cooling: | Convection |
Operating Temperature: | 0 - 40 °C |
Humidity Range: | 10% to 80%, (non-condensing) |
Controls: | Bluetooth switch |
Controls: | Hi-Z Level |
Controls: | Line level |
Controls: | Main level |
Controls: | Mono/stereo switch |
Controls: | MP3/Bluetooth Level |
Controls: | Power |
Controls: | Sub level |
Indicators: | Limit |
Indicators: | mono |
Indicators: | On |
Indicators: | Protect (protection circuit engaged) |
Indicators: | Setup |
Indicators: | Signal |
Indicators: | stereo |
Power connector: | IEC power cable (included) |
Operating voltage: | 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) |
Power consumption Off / On / Max.: | 0/11/600 W |
Line inputs: | 2 x stereo |
Line input connectors: | RCA |
Line input connectors: | XLR/6.3 mm jack |
Line outputs: | 2 (1x System Out, 1x Sub Out) |
Line output connectors: | XLR |
Mic inputs: | 1 |
Mic inputs: | XLR/6.3 mm jack |
MP3 inputs: | 1 |
MP3 input connectors: | 3.5 mm jack |
Hi-Z inputs: | 1 |
Hi-Z input connectors: | 6.3 mm jack |
Loudspeaker outputs: | 1 |
Speaker output connections: | Custom-made multipin |
Bit depth AD/DA converter: | 24 bit |
Internal sampling frequency: | 48 kHz |
Signal/noise ratio: | 100 dB |
