RCF EVOX J8

€895.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Currently not available

Item number: 206600890

EAN: 8024530015541

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired... more

Back to the overview

All information about the product:

"RCF EVOX J8"

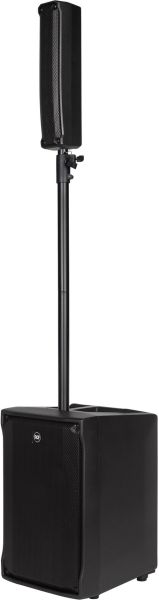

The RCF J8 features a line source satellite module with eight 2” full-range drivers paired with a high-powered 12” woofer in a bass reflex enclosure. All powered by on-board 1400 W Class D amplification. The EVOX J Series maintains a similar footprint to the original EVOX systems, now in a portable composite enclosure. The system offers stunning sound performance with crystal-clear vocal reproduction and unparalleled musical response.

Features

128 dB Max SPL
1400 Watt 2-way peak power
DSP Processing with FiRPHASE
12" woofer, high power 2.5" voice coil
8 x 2" ultra compact fullrange 1.0" voice coil
2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
23,8/52.5 kg/lbs

Specifications
ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:	40 Hz ÷ 20 Hz
Max SPL:	128 dB
Horizontal coverage angle:	120°
Vertical coverage angle:	30°
Fullrange:	8 x 2.0", 1.0" v.c
Woofer:	12", 2.5" v.c
INPUT/OUTPUT SECTION
Input signal:	bal/unbal
Input connectors:	XRL, Jack
Output connectors:	XLR
Input sensitivity:	-2 dBu/+4 dBu
PROCESSOR SECTION
Crossover frequencies:	220 Hz
Protections:	Thermal, RMS
Limiter:	Soft Limiter
Controls:	Volume, Boost, Mic/Line
AMPLIFIER SPECIFICATIONS
Total power:	700 W RMS
High frequencies:	200 W RMS
Low frequencies:	500 W RMS
Connections:	Convection
CABINET
Cabinet Material:	PP Composite
Handles:	1 Top
Pole Mount/Cap:	Yes
Grille:	steel
Colour:	Black
PHYSICAL SPECIFICATIONS
Height:	623/24.53 mm/inch
Width:	400/15.75 mm/inch
Depth:	460/18.11 mm/inch
Net Weight:	23.8/52.47 kg/lbs
