Wharfedale Titan 8 Active MKII Grey

Titanium 8 Active MKII
The Wharfedale Pro EWG™ Horn is the result of elaborate computer simulations and like no other product on the market, the natural propagation of sound is supported here. Hard corners, edges or reflective surfaces has been minimized . The soft, organic horn structure produces less distortion and reflection than other horn technologies on the market. The result is a "softer, smoother" frequency response, more horn driver efficiency and improved reproduction in music and voice reproduction.

The housing of the Titan is manufactured using the latest gas pressure technology. In this process, a gas is pumped into the cavities during production, which presses the mass against the wall of the mold. Shortly before cooling, the gas is then sucked out again. The result is an extremely light but enormously resistant housing. An internal ribbed structure further increases robustness.

The Titan 8 Active MKII has 2 Class D high power amplifiers with 150Watt RMS power for bass and 30Watt RMS for treble. The "intelligent" electronics consists of 2 limiters to protect the power amplifiers / speakers and all common protection circuits, such as short circuit, overload, thermal overload, etc.. This guarantees safe operation even in limit ranges. Compared to the previous series, the signal can now also be "looped on" to additional boxes.

Powerful, compact, ultra-light and affordable - the Titan 8 is the ideal choice for installation and outdoor applications. But also as a small band or DJ system in combination with a Titan subwoofer or as a small monitor system, this lightweight can convince.


Key Features

• 2-Way Active Speaker System
• Specially designed water resistant 8" woofer
• State-of-the-art high-efficiency Class D power amplifiers
• Active signal limiting system with optical display
• Rubber backed handle
• Standard 35mm high stand flange with locking device
• Trapezoidal housing for versatile use
• "Stacking" points for easy stacking
• Ultra-light, robust housing due to latest manufacturing technology
• 8 pcs M6 fixing points for flexible mounting
• Integrated cable anchor/rewinder

General data


System type
2-way active system

Frequency response +/-3dB
70Hz-20kHz

Sensitivity (db 1w@1m)
96dB SPL

System impedance
4 Ohm

Maximum SPL Peak dB
124dB SPL peak


Power (Watt)

Bass power amplifier (Class D)
150 Watt RMS/300 Watt Peak

Tweeter power amp (Class A/B)
30 Watt RMS/ 60 Watt Peak


Woofer

Woofer loudspeaker
205mm / 8 ", die-cast aluminum

Voice coil
38.86mm / 1.53 "


Tweeter section

Voice coil
30mm / 1.2 "

Type
Titanium compression driver

Horn resolution
90° x 60° 2kHz - 10kHz

Horn opening
25mm / 1 "

Input A type
Switchable Mic/Line Level

Input sensitivity
Mic: -36dBu (-38.2dBv or 12.28mVrms)
Line: +4dBu (1.78dBv or 1.228Vrms)

Maximum input level
+22dBu

Input socket
XLR - 1/ 4" combo jack

Impedance
Balanced: 20k ohms

Input B type
Line Level

Maximum input level
+22dBu

Input socket
Combo jack: 1/4" - XLR


Equipment

Surface

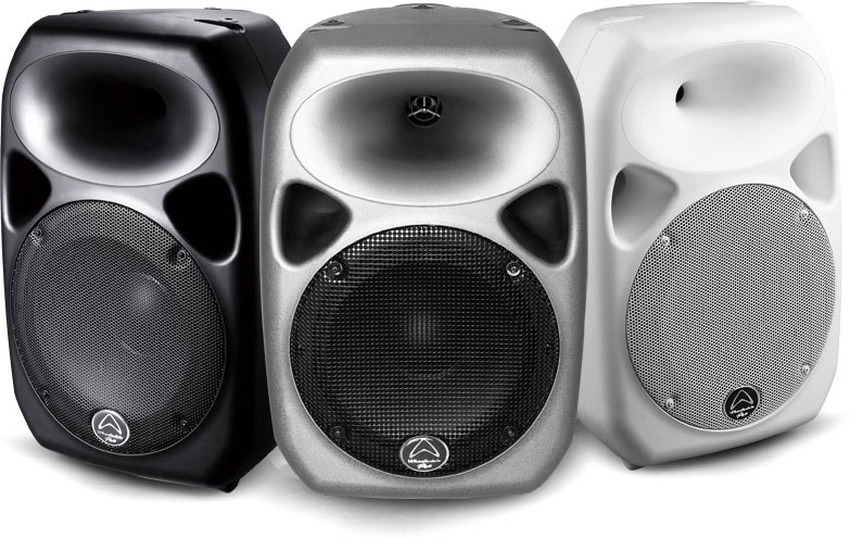

Titanium gray, black or white

Material
Polypropylene

Handles
1

Fixing points
8 x M6

High column flange
Standard 35mm with locking


Input section

Inputs
NL4 Speakon ™ x2 " 1/4" jack x 2 (parallel)


Dimensions

Height (mm)
396mm

Width (front/rear) (mm)
266mm

Depth
221mm

Weight incl. packing
7.7kg

Net weight
5.7kg

Accessories optional
Wall mount, transport bag (roadbag)
