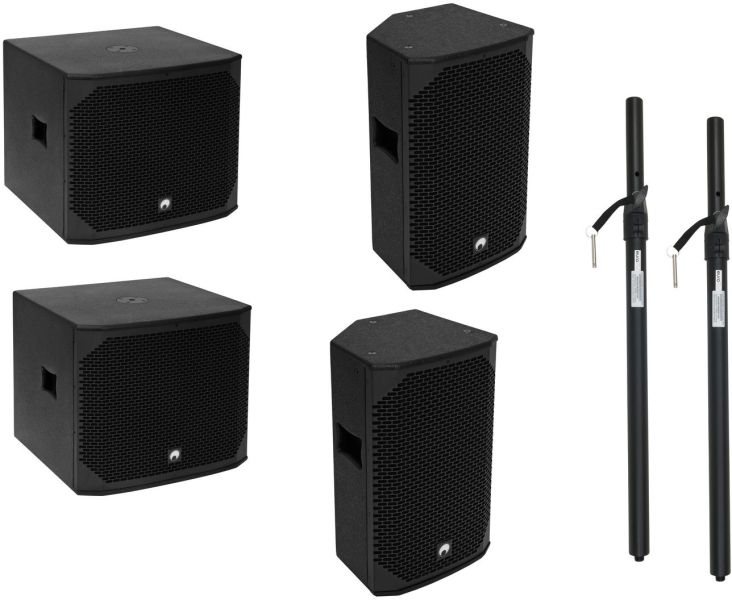

OMNITRONIC PA Set AZX active M/L

€1,749.00 *

incl. tax, plus forwarding agency costs

Bulky goods

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Bulky goods

Item number: 200020780

2x active 18" PA bassreflex subwoofer with 2x active speaker with 12" woofer incl. distance tube... more

Back to the overview

All information about the product:

"OMNITRONIC PA Set AZX active M/L"

2x active 18" PA bassreflex subwoofer with 2x active speaker with 12" woofer incl. distance tube

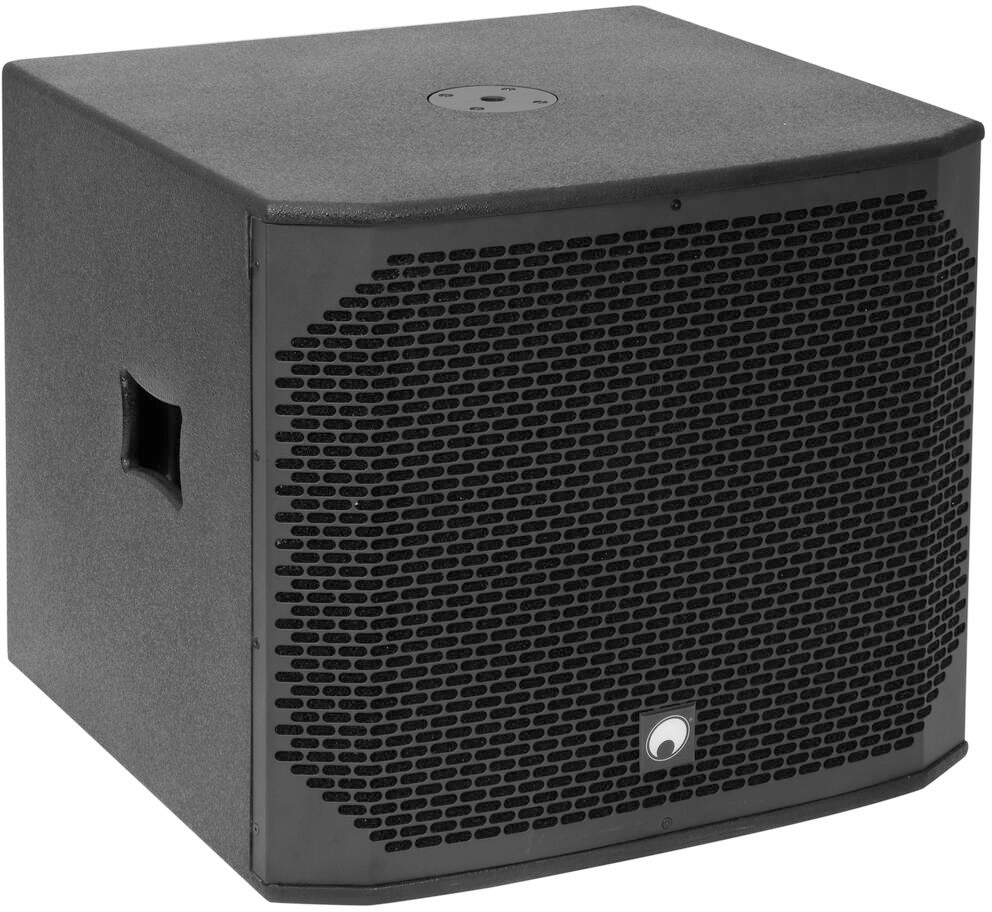

OMNITRONIC AZX-118A PA Subwoofer active 400W

Active 18" PA bassreflex subwoofer, 400 W

46 cm (18") bass speaker with 76 mm voice coil
Class D amplifier with 400 W
XLR inputs and parallel outputs L/R
XLR output L/R with high-pass filter
Adjustable crossover frequency 80-200 Hz
Rugged carrying handle
Black metal grille with acoustic foam

Package contents

1 x bass, 1 x user manual, 1 x power cord

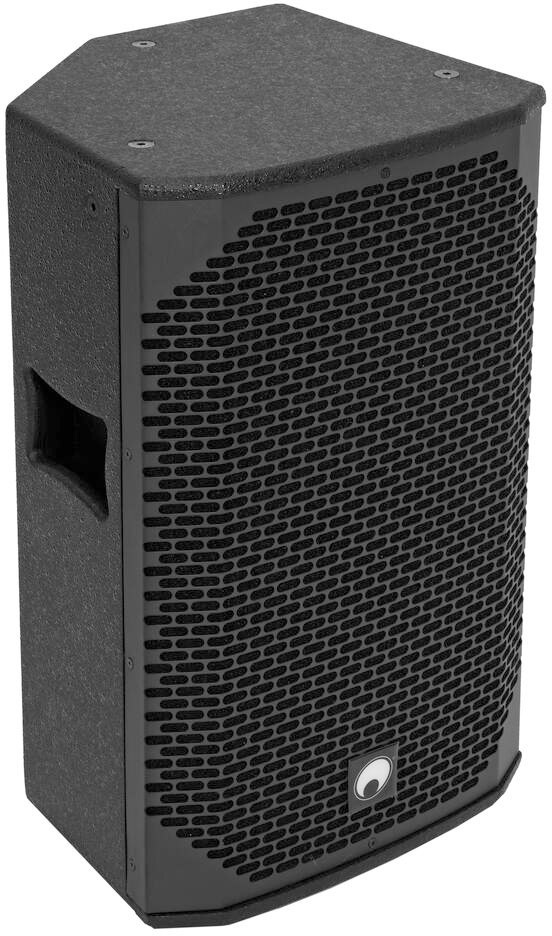

OMNITRONIC AZX-212A 2-Way Top active 250W

Active speaker with 12" woofer, 1.35" titanium driver, LF 200 W RMS, HF 50 W RMS

2-way bass-reflex enclosure with 30 cm woofer and 3.5 cm titanium driver
Balanced signal input XLR/6.3 mm jack, switchable mic/line
HF adjustment -4 dB, -2 dB, 0 dB
Black metal grille with acoustic foam
Rugged carrying handle
Application possibility: Standing; suspended; monitoring; on tripod
With rigging points
Dual flange

Package contents

1 x user manual, 1 x power cord, 1 x compact cabinet speaker

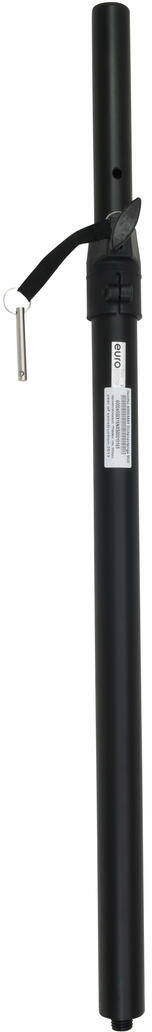

OMNITRONIC Distance Tube Subwoofer/Satellite M20

Variable distance tube

Connecting tube for satellite systems
Locking screw and bolt
Powder-coated steel version
Adjustable height
M20 thread

Package contents

1 x distance tube, 1 x user manual

Weight:	105,50 kg
OMNITRONIC AZX-118A PA Subwoofer active 400W
Power supply:	230 V AC, 50 Hz
Power consumption:	650 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:	Rated: 400W RMS
Frequency range:	40 - 250 Hz
Sensitivity:	95 dB (1W/1m)
Attachment system:	Flange: M20 thread
Circuitry:	Class D
Control elements:	Phase reversal switch
Controls:	Limiter
Status LED:	Limit, power, signal
Connections:	Input: line via 2 x 3-pin XLR Output: line via 2 x 3-pin XLR Output: high-pass via 2 x 3-pin XLR
Crossover frequency:	80-200 Hz
Speaker:	1 x woofer (18") approx. 45 cm Basket material: Steel Voice coil lows (2.5") approx. 6.35 cm
Type of speaker:	Subwoofer
Type of construction:	Vented
Carrying handle:	1 pc/pcs
Material:	MDF (Medium-density fibreboard), 15 mm
Color:	Black, textured coating, painted
Dimensions:	Width: 61,3 cm Depth: 61,3 cm Height: 54 cm
Weight:	32,70 kg
OMNITRONIC AZX-212A 2-Way Top active 250W
Power supply:	230 V AC, 50 Hz
Power consumption:	650 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:	Rated: 200W RMS LF Rated: 50W RMS HF
Frequency range:	55 - 20000 Hz
Sensitivity:	95 dB (1W/1m)
Attachment system:	Dual flange: Ø 35mm (0°/5°)
Flying points:	7 x M10 thread
Circuitry:	Class D Biamp
Controls:	Limiter
Status LED:	Limit, power, signal
Connections:	Input: 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR
Input channels:	1 x mono with Mic-line switch via Combination socket (XLR/jack), channel control via Rotary dial
Equalizer:	Master: 1 x 2-band tone control
Speaker:	Woofer (12") approx. 30 cm with ferrit magnet Voice coil lows (2") approx. 5 cm Voice coil compression tweeter highs (1.35") approx. 3.5 cm
Type of speaker:	Compact cabinet speaker
Carrying handle:	1 pc/pcs
Material:	MDF (Medium-density fibreboard), 15 mm
Color:	Black, textured coating, painted
Dimensions:	Width: 43 cm Depth: 40,5 cm Height: 67 cm
Weight:	19,15 kg
OMNITRONIC Distance Tube Subwoofer/Satellite M20
Maximum carrying capacity:	30 kg
Tube diameter sector:	41 - 35 mm
Height:	Maximum: 130 cm Minimum: 75 cm
Attachment system:	Ø 35mm
Type (general stands):	Distance tube
Color:	Black
Thread:	M20 thread
Weight:	900 g
