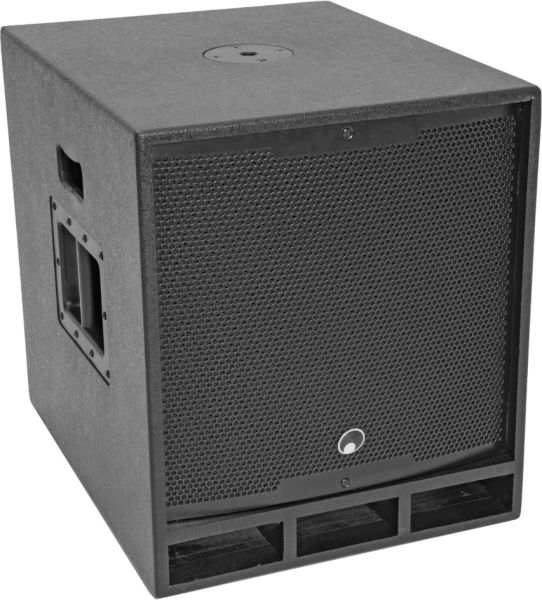

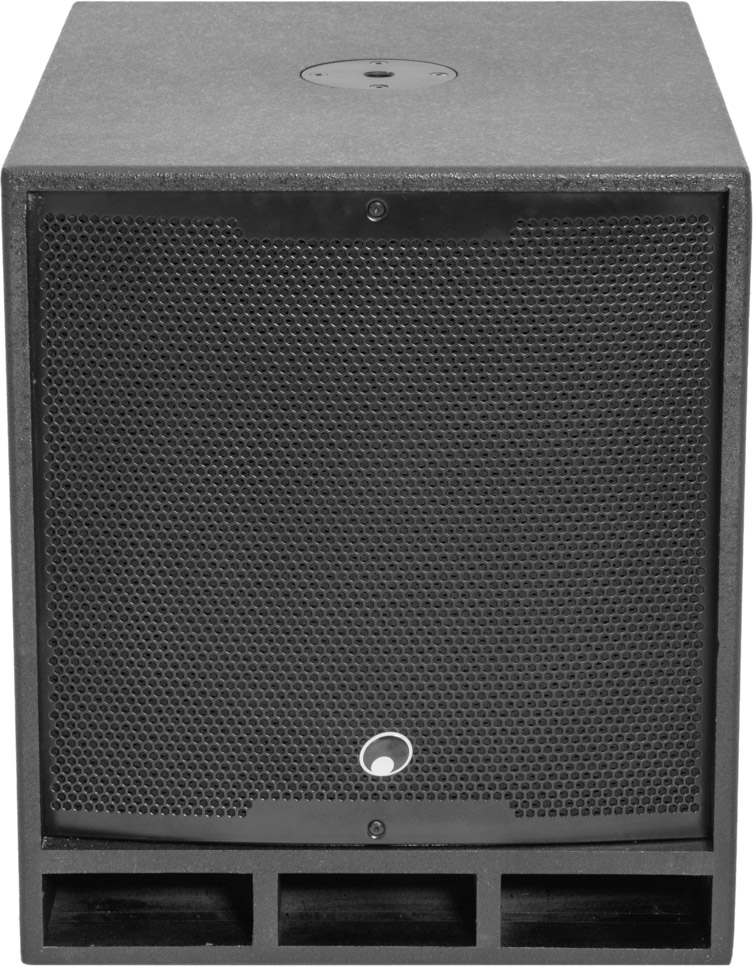

OMNITRONIC MAXX-1810DSP 2.1 Active Subwoofer

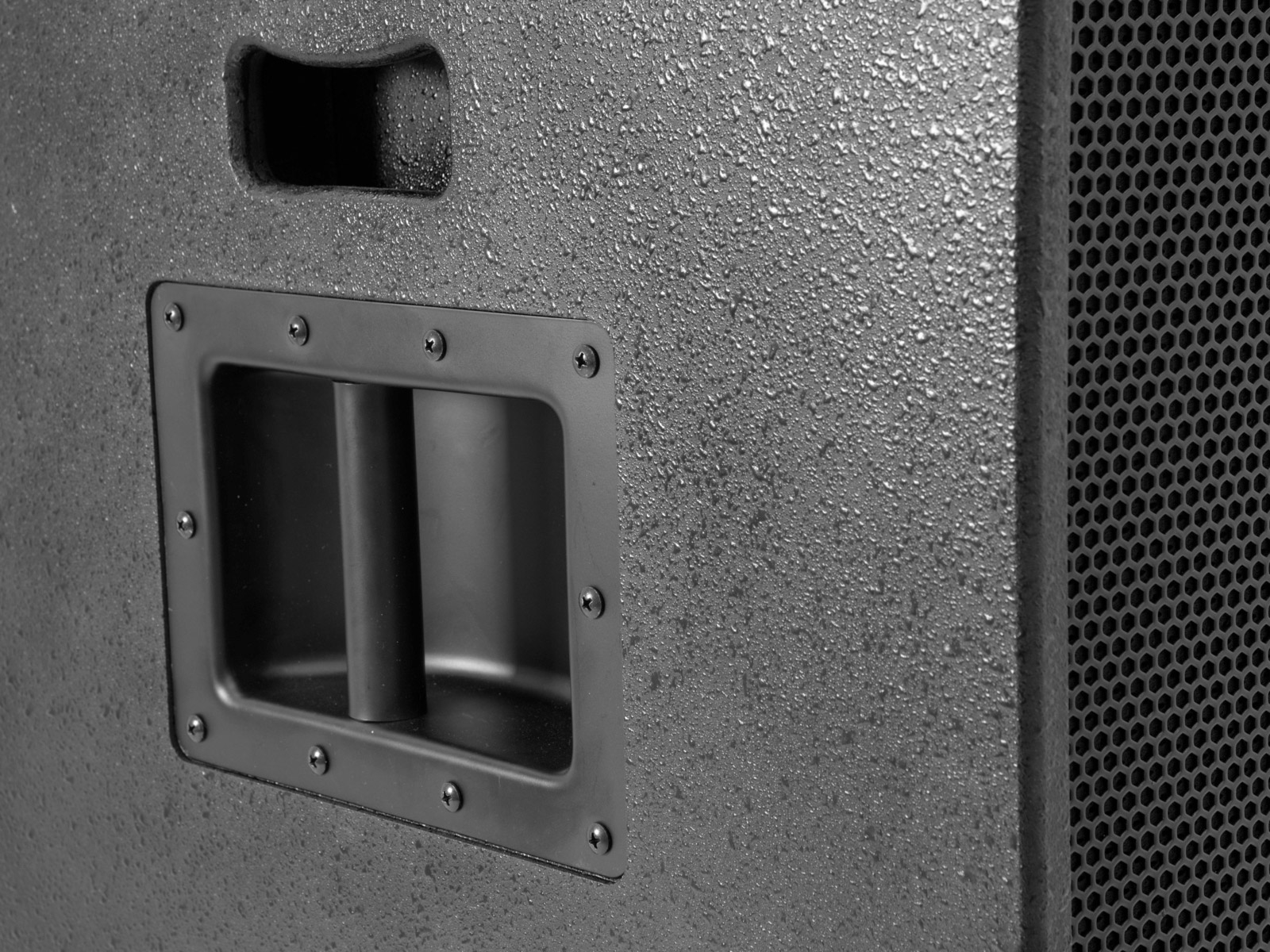

The MAXX-1810DSP is an active 2.1 PA system with 700 watts of continuous power (1400 watts peak) and 123 dB maximum SPL capability. It provides perfect sound and good level stability in various kinds of mobile PA applications.The high-power 18" subwoofer with power-efficient Class D amplifier in a bass reflex cabinet delivers powerful, dry bass. The two satellite loudspeakers with 10" bass/midrange drivers and 1" compression drivers are equipped with a passive 2-way crossover including PTC tweeter protection and ensure a well-rounded sound experience.Equipped with a DSP (digital signal processor) which enables convenient application presets for quick sound contouring, the MAXX-1810DSP offers combined XLR and 6.3 mm inputs with XLR parallel output (for linking additional systems), and an additional RCA input with level adjustment. Enjoy music wirelessly from your smartphone or any other Bluetooth device via the integrated Bluetooth audio receiver and charge them at the same time via the integrated powerbank. The MAXX-1810DSP subwoofer's professional hardware includes a rugged multiplex/MDF enclosure, scratch-resistant lacquer, steel grille and ergonomically shaped handles. Swivel castors for easy transport are optionally available. Matching speaker stands, distance tubes, and stand forks are also available as accessories.

High-power 18" active subwoofer with DSP and Bluetooth, 800 watts

• 18" subwoofer with Class D amplifier in bassreflex cabinet
• Amplifier power: 500 W RMS + 2 x 150 W RMS for two satellites
• Serves as a mobile 2.1 system together with MAXX-1810 2-way tops
• Balanced signal input XLR/6.3 mm jack L/R
• Additional stereo RCA input, with level switch
• Separate volume control for subwoofer and satellites
• Stereo/mono selection
• Digital signal processor
• Control via Bluetooth
• Wheels optional

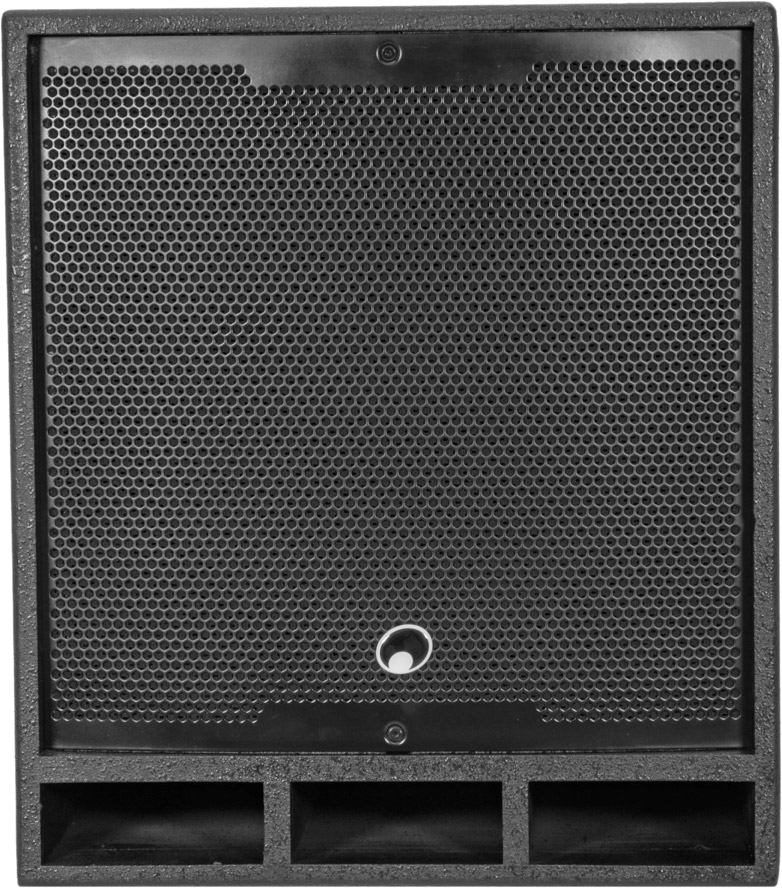

• Black metal grille with acoustic foam
• DSP presets: FLAT; DJ; LIVE

Package contents

• 1 x user manual, 1 x power cord, 1 x bass, 1 x declaration of conformity, 1 x strap

Power supply:	230 V AC, 50 Hz
Power consumption:	800 W
Power:	Rated: 500W RMS LF Rated: 2x 150W RMS HF
Frequency range:	32 - 190 Hz Bass 90 - 18000 Hz Top
Sensitivity:	99 dB
Max. SPL:	123 dB
DSP:	Digital signal processor
DSP presets:	FLAT; DJ; LIVE
Control:	Bluetooth
Circuitry:	Class D
Controls:	Limiter
Status LED:	Power, signal, limit, pairing, DSP presets
Connections:	Input: stereo via 1 x stereo RCA Input: stereo via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) Output: line via 1 x 3-pin XLR Output: speaker via speaker built-in socket (F)
Input channels:	1 x stereo via XLR or RCA or bluetooth, channel control via Rotary dial
Speaker:	1 x woofer (18") approx. 45 cm with ferrit magnet
Type of speaker:	Subwoofer
Type of construction:	Vented
Transport aid:	Wheels optional
Material:	Birch multiplex, 16 mm; MDF (Medium-density fibreboard)
Color:	Black, textured coating, painted
Dimensions:	Width: 50,4 cm Depth: 60,8 cm Height: 46,6 cm
Weight:	32,70 kg
