LD Systems MAUI 44 G2 SUB - Powered 15" Subwoofer for MAUI 44 G2
€2,188.40 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 210905185
EAN: 4049521468889
MPN: LDMAUI44G2SUB
Powered 15" Subwoofer for MAUI 44 G2 Powered 15" subwoofer with flow-optimised bass-reflex... more
All information about the product:
"LD Systems MAUI 44 G2 SUB - Powered 15" Subwoofer for MAUI 44 G2"
Powered 15" Subwoofer for MAUI 44 G2Crisp, powerful bass blasting out the front, drowned out by muffled Low-End and feedback loops in the back - with LD Systems MAUI® 44 G2 SUB, this is a scenario of the past!
DSP characteristics
- Powered 15" subwoofer with flow-optimised bass-reflex ports

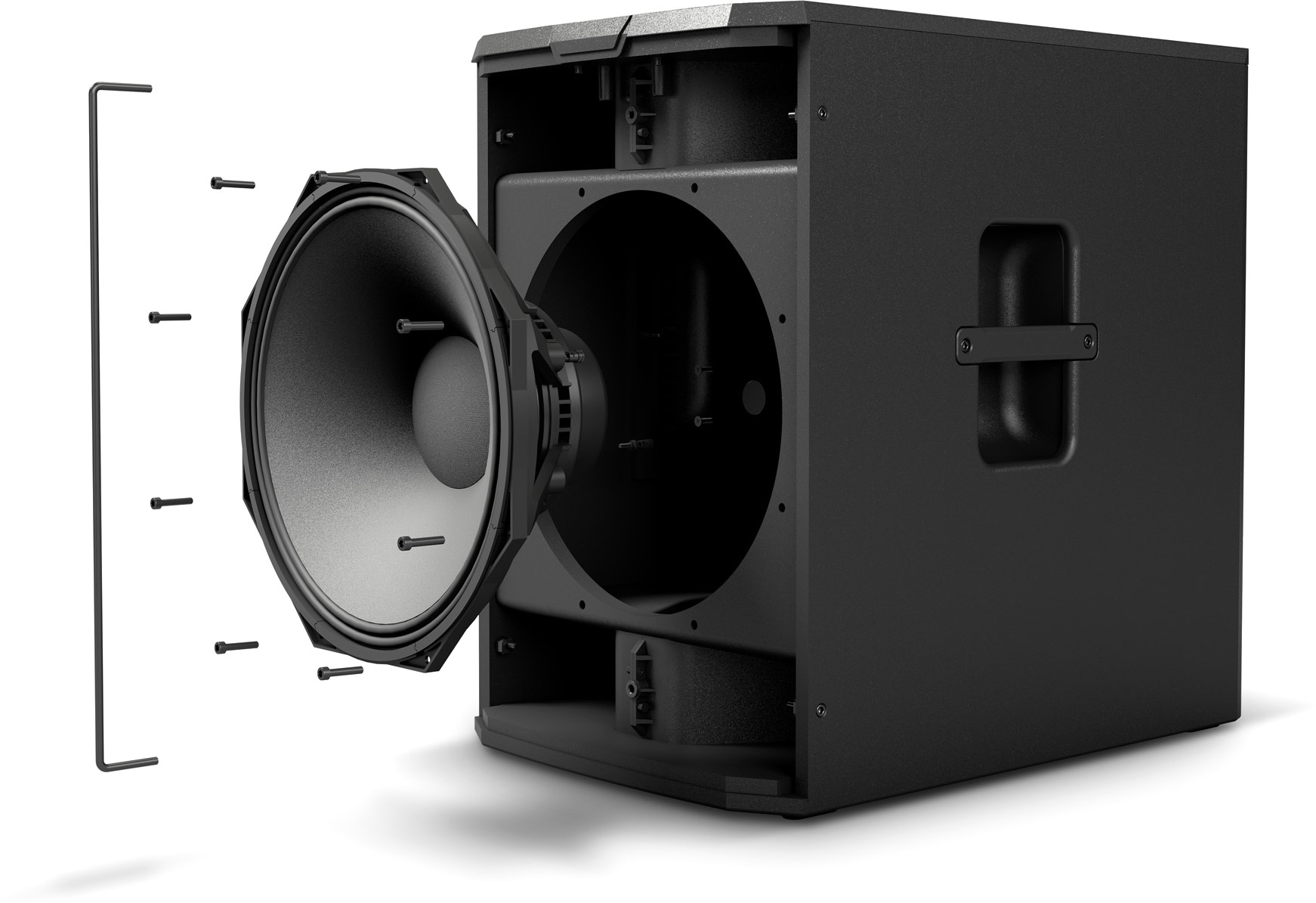

- 15" custom-designed woofer with deep bass down to 37 Hz
- Preset-Switch for cardioid subwoofer configuration
- DynX® DSP technology for distortion-free sound at maximum volume
- Automatic set-up detection
- Rugged subwoofer housing made out of polyurea-coated birch plywood

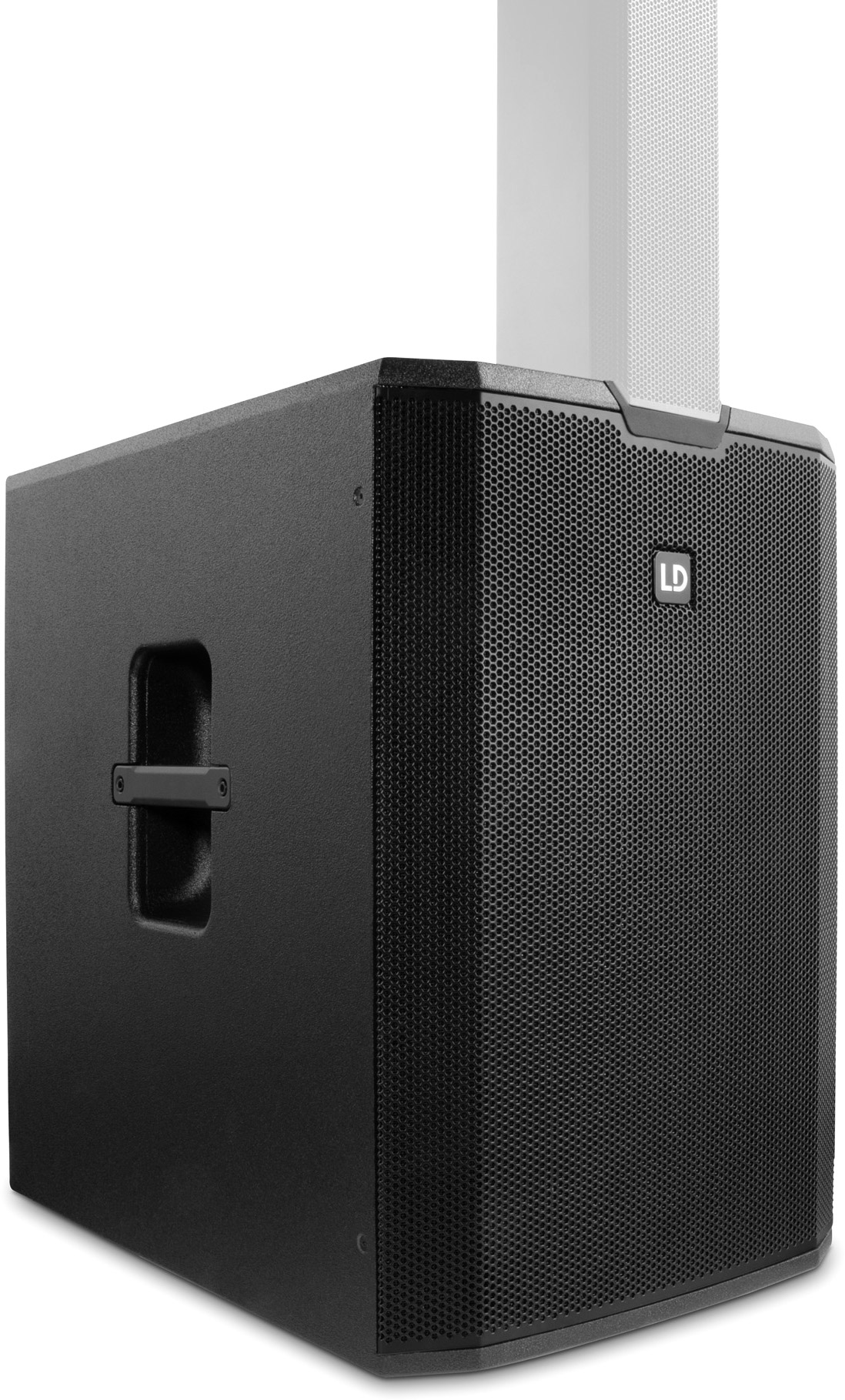

- Shockproof front grille for ultimate speaker protection
- Two ergonomic handles covered in rubber for easy handling
- Attachment points for our MAUI® 44 G2 CB castor board

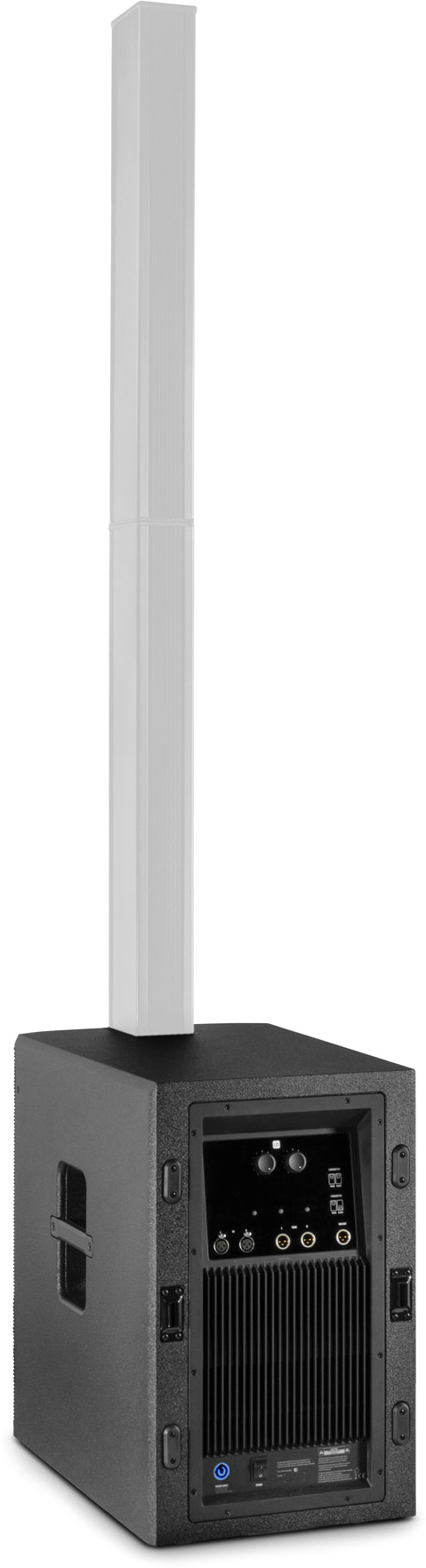

The additional powered MAUI® 44 G2 SUB-woofer broadens the cardioid properties of our professional column loudspeaker series down to the Bass range.

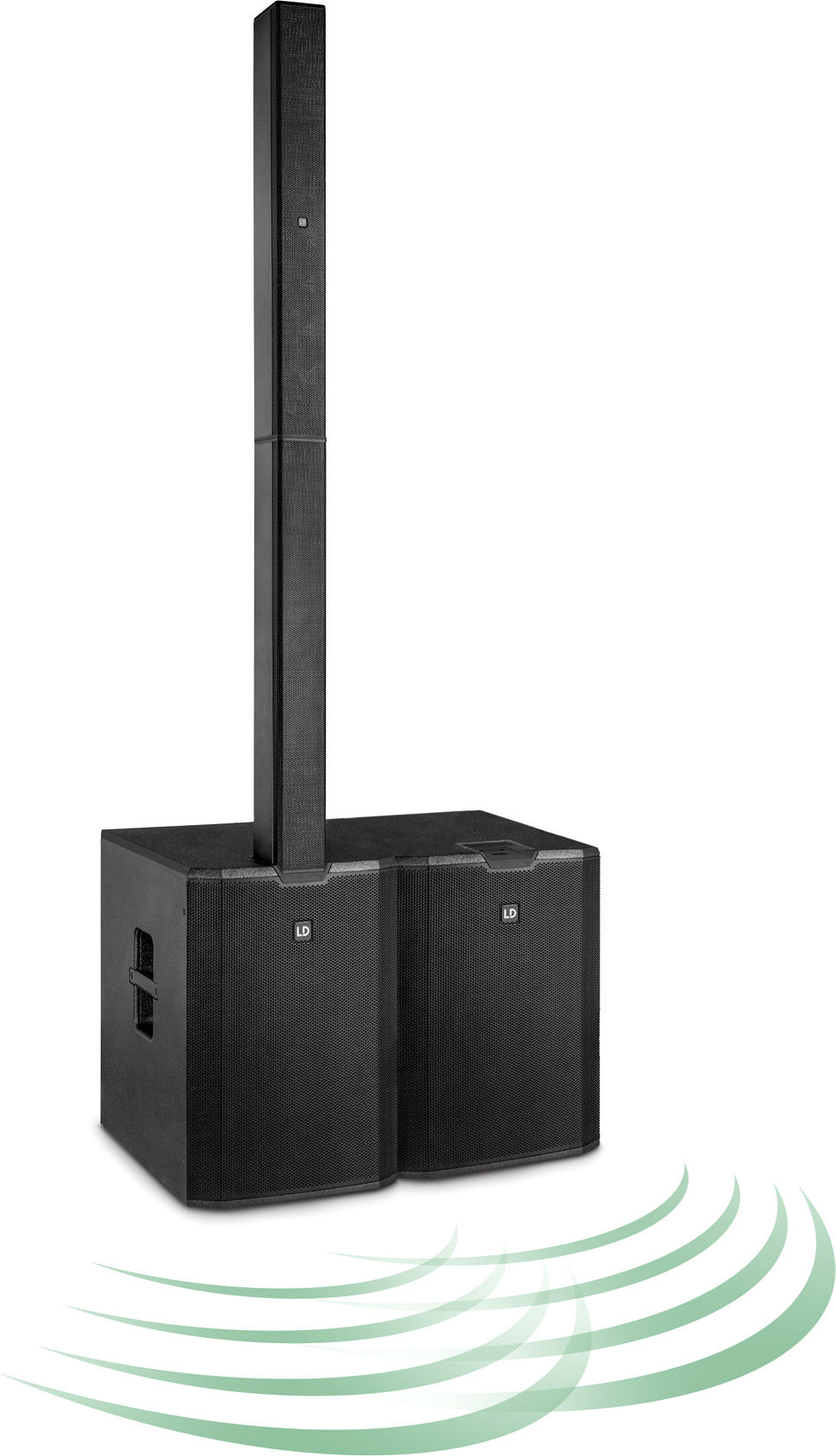

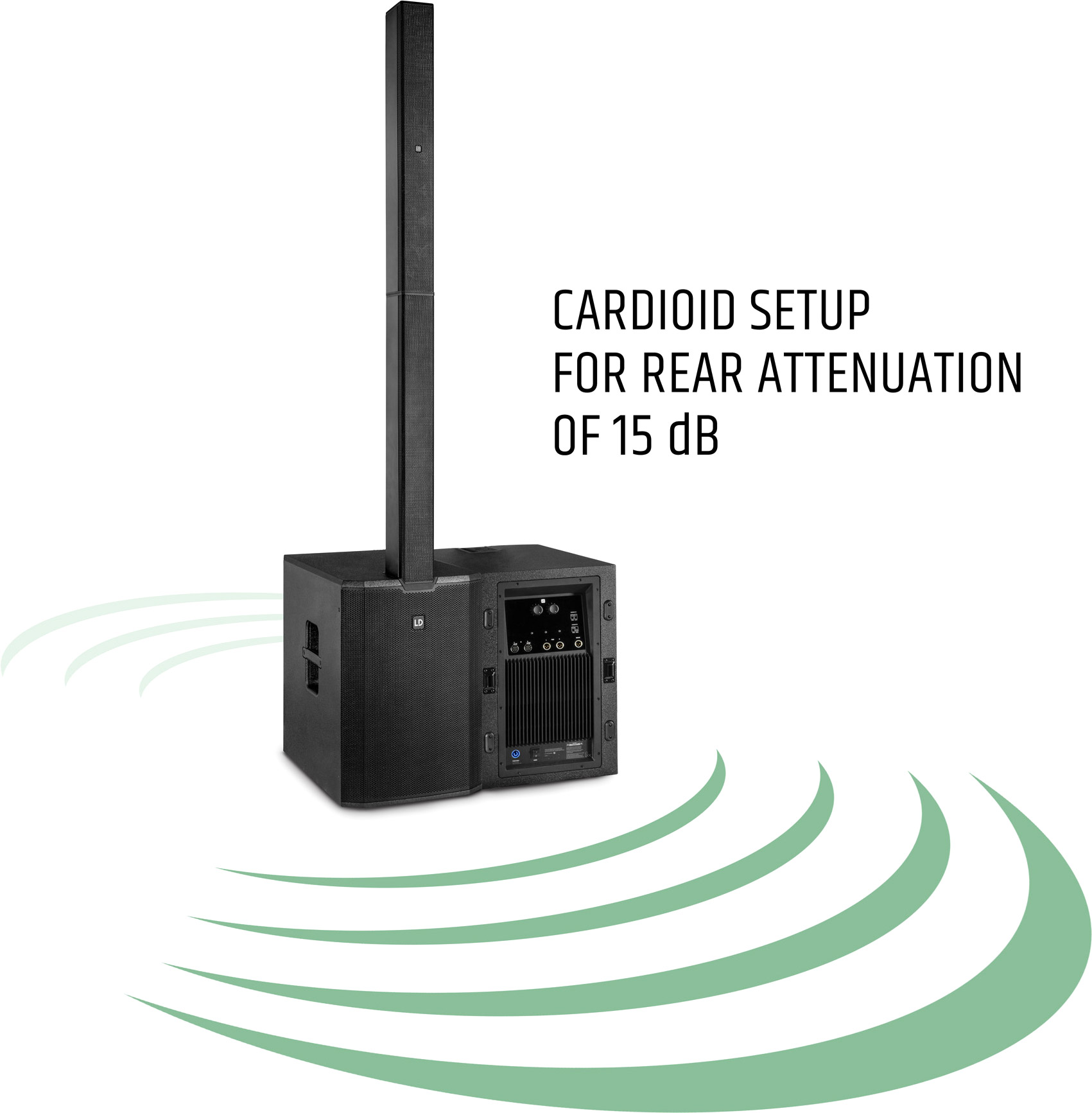

Well, what does that mean?Simply position the SUB next to your MAUI® 44 G2 facing the rear direction, press the cardioid button and you will have a quieter and controlled Low-End on the back while still keeping the punch on the front. Low-End frequencies on the back of the system will be dampened by -15 dB. For extra Bass, keep the SUB in the same direction as your MAUI® 44 G2 without pressing the cardioid button.
Setting up the SUB with your MAUI® 44 G2 is straight forward and fast. Thanks to its automatic set-up detection system the SUB immediately switches to slave mode as long as no column is attached.
Also recommendable is the protection cover and castor board to make transportation easy and keep the SUB as long as possible free of any touring-damage.
The MAUI® 44 G2 SUB features the same design construction as the MAUI® 44 G2 subwoofer and will be the perfect addition to get your Low-End in control.
Technical data:| Product type: | PA Complete Systems Accessories |
| Type: | Powered |
| Low/mid driver dimensions: | 15 " |
| Woofer size: | 381 mm |
| Woofer magnet: | Neodymium |
| Woofer brand: | Custom-made |
| Woofer voice coil: | 4 " |
| Woofer voice coil (mm): | 101 mm |
| Amplifier: | Class D |
| System Power (RMS): | 800 W |
| Peak power: | 1600 W |
| Max. SPL (peak): | 126 dB |
| Protection circuits: | Convection |
| Protection circuits: | DC |
| Protection circuits: | limiter |
| Protection circuits: | short circuit |
| Protection circuits: | thermal overload |

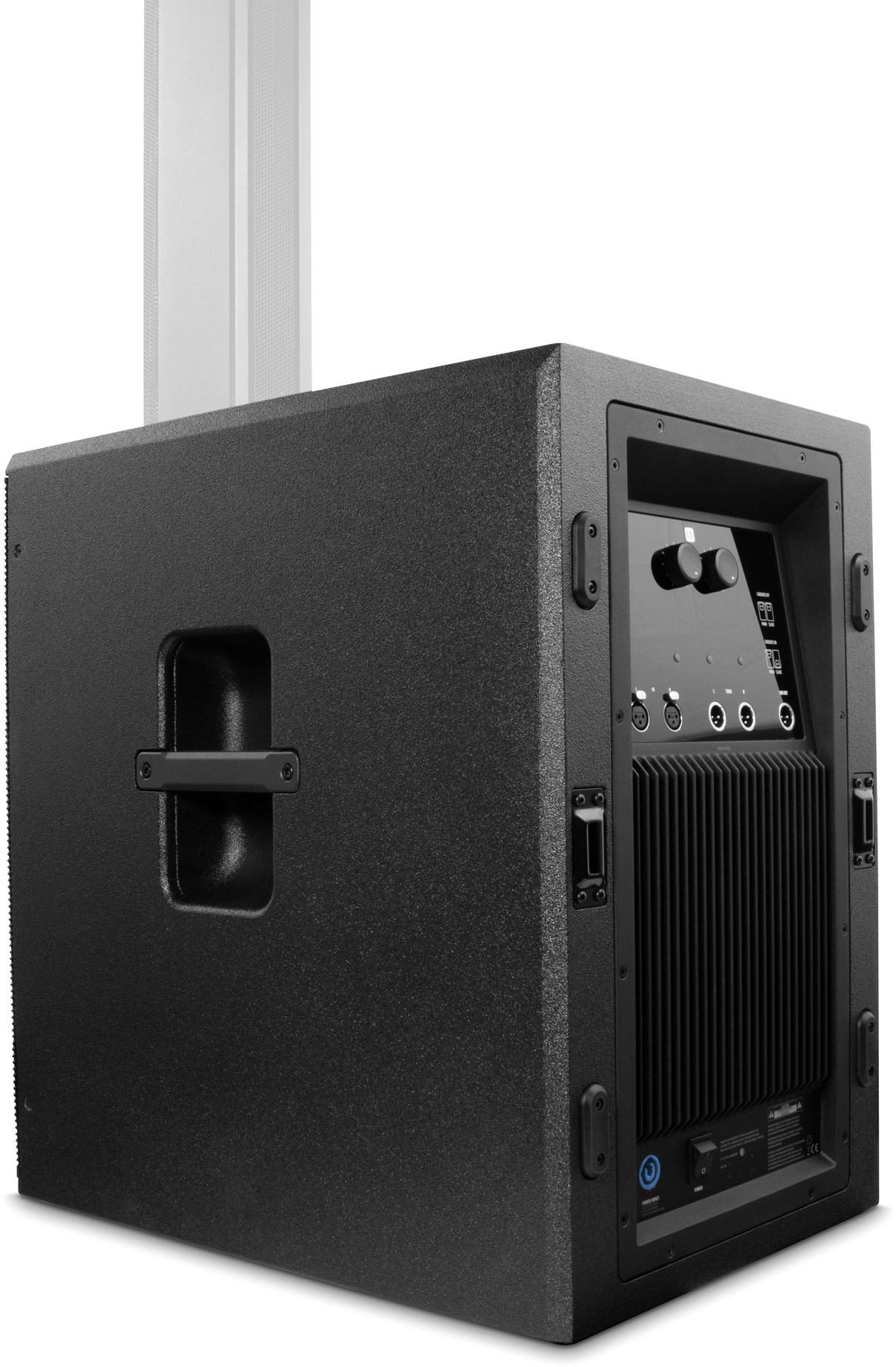

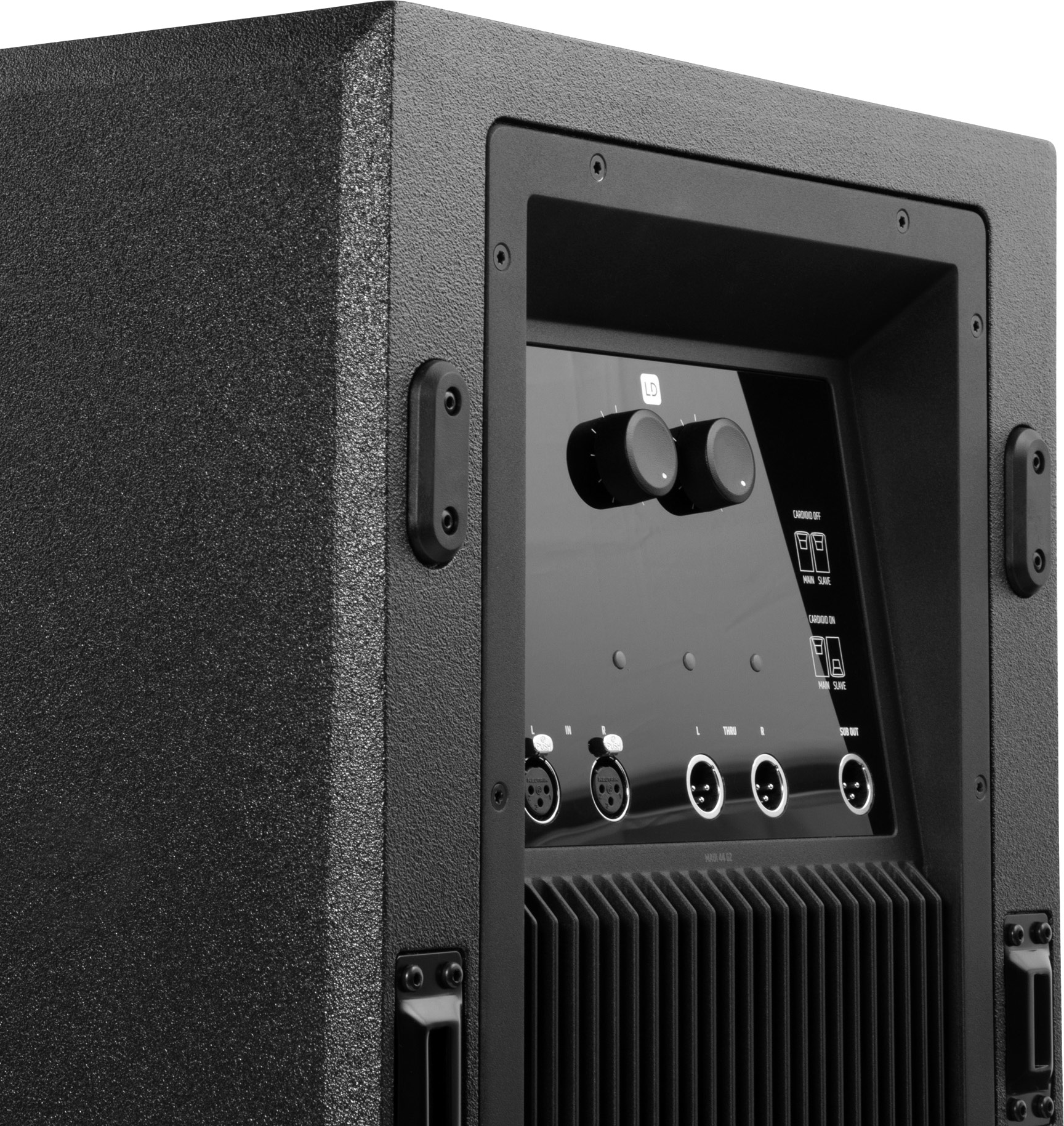

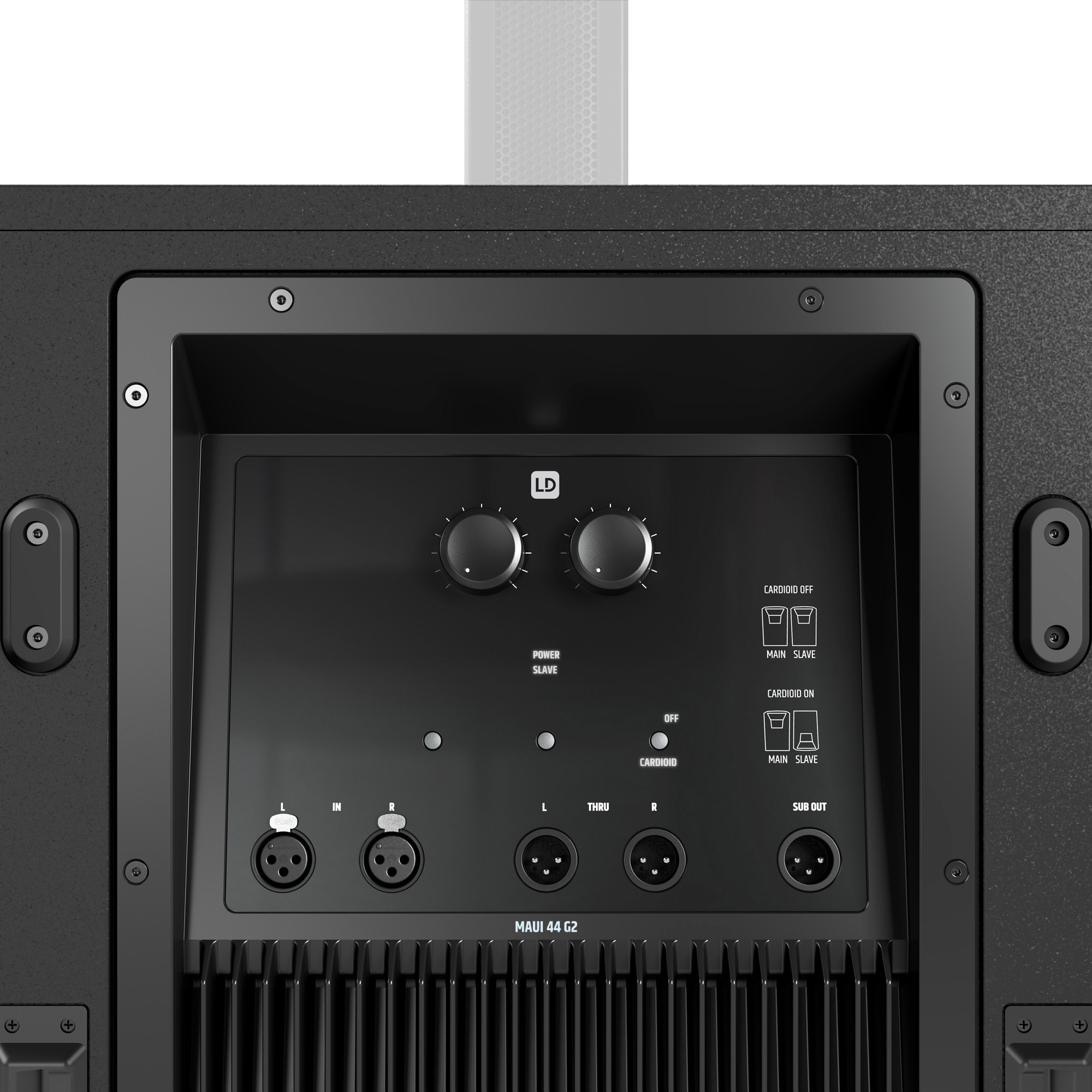

| Controls: | Bluetooth HOLD TO LINK button |
| Controls: | Bluetooth STEREO LINK button |
| Controls: | Cardioid On/Off |
| Controls: | Main level |
| Controls: | Power On/Off |
| Controls: | Sub level |
| Indicators: | Bluetooth |
| Indicators: | Bluetooth STEREO LINK |
| Indicators: | Cardioid On/Off |
| Indicators: | Limit |
| Indicators: | Power |
| Indicators: | Protect (protection circuit engaged) |
| Indicators: | Signal |
| Indicators: | slave mode |
| Line inputs: | 2 |
| Line input connectors: | 2 x XLR |
| Line outputs: | 2 |
| Line output connectors: | 2 x XLR |
| Loudspeaker outputs: | 1 |

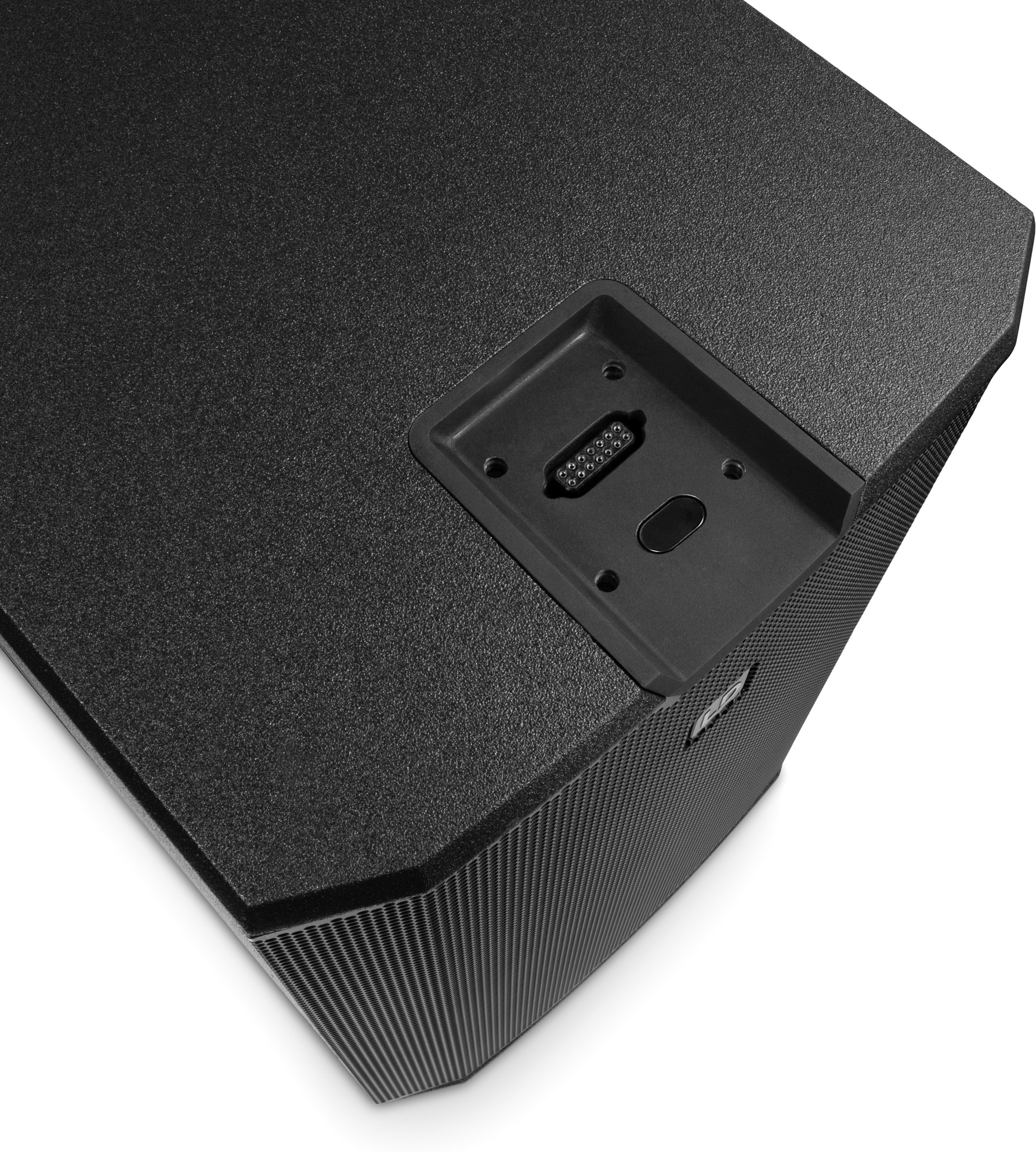

| Speaker output connections: | Custom-made multipin |

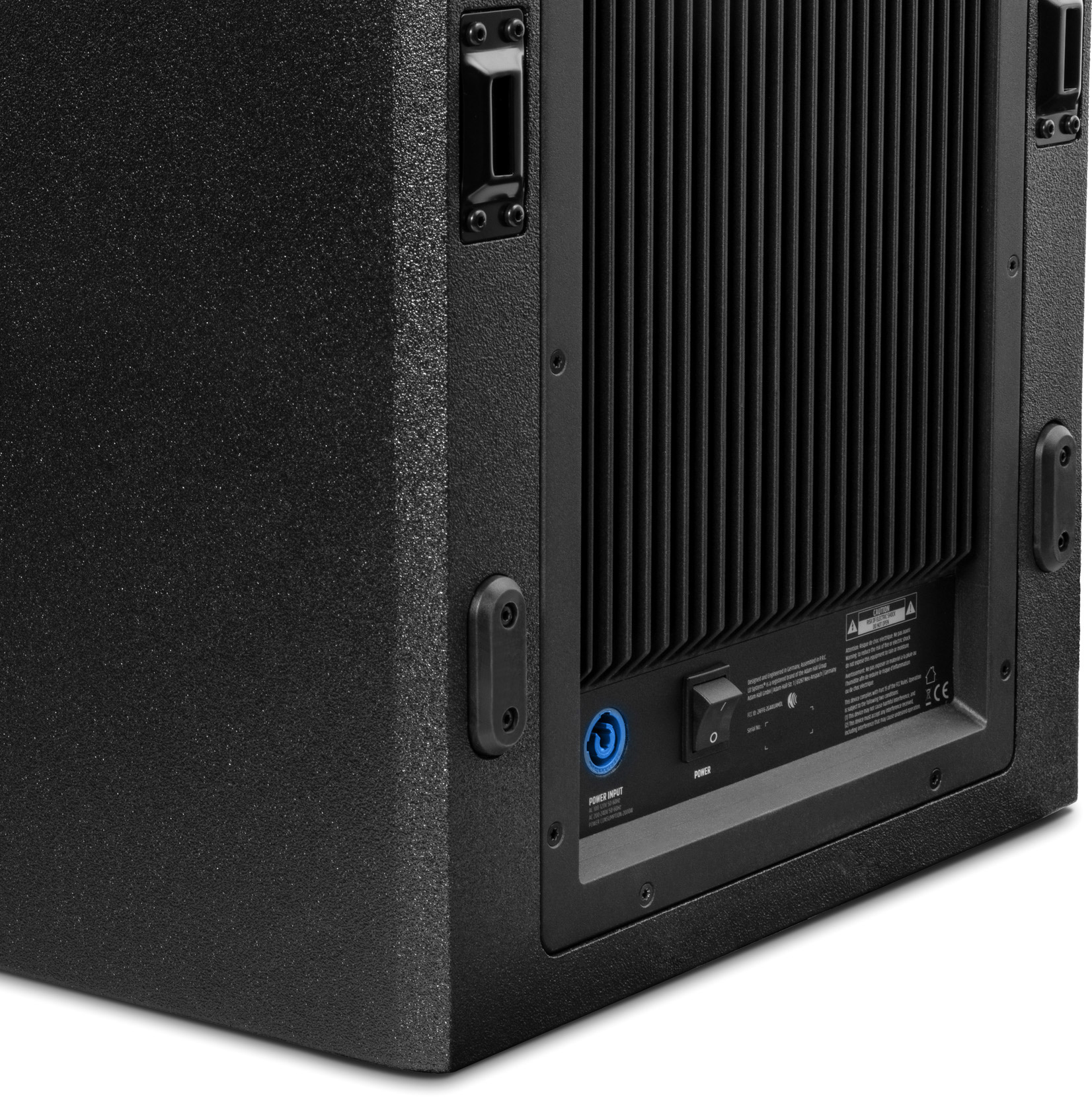

| Operating voltage: | 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) |
| Operating voltage: | Switching power supply |
| Operating Temperature: | 0 - 40 °C |
| Relative Humidity: | |
| Cabinet material: | 18 mm Birch Plywood |
| Cabinet surface: | Polyurea |
| Cabinet construction: | Bass Reflex |
| Bluetooth Standard: | A2DP |
| Bluetooth Audio Decoder: | AAC |
| Bluetooth Audio Decoder: | aptX |
| Bluetooth Audio Decoder: | SBC |
| Width: | 434 mm |
| Height: | 634 mm |
| Depth: | 637 mm |
| Weight: | 36,4 kg |
| Bit depth AD/DA converter: | 24 bit |
| Sampling frequency: | 48 kHz |
| Signal-to-noise ratio: | 106 dB |
