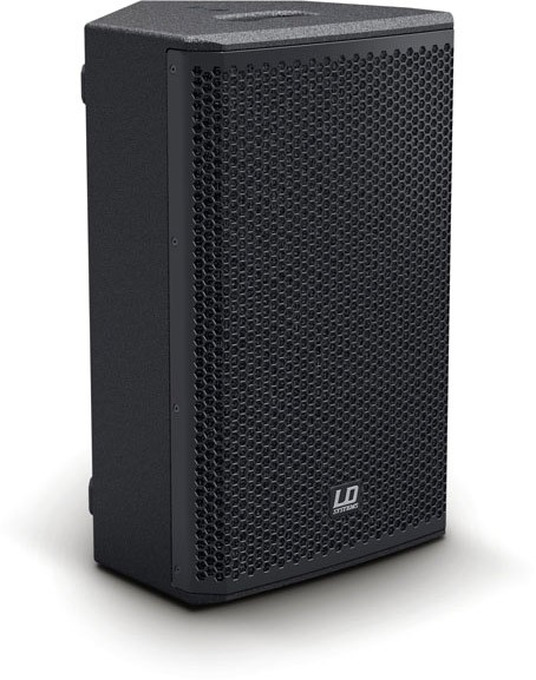

LD Systems STINGER 10 A G3 - Active 10" 2-way bass-reflex PA Loudspeaker
Expected to be available again in 5 weeks.
- Active 10" 2-way bass-reflex PA speaker
- 127 dB max. SPL and 300-watt RMS performance with a highly-efficient digital amplifier
- Perfect all-rounder for full-range, satellite and monitor applications
- Practical presets for fast and user-specific frequency tuning
- Homogeneous dispersion pattern thanks to a BEM-optimised tweeter wave guide

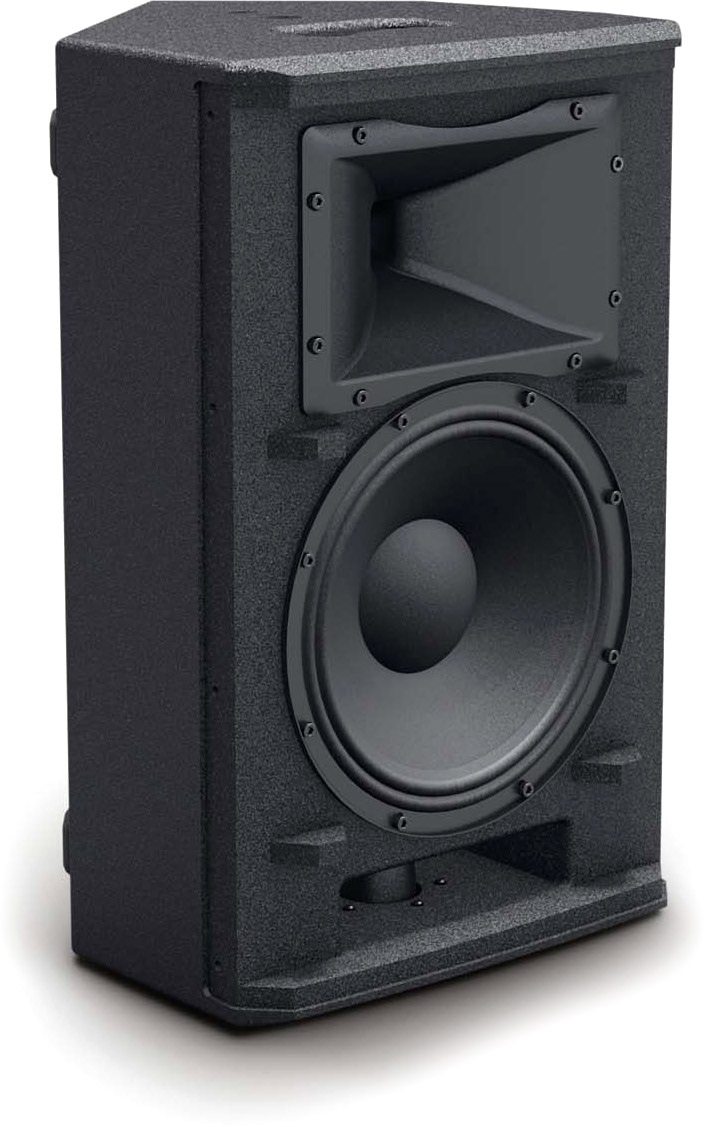

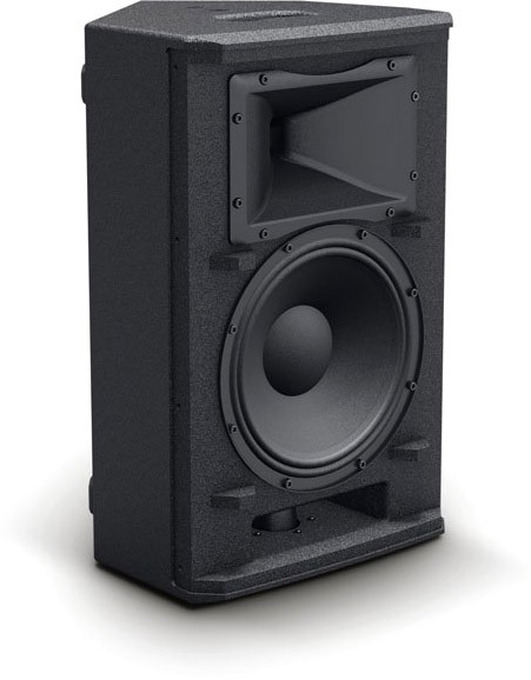

- 10" custom woofer and BMS tweeter driver
- Distortion-free sound at even maximum volumes, thanks to DynX® DSP technology

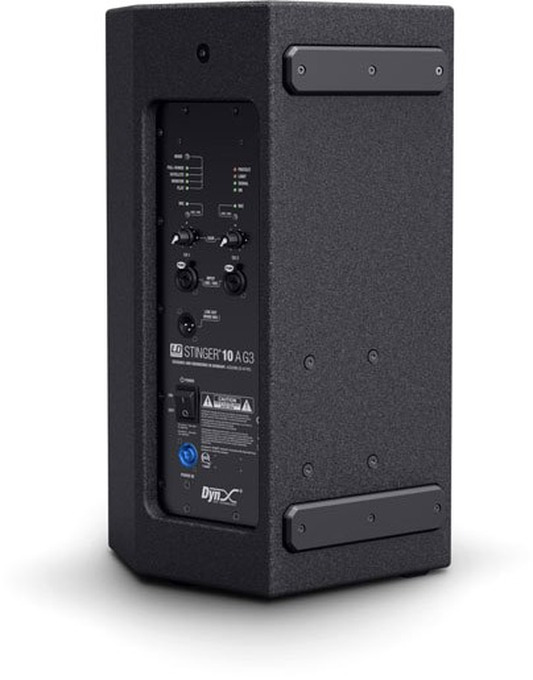

- 2 line/mic input channels with individual gain controllers plus mono mix output

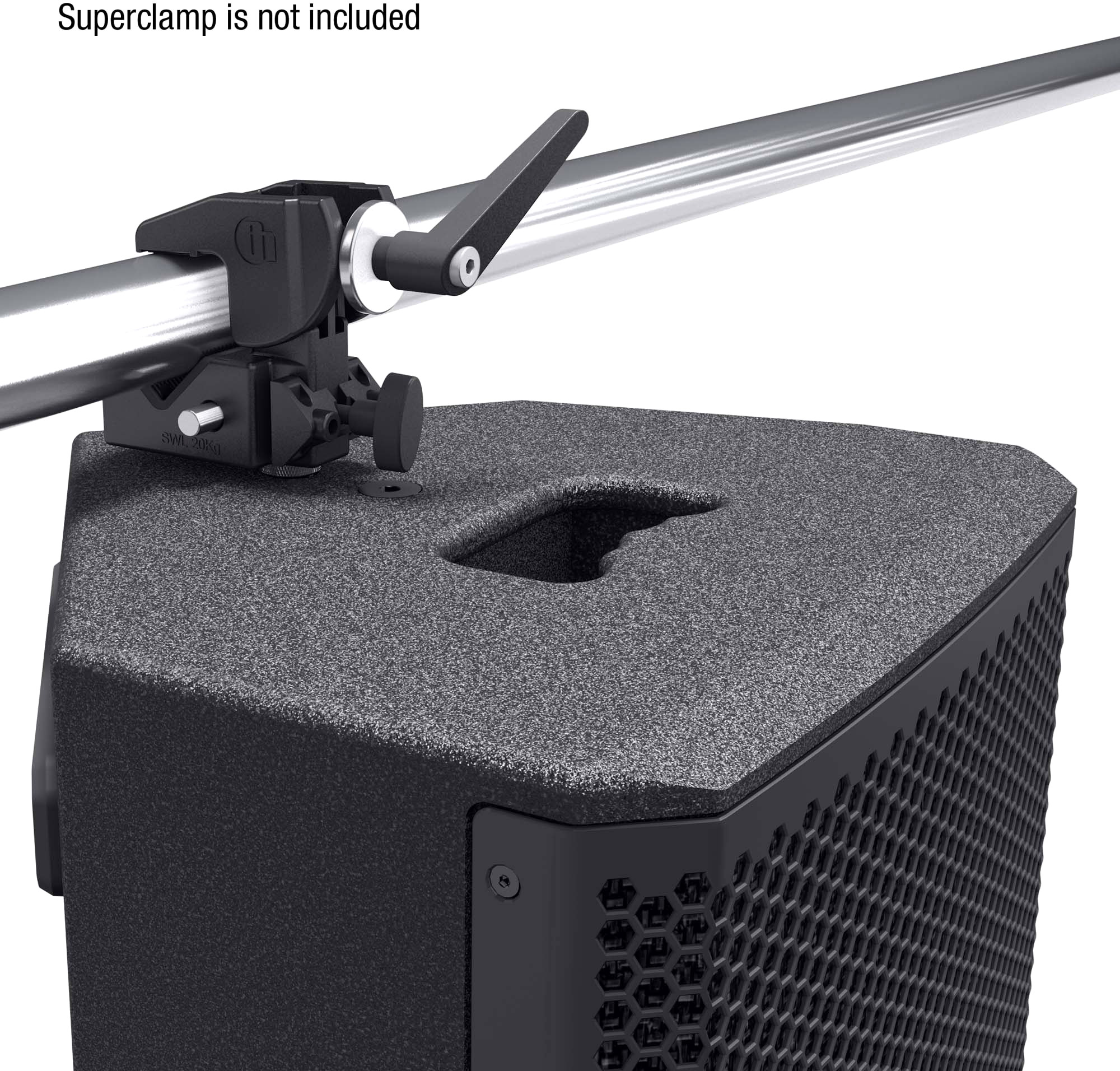

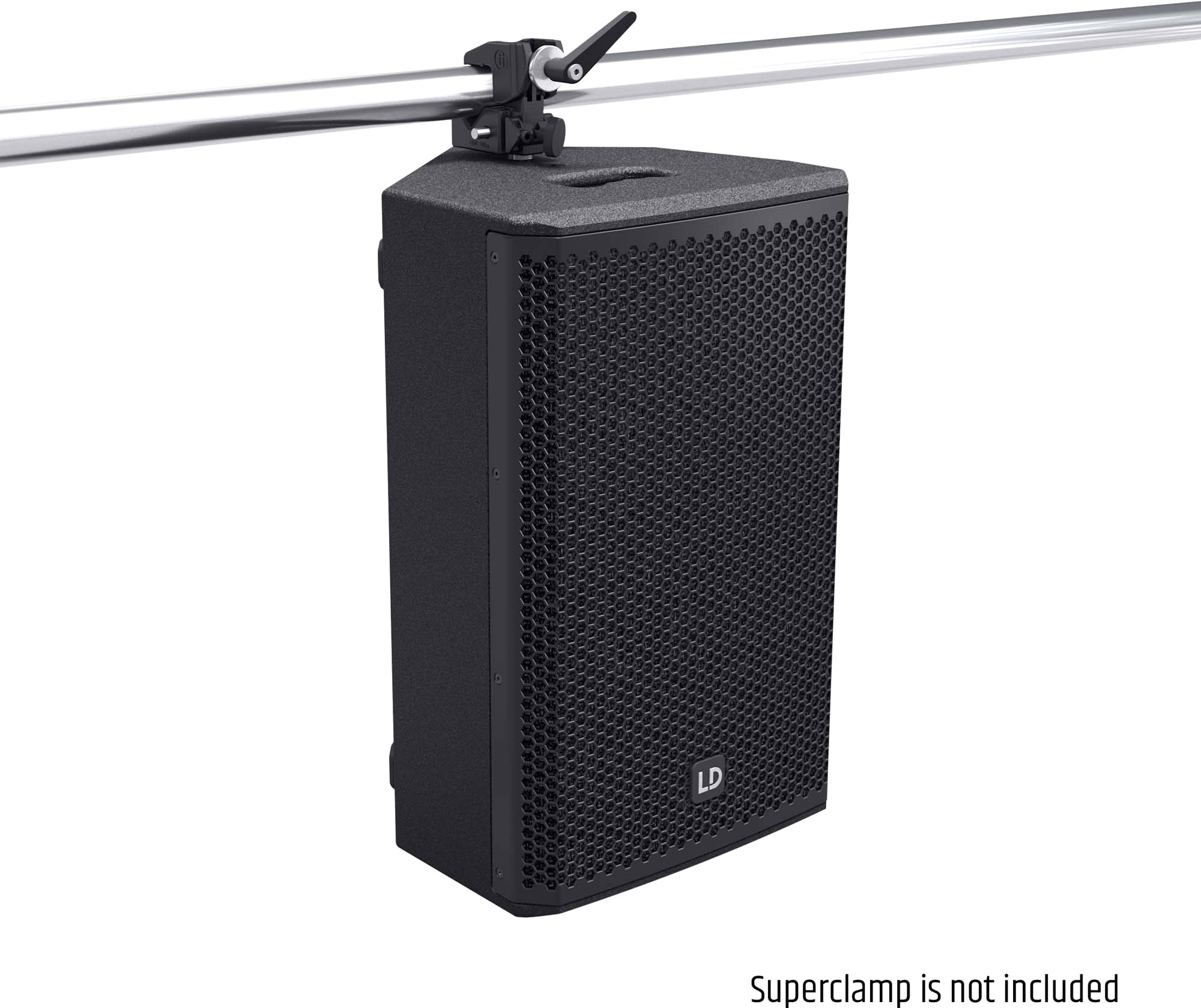

- 12 mm birch plywood housing with ultra-robust polyurea coating and M10 rigging points

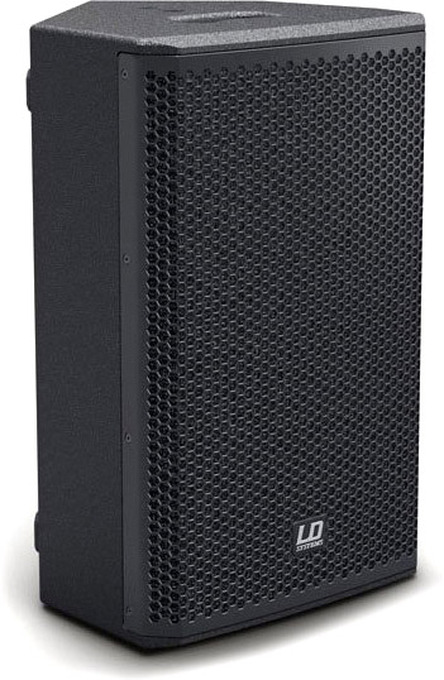

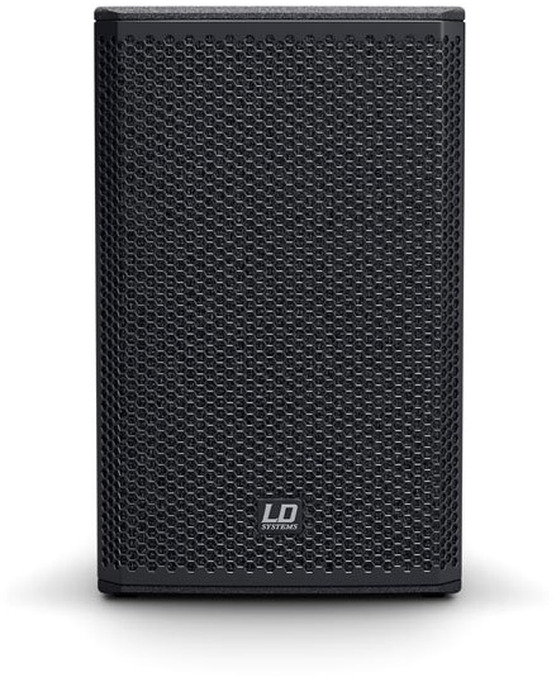

- Shock-resistant front grille for optimal protection of the speaker.

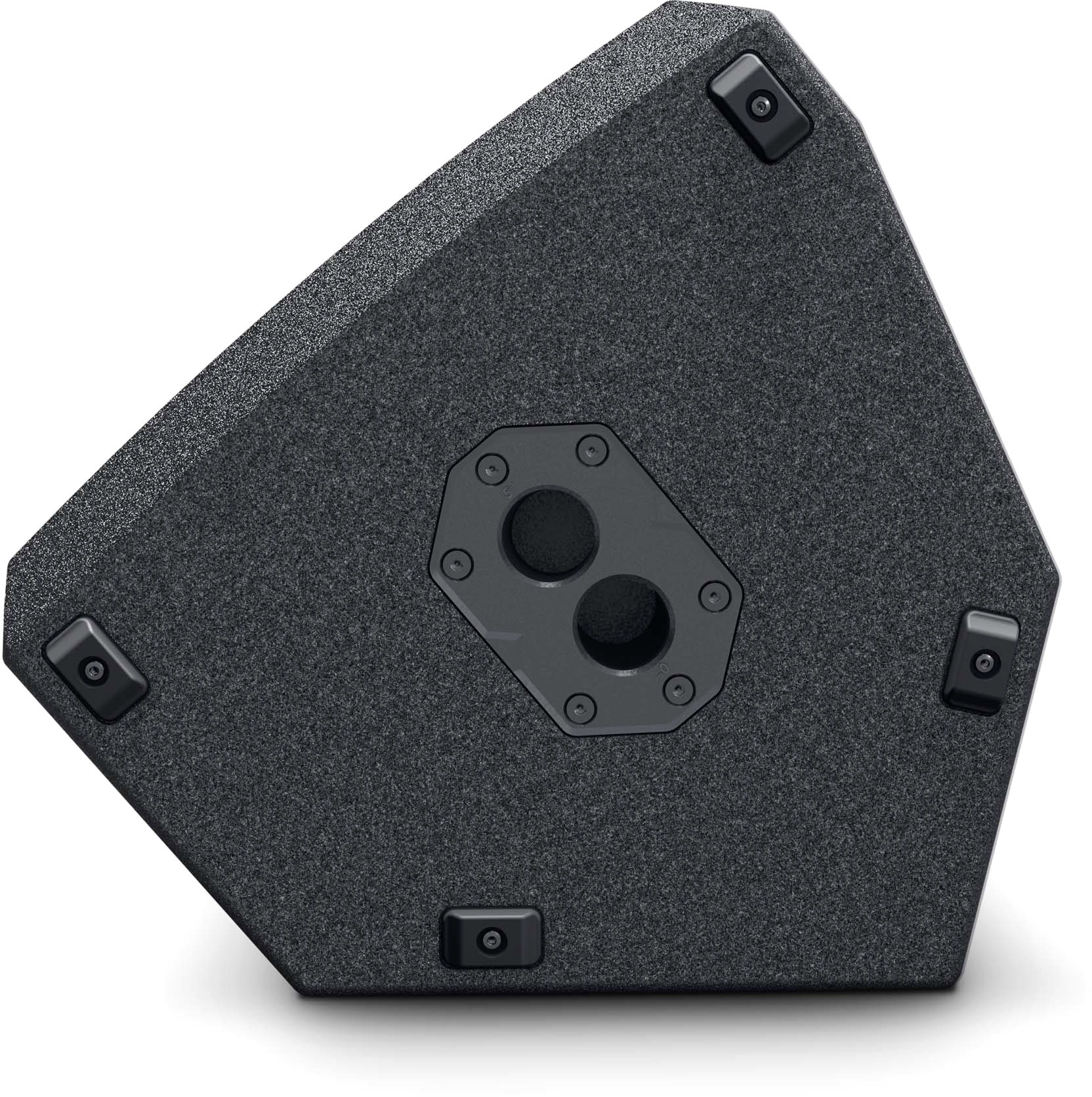

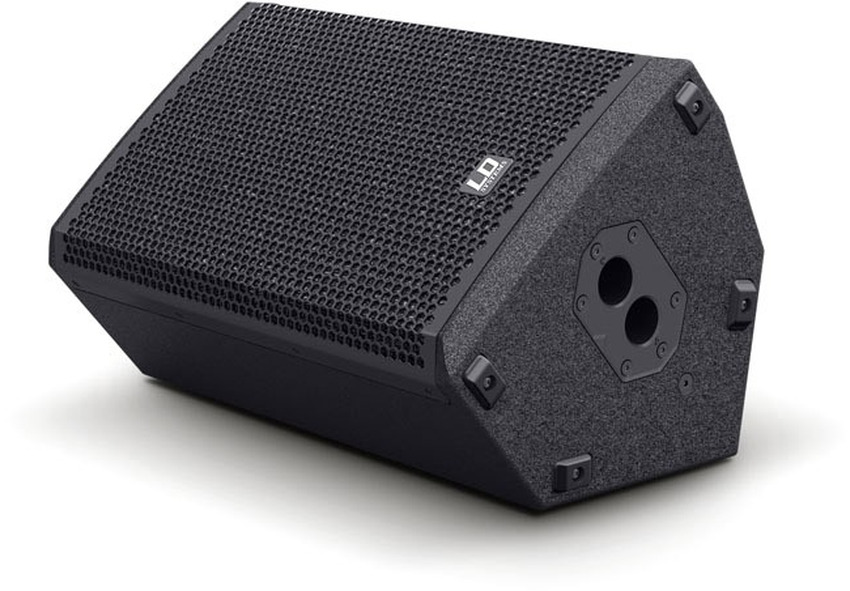

- 36 mm dual tilt stand attachment with 0° and 5° tilt angle
- Extensive and smart accessories for installation and transport
This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors. The Stinger® 10 A G3 is powered by a highly efficient Class-D amplifier with a powerful 300-watt continuous output. The specially developed 10" woofer and a BMS tweeter driver achieve a powerful bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion. LD Systems’ proprietary DynX® DSP technology means that the Stinger® 10 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The Stinger® 10 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.
Technical data:Product type: | PA loudspeaker |
Type: | active |
Low/mid driver dimensions: | 10 " |
Woofer size: | 254 mm |
Woofer magnet: | Ferrite |
Woofer brand: | Custom-made |
Woofer voice coil: | 2 " |
Woofer voice coil (mm): | 50.8 mm |
Horn: | BEM optimized CD Horn |
HF driver dimensions: | 1 " |
HF driver size: | 25.4 mm |
HF driver magnet: | Ferrite |
HF driver brand: | BMS |
HF driver voice coil: | 1 " |
HF driver voice coil: | 25.4 mm |
Amplifier: | Class D |
Dispersion (H x V): | 90 x 50 ° |
RMS: | 300 W |
Peak power: | 600 W |
Frequency response: | 65 - 20000 Hz |
Max. SPL (peak): | 127 dB |
Protection circuits: | Multiband limiter |
Protection circuits: | over voltage |
Protection circuits: | over-current |
Protection circuits: | thermal overload |
Input sensitivity: | -9 dBu |
Controls: | 2 x gain |
Controls: | 2 x Mic/Line |
Indicators: | Limit |
Indicators: | Mic |
Indicators: | Mode |
Indicators: | On |
Indicators: | Protect (protection circuit engaged) |
Indicators: | Signal |
Line inputs: | 2 |
Line input connectors: | 6.3 mm jack |
Line input connectors: | XLR |
Line outputs: | 1 |
Line output connectors: | XLR |
Operating voltage: | 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) |
Operating voltage: | Switching power supply |
Operating Temperature: | 0 - 40 °C |
Relative Humidity: | |
Cabinet material: | 12 mm Plywood |
Cabinet surface: | Polyurea |
Cabinet construction: | Bass Reflex |

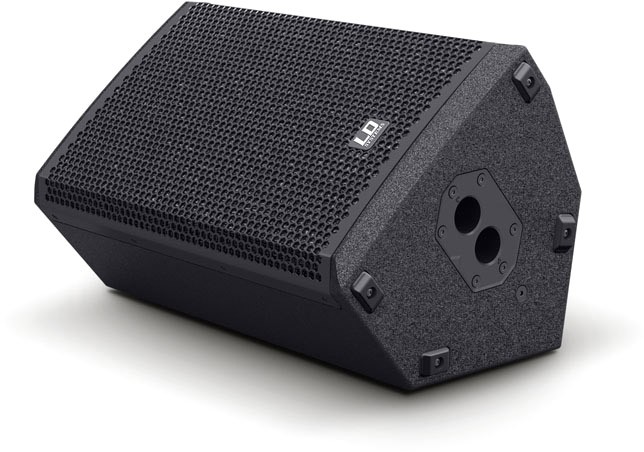

Monitor angle: | 54 ° |
Width: | 325 mm |
Height: | 527 mm |
Depth: | 318 mm |
Weight: | 12,7 kg |
