LD Systems SAT 262 G2 W - 2 x 6.5" passive Installation Speaker white
- Passive 2-way bass-reflex installation speaker
- 180 W permanent load capacity
- 116 dB maximum sound-level pressure
- 2 x 6.5" custom woofer and a 1” Celestion tweeter driver
- Rotating CD horn with 80° x 60° dispersion
- For vertical or horizontal use
- speakON-compatible and terminal block input

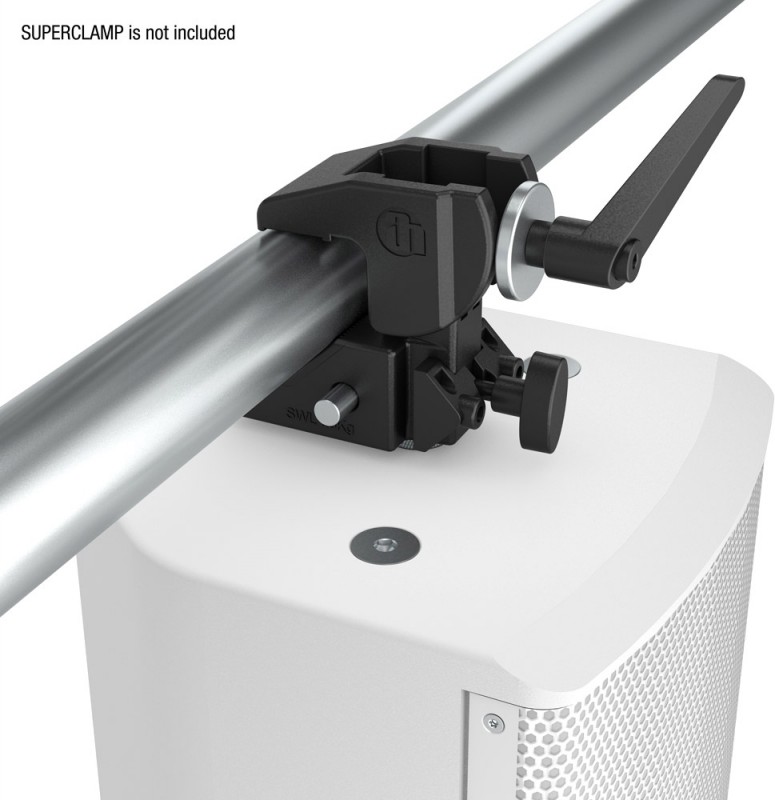

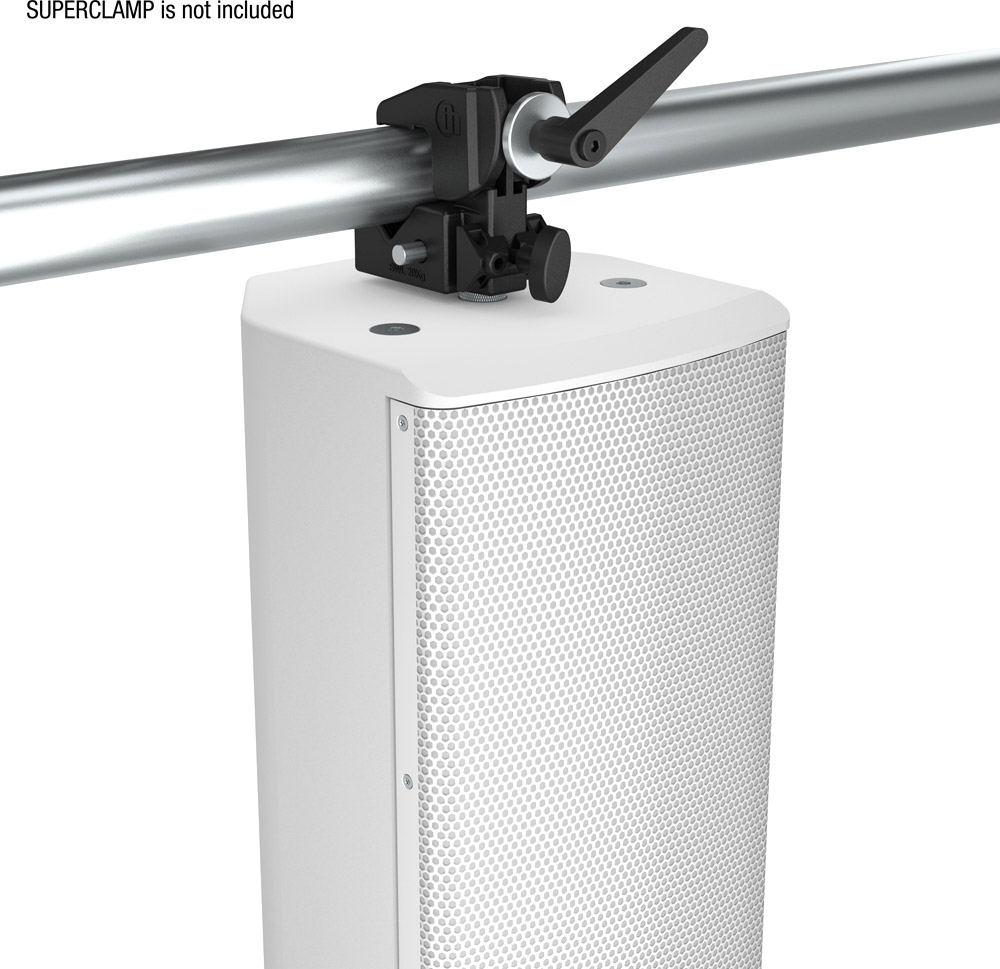

- 4 x M8 mounting holes
- Shock-resistant front grille for optimum speaker protection
- Extensive range of smart accessories for installation
- Available in black or white
With its slim, streamlined design, the LD Systems SAT 262 G2 is excellently suited for permanent installation and discreet integration in virtually any setting. It features two 6.5" custom woofers and a 1” Celestion compression driver connected to a rotating CD horn with 80° x 60° dispersion. This makes the passive 2-way speaker ideal for both vertical and horizontal use.
The SAT 262 G2 attains a maximum sound-level pressure of 116 dB over a frequency response curve of 65–19 kHz with a permanent load capacity of 180 watts. The reflex housing is made of 12 mm MDF and is equipped with four M8 mounting holes. A speakON-compatible socket and a terminal block provide input options, while an additional terminal block serves as an output for convenient parallel connection.
Special wall holders are available as an accessory to facilitate wall mounting. The SAT 262 G2 is available in black (Art. No. LDSAT262G2) or white textured finish (Art. No. LDSAT262G2W).
Technical data:Product type: | Installation Loudspeakers |
Type: | Wall-mounted Loudspeaker |
Low/mid driver dimensions: | 2 x 6.5 " |
Woofer size: | 2 x 165.1 mm |
Woofer magnet: | Ferrite |
Woofer brand: | Custom-made |
Woofer voice coil (mm): | 38.1 mm |
Horn: | CD horn |
HF driver dimensions: | 1 " |
HF driver size: | 25.4 mm |
HF driver magnet: | Ferrite |
HF driver brand: | Celestion |
HF driver voice coil: | 1 " |
HF driver voice coil: | 25.4 mm |
Dispersion (H x V): | 80 x 60 ° |
Load rating (RMS): | 180 W |
Peak power: | 360 W |
Frequency response: | 65 - 19000 Hz |
SPL (1W/1m): | 93 dB |
Max. SPL: | 116 dB |
Impedance: | 8 Ohm(s) |
Protection circuits: | HF Driver |
Loudspeaker inputs: | 2 |
Speaker input connections: | Speakon compatible |
Speaker input connections: | Terminal block |
Loudspeaker outputs: | 1 |
Speaker output connections: | Terminal block |
Speakers per amplifier channel (DSP44/45K): | 4 |
Cabinet material: | 12 mm MDF |
Cabinet surface: | texture paint |
Cabinet colour: | white |
Cabinet construction: | Bass Reflex |
Width: | 200 mm |
Height: | 630 mm |
Depth: | 205 mm |
Weight: | 9,8 kg |
