LD Systems MIX 6 G3 - Passive 2-Way Slave Loudspeaker to LD Systems MIX 6 A G3

Preview: LD Systems MIX 6 G3 Passiver 2-Weg Slave-Lautsprecher für LD Systems MIX 6

LD Systems MIX 6 G3 Passiver 2-Weg Slave-Lautsprecher für LD Systems MIX 6

€148.80 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 210903885

EAN: 4049521267253

MPN: LDMIX62G3

Passive 2-Way Slave Loudspeaker to LD Systems MIX 6 A G3 Passive 2-way loudspeaker 280 watts... more

Back to the overview

All information about the product:

"LD Systems MIX 6 G3 - Passive 2-Way Slave Loudspeaker to LD Systems MIX 6 A G3"

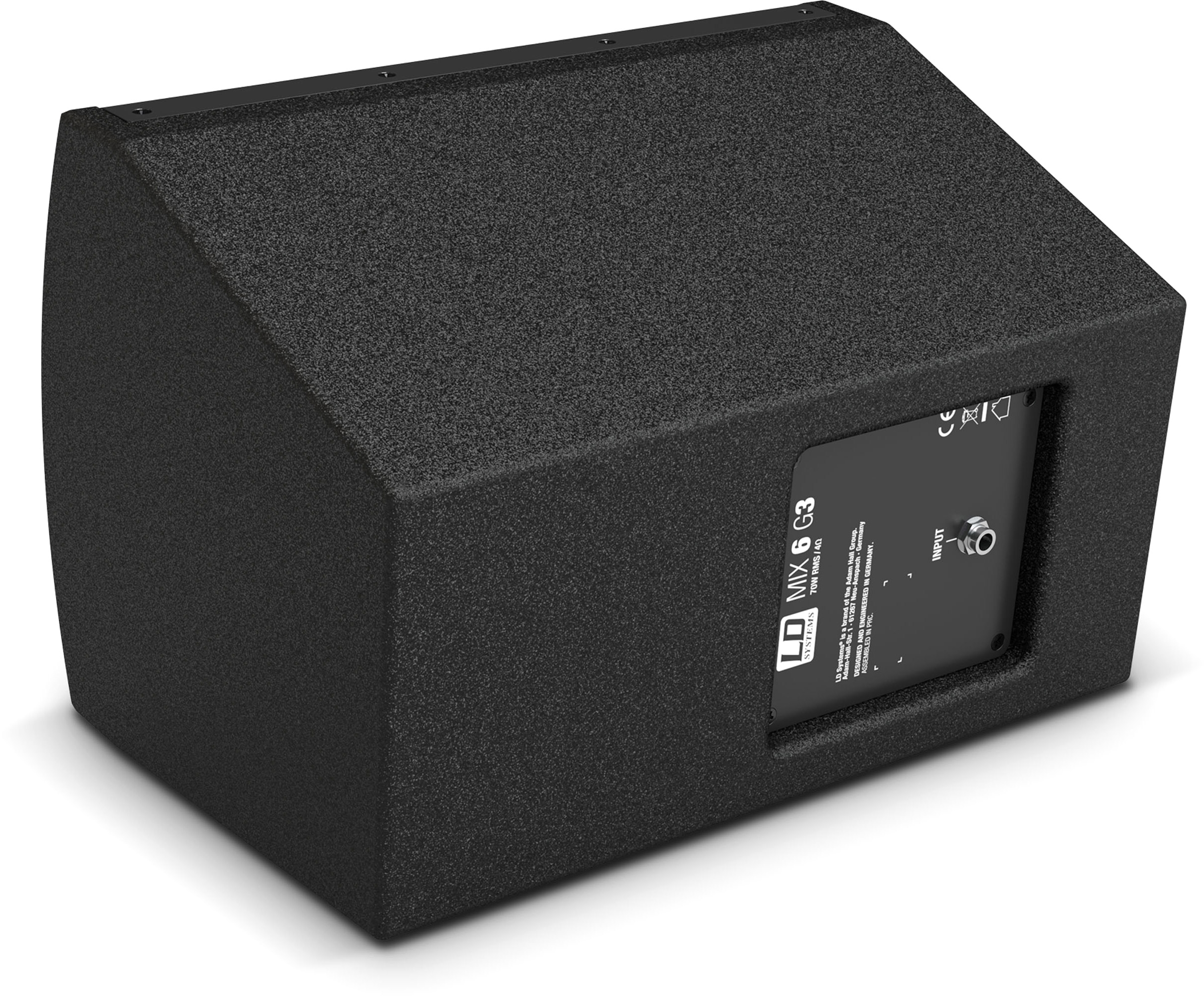

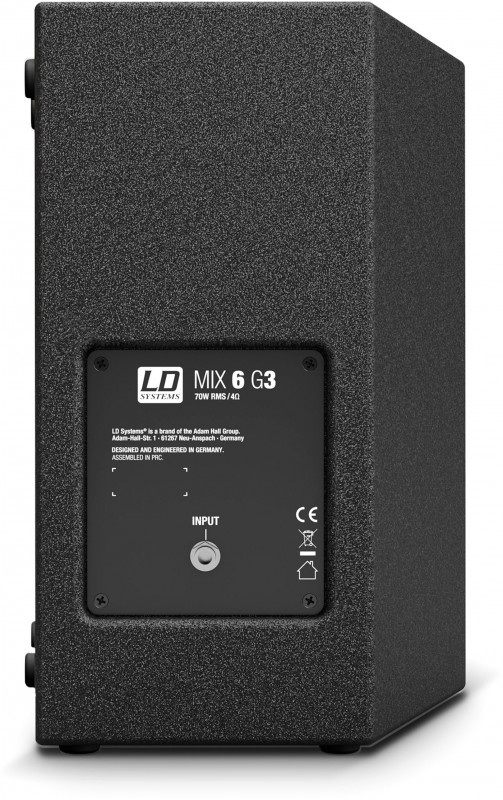

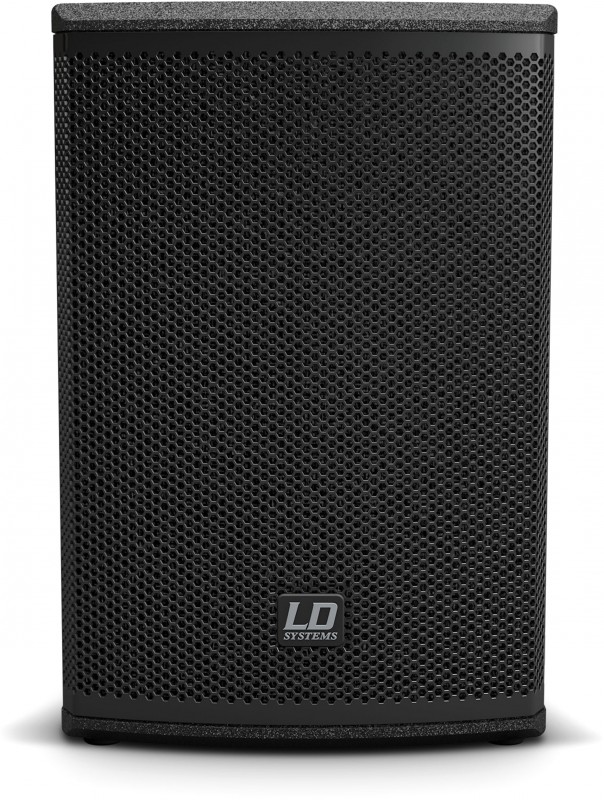

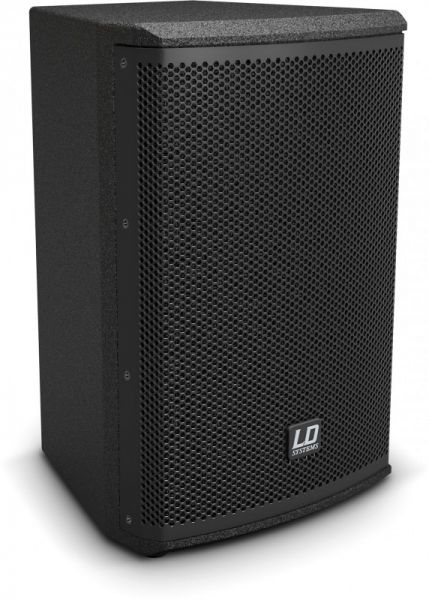

Passive 2-Way Slave Loudspeaker to LD Systems MIX 6 A G3

Passive 2-way loudspeaker
280 watts peak power handling
Tight and punchy bass reflex design
6.5” woofer and 1” HF driver, 80 Hz - 20 kHz
2 pole mount inserts for vertical and horizontal orientation
Ideal as slave unit to LD Systems MIX 6 A G3

This passive 2-way loudspeaker has been designed as a companion to the active MIX 6 A G3 for small-scale PA and personal monitoring applications. It features the same 10" custom woofer and 1" HF driver complement, 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail.

The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. In a master-and-slave setup with the active unit, the MIX 6 G3 provides amazing performance and versatility in a lightweight, easily portable package.

Technical data:

Product type:	PA loudspeaker
Type:	passive
Low/mid driver dimensions:	6.5 "
Woofer size:	165.1 mm
Woofer brand:	Custom-made
HF driver dimensions:	1 "
HF driver size:	25.4 mm
HF driver brand:	Custom-made
Dispersion (H x V):	80 x 70 °
Load rating (RMS):	70 W
Peak power:	280 W
Frequency response:	80 - 20.000 Hz
SPL (1W/1m):	90 dB
Max. SPL:	117 dB
Impedance:	4 Ohm(s)
Protection circuits:	ICL (Intelligent Clip Limiting)
Protection circuits:	over-current
Protection circuits:	overload
Protection circuits:	short circuit
Protection circuits:	thermal overload
Loudspeaker inputs:	1
Speaker input connections:	6.3 mm jack
Loudspeaker outputs:	6.3 mm jack
Cabinet material:	MDF
Cabinet surface:	texture paint
Cabinet construction:	Bass Reflex
Width:	214 mm
Height:	323 mm
Depth:	221 mm
Features:	2 x 16 mm pole mount socket
Weight:	4,4 kg
