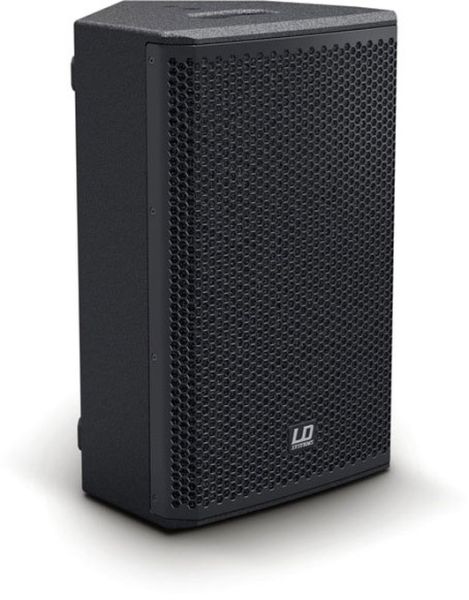

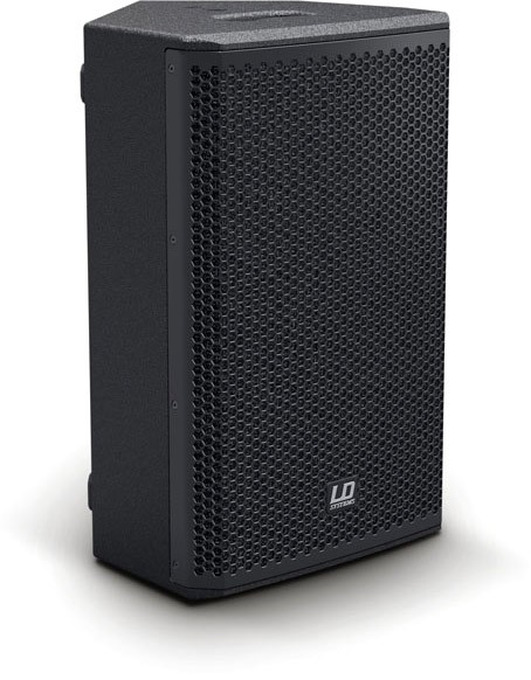

LD Systems STINGER 10 G3 - 2-Way Passive 10” Bass Reflex PA Loudspeaker
- 2-way passive 10” bass reflex PA speaker
- 300 watts RMS power handling
- 120 dB maximum SPL

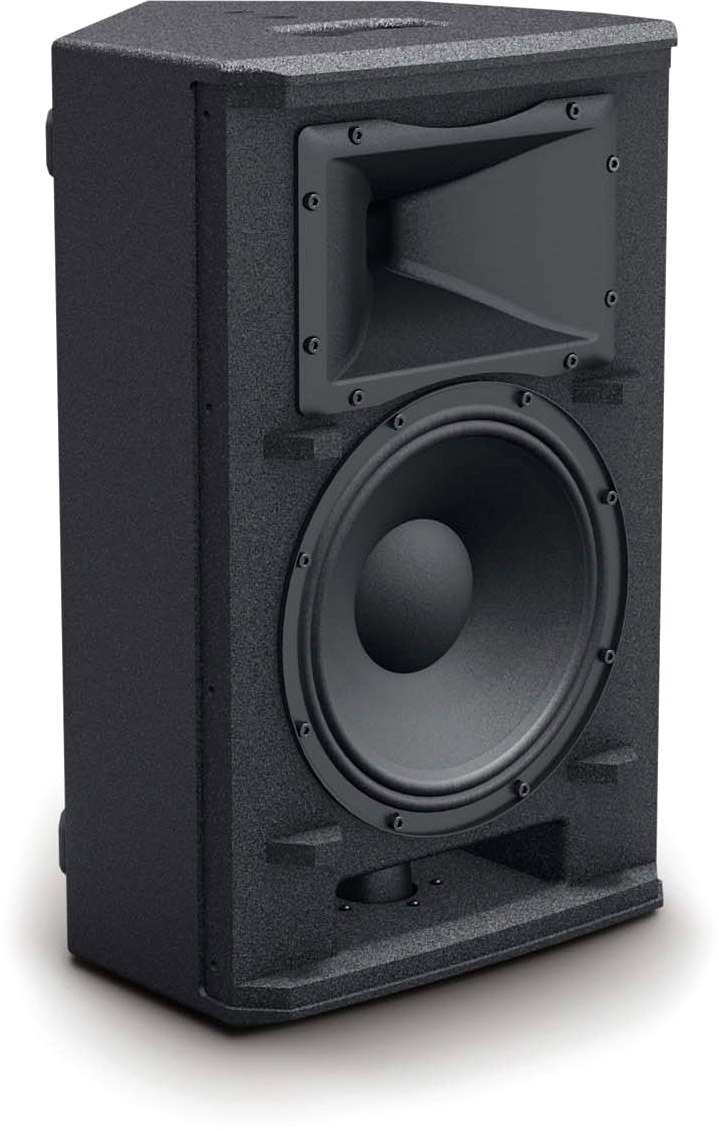

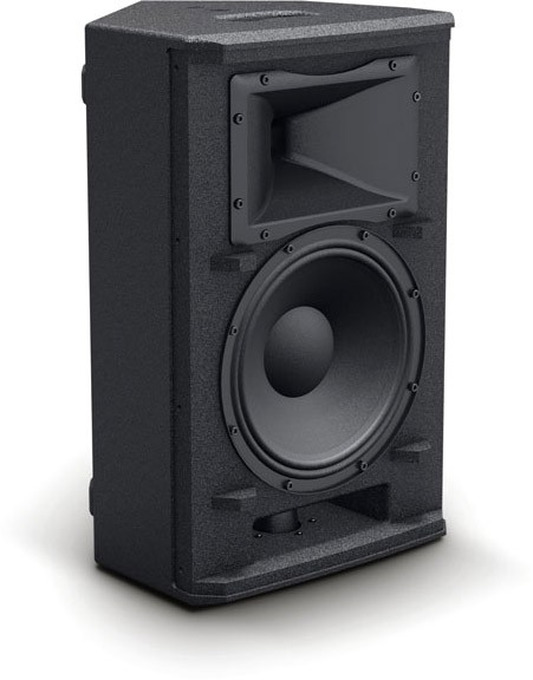

- 10“ custom woofer and BMS compression driver
- BEM optimized HF waveguide for uniform coverage

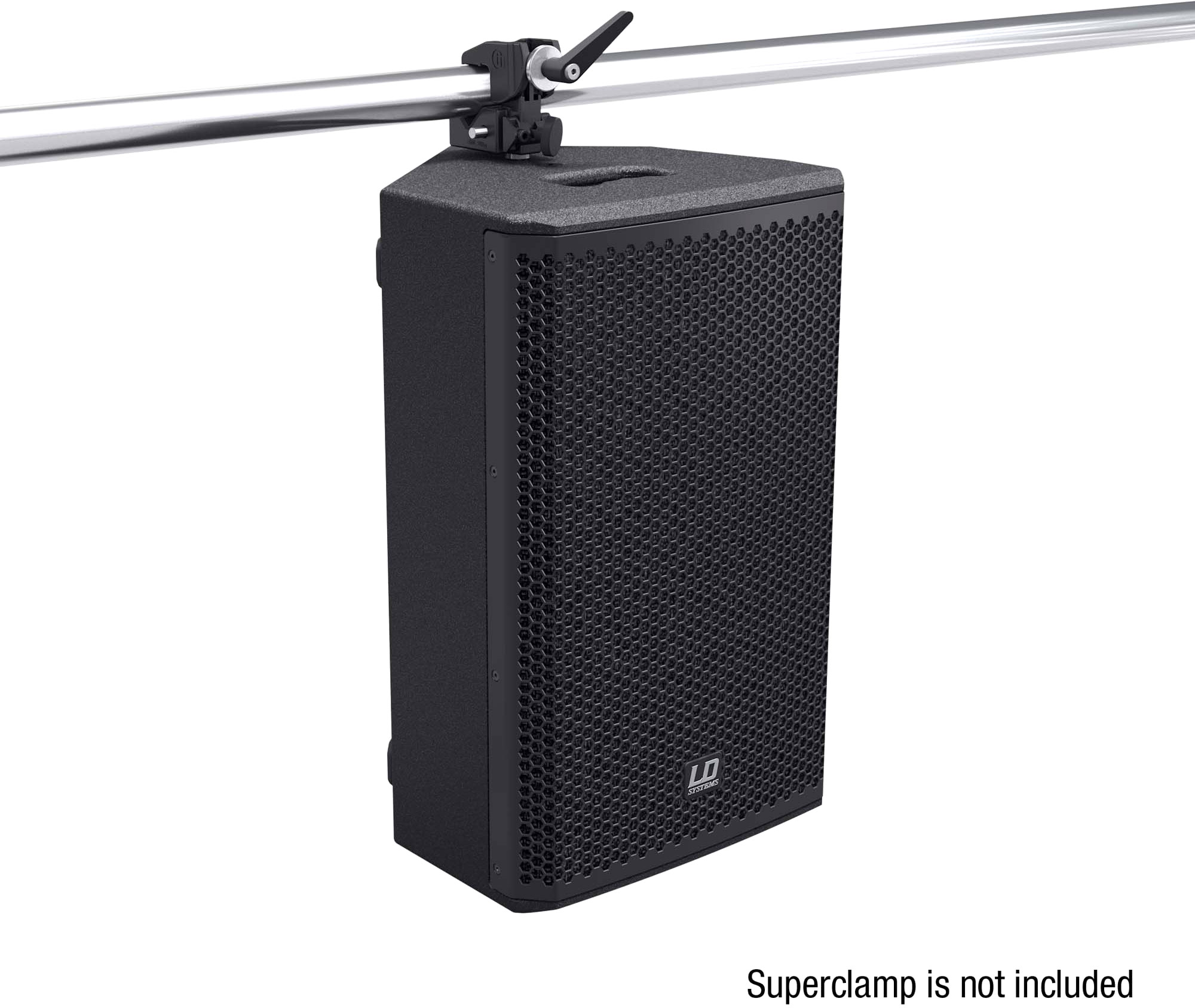

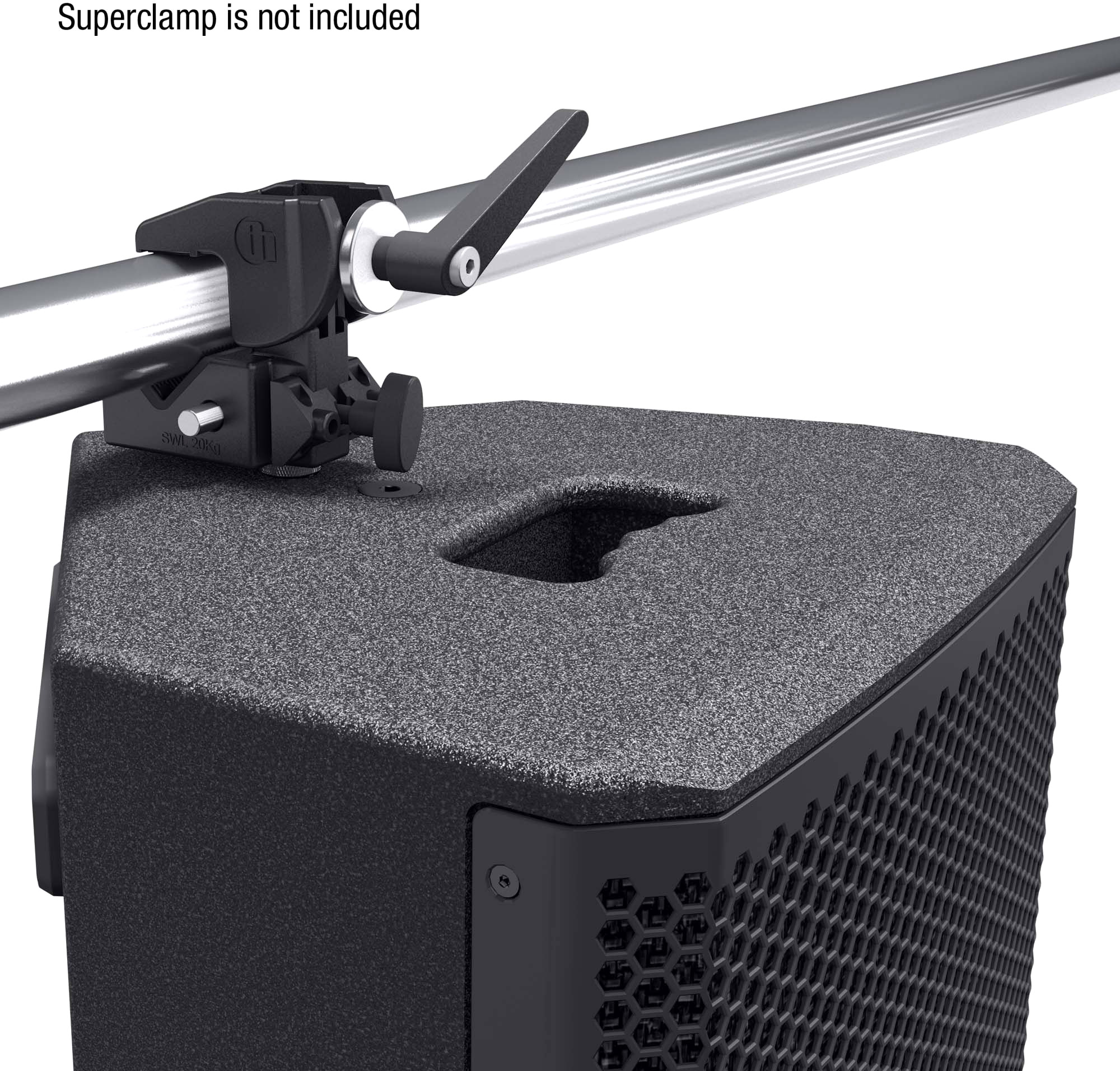

- Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points

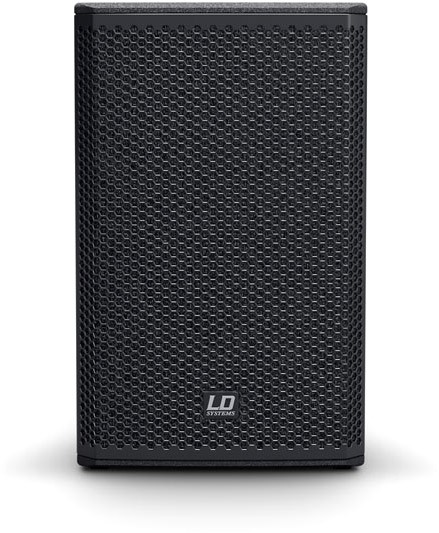

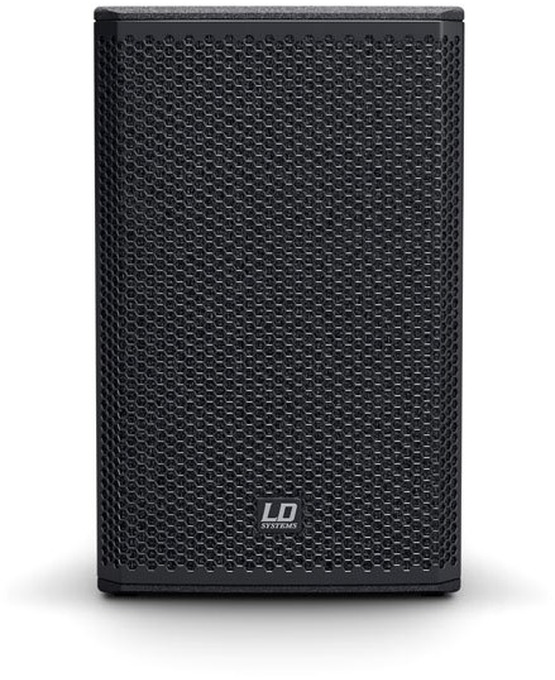

- Shock-resistant front grill provides maximum speaker protection

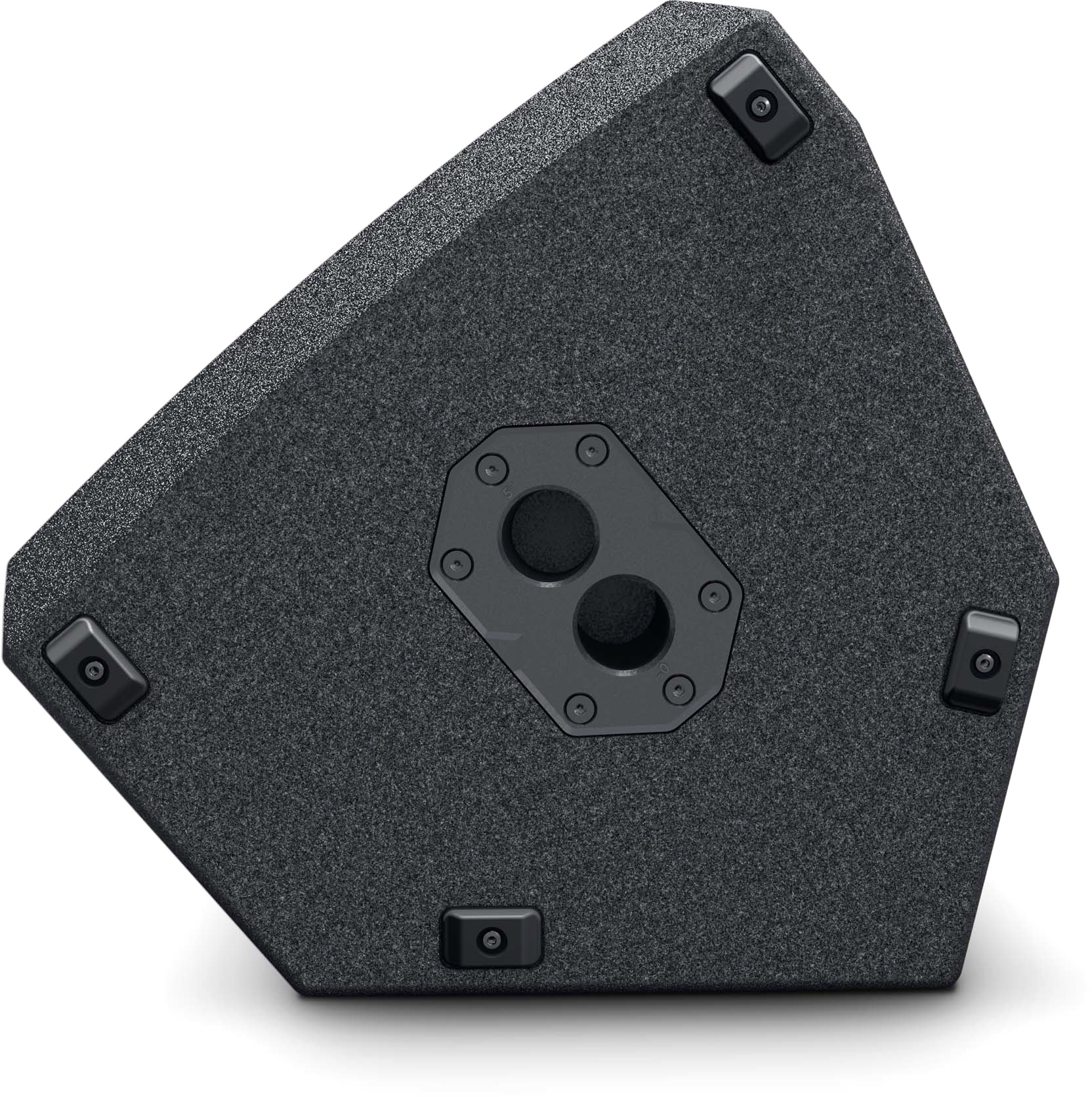

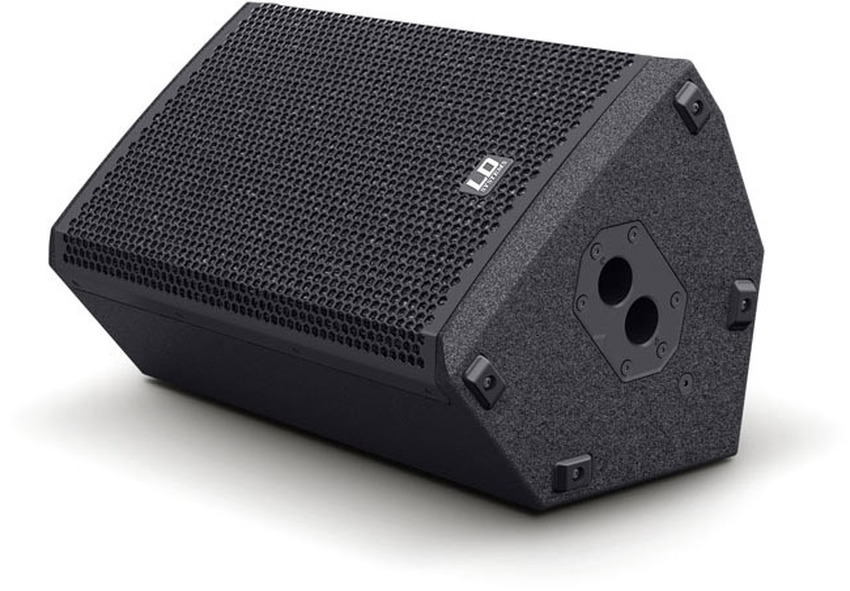

- 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles
- Large selection of smart installation and transport accessories
This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The Stinger® 10 G3 provides 300 watts of continuous power; the maximum sound pressure level is 120 dB. Its specially developed 10" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The Stinger® 10 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The Stinger® 10 G3 is an affordable solution for professional PA applications; extensive accessories support the use on stage and in fixed installations.
Technical data:Product type: | PA loudspeaker |
Type: | Passive |
Low/mid driver dimensions: | 10 " |
Woofer size: | 254 mm |
Woofer magnet: | Ferrite |
Woofer brand: | Custom-made |
Woofer voice coil: | 2 " |
Woofer voice coil (mm): | 50.8 mm |
Horn: | BEM optimized CD Horn |
HF driver dimensions: | 1 " |
HF driver size: | 25.4 mm |
HF driver magnet: | Ferrite |
HF driver brand: | BMS |
HF driver voice coil: | 1 " |
HF driver voice coil: | 25.4 mm |
Dispersion (H x V): | 90 x 50 ° |
Load rating (RMS): | 300 W |
Peak power: | 600 W |
Frequency response: | 65 - 20000 Hz |
SPL (1W/1m): | 96 dB |
Max. SPL: | 121 dB |
Impedance: | 8 Ohm(s) |
Protection circuits: | HF Driver |

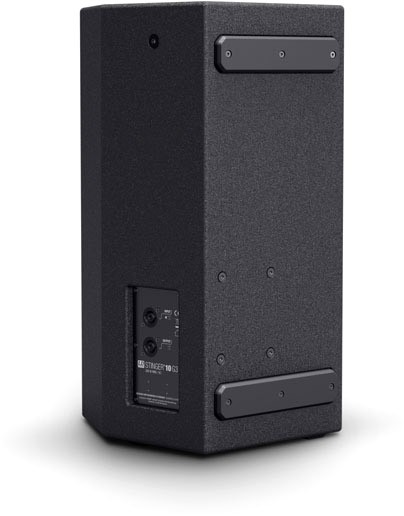

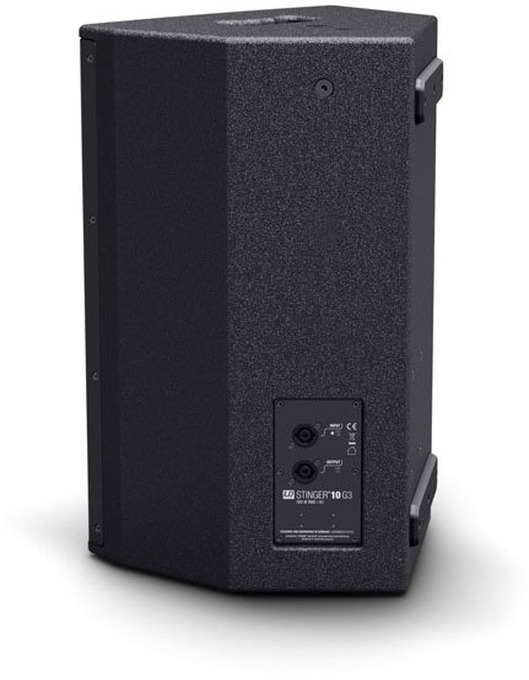

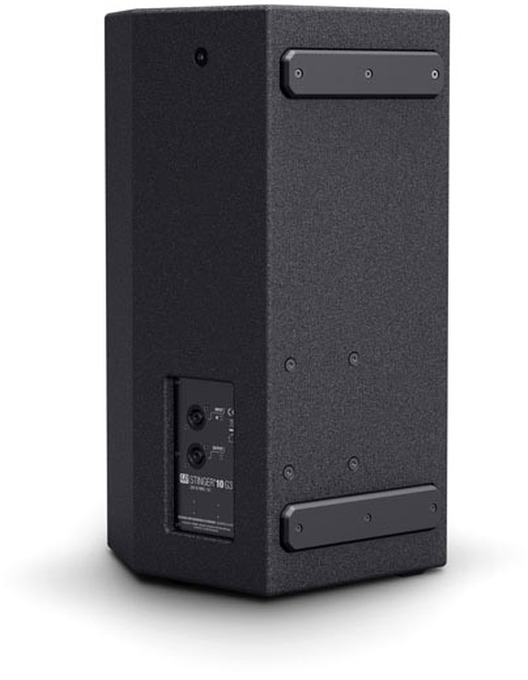

Loudspeaker inputs: | 1 |
Speaker input connections: | Speakon compatible |
Loudspeaker outputs: | 1 |
Speaker output connections: | Speakon compatible |
Speakers per amplifier channel (DSP44/45K): | 4 |
Cabinet material: | 12 mm Plywood |
Cabinet surface: | Polyurea |
Cabinet construction: | Bass Reflex |

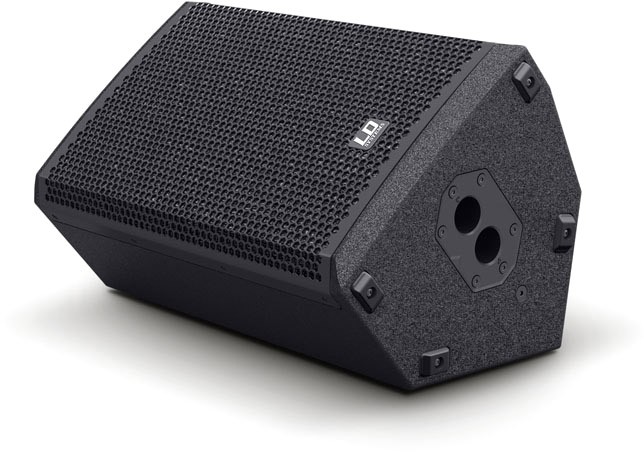

Monitor angle: | 54 ° |
Width: | 325 mm |
Height: | 527 mm |
Depth: | 318 mm |
Weight: | 11,5 kg |
