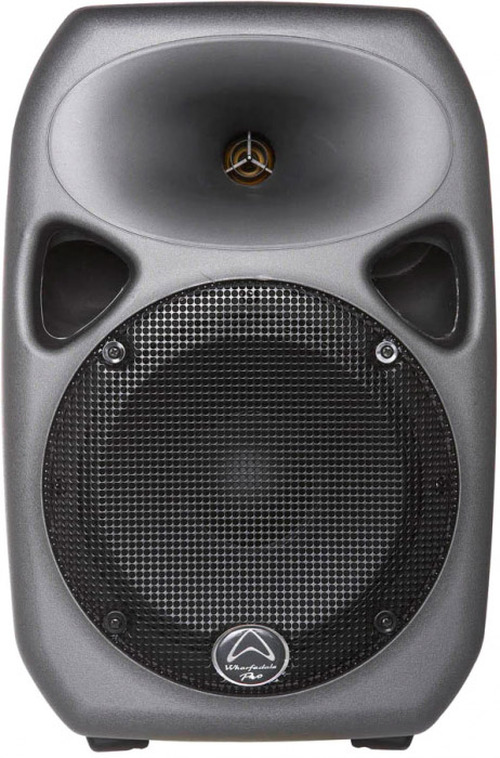

Wharfedale Titan 8, 300W, passive, grey

Titanium 8
The Titan 8 combines the latest technology with state-of-the-art materials and elaborate design topology, such as the titanium compression driver, the gas-pressure manufacturing of the housing or the patented Wave Guide Horn. The result is an ultra-light speaker with high performance, accurate reproduction, a wide frequency response and the highest precision especially in the reproduction of the critical mids and highs.


The housing of the Titan 8 is manufactured using the latest gas pressure technology. In this process, a gas is pumped into the cavities during production, pressing the mass against the wall of the mold. Shortly before cooling, the gas is then sucked out again. The result is an extremely light but enormously resistant housing. An internal rib structure further increases robustness. This intelligent housing design in combination with the specially developed loudspeaker enables bass reproduction of up to 55 Hz.


Due to its multifunctional housing, the Titan 8 can be used in many ways. Thanks to the standard flange and an additional locking screw, the box stands bombproof on a speaker stand. Of course, you can simply lay the box down for monitor purposes. The rubber-backed handle and the light weight make transporting it a pure pleasure. A cable anchor and the ability to coil the cable further distinguish the enclosure. 8 M6 mounting points allow for a variety of "flown" applications. The base plate is compatible with OmniMount® 60.0 wall mounts, and Wharfedale Pro also offers a wall mount and rugged nylon carrying bag as accessories.


Powerful, compact, ultra-lightweight and affordable, the Titan 8 is the ideal choice for installation and outdoor applications. The system enables high-quality audio reproduction at a standard that mostly only considerably more expensive boxes can meet


Key Features

• 2-way loudspeaker system
• Specially designed water resistant 8" woofer
• 300 Watt Program/600 Watt Peak Power Consumption
• 124dB maximum sound pressure
• 8 Ohm impedance
• 2 Speakon + 2 Blade inputs
• Rubber backed handle
• Tweeter protection
• Standard 35mm high stand flange with locking device
• Trapezoidal housing for versatile use
• "Stacking" points for easy stacking
• Ultra-light, robust housing due to latest manufacturing technology
• 8 pcs M6 fixing points for flexible mounting
• Integrated cable anchor/rewinder

Technical data


General data


System type
2-way passive system

Frequency response +/-3dB
70Hz-20kHz

Sensitivity (db 1w@1m)
96dB SPL

System impedance
8 Ohm

Maximum SPL Peak dB
124dB SPL peak


Power (Watt)

Continuous RMS
150W

Program
300W

Peak
600W


Woofer

Woofer loudspeaker
205mm / 8 ", die-cast aluminum

Voice coil
38.86mm / 1.53 "


Tweeter section

Voice coil
30mm / 1.2 "

Type
Compression driver

Horn resolution
90° x 60° 2kHz - 10kHz

Horn opening
25mm / 1 "


Crossover

Crossover frequency, filter
2.4kHz, 12dB per octave

Tweeter protection
Lamp fuse

Equipment


Surface
Titanium gray, black or white

Material
Polypropylene

Handles
1

Fixing points
8 x M6

High column flange
Standard 35mm with locking


Input section

Inputs
NL4 Speakon ™ x2 " 1/4" jack x 2 (parallel)


Dimensions

Height (mm)
396mm

Width (front/rear) (mm)
266mm

Depth
221mm

Weight incl. packing
7.5kg

Net weight
5.5kg

Accessories optional
Wall mount, transport bag (roadbag)
