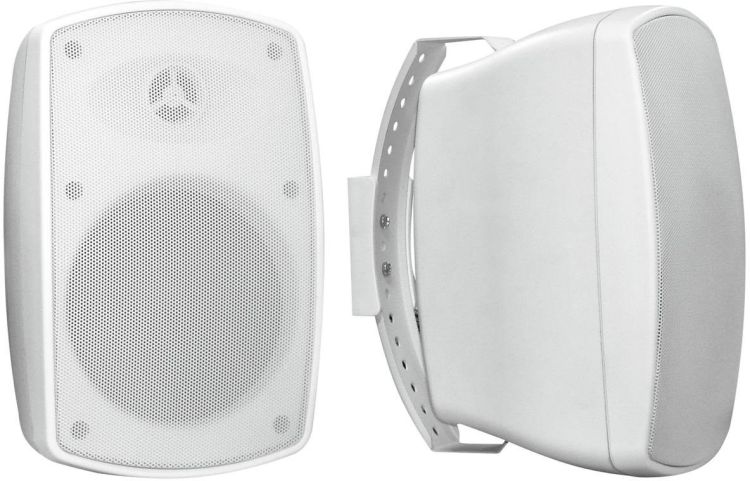

OMNITRONIC OD-5T Wall Speaker 100V white 2x

€99.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 200016910

EAN: 4026397543612

MPN: 11036921

Weatherproof wall speaker pair (IP65) with 5.25" woofers and 16 W RMS 2-way system with 13.5... more

All information about the product:

"OMNITRONIC OD-5T Wall Speaker 100V white 2x"

Weatherproof wall speaker pair (IP65) with 5.25" woofers and 16 W RMS

2-way system with 13.5 cm woofer (5.25") and 1.3 cm tweeter (0.5")
Durable plastic cabinet with metal grille and cover for the connectors

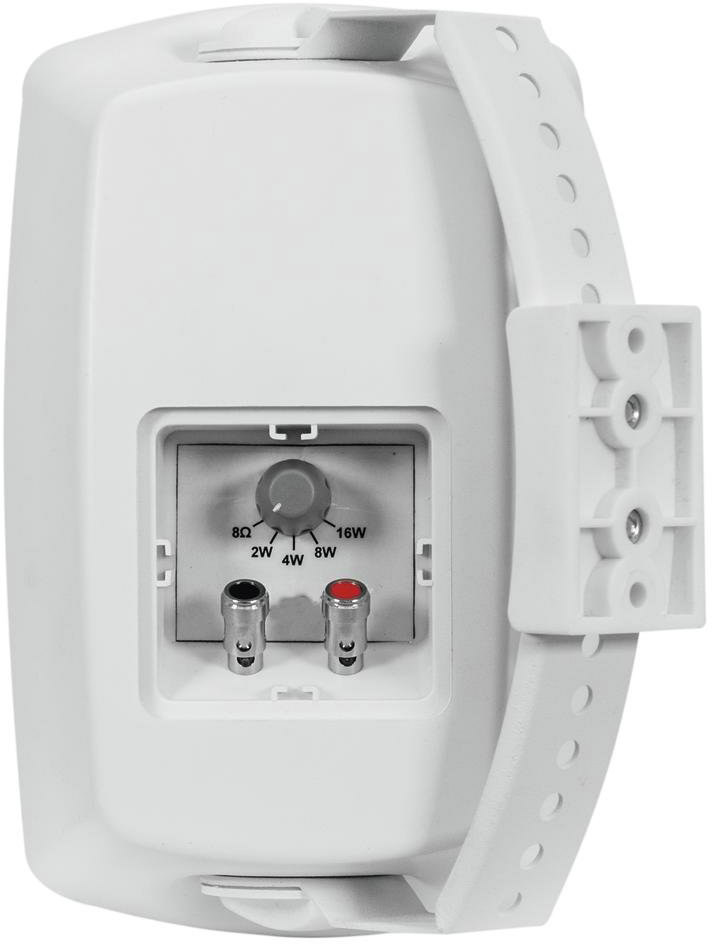

Power selector switch with 8 ohms operating position

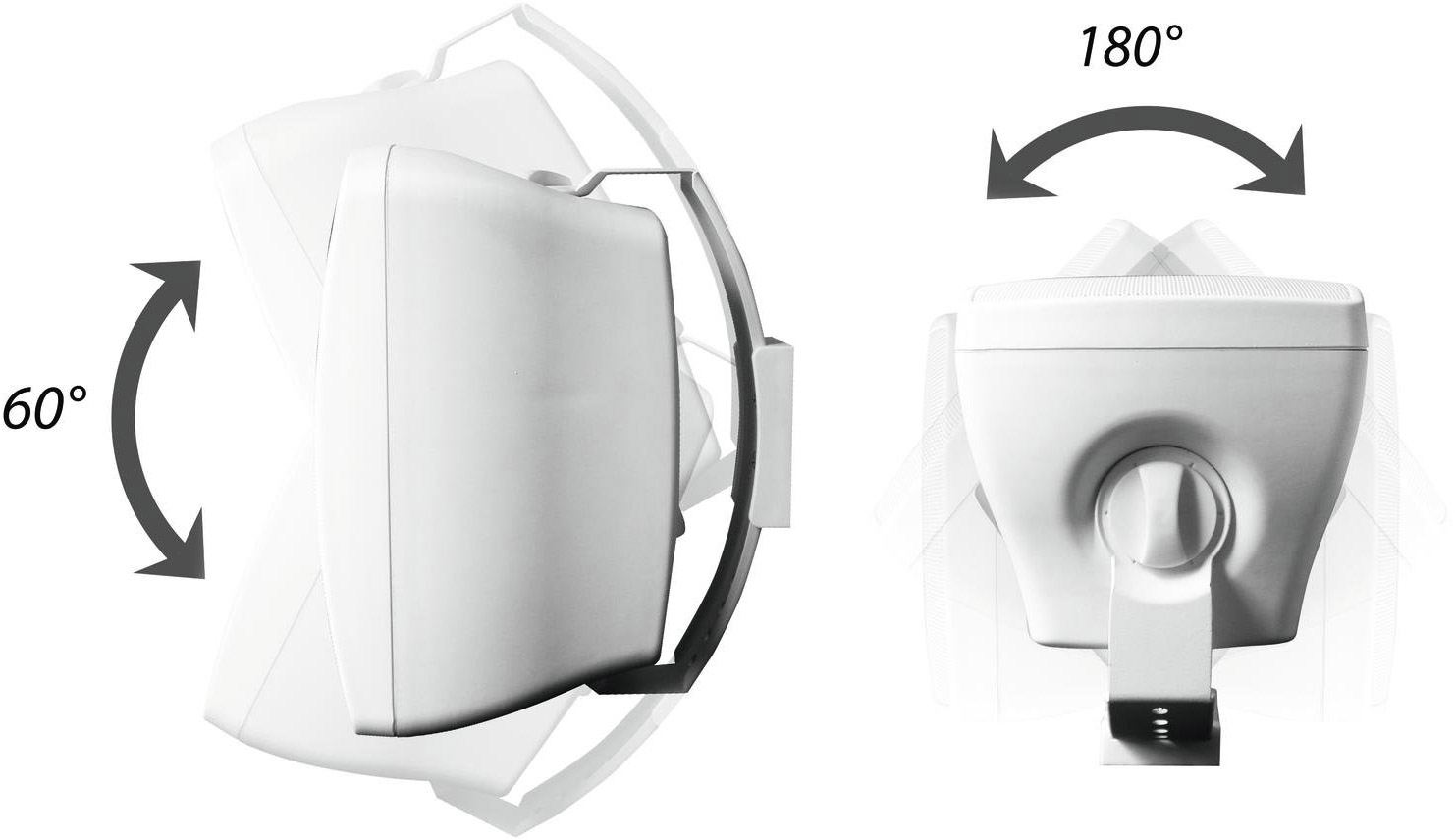

With Panning and tilting mounting bracket for ceiling or wall installation in most varying angles
Suitable for outdoor use IP65
2 pieces per set

Package contents

2 x compact cabinet speaker, 1 x user manual, 2 x mounting bracket, 4 x knurled screw

IP classification:	IP65
Power:	Program: 80W Rated: 40W RMS (8 ohms) Rated: 16W RMS (100V PA)
Frequency range:	80 - 20000 Hz
Sensitivity:	89 dB
Max. SPL:	101 dB (100V PA); 108 dB (8 ohms)
Dispersion angle:	170° x 170°
Impedance:	Public address systems 100V; 8 ohms
Attachment system:	Panning and tilting mounting bracket for ceiling or wall installation in most varying angles
Power tapping:	2W; 4W; 8W; 16W RMS via Selector switch switchable
Connections:	Input: speaker via screw terminal
Speaker:	1 x woofer (5.25") approx. 13.3 cm Calottes highs (0.5") approx. 1.27 cm
Type of speaker:	Compact cabinet speaker
Dimensions:	Width: 16 cm Depth: 16,3 cm Height: 25,5 cm
Weight:	5,30 kg
