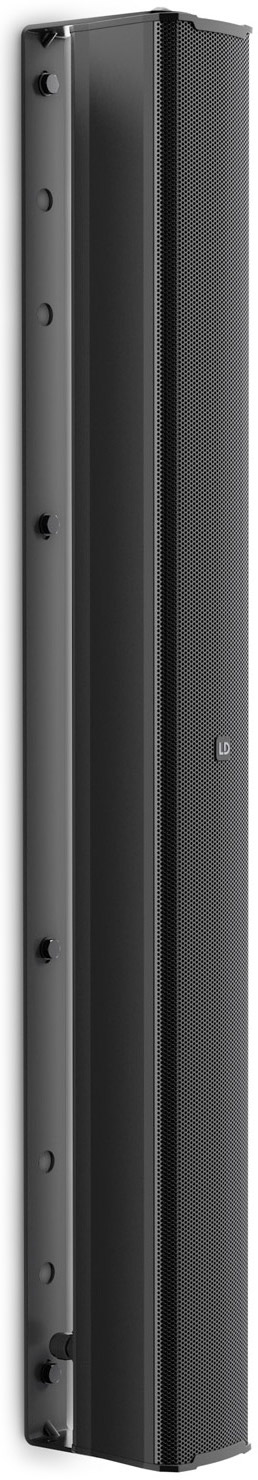

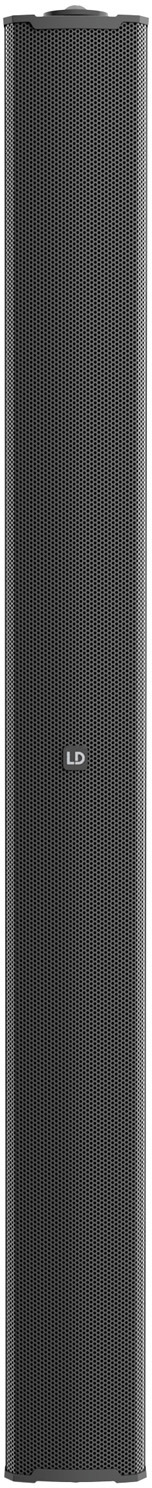

LD Systems MAUI® i1 - Passive Indoor/Outdoor Installation Column Speaker
- Passive column speaker for surface mounting with nine 3" mid-range drivers and two 1" neodymium dome tweeters
- Uniform sound distribution thanks to BEM-optimized tweeter waveguide; controlled vertical and wide horizontal dispersion
- 120 W RMS power at 8 ohms
- Input selector: 8 ohms (transformer bypass) / 100 V / 70 V
- Power taps: 60 W, 30 W, 15 W, 7.5 W; transformer with very low saturation
- IP65 protection class, aluminum speaker grille and weatherproof membrane

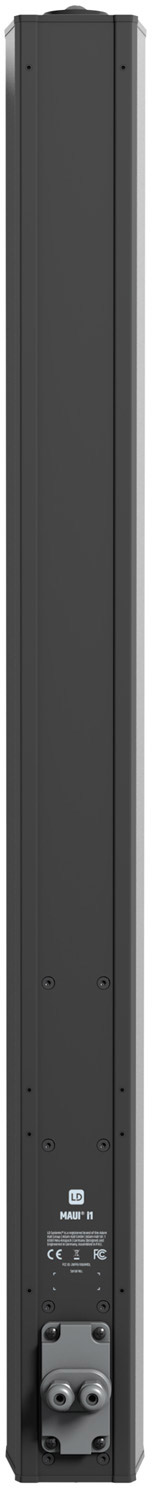

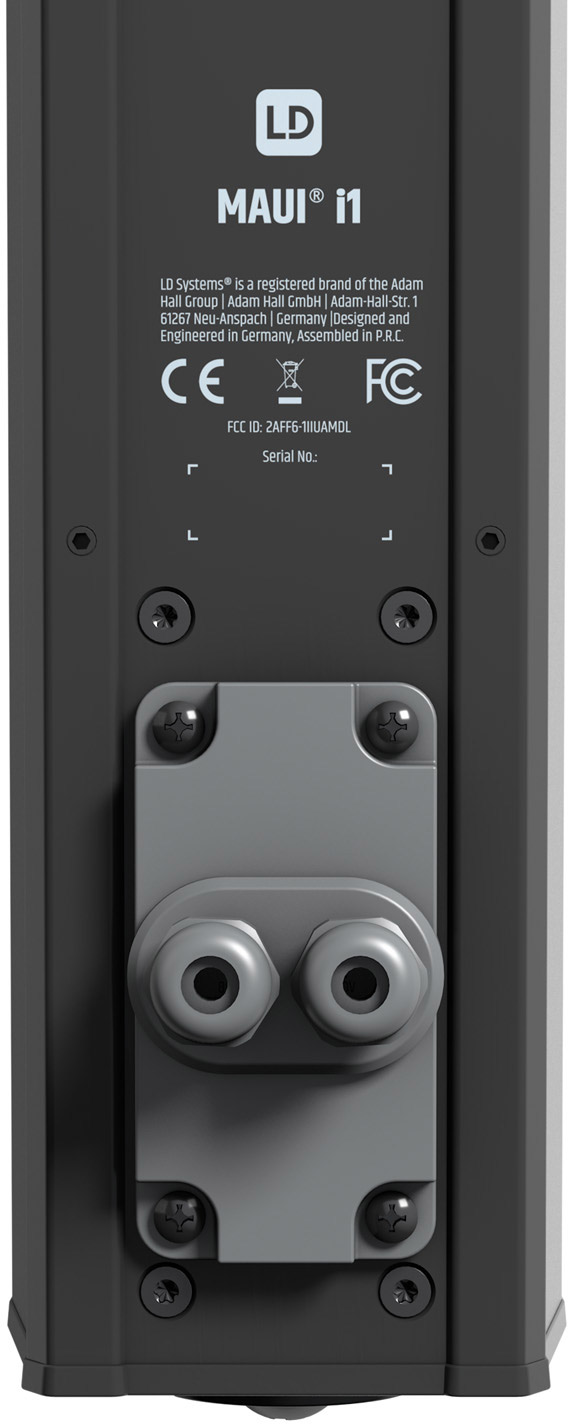

- Cover for the connection plate for outdoor protection
- 4-pole binding post for easy parallel connection of speakers
- Complex passive crossover for balanced frequency response and self-resetting overload protection for high-frequency drivers

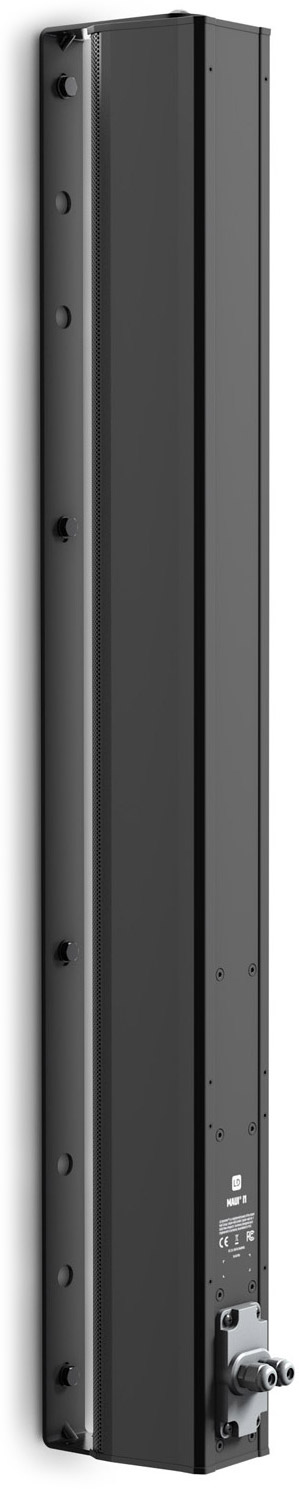

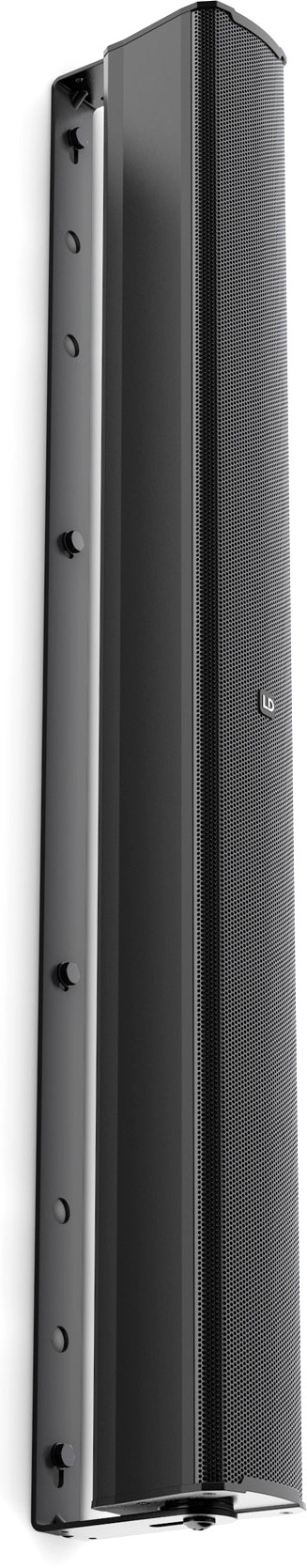

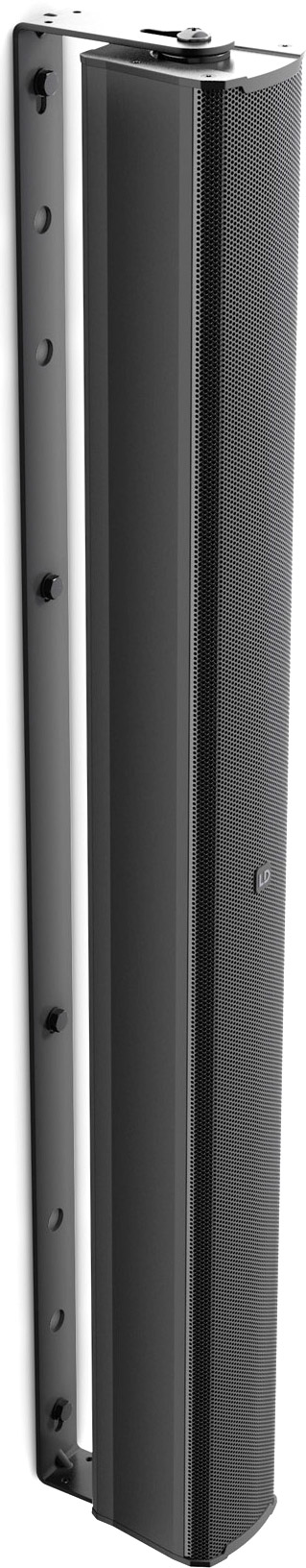

- U-bracket included, optional bracket for sloped wall mounting available

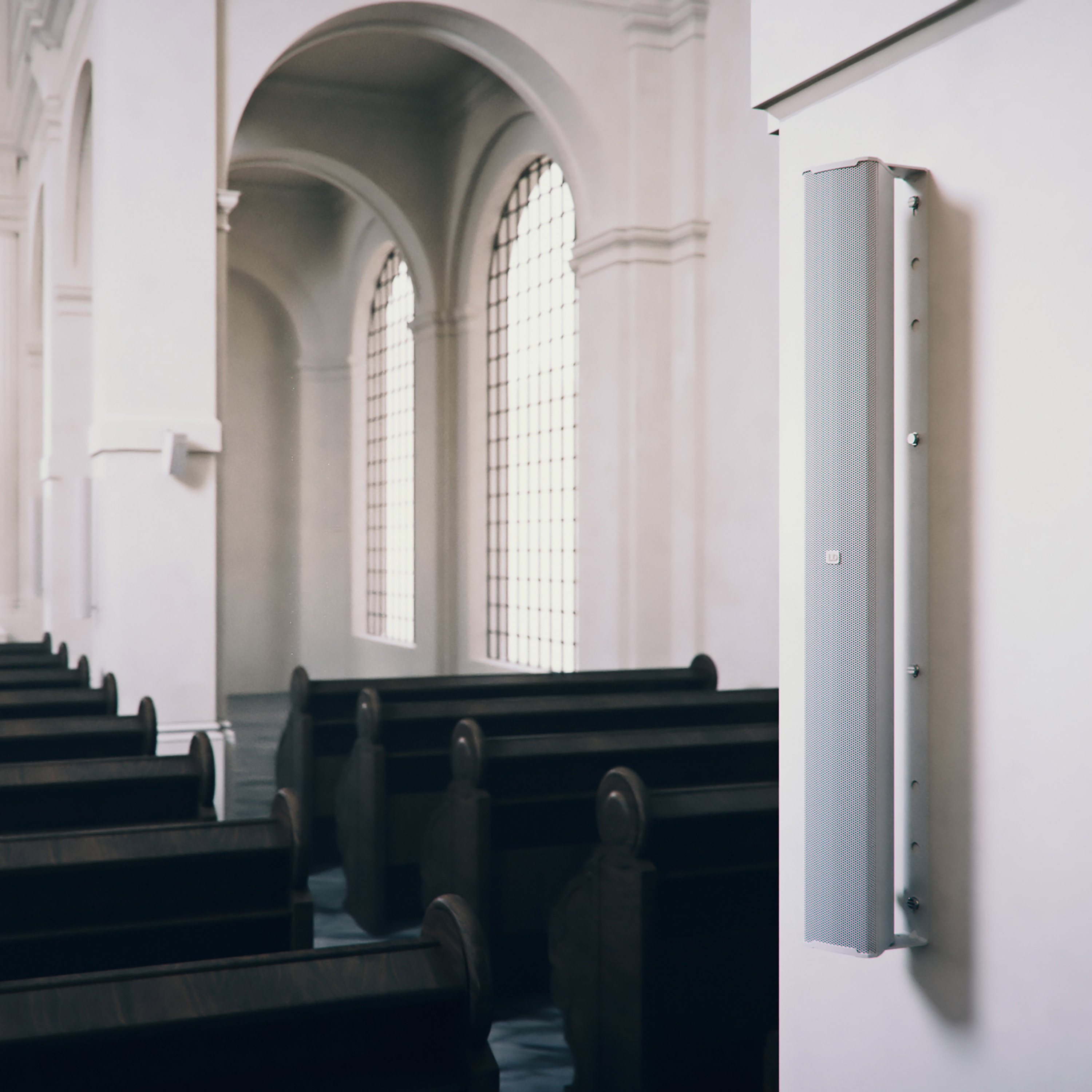

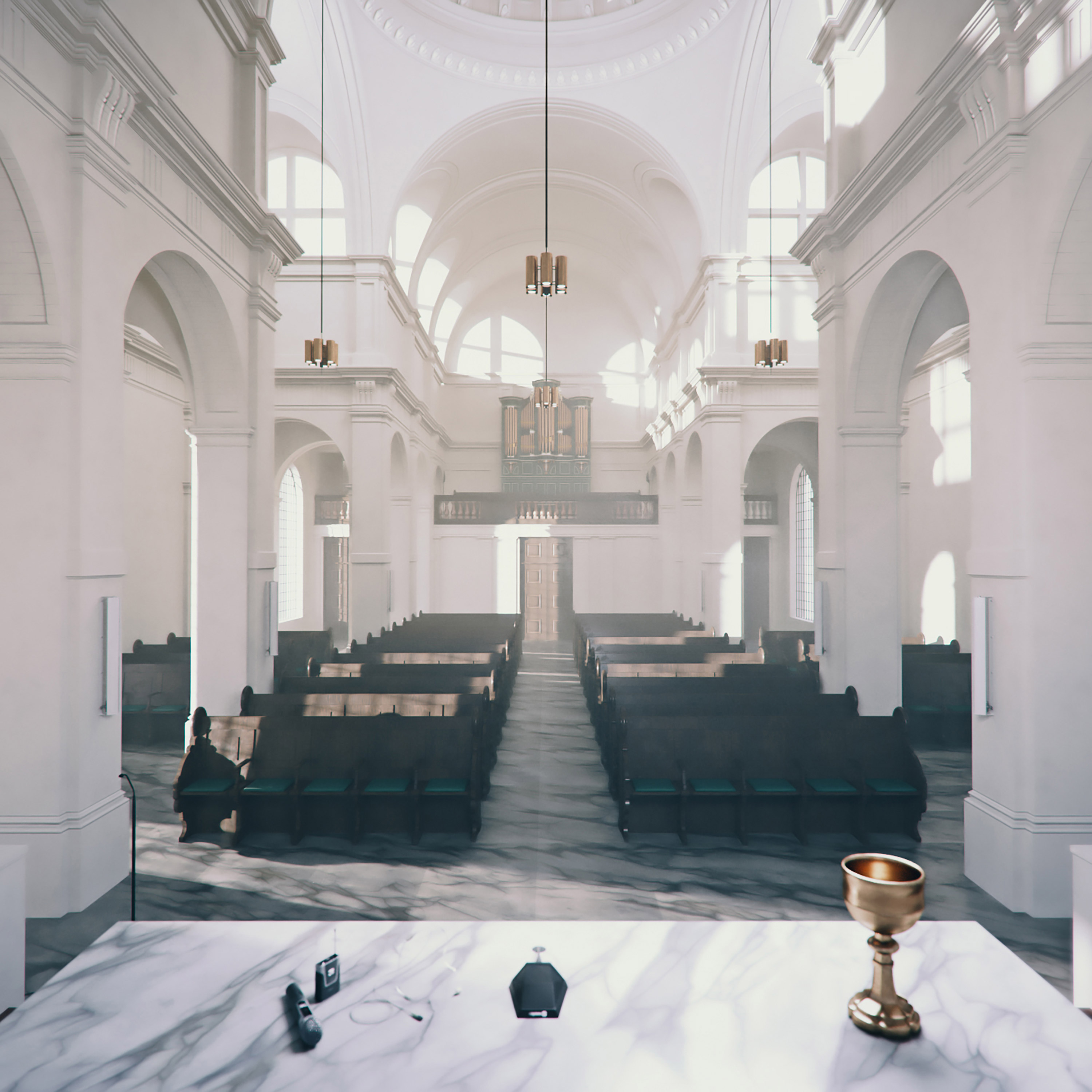

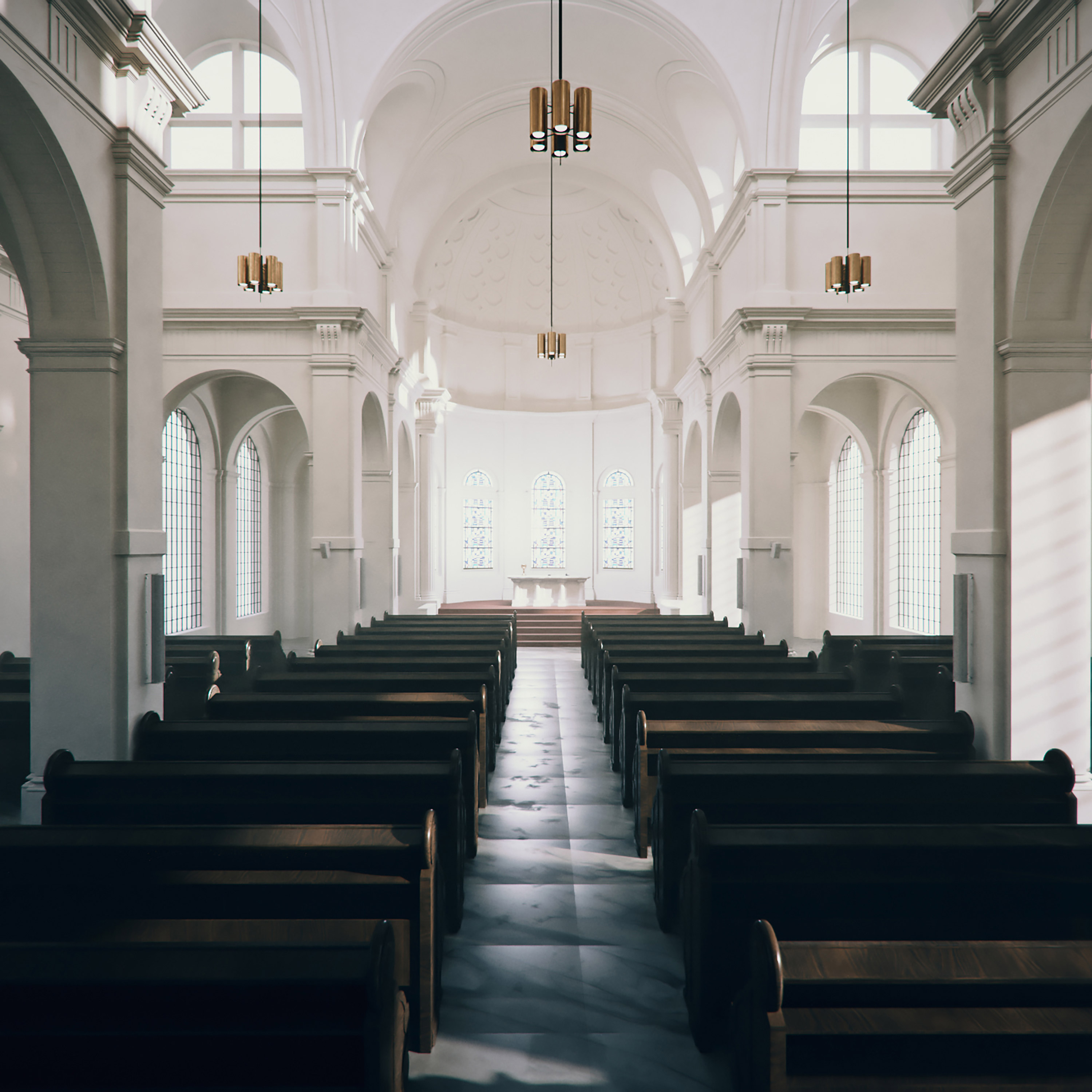

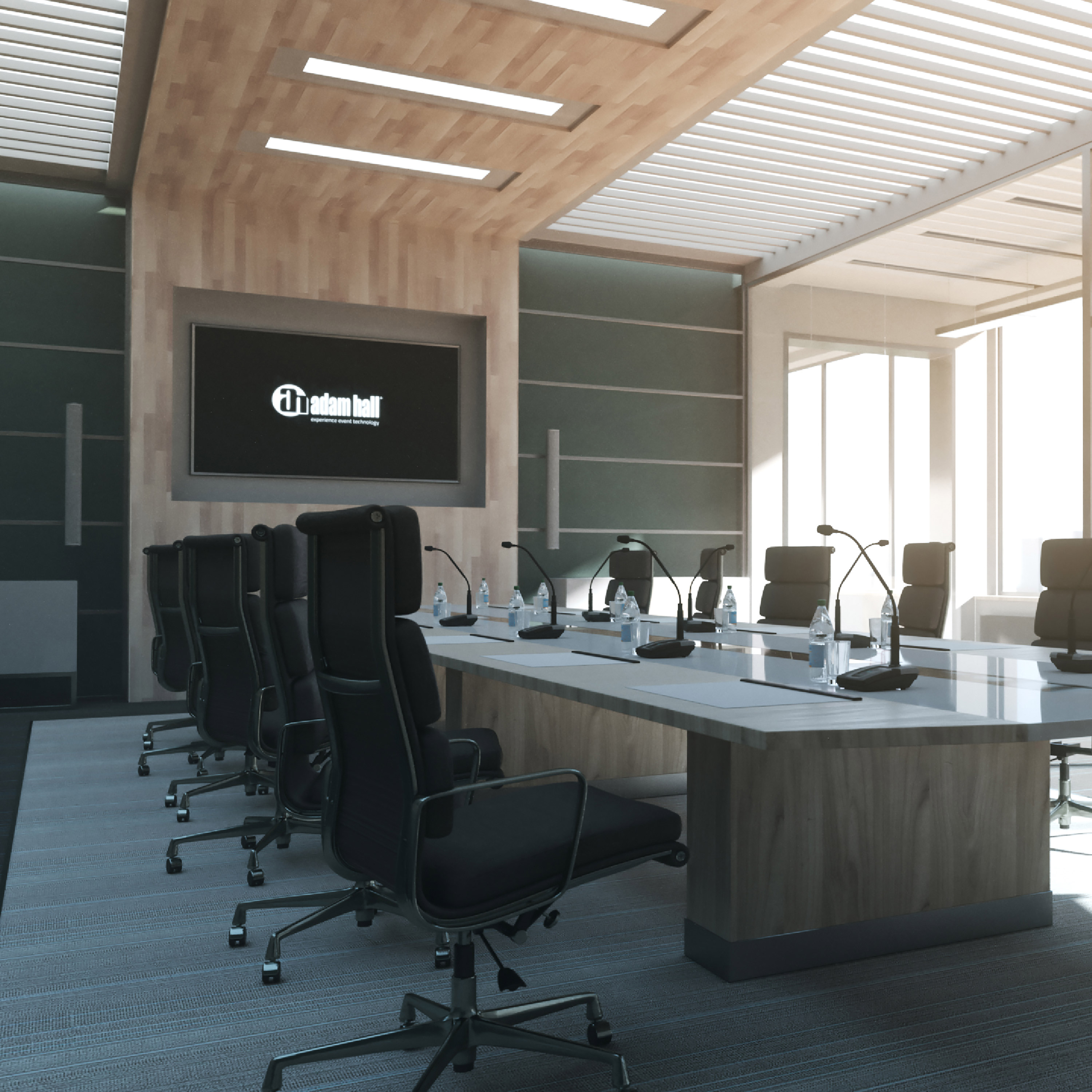

The MAUI® i1 was developed for acoustically demanding indoor venues where speech and music need to be clearly understood even in the rear sections of the seating area.

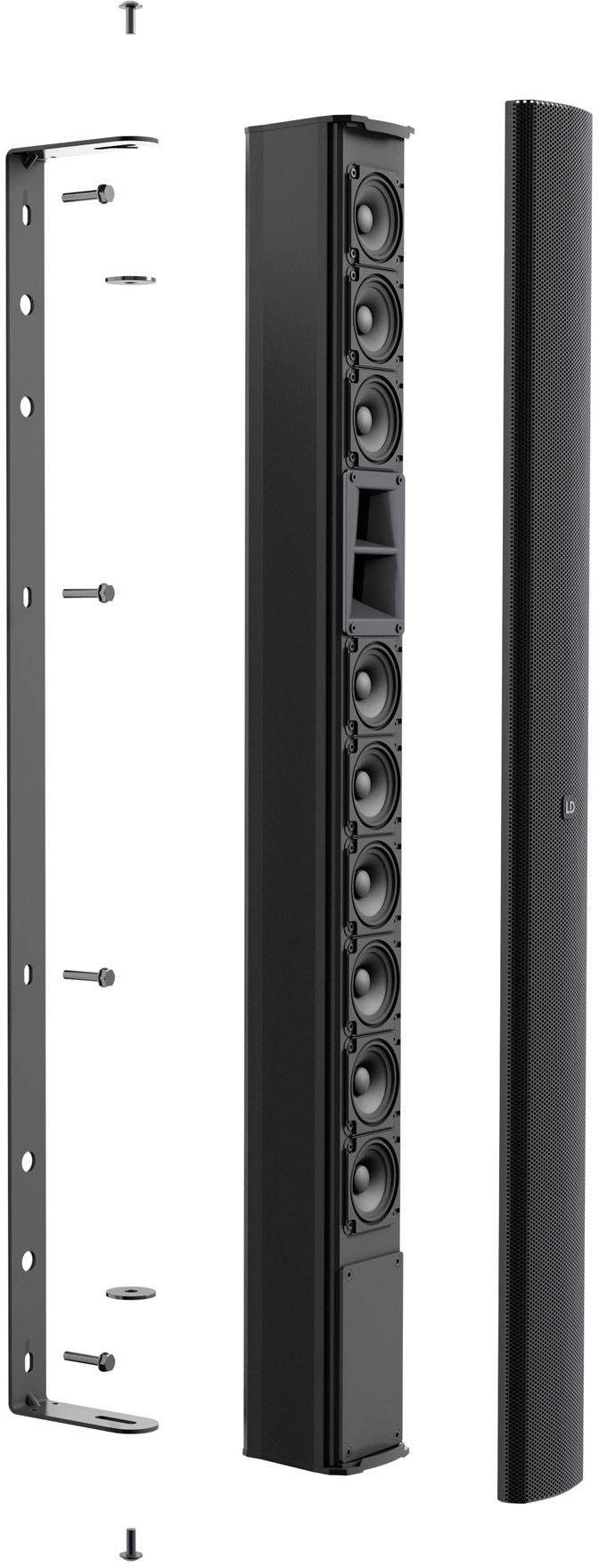

This acoustic property is achieved with nine 3" midrange drivers, two 1" neodymium high-frequency drivers and the specially developed BEM-optimized tweeter waveguide. The combination avoids unnecessary reflections from the floor and ceiling by keeping the vertical dispersion as narrow as possible and the horizontal dispersion as wide as possible.

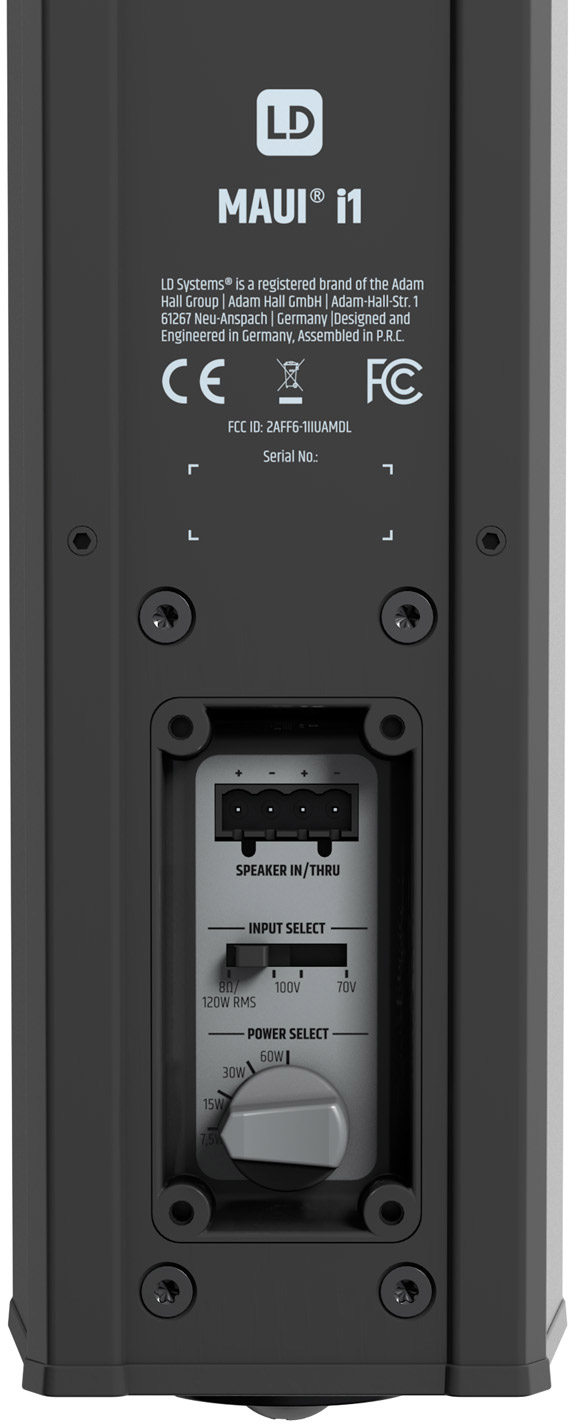

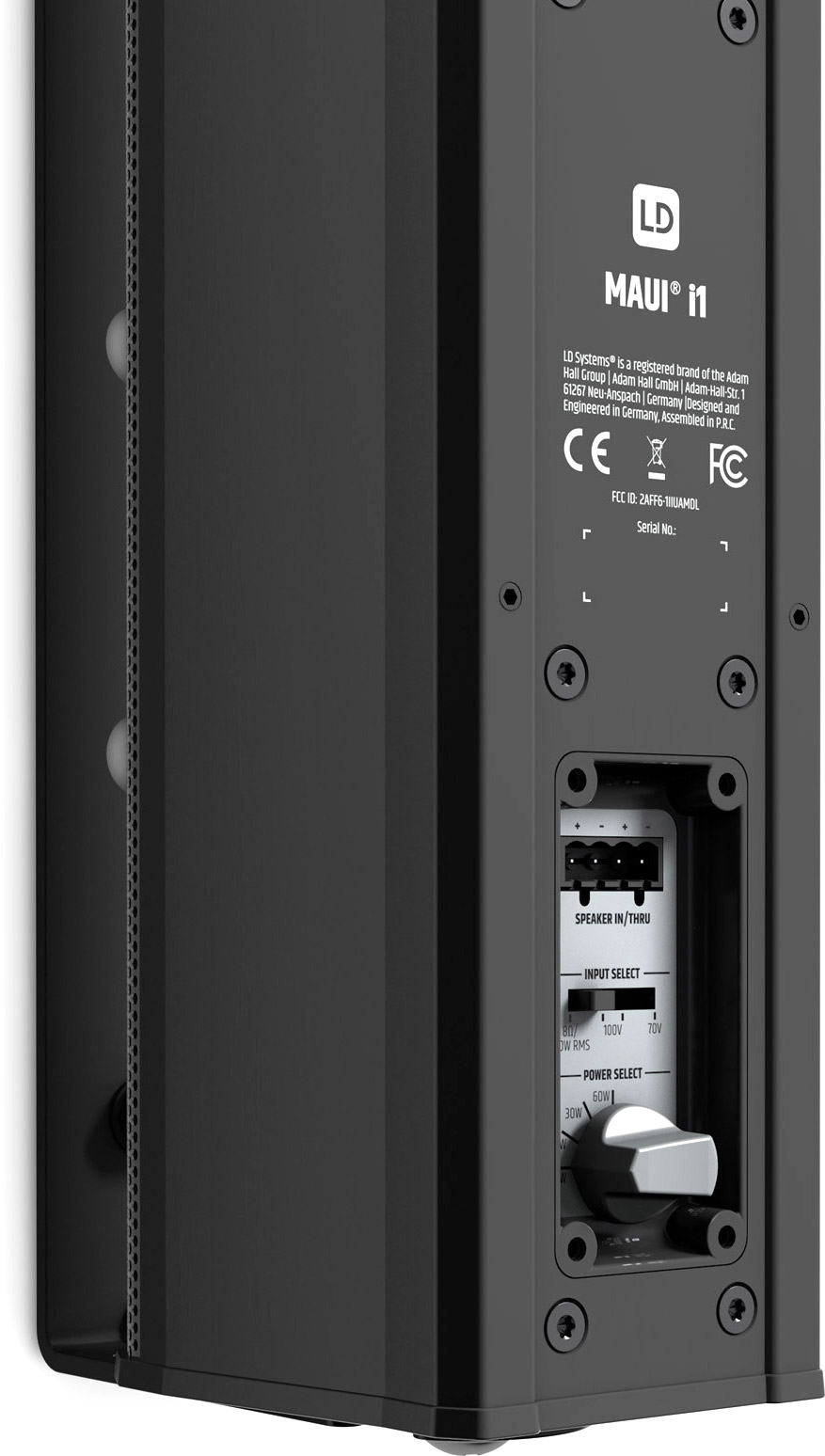

The MAUI® i1 can be easily integrated into existing speaker systems with constant voltage. This is made possible by the 8-ohm/70-V/100-V selector switch. In addition, you can switch the power down to 60 W, 30 W, 15 W, or 7.5 W, depending on how many speakers are operated in parallel. At 8 ohms, you benefit from the best sound and the highest 120 W RMS power.

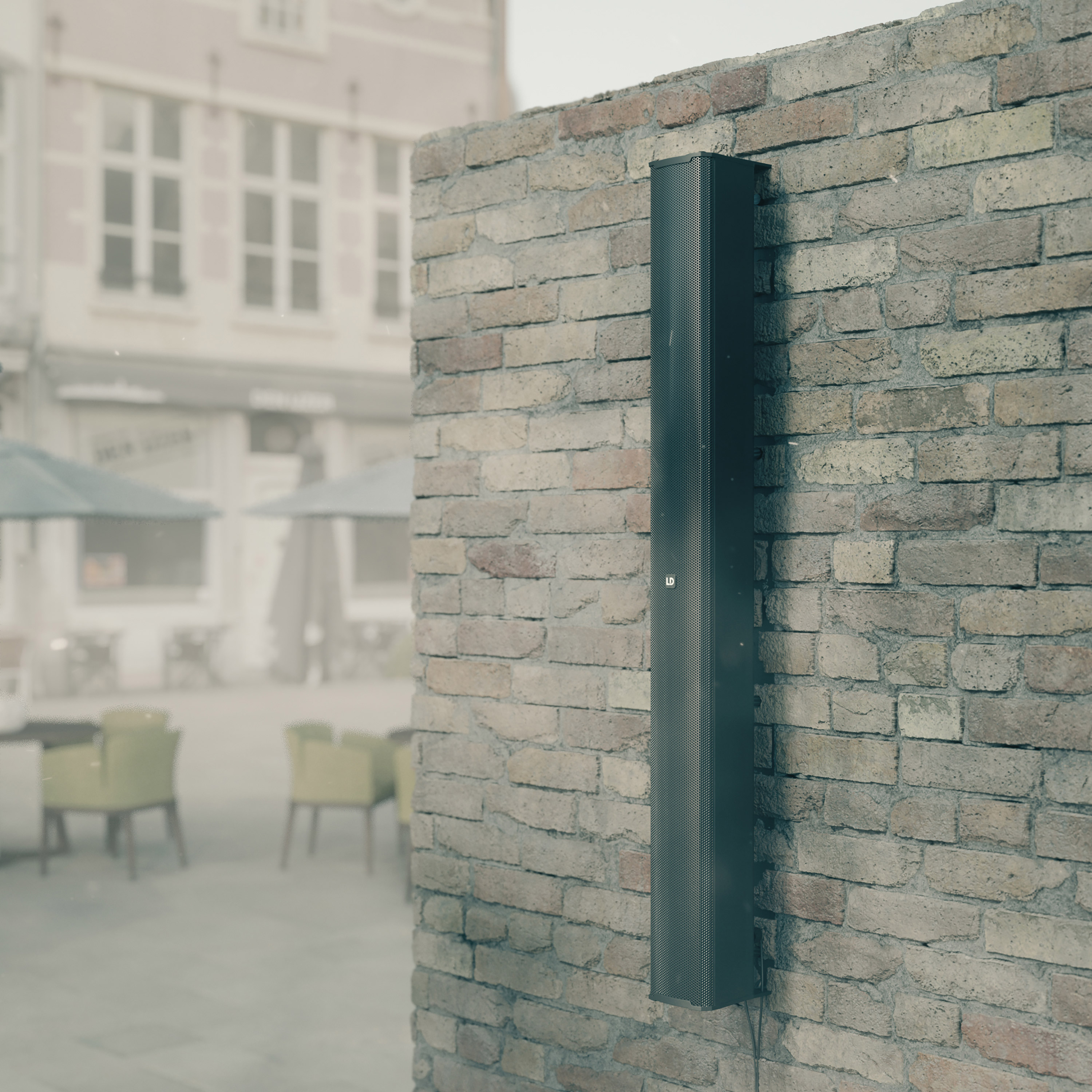

For outdoor use, the MAUI® is available with weather-resistant membranes, an aluminum speaker grille and a weatherproof cover for the connection plate, dust-tight and sealed to protect against water jets.
The multiple award-winning MAUI® series has been expanded to include the completely redesigned i1, which has been adapted to the special requirements of indoor and outdoor installations. And with the included U-bracket for wall mounting and the white and black color shades, it can be integrated unobtrusively and discreetly into almost any location.
For your demanding room sound reinforcement, the MAUI® i1 is the right choice for you.
Technical data:| Product type: | installation speaker |
| Type: | passive |
| Size of woofer: | 9 by 3 |
| Size of woofer: | 76.2 mm |
| Magnetic woofer: | Ferrite |
| Brand of woofer: | custom-made |
| Horn: | BEM optimized CD horn |
| Size of HF driver: | 2 x 1 " |
| Size of HF driver: | 25.4 mm |
| Magnet HF Driver: | neodymium |
| HF brand drivers: | custom-made |
| Beam angle (H x V): | 120° x 30° |
| Rated power (RMS): | 120 W |
| Peak power handling capacity: | 480 W |
| Frequency response: | 130 - 19000 |
| acquisition frequency | 2500 Hz |
| SPL (1 W/1 m): | 94 dB |
| Max. SPL: | 116 dB |
| Impedance: | 8 ohms |
| Input selector switch: | 70 V - 100 V - 8 ohms (transformer bypass) |
| 100V transformer power taps: | 60 - 30 - 15 - 7.5 W |
| 70V transformer power tappings: | 60 - 30 - 15 - 7.5 W |
| IP rating: | 65 |
| Speaker inputs: | 1 |
| Speaker input connectors: | 4-Pin Euro Terminal Block (Pitch - 5.08 mm) |
| Housing material: | aluminum |
| Type of enclosure: | closed |
| width: | 85 mm |
| Height: | 985 mm |
| Depth: | 105 mm |
| Accessories (included): | U-bolt for surface mounting |
| Optional accessories: | Tiltable and rotatable wall mount: LDMAUII1WMBT |
| Weight: | 8.6 kg |
