LD Systems DQOR 3 B - 3" Indoor/Outdoor 2-Way Installation Speaker, passive, 8 ohms, black

NEW
Sale to reseller only
Availability:
Not in stock
Delivery time: approx. 2 weeks
Delivery time: approx. 2 weeks
Item number: 210906100
EAN: 4049521488962
MPN: LDDQOR3B
NEW
3" Indoor/Outdoor 2-way installation speaker passive 8 Ohm, black (pair) For indoor and... more
All information about the product:
"LD Systems DQOR 3 B - 3" Indoor/Outdoor 2-Way Installation Speaker, passive, 8 ohms, black"
3" Indoor/Outdoor 2-way installation speaker passive 8 Ohm, black (pair)
  • For indoor and outdoor installation, IP65 (DQOR 3) and IP55 (DQOR 5 & 8) certified
  • Corrosion-resistant aluminum front grille
  • Modern, dynamic design fits unobtrusively into the ambience
  • Available in black or white

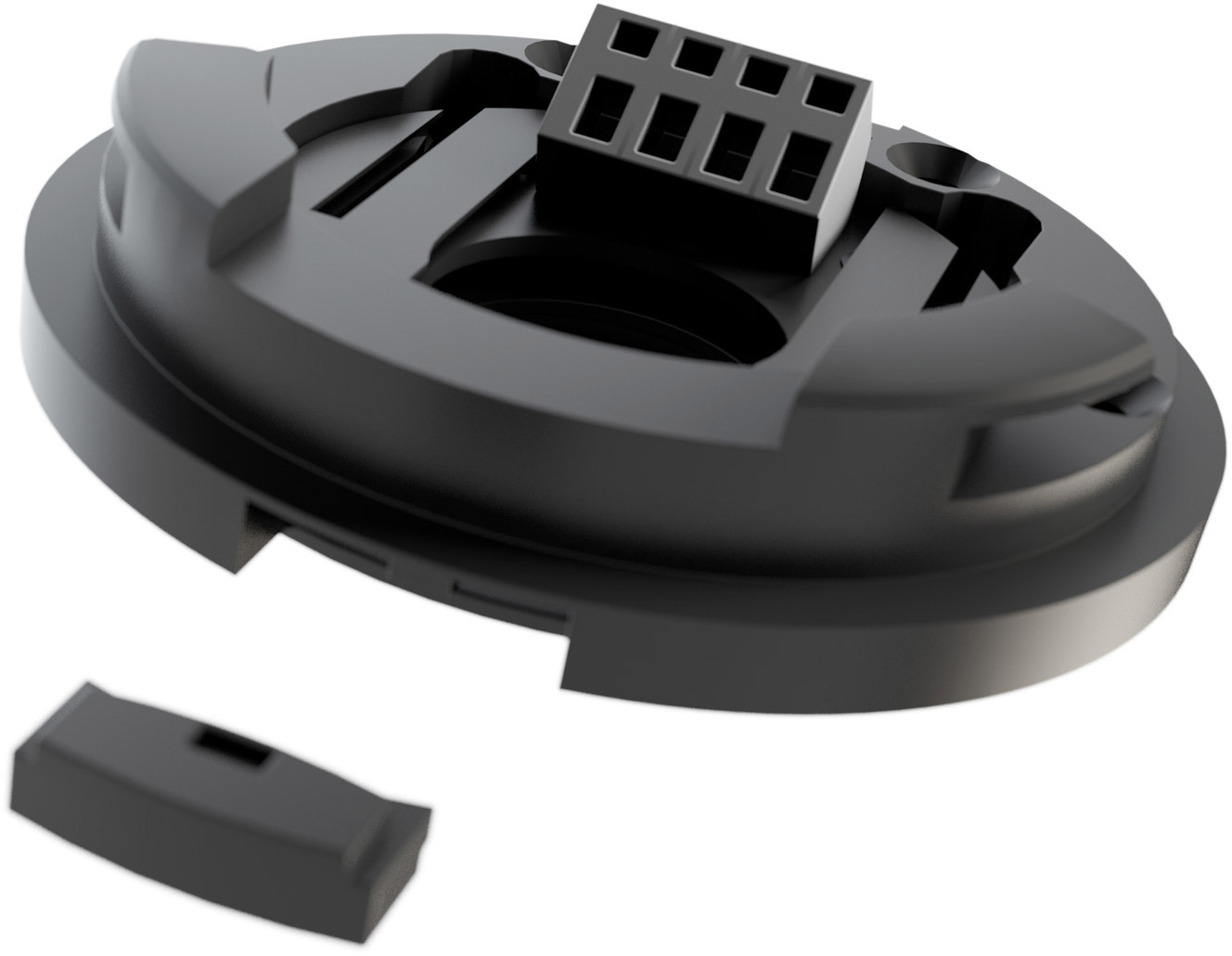

  • Slide-and-Lock wall mount with invisibly integrated connections
  • Pleasant, balanced sound thanks to 2-way design
  • Bass driver with weather-resistant coated paper cone and FerroFluid™-cooled dome tweeter with titanium dome
  • Wide viewing angle (120° horizontal, 80° vertical)
  • BEM-optimized waveguide for consistent sound
  • Available in 3-inch, 5-inch and 8-inch variants
  • Available in two connection variants: low-impedance (8 ohms) or as a 70/100V version with transformer tappings, also low-impedance controllable (16 ohms)

Invite your customers and guests to linger with pleasant sound. Thanks to their wide beam angle and balanced sound, the DQOR speakers create an inviting ambience.

Whether indoors or outdoors, with its modern, dynamic design in black or white, the 2-way speaker blends harmoniously into any interior. No visible cables at all, thanks to the clever slide-and-lock wall bracket with invisibly integrated connections. To maintain its smart look, the front grille is made of corrosion-resistant aluminum.

Don't let yourself be constrained! With a tilt angle of up to 27° and a horizontal swivel range of 45°, the DQOR speakers allow flexible positioning, entirely according to your wishes and needs.

You can also use the DQOR speakers to implement distributed sound systems with many speakers and long cable runs. The DQOR 3T, DQOR 5T and DQOR 8T models are equipped with low-distortion transformers for 70V/100V systems to minimize power losses. Play background music and announcements as loudly or quietly as you like: a switch allows the output power per speaker to be adjusted over a wide range. Alternatively, the transformer variants can also be operated on conventional low-impedance amplifier outputs; the 16-ohm impedance allows up to eight DQOR speakers to be operated in parallel on 2 ohms.

The speakers in the DQOR series create a pleasant sound for a feel-good atmosphere wherever you want to put your customers and employees in the right mood – in your shop, your hotel lobby, at the beach bar or on the cruise ship.

Technical data:
Product type:PA loudspeaker
Type:passive
Size of woofer:3"
Size of woofer:76.2 mm
Magnetic woofer:Ferrite
Brand of woofer:custom-made
Woofer voice coil:1 "
Woofer voice coil (mm):25.4 mm
Horn:BEM optimized CD waveguide
Size of HF driver:1 "
Size of HF driver:25.4 mm
Magnet HF Driver:neodymium
HF drivers:custom-made
Voice coil HF driver:1 "
Voice coil HF driver:25.4 mm
Beam angle (H x V):120° x 80° (-6 dB)
Rated power (RMS):30 W
Peak power handling capacity:60 W (>200Hz)
Frequency response:85 - 20000 Hz (-10dB)
acquisition frequency2200 Hz
SPL (1 W/1 m):80 dB
Max. SPL:98 dB
Impedance:8 ohms
Speaker input connectors:4-pole Terminal Block. Pitch 5.08mm
Housing material:ABS plastic.
Housing color:black (RAL 9005)
IP rating:65
width:114.6 mm
Height:180 mm
Depth:180.8 mm
Accessories (included):surface-mounted holder
Accessories (included):Allen key for the security screw
Optional accessories:LDDQORWMC (rubber cover set for wall bracket)
Weight:1.4 kg
