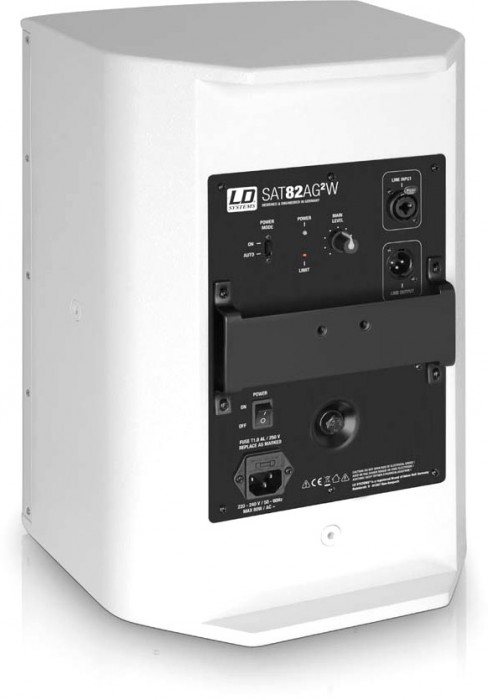

LD Systems SAT 82 A G2 W - 8" Active Installation Monitor white

Preview: LD Systems SAT 82 A G2 W 8" Installationslautsprecher aktiv weiß

LD Systems SAT 82 A G2 W 8" Installationslautsprecher aktiv weiß

Sale to reseller only

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Product inquiry

Item number: 210902895

EAN: 4049521186240

8" Active Installation Monitor white Compact active 2-way installation monitor Ideal for... more

Back to the overview

All information about the product:

"LD Systems SAT 82 A G2 W - 8" Active Installation Monitor white"

8" Active Installation Monitor white

Compact active 2-way installation monitor
Ideal for bars, restaurants, shops, as a home recording monitor and PC speaker
8" custom-made woofers
1" high frequency driver with a 60° x 60° dispersion angle
Integrated Class AB power amplifier with 80 watts (RMS)
Switchable automatic power save mode
Mounting bracket and M6 fixing points for a wide variety of installation possibilities

The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.

The compact 2-way bass reflex design is equipped with an 8" custom-made woofer and a 1" compression driver which are driven by an 80 Watt Class AB power amplifier. The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz - 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.

The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.

Technical data:

Product type:	Installation Loudspeakers
Type:	Wall-mounted Loudspeaker
Low/mid driver dimensions:	8 "
Woofer size:	203.2 mm
Woofer magnet:	Ferrite
Woofer brand:	Custom-made
HF driver dimensions:	1 "
HF driver size:	25 mm
HF driver magnet:	Ferrite
HF driver brand:	Custom-made
Power amplifier (Class A):	Class A/B
Dispersion (H x V):	60° x 60 °
RMS:	80 W
Frequency response:	50 - 20000 Hz
Max. SPL:	114 dB
Protection circuits:	HF Driver
Protection circuits:	over voltage
Controls:	mains switch (on/off)
Controls:	volume
Indicators:	overload
Indicators:	Power
Line input connectors:	6.3 mm jack
Line input connectors:	XLR
Line output connectors:	XLR
Operating voltage:	transformer
Operating voltage:	220 V AC - 240 V AC, 50-60 Hz
Cabinet material:	12 mm MDF
Cabinet surface:	texture paint
Cabinet colour:	Black
Cabinet construction:	Bass Reflex
Width:	274 mm
Height:	410 mm
Depth:	243 mm
Weight:	8,5 kg
Accessories (included):	Wall bracket
