LD Systems SAT 82 G2 W - 8" Installation Monitor passive white
The LD Systems SAT82G2 is a compact, especially dependable 2-way speaker for demanding installation solutions. It blends unobtrusively into practically any surroundings and thus is also suitable for home systems.
The bass-reflex design is loaded with an 8" custom woofer and a 1“ silk dome tweeter with wave guide, which permit powerful and extremely dynamic reproduction within a range of 50 Hz - 20 kHz with a dispersion angle of 60° and attain a maximum sound- level pressure of 114 dB. The LD SAT82G2 is rated for a RMS power load of 120 W.

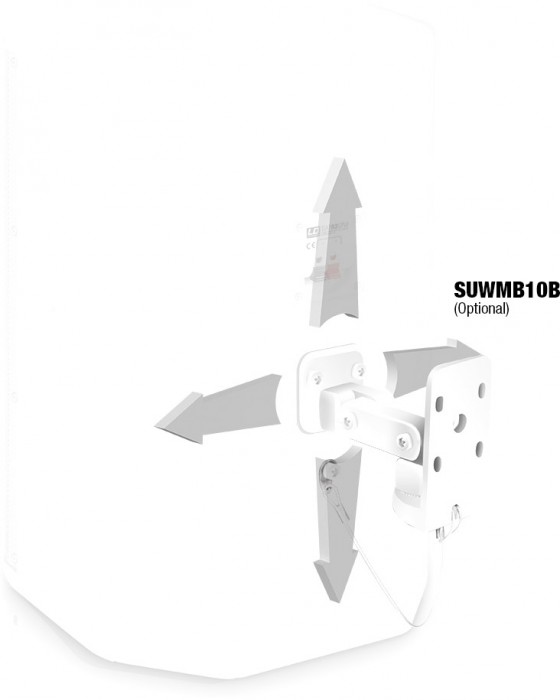

The sturdy cabinet is made of 12mm MDF with a durable textured finish and is available in black and white. M6 rigging points and an included mounting bracket provide numerous possibilities for mounting. Additionally, a universal joint mount is available as an accessory. The SAT82G2 has spring terminal connectors.
Technical data:| Product type: | Installation Loudspeakers |
| Type: | Wall-mounted Loudspeaker |
| Low/mid driver dimensions: | 8 " |
| Woofer size: | 203 mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| HF driver dimensions: | 1 " |
| HF driver size: | 25 mm |
| HF driver magnet: | Ferrite |
| HF driver brand: | Custom-made |
| Dispersion (H x V): | 60 x 60 ° |
| Load rating (RMS): | 120 W |
| Frequency response: | 50 - 20000 Hz |
| SPL (1W/1m): | 93 dB |
| Max. SPL: | 114 dB |
| Impedance: | 8 Ohm(s) |
| Protection circuits: | HF Driver |
| Loudspeaker inputs: | 1 |
| Speaker input connections: | Clamp connector |
| Speakers per amplifier channel (DSP44/45K): | 4 |
| Cabinet material: | 15 mm MDF |
| Cabinet surface: | texture paint |
| Cabinet colour: | white |
| Cabinet construction: | Bass Reflex |
| Width: | 274 mm |
| Height: | 410 mm |
| Depth: | 243 mm |
| Weight: | 7 kg |
| Mon-Fri: | 08:00 am – 05:00 pm |
| Document type | File size | |
|
Technical drawing / illustration | 0.12 MB |
|
|
Information about the product | 23.42 MB |
|
|
Information about the product | 2.33 MB |
