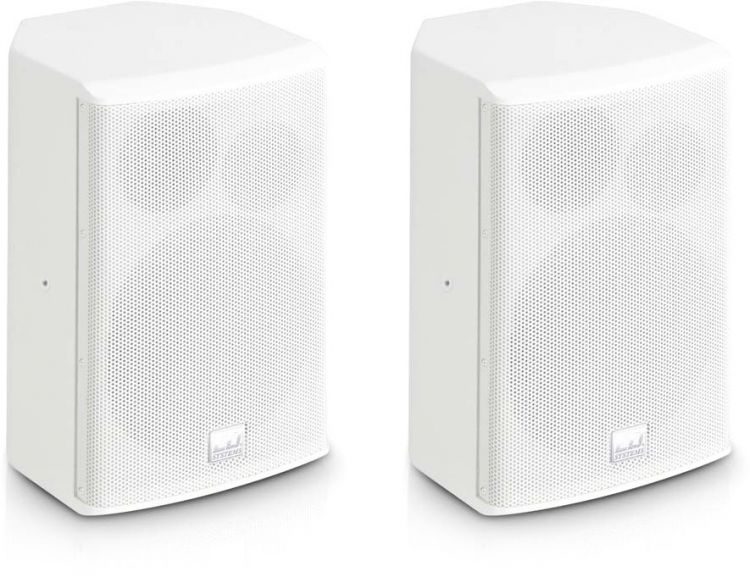

LD Systems SAT 62 G2 W - 6.5" Installation Monitor passive white (pair)
The LD Systems SAT62G2 is an extremely compact, dependable 2-way speaker for numerous installation applications. It blends unobtrusively into practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.
The bass-reflex design with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide provides for powerful and sonorous reproduction throughout a frequency range of 55 Hz - 20 kHz with a sound-level pressure of up to 108 dB. Thus the SAT62G2 is suitable for full-range operation and as a satellite in conjunction with a subwoofer from the LD installation series. It has a RMS power rating of 80 W. The impedance of 16 ohms permits parallel operation of eight SAT62G2 speakers on 2 ohms.

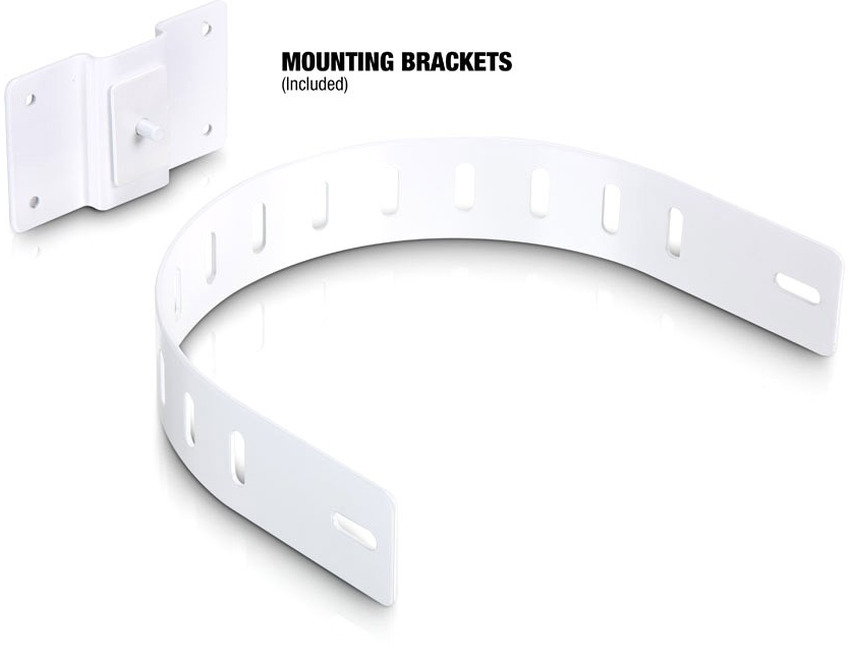

The 12 mm MDF cabinet with a rugged textured coating is available in black and white. The included mounting bracket and M6 rigging points offer extensive possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.
Technical data:| Product type: | Installation Loudspeakers |
| Type: | Wall-mounted Loudspeaker |
| Low/mid driver dimensions: | 6.5 " |
| Woofer size: | 165 mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| HF driver dimensions: | 1 " |
| HF driver size: | 25 mm |
| HF driver magnet: | Ferrite |
| HF driver brand: | Custom-made |
| Dispersion (H x V): | 60 x 60 ° |
| Load rating (RMS): | 80 W |
| Frequency response: | 55 - 20000 Hz |
| SPL (1W/1m): | 89 dB |
| Max. SPL: | 108 dB |
| Impedance: | 16 Ohm(s) |
| Protection circuits: | HF Driver |
| Loudspeaker inputs: | 1 |
| Speaker input connections: | Clamp connector |
| Speakers per amplifier channel (DSP44/45K): | 8 |
| Cabinet material: | 12 mm MDF |
| Cabinet surface: | texture paint |
| Cabinet colour: | white |
| Cabinet construction: | Bass Reflex |
| Width: | 200 mm |
| Height: | 320 mm |
| Depth: | 200 mm |
| Weight: | 8,2 kg |
