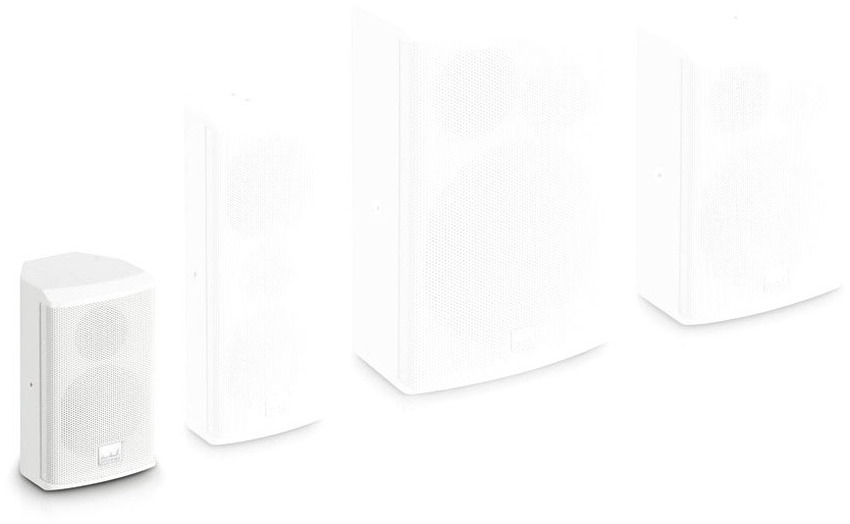

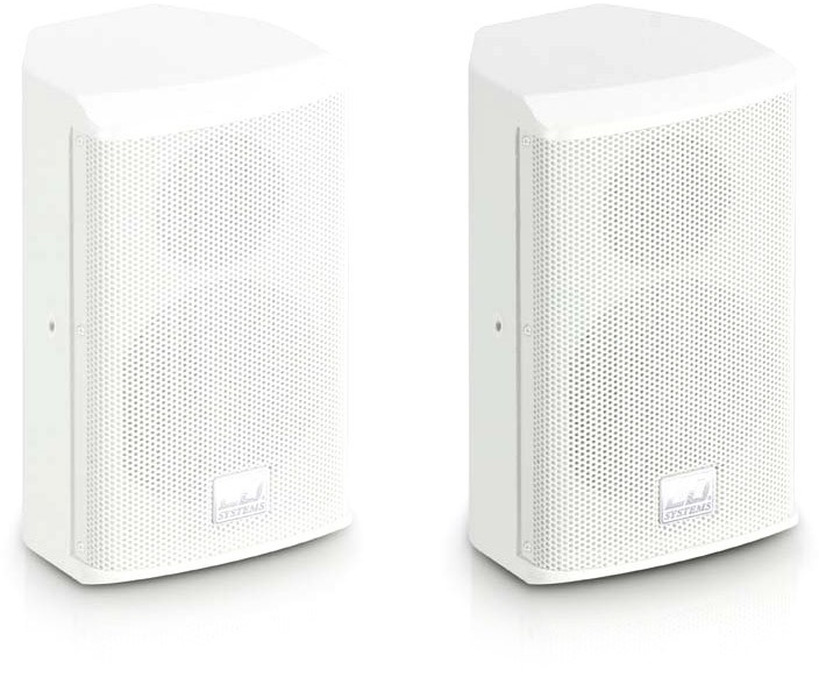

LD Systems SAT 42 G2 W - 4" passive Installation Monitor white (pair)
The LD Systems SAT42G2 is an ultracompact 2-way speaker that is suitable for smaller installations and unobtrusive integration in practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.
A balanced sound with a 60° x 60° dispersion angle and a maximum sound-level pressure of 103dB is ensured by the 4" custom woofers and a 1“ silk dome tweeter with wave guide. The impedance of 16 ohms permits parallel operation of eight SAT42G2 speakers on 2 ohms. For a deeper bass foundation with powerful drive, the subwoofers in the LD installation series are the ideal addition.

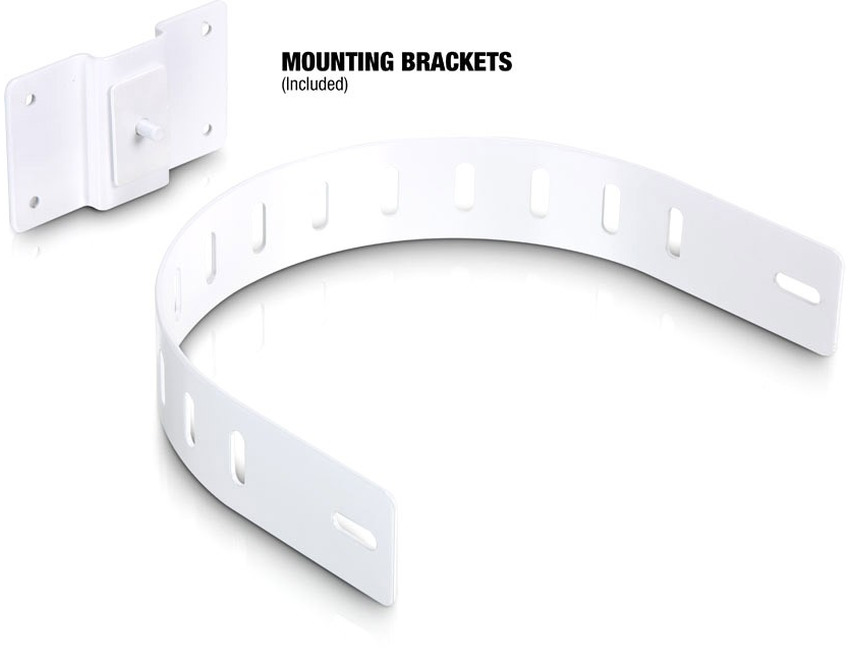

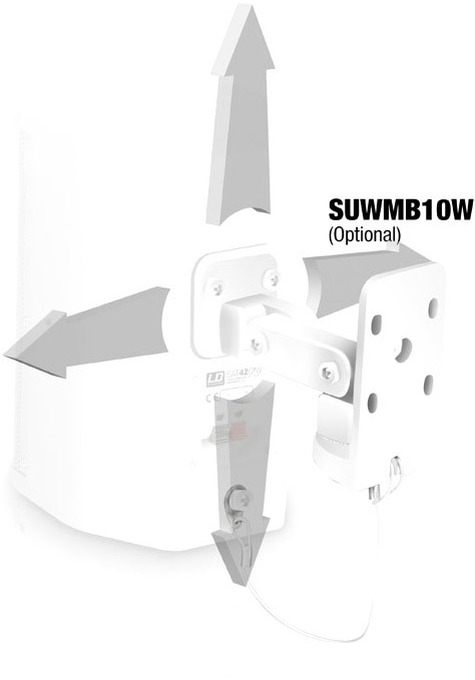

The cabinet with a rugged textured coatingis made of 12 mm MDF and is available in black and white. M6 inserts and an included mounting bracket provide varied possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.
Technical data:| Product type: | Installation Loudspeakers |
| Type: | Wall-mounted Loudspeaker |
| Low/mid driver dimensions: | 4 " |
| Woofer size: | 101 mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| HF driver dimensions: | 1 " |
| HF driver size: | 25 mm |
| HF driver magnet: | Ferrite |
| HF driver brand: | Custom-made |
| Dispersion (H x V): | 60 x 60 ° |
| Load rating (RMS): | 60 W |
| Frequency response: | 75 - 20000 Hz |
| SPL (1W/1m): | 85 dB |
| Max. SPL: | 103 dB |
| Impedance: | 16 Ohm(s) |
| Protection circuits: | HF Driver |
| Loudspeaker inputs: | 1 |

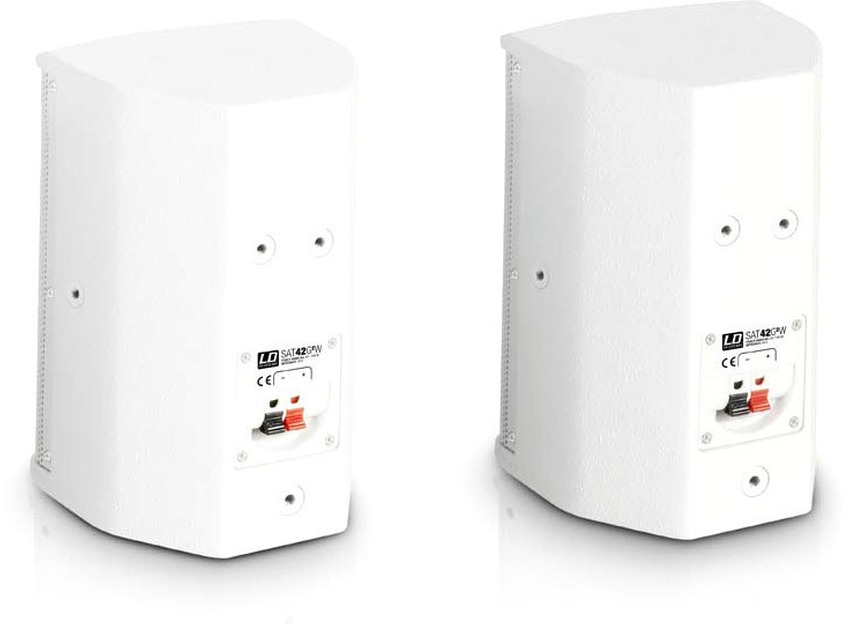

| Speaker input connections: | Clamp connector |
| Speakers per amplifier channel (DSP44/45K): | 8 |
| Cabinet material: | 12 mm MDF |
| Cabinet surface: | texture paint |
| Cabinet colour: | white |
| Cabinet construction: | Closed |
| Width: | 140 mm |
| Height: | 230 mm |
| Depth: | 125 mm |
| Weight: | 5 kg |
