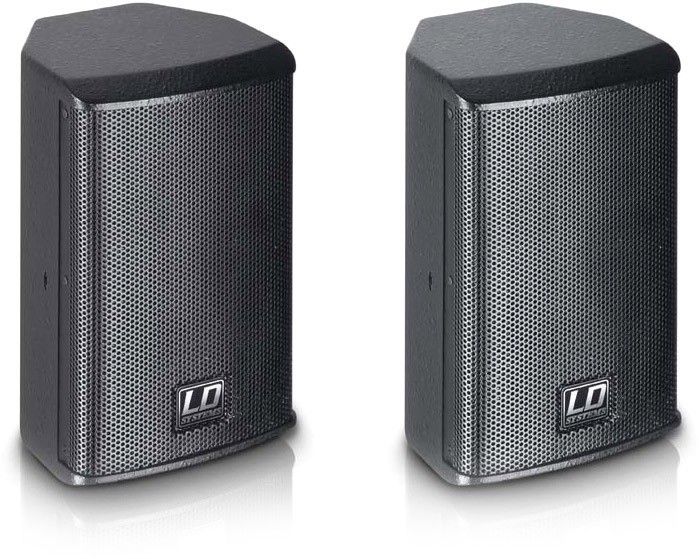

LD Systems SAT 42 G2 - 4" passive Installation Monitor black (pair)
The LD Systems SAT42G2 is an ultracompact 2-way speaker that is suitable for smaller installations and unobtrusive integration in practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.
A balanced sound with a 60° x 60° dispersion angle and a maximum sound-level pressure of 103dB is ensured by the 4" custom woofers and a 1“ silk dome tweeter with wave guide. The impedance of 16 ohms permits parallel operation of eight SAT42G2 speakers on 2 ohms. For a deeper bass foundation with powerful drive, the subwoofers in the LD installation series are the ideal addition.

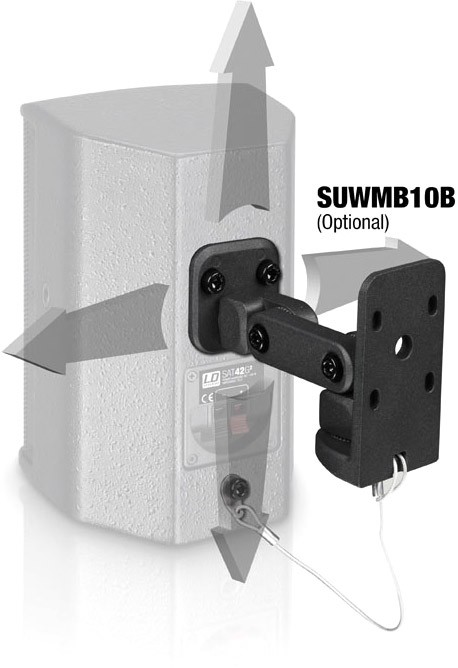

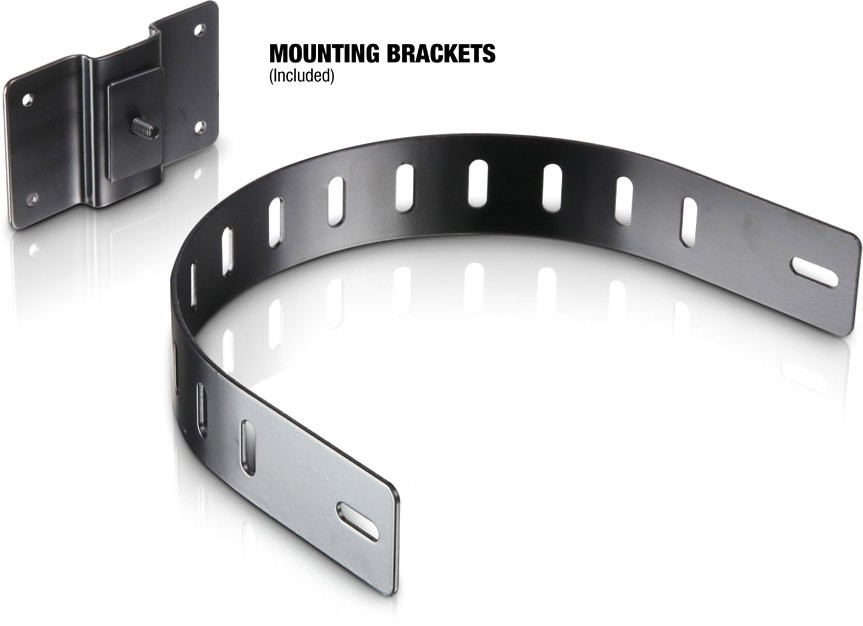

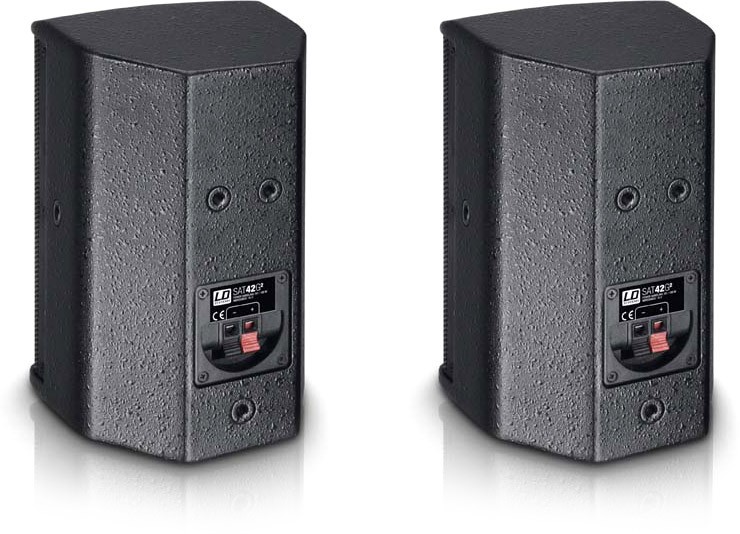

The cabinet with a rugged textured coatingis made of 12 mm MDF and is available in black and white. M6 inserts and an included mounting bracket provide varied possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.
Technical data:Product type: | Installation Loudspeakers |
Type: | Wall-mounted Loudspeaker |
Low/mid driver dimensions: | 4 " |
Woofer size: | 101 mm |
Woofer magnet: | Ferrite |
Woofer brand: | Custom-made |
HF driver dimensions: | 1 " |
HF driver size: | 25 mm |
HF driver magnet: | Ferrite |
HF driver brand: | Custom-made |
Dispersion (H x V): | 60 x 60 ° |
Load rating (RMS): | 60 W |
Frequency response: | 75 - 20000 Hz |
SPL (1W/1m): | 85 dB |
Max. SPL: | 103 dB |
Impedance: | 16 Ohm(s) |
Protection circuits: | HF Driver |
Loudspeaker inputs: | 1 |
Speaker input connections: | Clamp connector |
Speakers per amplifier channel (DSP44/45K): | 8 |
Cabinet material: | 12 mm MDF |
Cabinet surface: | texture paint |
Cabinet colour: | Black |
Cabinet construction: | Closed |
Width: | 140 mm |
Height: | 230 mm |
Depth: | 125 mm |
Weight: | 5 kg |
- Do you have any questions concerning this product?
- Further products by LD Systems
-
Information about the manufacturerObligation to provide information on product safety (GPSR)Manufacturer:Adam Hall GmbH
Adam-Hall-Str. 1
DE-61267 Neu-Anspach
info@adamhall.com -
Safety instructions and warningsSafety instructions and warnings (GPSR)Specific safety instructions that apply to the product can be found in the operating instructions for the product.



Mon-Fri: | 08:00 am – 05:00 pm |

Document type | File size | |
|
Operating instructions
(1.90 MB)
|
1.90 MB |
|
Technical drawing / illustration
(0.13 MB)
|
0.13 MB |
