DAP-Audio Xi-5 MKII 5.25" / 1" Full range installation cabinet white

Presenting the Xi MKII series, a loudspeaker range for fixed audio installations, redesigned from the Xi installation speakers with significant changes. Tha major change is the use of a Celestion HF Driver, which enhances the sound performance of the unit substantially. The cabinet and grill have been redesigned as well, to make for a contemporary and elegant look.

Besides the looks and sound quality, the Xi MKII series also excels in installer solutions with versatile installation possibilities: optional U-shape brackets, screw threads for use of flying eyes, and fitting most common wall-mount brackets.

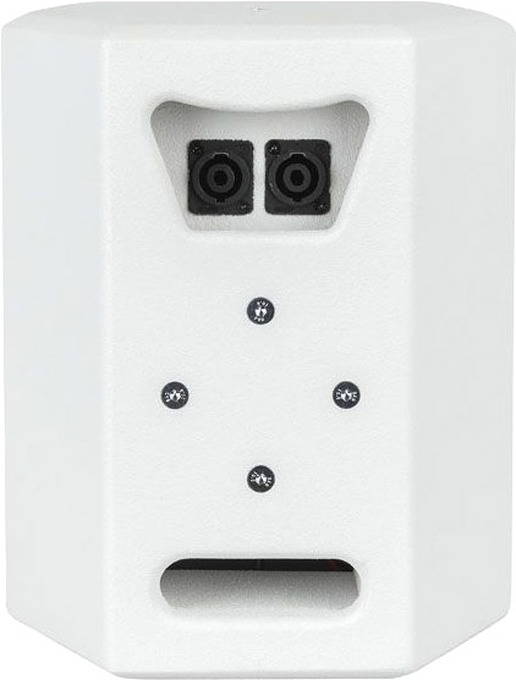

There is no inner adapter applied and a recessed speakon chassis completes the perfect design for an install cabinet. It is finished with a scratch resistant paint and a MagTag metal grill, which can be detached without tools, fast and easy.

The Xi-5MKII and Xi-6MKII are 16 Ohm to accommodate installations with larger quantities. Xi-8MKII and XI-10MKII have rotatable horns which makes the use in both horizontal and vertical position possible. The high-powered subwoofer has an ultra-compact design, so it will fit in every location. With the optional slim-line wall bracket it is possible to mount the subwoofer tightly to a wall.

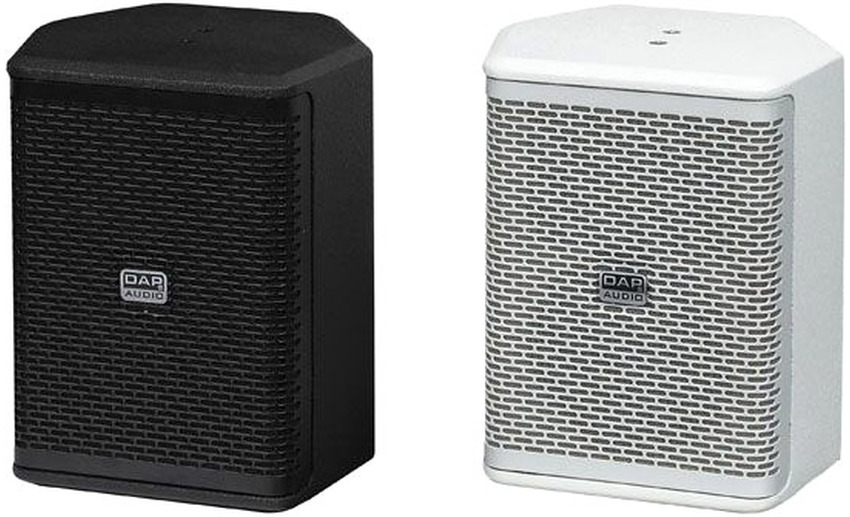

The Xi MKII series meets today’s standards and is applicable for a wide variety of indoor applications, such as restaurants, cafes, clubs, health centers, theme parks, hospitality areas and anywhere where an outstanding sound quality and a compact high pressure level speaker are required. Xi MKII series cabinets are available in black and white.

The smallest member of the Xi-MKII family, with a 5.25" LF driver and a 1" Celestion HF driver. Recessed speaker connectors and multiple mounting options. This is a 16 ohm speaker which facilitates the use of multiple speakers. Please note that the corresponding hanging brackets are available as option; D3422HB for black and D3422 WHB for whiteTechnical data:

RMS Input Power:	125 W
Peak Input Power:	500 W
Passive Input Connection:	NL4
Passive Output Connector:	NL4
Speaker System:	2-Way
Speaker Sensitivity (1w/1m):	93 dB
Speaker Impedance:	16 ?
Max. SPL on 1m:	120 dB
Frequency Response Minimum:	80 Hz
Frequency Response Maximum:	20 Hz
Frequency Response (-10dB) Minimum:	80 Hz
Frequency Response (-10dB) Maximum:	20 Hz
Woofer Diameter:	5 "
Woofer Voice Coil:	1.5 "
Compression Driver Diameter:	1 "
Compression Driver Voice Coil:	1 "
Dispersion Angle Horizontal:	90 °
Dispersion Angle Vertical:	60 °
Height (mm):	275 mm
Width (mm):	205 mm
Length (mm):	225 mm
Material:	Wood
Colour:	White
Weight:	4.9 kg
IP Rating:	IP20(indoor use only)
Rotatable Horn:	No
