DAP-Audio Xi-5 MKII - 5,25" / 1" Full range installation

• 16 Ohm
• Celestion Driver
• Multiple mounting options
• Smooth frequency response
• Detachable MagTag metal grill

Presenting the Xi MKII series, a loudspeaker range for fixed audio installations, redesigned from the Xi- installation speakers with significant changes. Major change is the use of a Celestion HF Driver which enhances the sound performance of the unit extensively. The cabinet and grill have been redesigned as well to have a contemporary and elegant look.
Besides the looks and sound quality it also excels in installer-solutions with versatile installation possibilities: optional U-shape brackets, screw threads for use of flying eyes and to fit most common wall mount brackets.
No inner adapter applied and a recessed speakon chassis completes the perfect design for an install cabinet. Finished with a scratch resistant paint and a MagTag metal grill, which can be detached without tools, fast and easy.
The Xi-5MKII and Xi-6MKII are 16 Ohm to accommodate installations with larger quantities. Xi-8MKII and XI-10MKII have rotatable horns which makes the use in both horizontal and vertical position possible. The high powered subwoofer has a ultra-compact design so it will fit in every location and with the optional slim line wall bracket it is possible to mount the subwoofer tight to a wall.

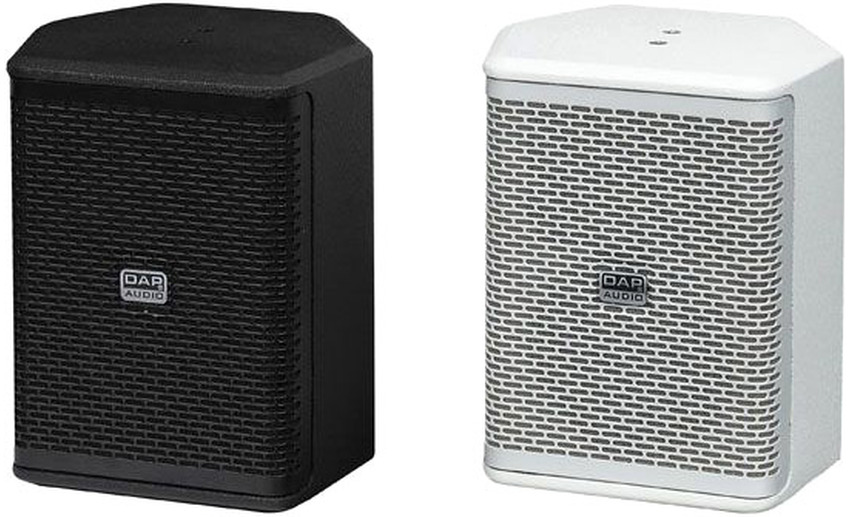

The Xi-MKII series meets today?s standards and is applicable for a wide variety of indoor applications such as restaurants, cafes, clubs, health centers, theme parks, hospitality areas and anywhere where an outstanding sound quality and a compact high pressure level speaker are required. Xi MKII series cabinets are available in black and white.

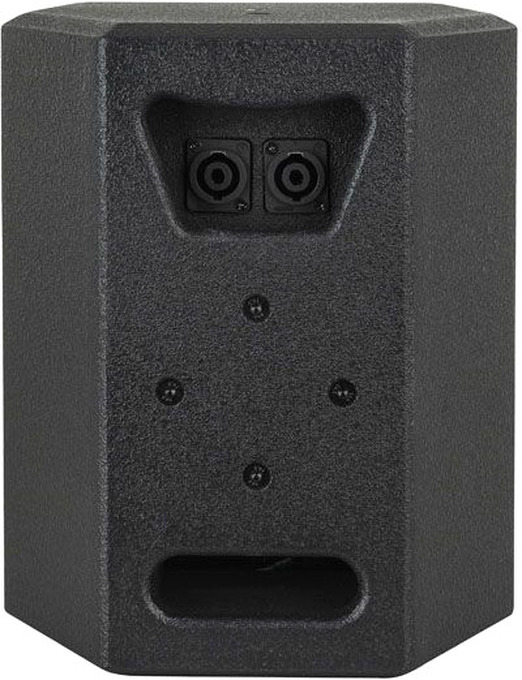

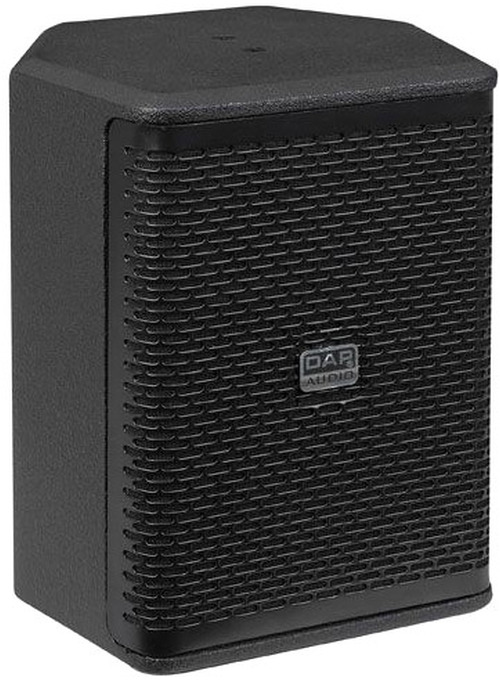

The smallest member of the Xi-MKII family, with a 5.25" LF driver and a 1" Celestion HF driver. Recessed speaker connectors and multiple mounting options. This is a 16 ohm speaker which facilitates the use of multiple speakers. Please note that the corresponding hanging brackets are available as option; D3422HB for black and D3422WHB for whiteTechnical Data:

Speaker system:	2-way
Continuous power:	125 Watt
Program power:	250 Watt
Peak power:	500 Watt
Impedance:	16 Ohm
Sensitivity W/m (Full Space):	93 dB
Peak SPL at 1 m (Theoretical):	120 dB
LF Driver:	5,25?
HF Driver:	1? Celestion
Dispersion (HxV):	90° x 60°
Freq. Response (-3 dB):	80 ? 20.000 Hz
Freq. Range (-10 dB):	60 ? 20.000 Hz
Recommended High Pass Filter:	75 Hz, BW-24
Mounting:	M6 screw-threads for optional brackets
Connectors:	Speakon in & thru
Construction:	Wood
Grill material:	Steel
Dimensions:	225 x 205 x 275 mm
Weight:	4.9 Kg
Approvals:	CE
