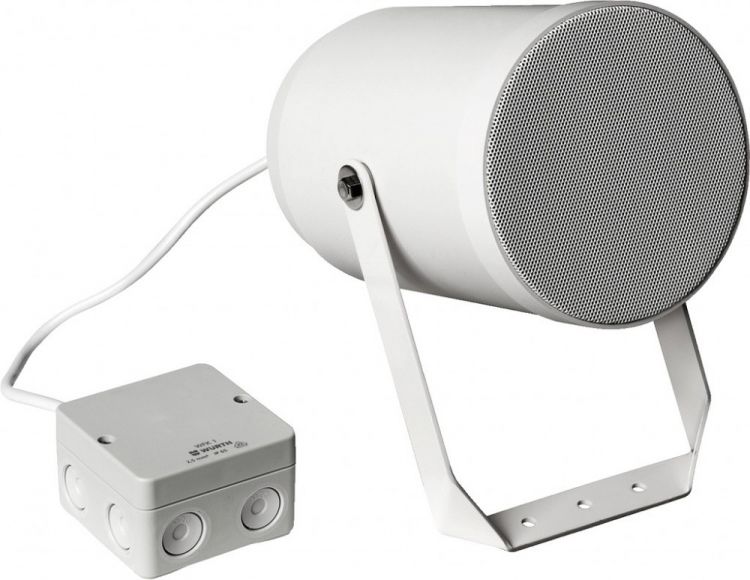

MONACOR DA-P20-130/T Weatherproof PA sound projector

Sale to reseller only
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250137175
EAN: 4007754270792
Weatherproof PA sound projector, for wall mounting and with EN 54-24 certification. 100 V... more
All information about the product:
"MONACOR DA-P20-130/T Weatherproof PA sound projector"
Weatherproof PA sound projector,
for wall mounting and with EN 54-24 certification.
  • 100 V line technique
  • 13 cm waterproof full range speaker
  • 100 V transformer with power taps 20/10/5/2.5 W
  • Connection via ceramic terminal and thermal fuse in the junction box (cable length: 1 m)
  • ABS plastic housing with front protective grille
  • Robust aluminium mounting bracket
Technical data:
Active/passive:passive
Transmission method:100 V
Power rating (RMS):20/10/5/2.5 W
Frequency range:150-20,000 Hz
Full range speaker:13 cm
Number of speakers:2
Speaker size:13 cm
Sensitivity:90 dB/W/m
Max. rated SPL:104 dB
Beam angle:110°
Radiation angle, horizontal:110°
Radiation angle, vertical:110°
Housing material:ABS plastic
Colour:white
Mounting device:bracket
Protection class:IP66
Admiss. ambient temp.:-20 °C to +90 °C
Dimensions:Ø 145 mm x 222 mm
Width:Ø 145 mm
Depth:222 mm
Weight:1.367 kg
Packing dimensions (W x H x L):0.175 x 0.295 x 0.18 m
Gross weight:1.625 kg
Net weight:1.367 kg
