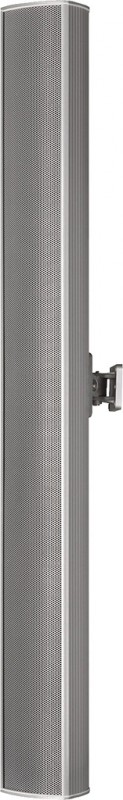

MONACOR TS-C50-1000/T Weatherproof PA column speaker
€474.00 *
Availability:
Currently not available
Currently not available
Item number: 250135695
EAN: 4007754258172
MPN: 0163470
Weatherproof PA column speaker, with EN 54-24 certification. 100 V line technique 8 x... more
All information about the product:
"MONACOR TS-C50-1000/T Weatherproof PA column speaker"
Weatherproof PA column speaker,
with EN 54-24 certification.
- 100 V line technique
- 8 x 7.7 cm (3") waterproof full range speaker
- 4 power taps: 50/30/15/7.5 W
- Connection via ceramic terminals with thermal fuse in the cabinet
- 2 x PG9 cable gland
- Robust, plastic-coated aluminium cabinet with front protective grille
- The speaker complies with British Standard BS 5839, part 8
- Supplied with plastic wall bracket for pivoting and tilting
Active/passive: | passive |
Transmission method: | 100 V |
Power rating (RMS): | 50/30/15/7.5 W |

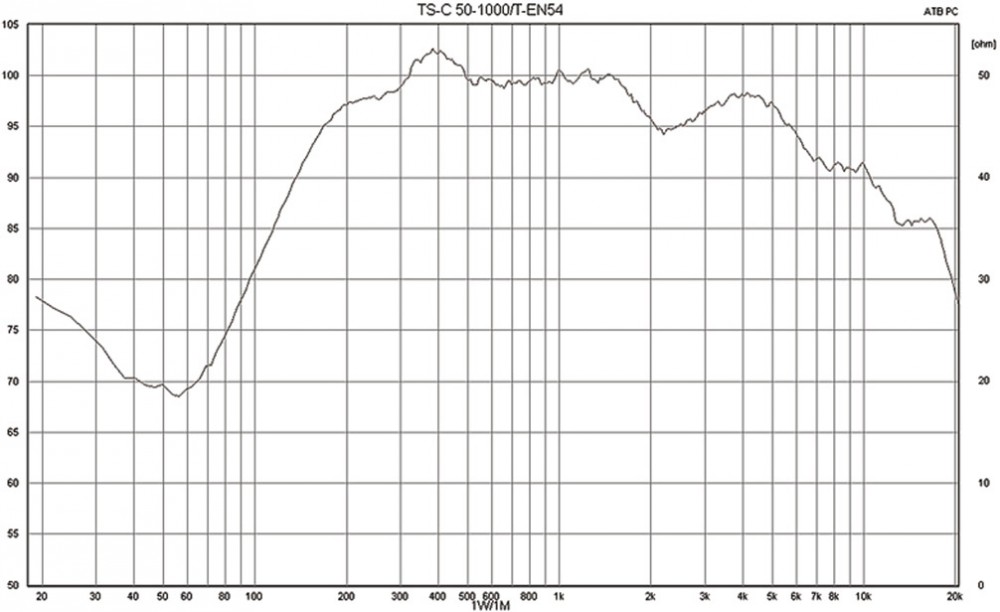

Frequency range: | 200-20,000 Hz |
Full range speaker: | 8 x 77 mm |
Number of speakers: | 8 |
Sensitivity: | 100 dB/W/m |
Max. rated SPL: | 117 dB |

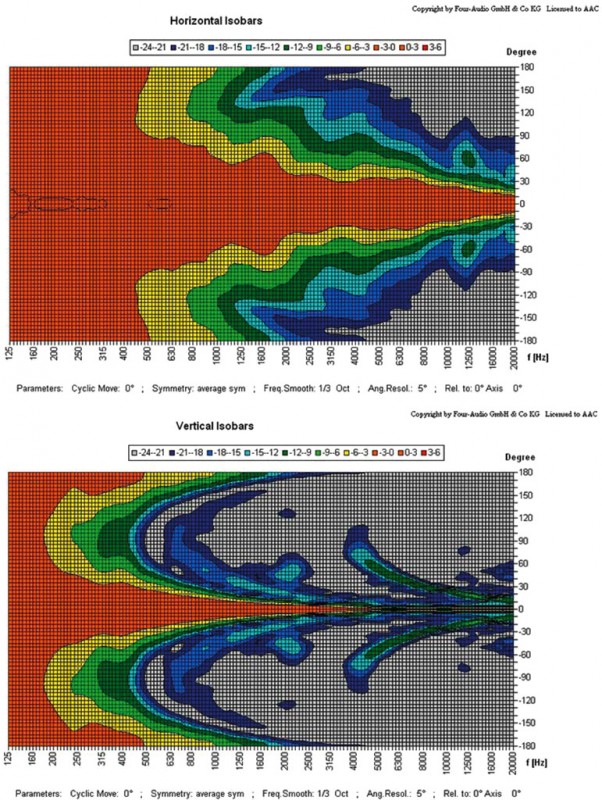

Beam angle: | H173°/V17° |
Radiation angle, horizontal: | 173° |
Radiation angle, vertical: | 17° |
Housing material: | aluminium |
Colour: | white aluminium, RAL 9006 |
Mounting device: | wall bracket |
Protection class: | IP66 |
Admiss. ambient temp.: | -20 °C to +90 °C |
Dimensions: | 100 x 971 x 92 mm |
Width: | 100 mm |
Height: | 971 mm |
Depth: | 92 mm |
Weight: | 5.1 kg |
Packing dimensions (W x H x L): | 0.18 x 0.19 x 1.05 m |
Gross weight: | 5.83 kg |
Net weight: | 5.21 kg |
