JBL Control CRV White

Attention: This article can only be ordered in pairs!

The JBL Control CRV (curve) is an unusual installation speaker with innovative, curved 90° design for demanding architecture. This multifunctional loudspeaker shape allows completely new installation variations. The Control CRV can be placed anywhere where other speakers have no space: in the corner, between ceiling and wall or under a shelf.

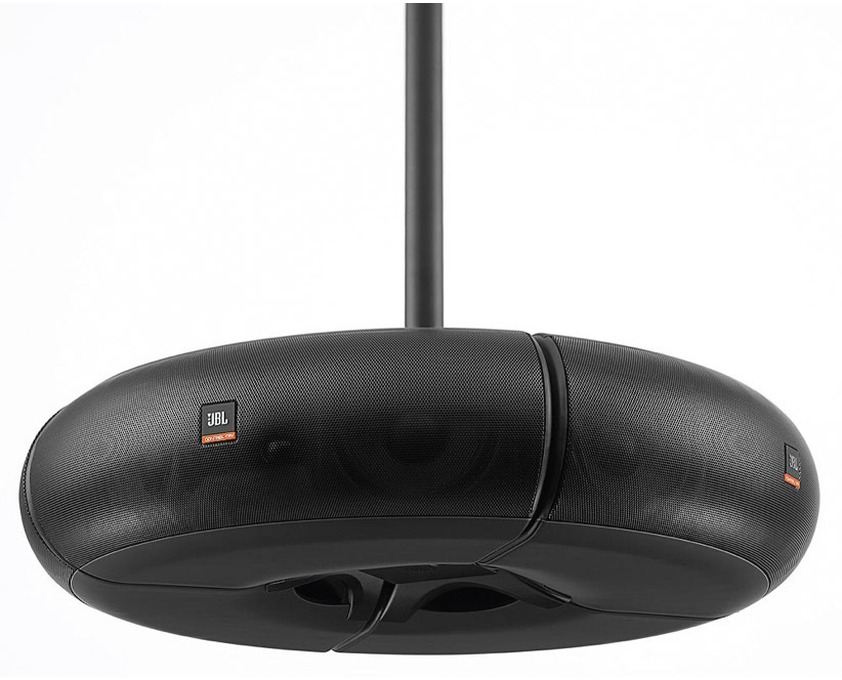

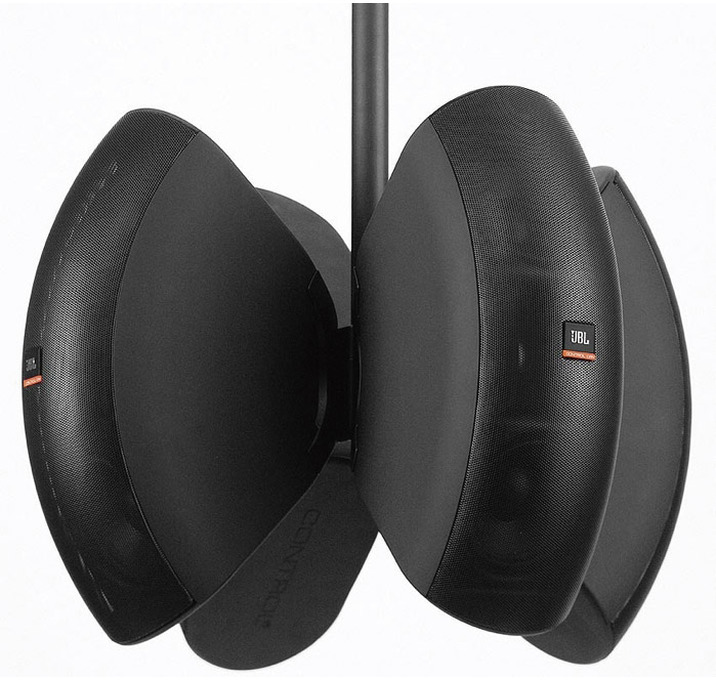

Due to the shape of a quarter circle, half-round, three-quarter round or circular configurations are possible. Using the optional PMB bracket, 4x CRV systems can also be suspended from the ceiling. Predestined applications for the Control CRV systems are design-oriented environments such as restaurants, sales rooms, exhibition areas, hotels, museums or conference rooms.

The CRV speaker is equipped with two 4" woofer chassis and a 3/4" tweeter driver with titanium diaphragm and bi-radial horn. All magnets are made of neodymium and shielded. The connection can be low impedance with 4 ohms or in high impedance 70/100 volt technology.

The housings are available in black or white. They are suitable according to IP-34 for indoor and outdoor installation.


Features:

• For vertical and horizontal mounting
• 180°/270°/360° cluster possible
• Weatherproof
• Wall/corner bracket included
• Available in black and white

Technical data:

• Speaker: 2x 4" woofer, 0.75" tweeter
• Transmission range:
  • Wall mounting: 80 Hz - 20 kHz (-10 dB)
  • Corner mount: 60 Hz - 20 kHz (-10 dB)
• Program power handling: 150 watts
• Sensitivity:114 dB SPL (1W/1m)
• Impedance: 4 O or 70/100 volts
• Beam angle: 105°x80
• Dimensions: 364 x 251/262 x 127 mm (WxDxH)
• Weight: 3.2 kg
