LD Systems X 223 - Active Crossover
€153.50 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 210901315
EAN: 4049521109195
MPN: LDX223
Active Crossover The LD Systems X223 is a stereo 2 way / mono 3 way crossover in standard... more
All information about the product:
"LD Systems X 223 - Active Crossover"
Active Crossover

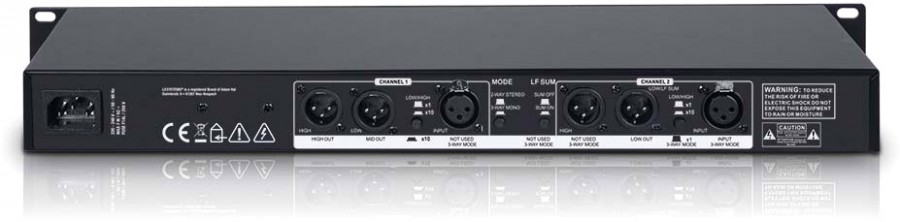

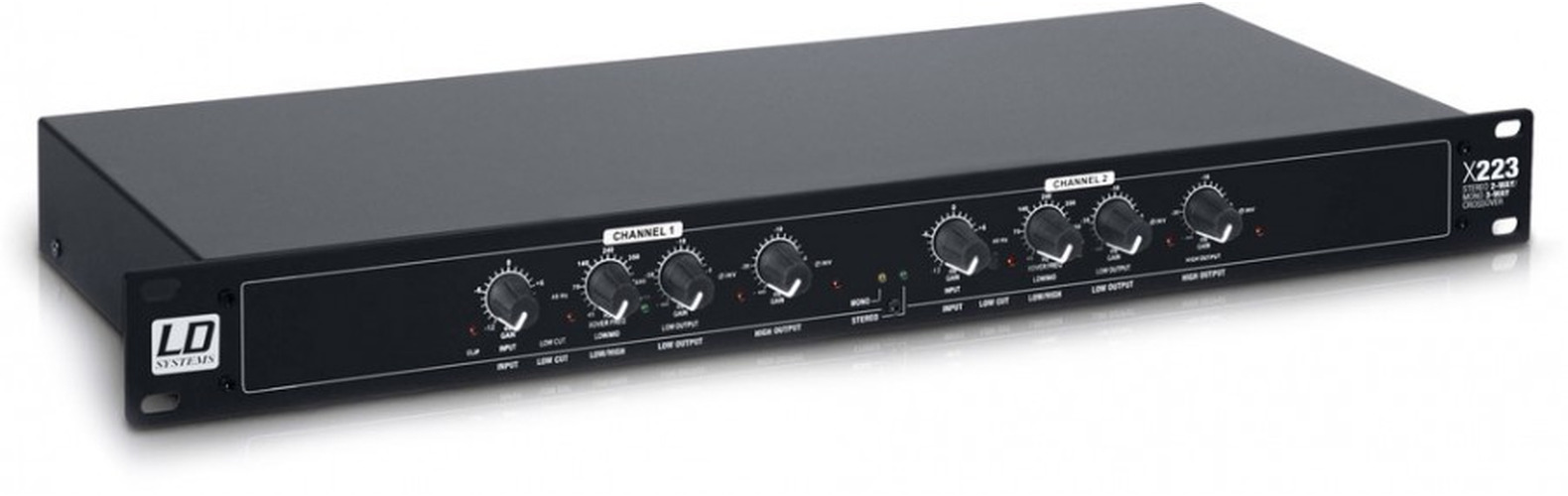

The LD Systems X223 is a stereo 2 way / mono 3 way crossover in standard 19"/1U rack format. Its rugged construction, high quality and robust knobs as well as the integrated power unit are rarities in this price range. It provides a mono sub output, an adjustable crossover frequency for each channel, adjustable LF/HF and input gains, phase reverse controls, switchable 40 Hz High-Pass filters and symmetrical XLR In- and Outputs. With the LD Systems X223 you get a crossover fulfilling the professional standards and offering great quality and sound characteristics.
Technical data:| Product type: | Signal Processors |
| Version: | 2-way stereo/3-way mono |
| Frequency response: | 20 - 20.000 Hz |
| Dynamic range: | 106 dB |
| Signal-to-noise ratio: | > 93 dB |
| Total Harmonic Distortion (THD): | |
| Crosstalk: | |
| Max. input level: | +21 (balanced or unbalanced) dBu |
| Max. output level: | +21 (balanced or unbalanced) dBu |
| Input impedance (kOhms): | 50000 kOhm |
| Output impedance: | 200 Ohm(s) |
| Controls: | 2 x crossover frequency low/high |
| Controls: | 2 x crossover low/mid |
| Controls: | 2 x high gain |
| Controls: | 2 x highpass (40 Hz) |
| Controls: | 2 x input gain |
| Controls: | 2 x low gain |
| Controls: | 2x frequency switch x1/x10 |
| Controls: | 4 x inv switch |
| Controls: | LF sum |
| Controls: | Mono/stereo mode |
| Indicators: | 2 x clip |
| Indicators: | 2 x crossover x 10 |
| Indicators: | 2 x highpass |
| Indicators: | 4 x inv. |
| Indicators: | mono |
| Indicators: | stereo |
| Line inputs: | 2 |
| Line input connectors: | XLR |
| Line outputs: | 4 |
| Line output connectors: | XLR |
| Mains connector: | IEC socket |
| Operating voltage: | 220 V AC - 240 V AC |
| Width: | 482 mm |
| Height: | 44.5 mm |
| Depth: | 153 mm |
| Weight: | 2,6 kg |
