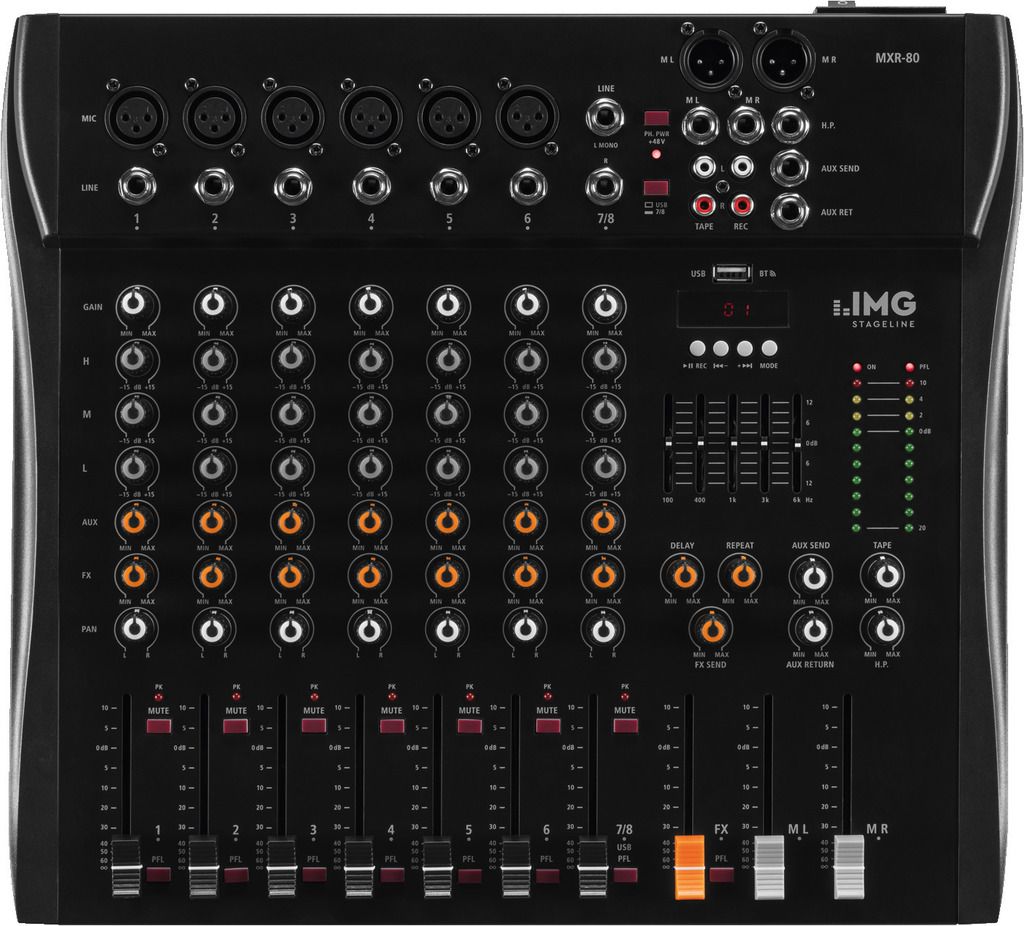

IMG Stageline MXR-80 8-channel audio mixer
€209.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250139325
EAN: 4007754273427
8-channel audio mixer - with integrated MP3 player and Bluetooth receiver.... more
All information about the product:
"IMG Stageline MXR-80 8-channel audio mixer"
8-channel audio mixer - with integrated MP3 player and Bluetooth receiver.
- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
- 6 mono input channels with gain control, 3-way equalizer and pan pot
- 1 stereo input channel with 3-way equalizer and balance control
- MP3 player
- USB interface
- Bluetooth receiver
- DSP delay, adjustable
- Adjustable aux return input and FX send output
- Tape record/play connections
- 5-band stereo graphic equalizer
- +48 V phantom power, can be activated as required
- Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output
- Stereo LED level display
Technical Specifications - MXR-80
| Input channels | 8 |
| Number of mix/mono | 6 |
| No. of stereo | 1 |
| Mic input | 2.2 mV, bal. 8 x XLR |
| Line input | 50 mV (stereo), 1 x 6.3 mm jack L/R
30 mV (mono), 8 x 6.3 mm jack |
| Tape (play) | 290 mV, 1 x RCA L/R |
| Aux input | 420 mV, 1 x 6.3 mm jack L/R |
| Master output | 880 mV, bal. 1 x XLR L/R
880 mV, 1 x 6.3 mm jack L/R |
| Effect send | 9 V, 1 x 6.3 mm jack |
| Tape (rec) | 400 mV, 1 x RCA L/R |
| Headphones | ≥ 8 Ω, 1 x 6.3 mm jack |
| USB | yes |
| Bluetooth | yes |
| Frequency range | 20-20,000 Hz |
| THD | < 0.03% |
| S/N ratio | > 82 dBA |
| Equalizer bass | ±15 dB/80 Hz |
| Equalizer midrange | ±15 dB/2.5 kHz |
| Equalizer treble | ±15 dB/12 kHz |
| equalizer | 5-band equalizer |
| Phantom power | +48 V |
| Power supply | ˜ 230 V/50 Hz/25 VA |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 25 VA |
| Admiss. ambient temp. | 0-40 °C |
| Width | 382 mm |
| Height | 53 mm |
| Depth | 340 mm |
| Weight | 3.4 kg |
