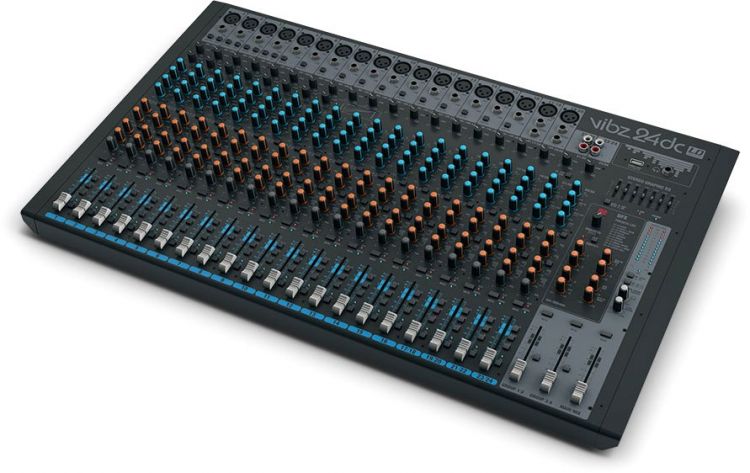

LD Systems VIBZ 24 DC - 24 Channel Mixing Console with DFX and Compressor

Preview: LD Systems VIBZ 24 DC 24-Kanal Mischpult mit DFX und Kompressor

LD Systems VIBZ 24 DC 24-Kanal Mischpult mit DFX und Kompressor

€649.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 210903160

EAN: 4049521206511

24 Channel Mixing Console with DFX and Compressor 24-channel mixer with 16 mono and 4 stereo... more

Back to the overview

All information about the product:

"LD Systems VIBZ 24 DC - 24 Channel Mixing Console with DFX and Compressor"

24 Channel Mixing Console with DFX and Compressor

24-channel mixer with 16 mono and 4 stereo channels
Balanced mic and line inputs
3-band EQ with semi-parametric mids
4 aux sends, 2 pre or post fader switchable
8 mono channels with inserts and compressor
Channel routing, mute and PFL switches
48V phantom power
4 subgroups with individual outputs
24-bit digital effects and global 7-band graphic EQ
Balanced and unbalanced main outputs
Control room and headphone outputs
10 Hz – 45 kHz frequency response
integrates 16 bit/48 kHz USB audio interface
3-band EQ with semi-parametric midrange regulating on mono channels
4-band EQ on stereo channels

The flagship of the VIBZ Series of mixing desks, the VIBZ 24 DC is designed for superb audio in home studio and live applications. It sports 16 mono channels with 3-band EQ and semi-parametric midrange, 4 stereo channels with 4-band EQ, 4 subgroups, 24-bit digital effects with 100 presets and smooth 65 mm audio taper faders.

All channels feature high-quality preamps with gain control, 4 aux sends, mute, PFL and routing switches plus signal and clip LEDs. Two sends are switchable pre or post fader to enable monitoring or effects use. The mono channels' XLR mic and TRS line inputs are electronically balanced with channels 1 – 8 providing convenient one-knob control of the built-in compressor and individual insert points for outboard processing.

The master section offers balanced and unbalanced main mix and individual group outputs with precision metering, control room and headphone outputs with level controls and a global 7-band graphic EQ. The VIBZ 24 DC integrates a multi-voltage power supply for 100 – 240 V AC operation.

Technical data:

Product type:	Mixers
Type:	Home-Recording
Type:	Live
Channels:	24

microphone

Mono Mic and Line Input Channels:	16
Mono Mic input connectors:	6.3 mm TRS
Mono Mic input connectors:	XLR
Mono Mic Input Type:	Electronically balanced
Mono Mic Input Frequency Range:	10 - 45000 Hz
Amplification Range mono Mic Input:	0 - 50 dB
Mono Mic Input Input THD-N:	0.0058%
Mono Mic Input Impedance:	4000 Ohm(s)
Mono Mic Input S/N Ratio:	113 dB
Mono Line Input Type:	Electronically balanced
Mono Line Input Frequency Range:	10 - 45000 Hz
Amplification Range mono Line Input:	0 - 50 dB
Mono Line Input Input THD-N:	0.0045 %
Mono Line Input Impedance:	21000 Ohm(s)
Mono Line Input S/N Ratio:	116 dB
Mono Channel Equalizer High:	+/-15 dB @ 12.000 Hz
Mono Channel Equalizer Mid:	200 - 8000
Mono Channel Equalizer Low:	+/-15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels:	3-band EQ (High, Mid, Low)
Controls Mono Mic and Line Input Channels:	AUX Send 1-2 pre (AUX2 pre/post switchable)
Controls Mono Mic and Line Input Channels:	AUX Send 3-4 (post)
Controls Mono Mic and Line Input Channels:	Bal
Controls Mono Mic and Line Input Channels:	Channel Fader
Controls Mono Mic and Line Input Channels:	Fader Routing switch (Group 1/2, Group 3/4, Main L+R)
Controls Mono Mic and Line Input Channels:	Gain
Controls Mono Mic and Line Input Channels:	LINE/USB -switch (Channel 21 - 24)
Controls Mono Mic and Line Input Channels:	PFL / Solo Switch
Phantom power:	48 V DC switchable
Mono Inserts:	8
Mono Inserts Connectors:	6.3mm jack

Stereo Channels:

Stereo Line Input Channels:	4
Stereo Line Input Connectors:	6.3 mm TRS
Stereo Line Input Type:	Electronically balanced
Stereo Line Input Type:	Unbalanced
Stereo Line Input Frequency Range:	10 - 45000 Hz
Amplification Range stereo Line Input:	0 - 50 dB
Stereo Line Input Input THD-N:	0.0045 %
Stereo Line Input Impedance:	37000 Ohm(s)
Stereo Line Input S/N Ratio:	116 dB
Stereo channel equalizer treble:	+/-15 dB @ 12.000 Hz
Stereo channel equalizer hi-mids:	+/-15 dB @ 2.500 Hz
Stereo channel equalizer low-mids:	+/-15 dB @ 2.500 Hz
Stereo channel equalizer bass:	+/-15 dB @ 80 Hz
Controls Stereo Line Input Channels:	4-band EQ (High, High-Mid, Low-Mid, Low)
Controls Stereo Line Input Channels:	AUX 1 - 2 switchable Pre/Post
Controls Stereo Line Input Channels:	AUX/DFX Send 1 - 4
Controls Stereo Line Input Channels:	Balance
Controls Stereo Line Input Channels:	Channel Volume
Controls Stereo Line Input Channels:	EQ on/off
Controls Stereo Line Input Channels:	Gain
Controls Stereo Line Input Channels:	GROUP to Main -switch
Controls Stereo Line Input Channels:	LINE/USB -switch

Main Section:

AUX / Effects Send Channels:	4
AUX / Effects Send Connectors:	6.3 mm TS
Stereo AUX Return Channels:	1
Group Out:	4
Group Out Connectors:	4 x 6,3mm TRS
Balanced Stereo Main Out:	1
Balanced Stereo Main Out Connectors:	XLR
Unbalanced stereo Main Outputs:	1
Unbalanced stereo Main Output Connections:	2 x 6.3 mm TS
Main-Insert Inputs:	1
Main-Insert Input Ports:	2 x 6.3 mm TRS asymmetrically
DFX Out Outputs:	1
DFX Out Output Ports:	6.3 mm TRS
USB In/Out In-/Outputs:	1
USB In/Out Ports:	USB-B
Max. Unbalanced Stereo Main Out Level:	22 dBu
Stereo Control Room Out:	1
Stereo Control Room Out Connectors:	2x 6.3 mm TRS
Headphones ouput:	1
Headphones outputs:	6.3 mm TRS
Digital Effects Processor:	Yes
Number of Presets:	100
DMX output:	1
Footswitch Connector DFX Mute:	6.3 mm TS
Main section controls:	7-band graphic EQ
Main section controls:	AUX/DFX Send 1 - 4
Main section controls:	DFX Mute
Main section controls:	DFX Presets
Main section controls:	DFX to Aux
Main section controls:	DFX to Main
Main section controls:	EQ on/off
Main section controls:	GROUP to Main -switch
Main section controls:	Main Mix Fader
Main section controls:	mains switch
Main section controls:	Phantom Power
Main section controls:	Phones/CTRL Fader
Main section controls:	TK In To Main/To CTRL
Indicators:	DFX Peak
Indicators:	DFX to Main
Indicators:	PFL indicator
Indicators:	Phantom Power
Indicators:	Power
Indicators:	Signal
Operating voltage:	100 V AC - 240 V AC, 50 - 60 Hz
Width:	712 mm
Height:	80 mm
Depth:	425 mm
Weight:	9,442 kg
