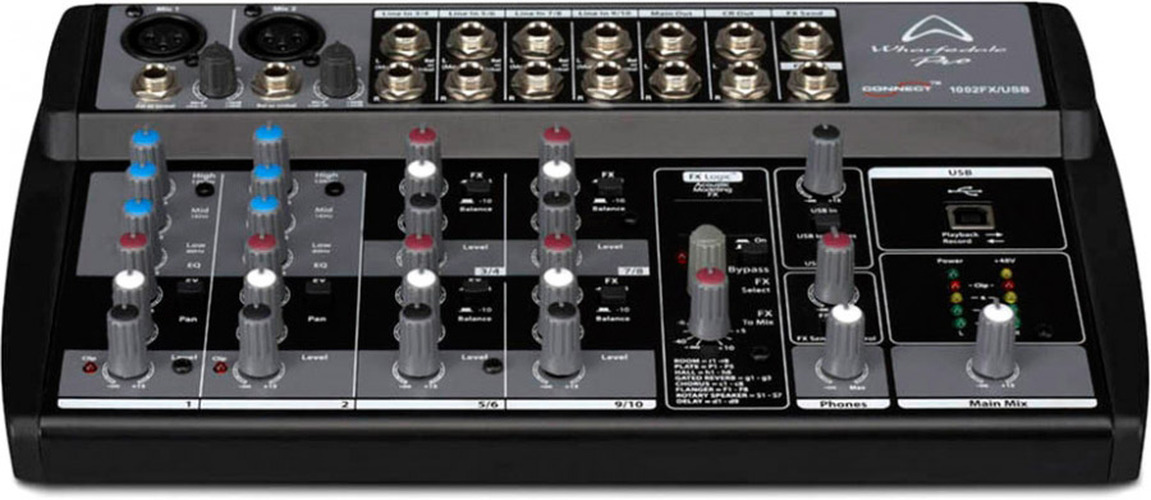

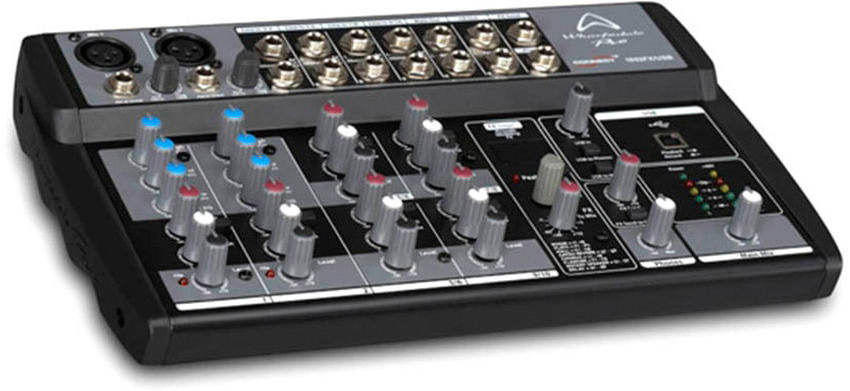

Wharfedale Connect 1002 FX USB

Connect consoles too small? SL too large or too complex? Then there are now exactly the right products in between: Robust housing, simple operation, lushly equipped with inputs and outputs and "on the top" an effects processor with 56 programs and a full duplex USB interface. These are the new Connect 1002FX USB and Connect 1202FX USB.

The solid sheet steel housings can take a knock and, like their little brothers 502 USB/802 USB, you can simply pack the small consoles in your laptop bag or cable case. So you always have a faithful companion on the road, which is responsible for the right mix or the fast recording in high audio quality.
The small gig or the recording of the last flash of inspiration is possible without much effort. And if you later switch to a "big one", you can still use the small console for monitoring.


Technical data

MODEL

CONNECT 1002 FX

THD+N
<0.09% @ + 4dBu ±0.5dB

Maximum input level
Mic In
+4dBu

Chanel Line
+25dBu

Stereo Line
+25dBu

2TK In
+25dBu

AC POWER
100~120V; 220~240V, 50/60Hz

MONO INPUT CHANNEL GAIN
50dB Variable MIC(0~-50dB) Line (-20dB~ +30dB)

LEVEL METERS
4-segment LED 2x (output of +4dBu = 0dB), Main L/R

Frequency Response
20Hz-20kHz ±1dB

Input Channel EQ
High (±5dB)±2dBu 2kHz Shelving
Mid (+/- 5dB)±2dBu kHz Shelving
Low (+/- 5dB)±2dBu 80Hz Shelving

MAXIMUM UNBALANCED
Main XLR Unbalanced out +2 dBu ± dBu
Main 1/4" Jack Unbalanced out +21dBu ± dBu
Headphone output 50mw±5mw @ 32ohms

HUM AND NOISE 20Hz-20KHz
-27dBu ±5dBu Mic Pre Equivalent Input Noise
-85dBu ±5dBu Residual Noise

S/N
82dB ±5dB @ fader max

FFT
-62dBv ±5dBv @ gian fader max

CMMR
-6dB ±5dB @ kHz

Impedances
Mic: Balanced 6 Kohms, Unbalanced 3Kohms ±500ohms
Line: Balanced 44 Kohms, Unbalanced 22Kohms ±2kohms
2TK IN: Unbalanced 0Kohms ±2kohms
All other Unbalanced outputs: 00 ohms, Balanced outputs: 200ohms

Effect Out
56 effects: .(ROOM=r -r8); 2.(PLATE=P -P5); 3.(HALL=h -h8); 4.(GATED REVERB=g -g3); 5.(CHORUS=c -c8) 6.(FLANGRE=f -f8); 7.(ROTARY SPEAKER=s -s7); 8.(DELAY=d -d9).

Weight: (kg)
1.37kg

Dimensions (H x W x D)
293.9 mm x 83.8 mm x 52.8 mm
