LD Systems PRE 2 - 2-channel microphone and line mixer

NEW

Preview: LD Systems PRE 2 - 2-Kanal Mikrofon- und Line-Mixer

LD Systems PRE 2 - 2-Kanal Mikrofon- und Line-Mixer

Sale to reseller only

Availability:

Currently not available

Product inquiry

Item number: 210906260

EAN: 4049521907876

MPN: LDPRE2

NEW

2-channel microphone and line mixer 1 balanced stereo line input 1 x microphone input with... more

Back to the overview

All information about the product:

"LD Systems PRE 2 - 2-channel microphone and line mixer"

2-channel microphone and line mixer

1 balanced stereo line input
1 x microphone input with gain control and -20dB PAD switch
Stereo line output (switchable to mono)
Connection options for remote volume control
Automatic music ducking for announcements

Part of the TICA® series, the PRE 2 is a compact two-channel line and microphone mixer. Ideal for smaller installations, for mixing stereo audio from any media source with a microphone for announcements.

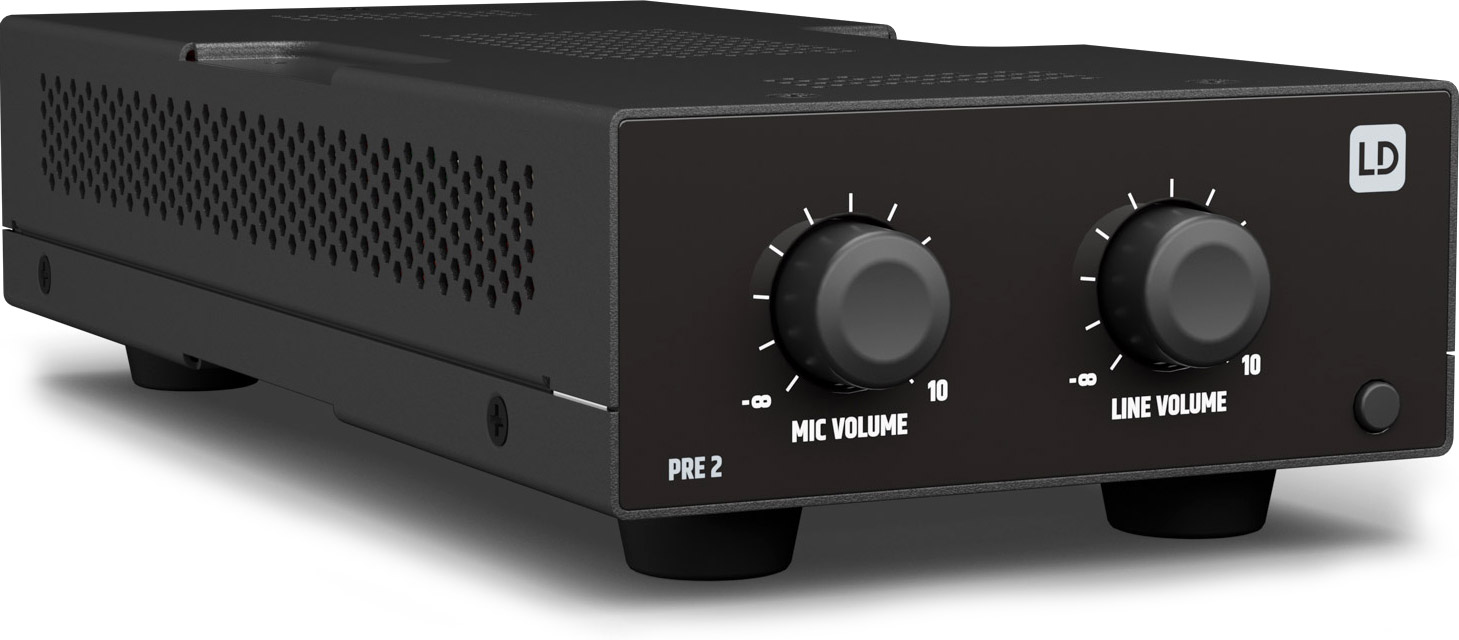

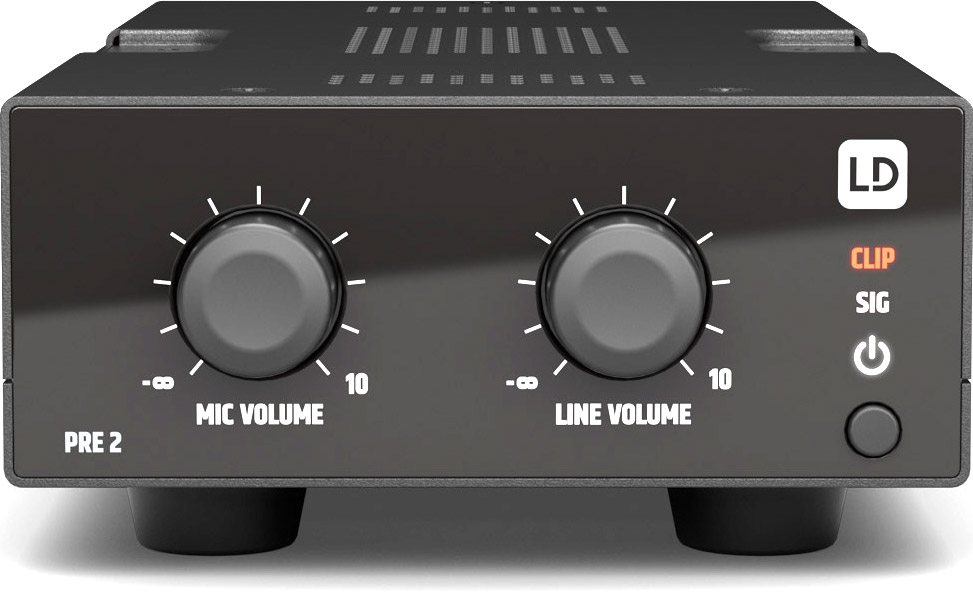

It is extremely easy to use thanks to the user-friendly front panel with two volume controls and signal and clip LEDs.

The integrated audio ducker function automatically reduces the music volume when an announcement is made. With remote control connectivity for third-party devices, you can always adjust the volume, even when the device is hidden. You can switch between stereo or mono operation using the DIP switch.

Thanks to its compact dimensions of 106 x 44 x 222 mm and the supplied mounting plates, it can be installed almost anywhere inconspicuously. Alternatively, it can also be installed in a quarter of a 19-inch rack. With the optional rack tray, you can mount up to four products from the TICA® series next to each other, allowing you to configure a system that suits your needs and takes up minimal rack space.

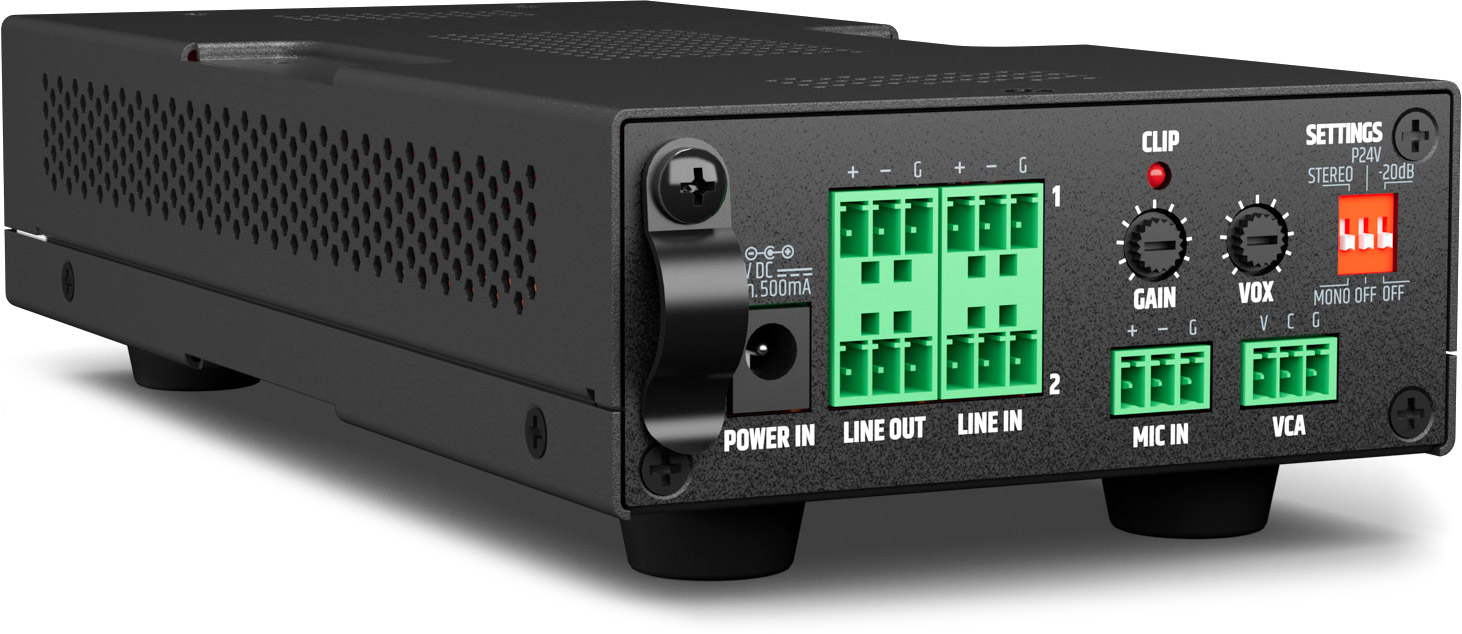

The PRE2 uses an external 24V power supply. Terminal block connections at the analog inputs and outputs make wiring particularly easy.

Technical data:

Product type:	Installation – mixer – preamplifier
Mic inputs:	1
Line inputs:	1 x stereo
Line outputs:	1 x stereo
Cooling:	convection
Priority levels:	2

mic input

Nominal input sensitivity:	15 mVrms
Nominal input attenuation:	550 mVrms
Frequency range (-3 dB):	150 Hz - 20000 Hz
Gain:	Mic: 18 to 48 dB
PAD:	-20 dB switchable
Phantom power:	+ 24V, 10mA switchable
VOX threshold:	Mic: 0%: Off, 25%: -40 dBu, 50%: -50 dBu, 100%: -63 dBu
Connection:	3-Pin Terminal Block (3.81 mm)

line input

Nominal input sensitivity:	12 dBu ( Sine 1 kHz, Gain max )
Nominal input overdrive Line:	14 dBu ( Sine 1 kHz, Gain max )
Frequency range (-0.5 dB):	15 Hz - 30000 Hz
Gain Line Input:	3 dB
Connections: line inputs:	2 x 3-pin Terminal Block, pitch 3.81 mm

line output

Connections: line outputs:	3-Pin Terminal Block (3.81 mm)
Max. output level:	16 dBu

third-party control

Connection (VCA):	3-pin Terminal Block, pitch (3.5 mm)
Master volume (VCA):	10 k (linear taper) External potentiometer

power supply

Type:	External SMPS
Operating voltage:	100 V AC - 240 V AC / 50 - 60 Hz
Power supply adapter:	Type A - USA/Canada
Power supply adapter:	Type C - EU
Power supply adapter:	Type G - UK
Power supply adapter:	Type I - Australia
Secondary power supply:	24 V DC / 500 mA
Power consumption (max.):	6 W
Power consumption (idle):	5 W
Power consumption in standby:

General data

Rack width:	1/4 19"
Operating temperature (non-condensing):	0°C - 40°C;
Accessories (included):	External power supply with interchangeable plugs
Accessories (included):	Mounting plates for surface mounting
Optional accessories:	rack-mounting hardware ( LDTICARK )
Weight:	1.42 kg
