OMNITRONIC RM-1422FXA USB Rack Power Mixer

€359.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 200021420

EAN: 4026397683233

MPN: 10040302

19" powered mixer, 2 x 400 W, with 12 channels, DSP FX unit and MP3 player Audio mixer and... more

All information about the product:

"OMNITRONIC RM-1422FXA USB Rack Power Mixer"

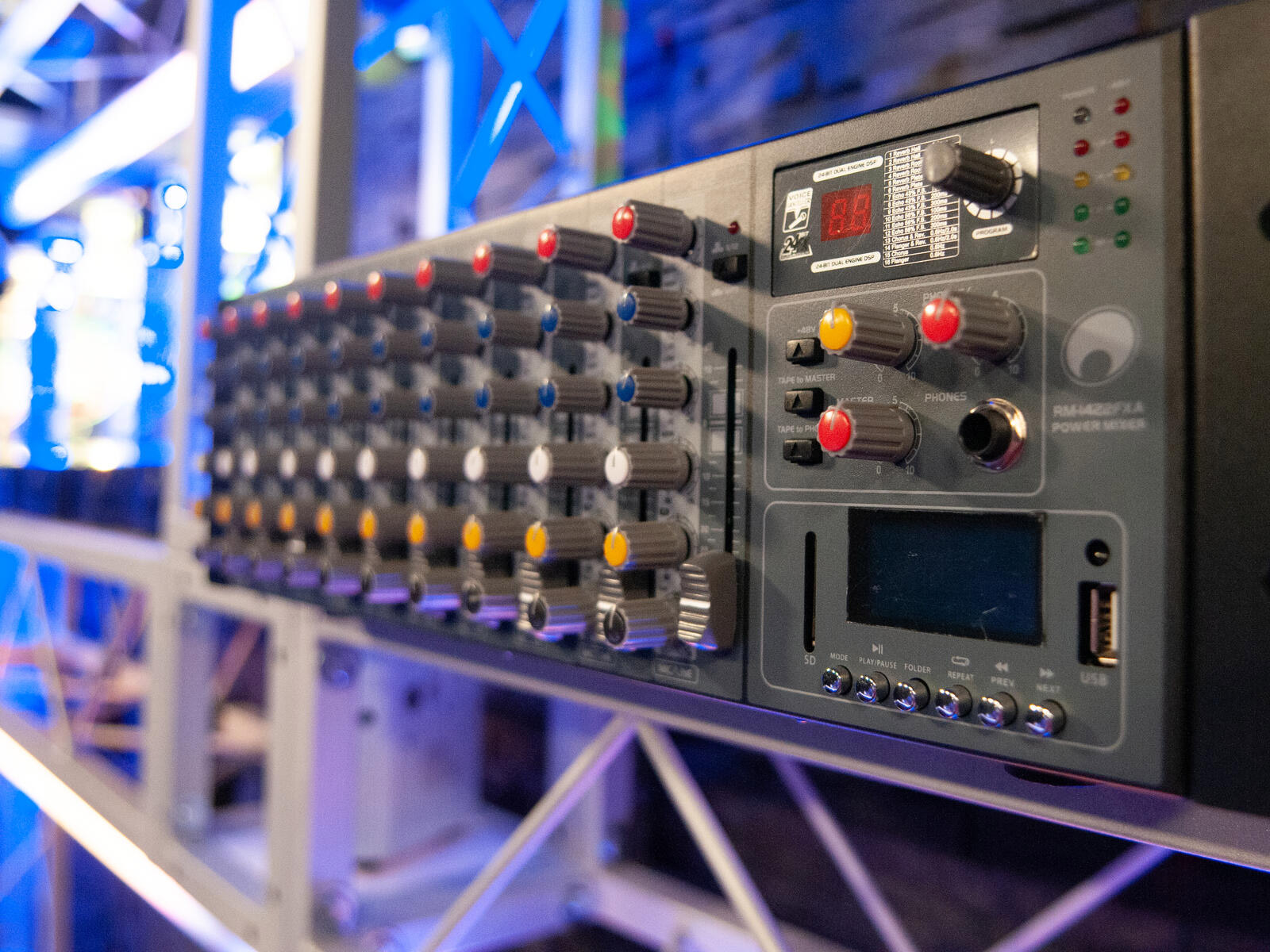

19" powered mixer, 2 x 400 W, with 12 channels, DSP FX unit and MP3 player

Audio mixer and digital amplifier in a 19" housing
Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
6 mono input channels with gain control, 2-way EQ, pan control and channel fader
2 stereo input channels with 2-way EQ, balance control and channel fader
8 channel inserts
Tape input and output
Separate main mix and control room outputs
2 AUX send outputs
Adjustable headphones output
+48 V phantom power, can be switched centrally
4-digit stereo LED level display
Digital signal processor 24 bit with 16 effects
Control via IR remote control; Bluetooth
(19") 48.3 cm rack installation 3 U

Package contents

1 x remote control, 1 x battery, 1 x user manual, 1 x power cord, 1 x mixer, 1 x declaration of conformity

Power supply:	230 V AC, 50 Hz
Power consumption:	115 W 1/8 power
Protection class:	Protection class I
Output power:	2 x 250 W RMS (8 ohms) 2 x 400 W RMS (4 ohms)
Power connection:	Power supply cord with safety plug (provided)
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
Frequency range:	20 - 20000 Hz
S/N ratio:	>89 dB
THD:
DSP:	Digital signal processor 24 bit with 16 effects
Control:	IR remote control; Bluetooth
Audio player:	USB + SD + Bluetooth,
Connections:	Input: Microphone via 8 x 3-pin XLR Input: line via 12 x 6.3 mm jack socket (stereo) mounting version Input: line via 1 x stereo RCA Input: AUX via 2 x 6.3 mm jack socket (stereo) mounting version Output: AUX via 2 x 6.3 mm jack socket (stereo) mounting version Output: rec. via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: speaker via 2 x speaker built-in socket (F)
Input channels:	2 x stereo via Jack 8 x mono via XLR or jack
Equalizer:	Chanal: 2 x 2-band tone control stereo Chanal: 8 x 2-band tone control mono
Available storage media:	USB devices/SD cards
USB port:	Typ A
Housing design:	(19") 48.3 cm rack installation 3 U
Dimensions:	Width: 48,3 cm Depth: 34 cm Height: 13,35 cm
Weight:	6,55 kg
