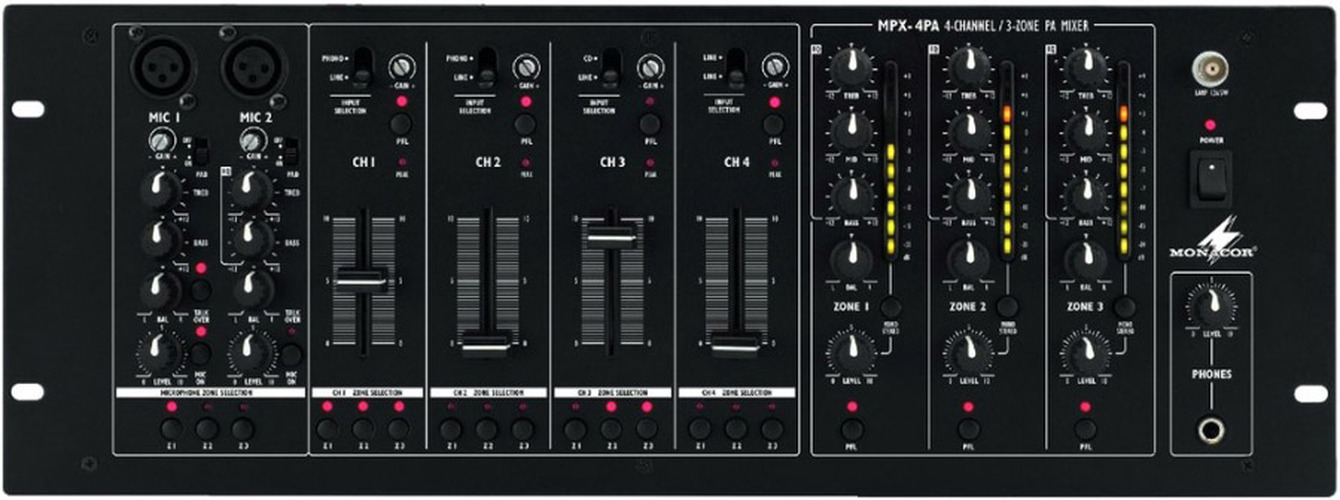

MONACOR MPX-4PA 3-zone mixer
€343.00 *
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 250113430
EAN: 4007754175462
3-zone mixer 3 zones with user-defined routing of all input channels XLR and RCA zone... more
All information about the product:
"MONACOR MPX-4PA 3-zone mixer"
3-zone mixer
- 3 zones with user-defined routing of all input channels
- XLR and RCA zone outputs
- 6 input channels (4 stereo ways, 2 microphone ways)
- Both microphone ways can only be routed together
- Recessed gain control for each input channel
- Microphone ways, each with 2-way tone control, talkover and PAD switch
- Stereo channels, switchable 2 x phono/line and 2 x line/line
- Zone outputs, each with 3-way equalizer, LED level display of the stereo master, balance control, pre-fader listening (PFL) and mono/stereo selector switch
- Adjustable headphone output with pre-fader listening (PFL) to the stereo input channels and zone outputs
- Connection for gooseneck light GNL-204
| No. of channels: | 6 |
| No. of inputs: | 12 |
| Mic input: | 1.5 mV, 2 x 6.3 mm jack |
| Line input: | 150 mV, 5 x RCA L/R |
| CD input: | 150 mV, 1 x RCA L/R |
| Phono input: | 3 mV, 2 x RCA L/R |
| Master output: | 1 V/600 O, 3 x 3-pole XLR L/R, 3 x RCA L/R |
| Headphones: | = 8 O, 1 x 6.3 mm jack |
| Gooseneck lamp: | 12 V/0.75 W, 1 x BNC |
| Frequency range: | 20-20,000 Hz |
| THD: | 0.1% |
| S/N ratio: | 61 dB, unweighted |
| Equalizer bass: | +12 dB, -12 dB/50 Hz |
| Equalizer midrange: | +12 dB, -12 dB/1 kHz |
| Equalizer treble: | +12 dB, -12 dB/10 kHz |
| Talkover: | -16 dB |
| Power supply: | ˜ 230 V/50 Hz/20 VA |
| Mains voltage: | ~ 230 V |
| Mains frequency: | 50 Hz |
| Power consumption, operation: | 20 VA |
| Admiss. ambient temp.: | 0-40 °C |
| Width: | 482 mm |
| Height: | 177 mm |
| Depth: | 105 mm |
| Rack spaces, RS: | 4 |
| Weight: | 4 kg |
| Packing dimensions (W x H x L): | 0.215 x 0.15 x 0.52 m |
| Gross weight: | 5.02 kg |
| Net weight: | 4.075 kg |
