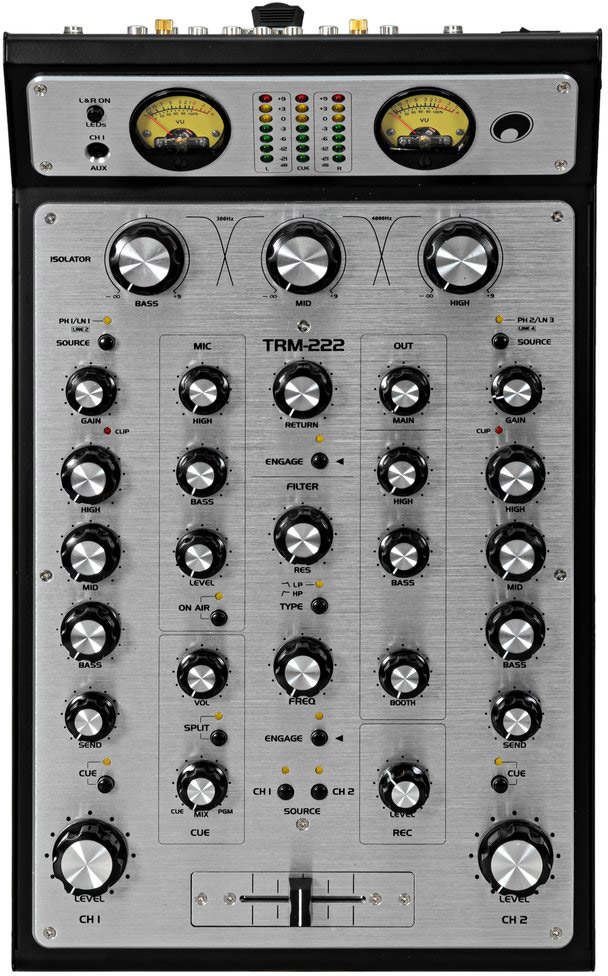

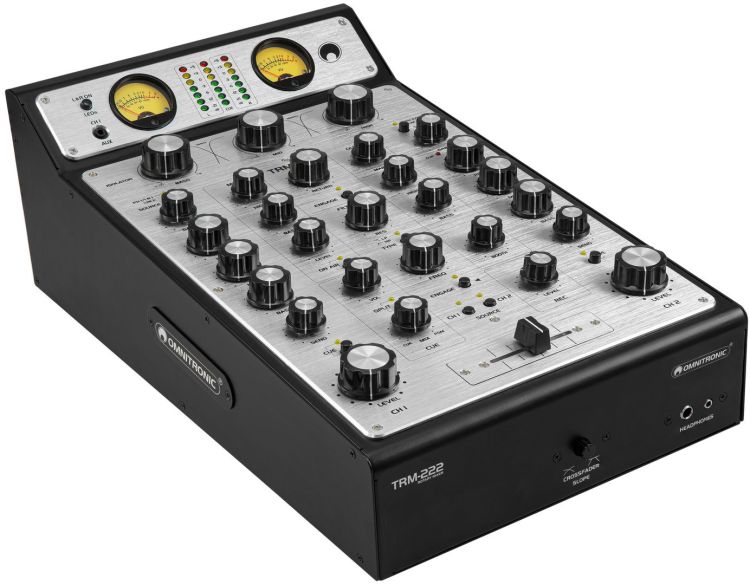

OMNITRONIC TRM-222 2-Channel Rotary Mixer

Omnitronic
Preview: OMNITRONIC TRM-222 2-Kanal Rotary-Mixer Preview: OMNITRONIC TRM-222 2-Kanal Rotary-Mixer Preview: OMNITRONIC TRM-222 2-Kanal Rotary-Mixer Preview: OMNITRONIC TRM-222 2-Kanal Rotary-Mixer Preview: OMNITRONIC TRM-222 2-Kanal Rotary-Mixer
OMNITRONIC TRM-222 2-Kanal Rotary-Mixer
OMNITRONIC TRM-222 2-Kanal Rotary-Mixer
OMNITRONIC TRM-222 2-Kanal Rotary-Mixer
OMNITRONIC TRM-222 2-Kanal Rotary-Mixer
OMNITRONIC TRM-222 2-Kanal Rotary-Mixer


€649.00 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Item number: 200022765
EAN: 4026397716375
MPN: 10355932
Description Videos 0 Downloads 1 Accessories 6 Spare parts 12
Description
Rotary mixer with 3-band frequency isolator, VCR filter and FX loop Filter section with... more
Back to the overview
All information about the product:
"OMNITRONIC TRM-222 2-Channel Rotary Mixer"

Rotary mixer with 3-band frequency isolator, VCR filter and FX loop

  • Filter section with resonance and sweep control for creative sound shaping
  • 3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
  • Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
  • 2 stereo input channels with gain control, clip LED, 3-way equalizer, FX Send and phono/line switching
  • 2 microphone input channels with gain control, 2-way equalizer on air switch
  • 2 effects send/return paths
  • Dual analog VU meter
  • Direct outputs for Timecode applications
  • High-grade components ensure long life and excellent sound quality
  • Booth output with separate 2-way equalizer and level control
  • Record output, independent of the master
  • Fully assignable VCA crossfader with adjustable curve
  • Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
  • Desktop console housing
  • For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios
Power supply:100-240 V AC, 50/60 Hz
Power consumption:15 W
Protection class:Protection class I
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:20 - 20000 Hz
S/N ratio:>100 dB
THD:
Gain:Line -12 dB to +12 dB
Phono -40 dB to +5 dB
FX 20 dB
Microphone 55 dB
DJ filter:Routable: LPF, HPF,
Isolators:Master Gain:- 8 bis +9
Low/mid 300 Hz, 18db/oct , Butterworth
Mid/high 4000 Hz, 18db/oct , Butterworth
Control elements:Power switch, source selector, Crossfader, Crossfader selector switch, Crossfade curve switch; Cue mix split function, tone control
Status LED:Power, master level meter, clip, CUE
Connections:Input: line via 2 x stereo RCA
Input: line/phono via 2 x stereo RCA
Input: Microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: AUX returns via 2 x 6.3-mm-jack (bal.)
Output: Timecode via 2 x stereo RCA
Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version
Output: headphones via 1 x 3.5 mm jack (stereo) mounting version
Output: rec. via 1 x stereo RCA
Output: booth via 2 x 3-pin XLR
Output: booth via 1 x stereo RCA
Output: master via 2 x 3-pin XLR
Output: master via 1 x stereo RCA
Output: AUX sends via 2 x 6.3-mm-jack (bal.)
Channels:Input chanel: 2 x stereo with Line-Line/Phono switch via RCA, channel control via Rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch
Microphon chanal: 1 x mono via Combination socket (XLR/jack), channel control via Rotary, 2-band tone control EQ, ON AIR switch
Master output: 1 x stereo via XLR or RCA, channel control via Rotary
Booth output: 1 x stereo via XLR or RCA, channel control via Rotary, 2-band tone control EQ
Rec. output: 1 x stereo via RCA, channel control via Rotary
Headphones output: stereo via Jack, channel control via Rotary
Max. level:Output: +21 dBu
Material:Metal; aluminum
Housing design:Desktop console housing
Dimensions:Width: 45 cm
Depth: 26 cm
Height: 16 cm
Weight:5,50 kg
Further links
  • Do you have any questions concerning this product?
  • Further products by Omnitronic
We will be happy to advise you!
Hotline+49 (0)2871-2347790
You can reach us:
Mon-Fri: 08:00 am – 05:00 pm
You can find answers to frequently asked questions here: LTT-InfoCenter
More than 45,000 products
Shipping free* from €69
Fast delivery
3-year LTT guarantee
Attractive B2B conditions
Purchase on account: Buy safely!
Trusted Shops
/ 5.00
Evaluations >
Including buyer protection
Verified identity
Protection of personal data
Learn more about us! Take a look behind the scenes at the LTT Group for an insight into our company.
Back to the overview
Downloads
Back to the overview
Downloads for the product:
"OMNITRONIC TRM-222 2-Channel Rotary Mixer"
Document type File size
Operating instructions
(12.87 MB)
12.87 MB
We will be happy to advise you!
Hotline+49 (0)2871-2347790
You can reach us:
Mon-Fri: 08:00 am – 05:00 pm
You can find answers to frequently asked questions here: LTT-InfoCenter
More than 45,000 products
Shipping free* from €69
Fast delivery
3-year LTT guarantee
Attractive B2B conditions
Purchase on account: Buy safely!
Trusted Shops
/ 5.00
Evaluations >
Including buyer protection
Verified identity
Protection of personal data
Learn more about us! Take a look behind the scenes at the LTT Group for an insight into our company.
Back to the overview
Accessories 6 Alternatives 3 Spare parts 12 Customers also bought
Accessories 6
OMNITRONIC M-60 Dynamisches Mikrofon
OMNITRONIC M-60 Dynamic Microphone
OMNITRONIC M-60 Dynamic Microphone
€29.90 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
OMNITRONIC Cinch Kabel 2x2 1,5m
OMNITRONIC RCA cable 2x2 1.5m
OMNITRONIC RCA cable 2x2 1.5m
€3.50 *
incl. tax, plus shipping costs
Express Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
OMNITRONIC Klinkenkabel 6,3 stereo 1m sw ROAD
OMNITRONIC Jack cable 6.3 stereo 1m bk ROAD
OMNITRONIC Jack cable 6.3 stereo 1m bk ROAD
€4.90 *
incl. tax, plus shipping costs
Express Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
OMNITRONIC XLR Kabel 3pol 1,5m sw
OMNITRONIC XLR cable 3pin 1.5m bk
OMNITRONIC XLR cable 3pin 1.5m bk
€5.50 *
incl. tax, plus shipping costs
Express Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
OMNITRONIC SHP-950M Deluxe-Monitoring-Kopfhörer
OMNITRONIC SHP-950M Deluxe Monitoring Headphone
OMNITRONIC SHP-950M Deluxe Monitoring Headphone
€99.00 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
IEC LOCK Kaltgeräte Netzkabel verriegelbar 3x1,0 1m sw
IEC LOCK IEC Power Cable locking 3x1.0 1m bk
IEC LOCK IEC Power Cable locking 3x1.0 1m bk
€7.50 *
incl. tax, plus shipping costs
Express Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
OMNITRONIC M-60 Dynamisches Mikrofon
OMNITRONIC M-60 Dynamic Microphone
OMNITRONIC M-60 Dynamic Microphone
€29.90 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
OMNITRONIC Cinch Kabel 2x2 1,5m
OMNITRONIC RCA cable 2x2 1.5m
OMNITRONIC RCA cable 2x2 1.5m
€3.50 *
incl. tax, plus shipping costs
Express Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
OMNITRONIC Klinkenkabel 6,3 stereo 1m sw ROAD
OMNITRONIC Jack cable 6.3 stereo 1m bk ROAD
OMNITRONIC Jack cable 6.3 stereo 1m bk ROAD
€4.90 *
incl. tax, plus shipping costs
Express Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
OMNITRONIC XLR Kabel 3pol 1,5m sw
OMNITRONIC XLR cable 3pin 1.5m bk
OMNITRONIC XLR cable 3pin 1.5m bk
€5.50 *
incl. tax, plus shipping costs
Express Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
OMNITRONIC SHP-950M Deluxe-Monitoring-Kopfhörer
OMNITRONIC SHP-950M Deluxe Monitoring Headphone
OMNITRONIC SHP-950M Deluxe Monitoring Headphone
€99.00 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
IEC LOCK Kaltgeräte Netzkabel verriegelbar 3x1,0 1m sw
IEC LOCK IEC Power Cable locking 3x1.0 1m bk
IEC LOCK IEC Power Cable locking 3x1.0 1m bk
€7.50 *
incl. tax, plus shipping costs
Express Express delivery possible
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Alternatives 3
OMNITRONIC TRM-202MK3 2-Kanal Rotary-Mixer
OMNITRONIC TRM-202MK3 2-Channel Rotary Mixer
OMNITRONIC TRM-202MK3 2-Channel Rotary Mixer
€349.00 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
OMNITRONIC TRM-402 4-Kanal Rotary-Mixer
OMNITRONIC TRM-402 4-Channel Rotary Mixer
OMNITRONIC TRM-402 4-Channel Rotary Mixer
€499.00 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
OMNITRONIC TRM-422 4-Kanal Rotary-Mixer
OMNITRONIC TRM-422 4-Channel Rotary Mixer
OMNITRONIC TRM-422 4-Channel Rotary Mixer
€799.00 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Spare parts 12
Pcb (Power supply) TRM-222 (9E16-G015-0301-00 (RVE02))
Pcb (Power supply) TRM-222 (9E16-G015-0301-00 (RVE02))
Pcb (Power supply) TRM-222 (9E16-G015-0301-00 (RVE02))
€38.81 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Pcb (Master) TRM-222 (9E16-G015-0001-00 (RVE01))
Pcb (Master) TRM-222 (9E16-G015-0001-00 (RVE01))
Pcb (Master) TRM-222 (9E16-G015-0001-00 (RVE01))
€152.63 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Pcb (Input/Output) TRM-222 (9E16-0022-1501-02 (RVE01))
Pcb (Input/Output) TRM-222 (9E16-0022-1501-02 (RVE01))
Pcb (Input/Output) TRM-222 (9E16-0022-1501-02 (RVE01))
€39.93 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Pcb (vu-Meter) TRM-222 (9E16-G015-6801-00 (RVE01))
Pcb (vu-Meter) TRM-222 (9E16-G015-6801-00 (RVE01))
Pcb (vu-Meter) TRM-222 (9E16-G015-6801-00 (RVE01))
€34.29 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Pcb (CH2/right channel) TRM-222 (9E16-G015-5201-00 (RVE01))
Pcb (CH2/right channel) TRM-222 (9E16-G015-5201-00 (RVE01))
Pcb (CH2/right channel) TRM-222 (9E16-G015-5201-00 (RVE01))
€177.74 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Pcb (crossfader) TRM-222 (9E16-G015-1601-00 (RVE01))
Pcb (crossfader) TRM-222 (9E16-G015-1601-00 (RVE01))
Pcb (crossfader) TRM-222 (9E16-G015-1601-00 (RVE01))
€48.15 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Pcb (headset) TRM-222 (9E16-G015-1601-00 (RVE01))
Pcb (headset) TRM-222 (9E16-G015-1601-00 (RVE01))
Pcb (headset) TRM-222 (9E16-G015-1601-00 (RVE01))
€3.89 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Pcb (isolator) TRM-222 (9E16-G015-5101-00 (RVE01))
Pcb (isolator) TRM-222 (9E16-G015-5101-00 (RVE01))
Pcb (isolator) TRM-222 (9E16-G015-5101-00 (RVE01))
€121.11 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Pcb (CH1/left channel) TRM-222 (9E16-G015-5201-00 (RVE01))
Pcb (CH1/left channel) TRM-222 (9E16-G015-5201-00 (RVE01))
Pcb (CH1/left channel) TRM-222 (9E16-G015-5201-00 (RVE01))
€88.87 *
incl. tax, free shipping to Germany
[International shipping costs]
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days

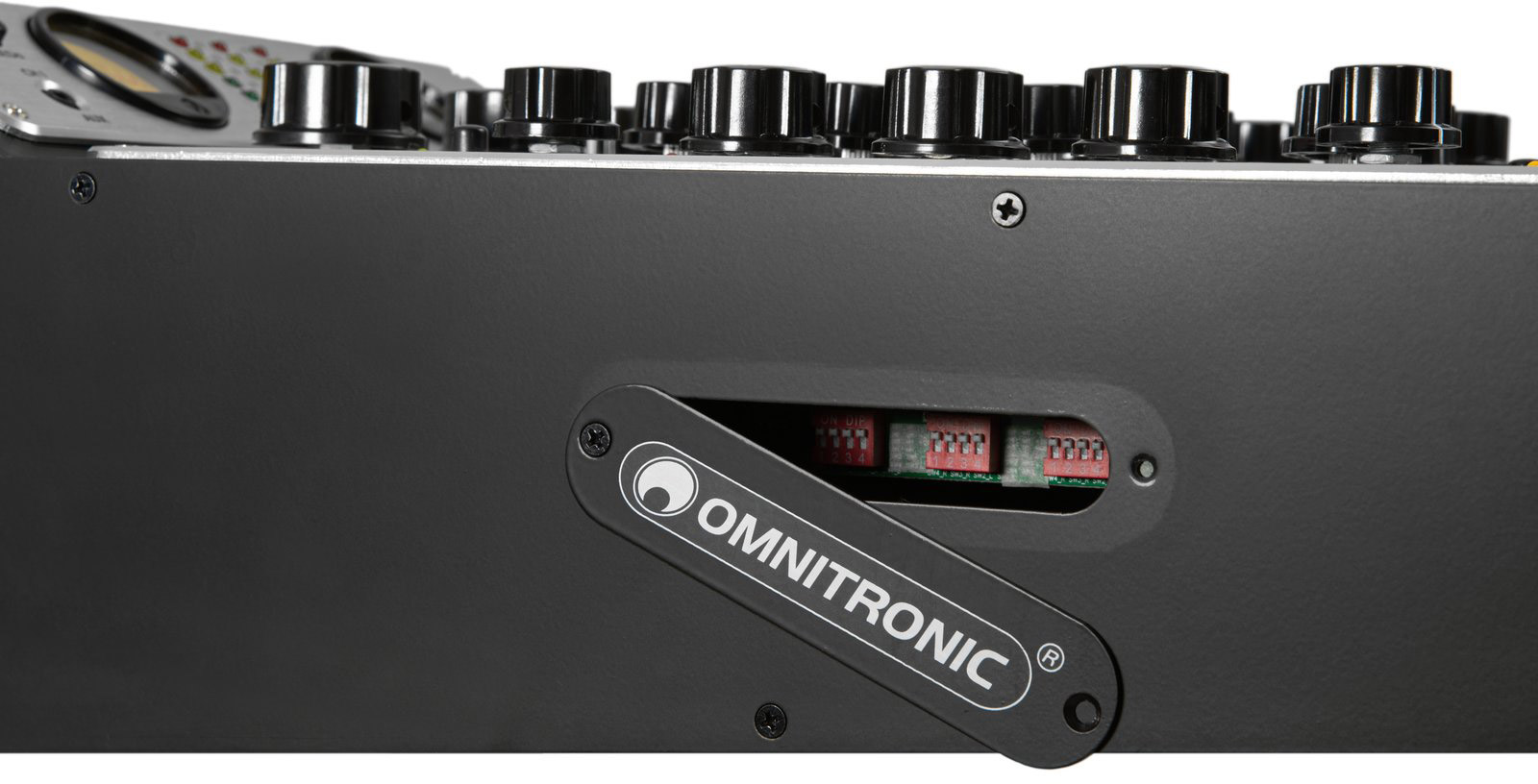

OMNITRONIC Omnitronic logo plate with screws for TRM-222
OMNITRONIC Omnitronic logo plate with screws for TRM-222
OMNITRONIC Omnitronic logo plate with screws for TRM-222
€11.81 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
VU meter TRM-222 (pointer instrument)
VU meter TRM-222 (pointer instrument)
VU meter TRM-222 (pointer instrument)
€49.67 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
ALPS Potentiometer TRM-222 (CH Level)
ALPS Potentiometer TRM-222 (CH Level)
ALPS Potentiometer TRM-222 (CH Level)
€26.93 *
incl. tax, plus shipping costs
Availability:
Delivery time: 3-5 days
Delivery time: approx. 3-5 days
Customers also bought
We will be happy to advise you!
Hotline+49 (0)2871-2347790
You can reach us:
Mon-Fri: 08:00 am – 05:00 pm
You can find answers to frequently asked questions here: LTT-InfoCenter
More than 45,000 products
Shipping free* from €69
Fast delivery
3-year LTT guarantee
Attractive B2B conditions
Purchase on account: Buy safely!
Trusted Shops
/ 5.00
Evaluations >
Including buyer protection
Verified identity
Protection of personal data
Learn more about us! Take a look behind the scenes at the LTT Group for an insight into our company.
Viewed
ALUTRUSS TRILOCK 6082AC-61(50) 6-Way PieceALUTRUSS TRILOCK 6082AC-61(50) 6-Way Piece
Marken
Neutrik
Naxpro-Truss
Eurolite
Philips
Omnitronic
ARRI
Cameo
SLV
Showtec
RCF
Manfrotto
Shure
Pioneer DJ
dB Technologies
Riggatec
LD Systems
Osram
Bullstage
MagicFX
Litetruss
BMS
Sennheiser
Eminence
MONACOR
DAP-Audio
Gravity
GE
Ledvance
IMG Stageline
JBL
Yamaha
American DJ
Neutrik
Naxpro-Truss
Eurolite
Philips
Omnitronic
ARRI
Cameo
SLV
