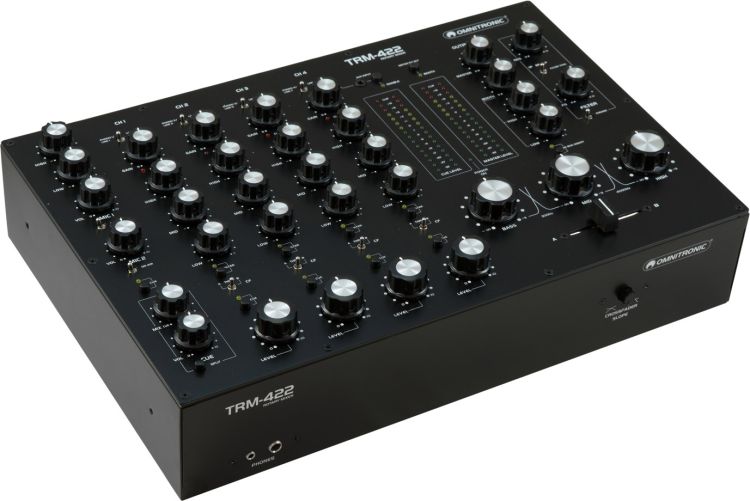

OMNITRONIC TRM-422 4-Channel Rotary Mixer

4-channel rotary mixer with 3-band frequency isolator and filter section for DJs

• 3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
• Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
• Filter section with HPF, BPF, LPF, resonance and sweep control for creative sound shaping
• 4 stereo input channels with gain control, clip LED, 3-way equalizer and phono/line switching
• 2 microphone input channels with gain control, 2-way equalizer on air switch
• High-grade components ensure long life and excellent sound quality
• 16-digit stereo LED level meter, switchable between master and booth outputs
• Booth output with separate 2-way equalizer and level control
• PFL section with 16-digit stereo LED level meter, level control, PFL/master mix control and cue mix/split option
• Fully assignable VCA crossfader with adjustable curve
• 2 effects send/return paths
• 4 direct outputs for Timecode applications

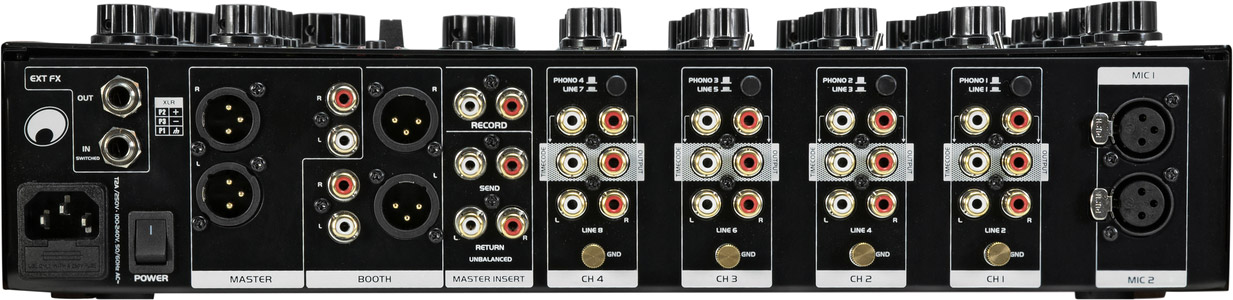

• Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
• Matching woodkits available at www.omniwoodkit.com
• Desktop console housing
• (19") 48.3 cm rack installation possible

Package contents

• 1 x mixer, 1 x power cord, 2 x mounting bracket, 6 x screw, 8 x rCA cable, 1 x user manual
