LD Systems X-ECI - Ethernet Control Expansion Card for IPA Series

With the X-ECI Ethernet Control expansion card, LD Systems is expanding the remote control options for its IPA DSP installation power amplifiers. In conjunction with the LD Systems QUESTRA® software, the interface card ensures flexible and effective configuration and control of audio fixed installations of various sizes - whether in hotels, restaurants, shopping centers, sports facilities, office environments, and more.

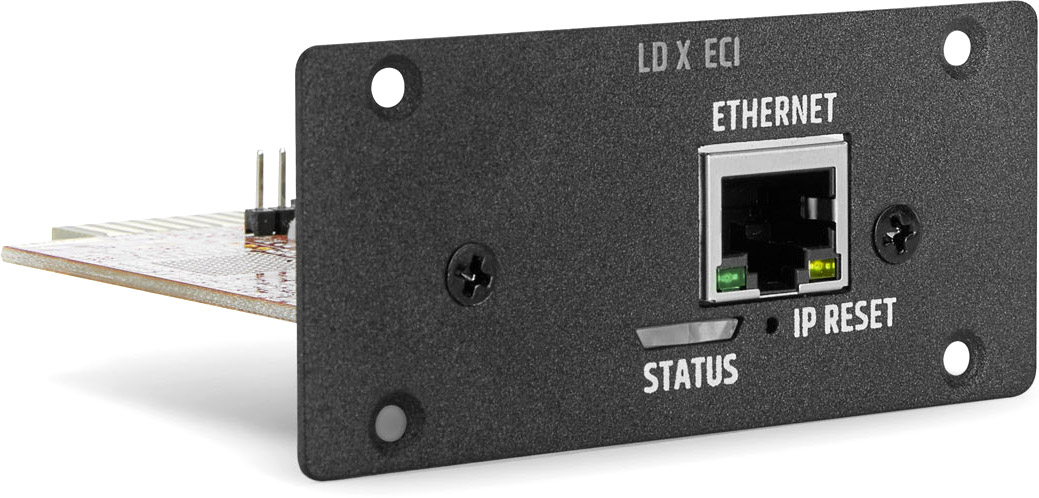

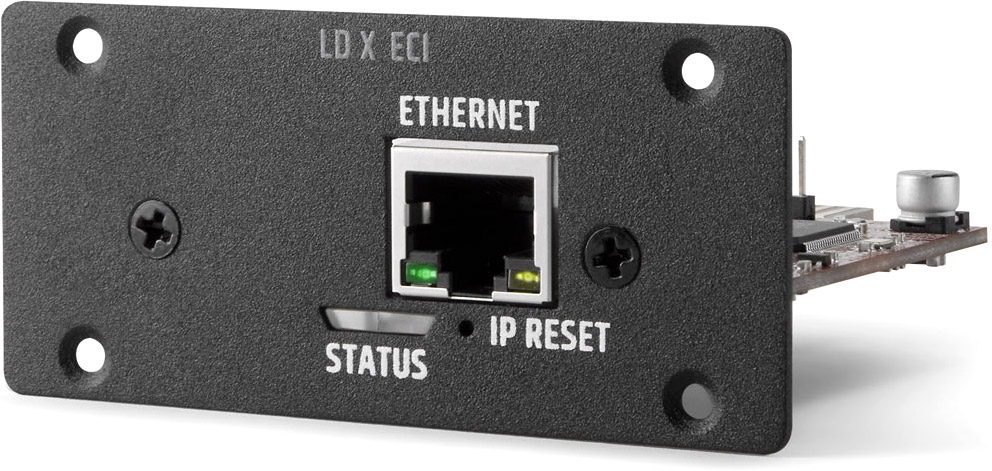

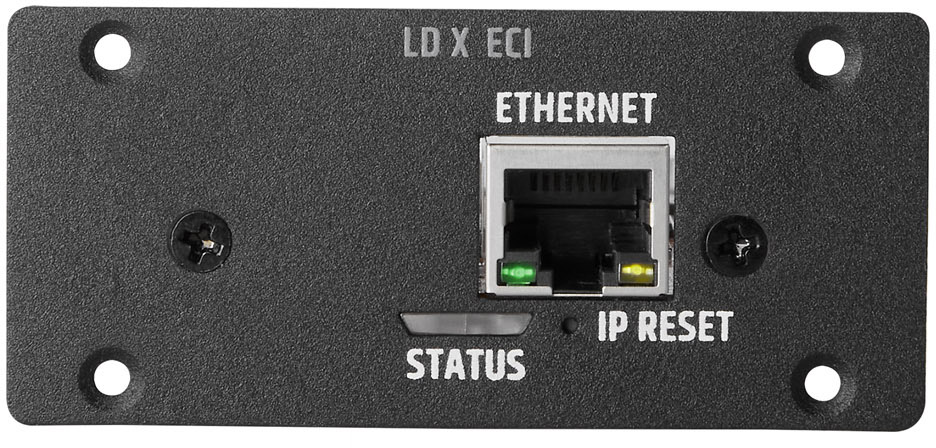

The X-ECI Ethernet Control expansion card features a 100 Mbps Ethernet port based on Cat5 technology, making it compatible with all standard IT network components. It also has a status LED and an IP reset button for quick and easy troubleshooting. The asymmetrical pin arrangement of the card prevents the interface card from being accidentally installed incorrectly in the IPA housing.

The QUESTRA® software gives system integrators access to all the DSP settings of the IPA installation amplifier. The possibilities range from signal processing at the input (preamp, compressor, etc.) to the signal flow in the matrix mixer, output processing (EQ, compressor, delay, polarity, mute), priority settings and preset management. In addition, the QUESTRA® software can be used to create customized control panels that end users can access on smartphones, tablets or computers (via the QUESTRA® Panels app) for convenient control of their system.
