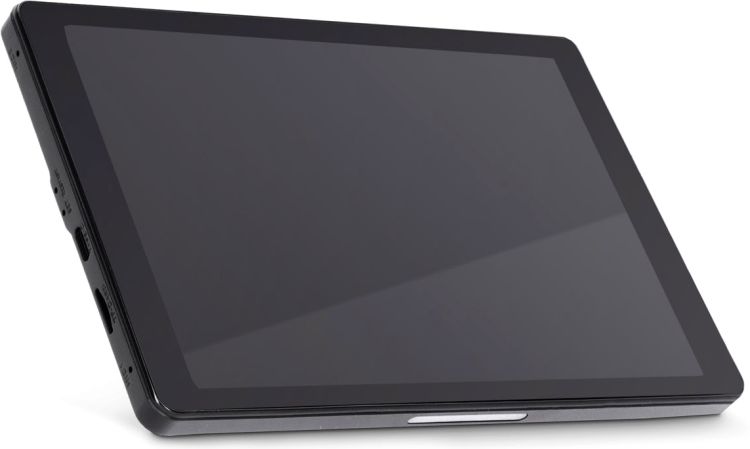

LD Systems QTP 8 - QUESTRA 8-inch touchscreen display with Android 11 and PoE

NEW

Preview: LD Systems QTP 8 - QUESTRA Touchscreen Display 8 Zoll mit Android 11 und PoE

LD Systems QTP 8 - QUESTRA Touchscreen Display 8 Zoll mit Android 11 und PoE

Sale to reseller only

Availability:

Not in stock
Delivery time: approx. 2 weeks

Delivery time: approx. 2 weeks

Product inquiry

Item number: 210906275

EAN: 4049521765964

MPN: LDQTP8

NEW

QUESTRA 8-inch touchscreen display with Android 11 and PoE 8-inch touch panel Android 11... more

Back to the overview

All information about the product:

"LD Systems QTP 8 - QUESTRA 8-inch touchscreen display with Android 11 and PoE"

QUESTRA 8-inch touchscreen display with Android 11 and PoE

8-inch touch panel
Android 11 operating system
Control of the user-defined Questra user panels
Developed for LD Integrated Systems Solutions
Universal wall mounting options
PoE operated (Power over Ethernet)
Optional: external power supply

The Questra® 8" touchscreen panel with Andriod 11 is designed to control LD Integrated Systems solutions and other professional audio and video applications. Install the QUESTRA® Panel App to control custom panels that you have developed with the QUESTRA® software. This display allows you to conveniently and intuitively control your audio settings, lighting and other building functions.

The LD Systems QTP 8 features universal wall mounting options, as well as PoE (Power over Ethernet) to facilitate installation. If an alternative power source is required, an optional power supply unit is also available.

Combined with the QUESTRA® Panel App, the touchscreen is the perfect choice for professional AV technicians looking for a user-friendly solution for their customers.

Technical data:

Product type:	installation accessories
Type:	8" QUESTRA touch panel
Processor:	RK3566 - Quad-core over 1.8 GHz
Working memory:	2 GB
Internal storage space:	16 GB
Controls:	8" touch display
Controls:	restart
Controls:	set
Display resolution:	1280 x 800 pixels
Display brightness:	300 nits
Touch Panel Type:	Capacitive 5-point IPS touchscreen
Mounting position:	Landscape or portrait format (landscape format recommended)
Operating system:	Android 11
Connections:	Ethernet RJ45
Connections:	power in
Connections:	RS485 (currently not in use)
Connections:	USB-C
Card reader:	TF card / MicroSD
Network specifications:	10M / 100M Ethernet
Network specifications:	2.4 GHz WIFI
Network specifications:	Bluetooth 4.0
Power supply:	External power supply 12 V DC 2 A (optionally available)
Power supply:	IEEE 802.3at compatible
Power supply:	PoE (Power over Ethernet)
Mounting options:	Electrical box type 86
Mounting options:	EU - flush-mounted box
Mounting options:	US - 2-speed electric box
Dimensions (W x H x D):	200 mm x 124.6 mm x 37.7 mm
Operating temperature:	0° - 40°C
Relative humidity:
Accessories (included):	Mounting plate plus locking screw
Accessories (included):	mounting screws
Optional accessories:	External power supply 12 V DC 2 A
Weight:	0.34 kg
