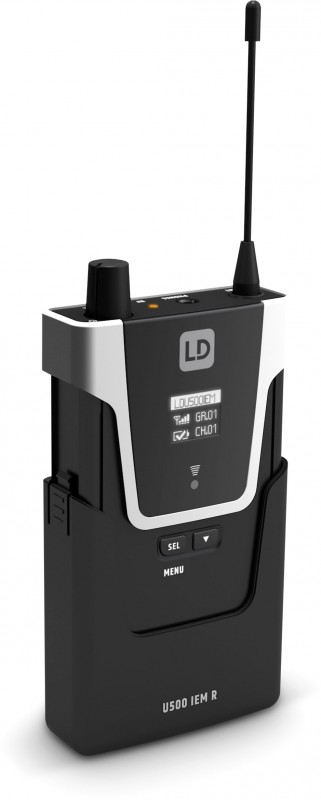

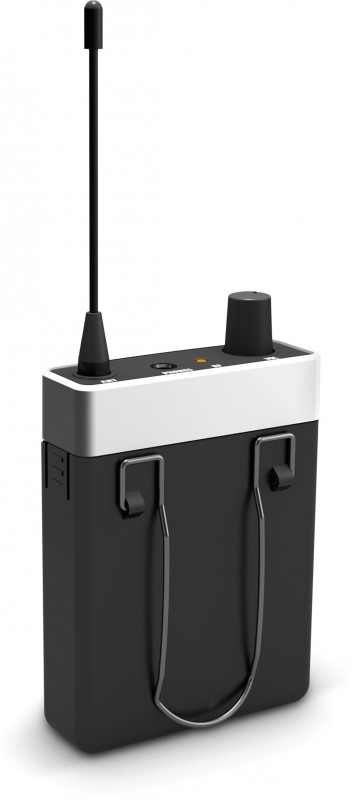

LD Systems U505 IEM R - Receiver - 584 - 608 MHz
- Reliable in-ear monitoring with more than 100 m range
- 96 available channels
- 2, 10 or 30 mW ERP selectable transmission power
- Convenient infrared frequency syncing
- Individual user name assignment and memory for 10 custom presets
- Extended frequency response
- 3-band EQ with parametric mids
- Switchable limiter
- Stereo and mono modes of operation
- High-contrast OLED display
- Transmitter with direct monitoring headphone output
- Bodypack receiver with three selectable squelch levels
- 10 h of bodypack receiver operation on two AA batteries
- U500® IEM transmitter compatible with U300® IEM bodypacks
Move freely on stage while the perfect monitor mix is delivered directly to your ears. U500® In-Ear Monitoring Systems feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500® In-Ear Systems' noise floor is exceptionally low.
Drawing little current only, the U500® IEM Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure interference-free operation at all times.
Technical data:| Product type: | In-ear Monitoring Accessories |
| Type: | Receivers |
| Transmission frequency range: | 584 - 608 MHz |
| Channels: | 12 |
| Headphones ouput: | 3.5 mm TRS |
| Transmission method: | FM, mono/stereo |
| Frequency response: | 40 - 16000 Hz |
| Audio output: | 3.5 mm TRS |
| Minimum connected impedance: | 16 Ohm(s) |
| Max. audio output level: | 33 mW @ 16 Ohm mW |
| Max. audio output level: | 80 mW @ 33 Ohm mW |
| Antenna connector: | Fixed to housing |
| Controls: | Down |
| Controls: | On / Off |
| Controls: | Up |
| Controls: | volume |
| Indicators: | Multifunctional OLED-Display |
| Indicators: | RF (LED) |
| Operating voltage: | 2 x 1.5 V AA |
| Operating time: | |
| Width: | 64 mm |
| Height: | 100 mm |
| Depth: | 24 mm |
| Weight: | 0,095 kg |
| Accessories (included): | 2 x AA batteries |
| Accessories (included): | Antenna |
| Features: | battery status LED |
