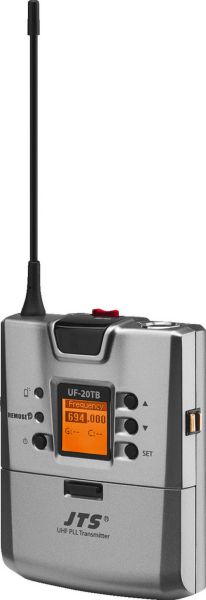

JTS UF-20TB/5 UHF PLL pocket transmitter

€439.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Currently not available.
Expected to be available again in 5 months.

Currently not available

Item number: 250131915

EAN: 4007754246834

The wideband multifrequency system UF-20... from JTS is the perfect solution for stage... more

Back to the overview

All information about the product:

"JTS UF-20TB/5 UHF PLL pocket transmitter"

The wideband multifrequency system UF-20... from JTS

is the perfect solution for stage applications of high requirements due to an excellent flexibility and reliability.
The device impresses with a convenient setup function, REMOSET technology, 75 MHz bandwidth, 3,000 frequencies which can be selected as desired and additional professional features, e.g. active carrier analysis method.

UHF PLL pocket transmitter

Suitable for combination with a headband microphone or an instrument microphone with 4-pole mini XLR connector
Bandwidth: 75 MHz
15 groups, each with up to 63 compatible preset channels
64 channels in 6 groups from 3,000 selectable individual frequencies can be stored in user presets
REMOSET technology for receiver/transmitter synchronisation
Adjustable sensitivity (-18 dB to +12 dB)
Lock function
5-level display for indicating battery status and low battery alert, backlit LCD
Switchable transmitting power

There are restrictions or requirements within the EU!

Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

tools4music 06/2015

“With the wireless system UF-20, JTS is able to offer an absolutely professional system. Despite numerous features, the menu navigation can easily be followed and understood. The REMOSET function allows you to simultaneously adjust up to 48 transmitters and receivers. In addition, important functions of the hand-held transmitter can remotely be controlled via the receiver which is particularly helpful at festivals. It allows you to quickly adjust the microphone sensitivity. The system also impresses with an appealing design and a neat workmanship.”

Technical data:

General information:	-
Description:	pocket transmitter
Carrier frequency range:	530-605 MHz
Audio frequency range:	50-18,000 Hz
Channels:	1
Operating time:	> 20 h
Admiss. ambient temp.:	0-40 °C
Specifications transmitter:	-
Transmitting power:	10/50 mW
Power supply transmitter:	2 x batt. AA size (not supplied)
Width transmitter:	62 mm
Height transmitter:	170 mm
Depth transmitter:	23 mm
Weight transmitter:	90 g
Connections transmitter:	4-pole mini XLR
