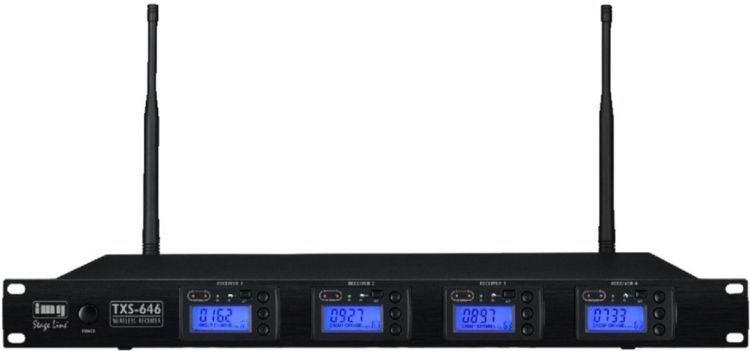

IMG STAGELINE TXS-646 4-channel multifrequency receiver unit

€449.00 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Delivery time: 3-5 days

Delivery time: approx. 3-5 days

Item number: 250124910

EAN: 4007754223521

MPN: 0253530

4-channel multifrequency receiver unit, with UHF PLL technology. 1,000 selectable UHF... more

Back to the overview

All information about the product:

"IMG STAGELINE TXS-646 4-channel multifrequency receiver unit"

4-channel multifrequency receiver unit,

with UHF PLL technology.

1,000 selectable UHF frequencies (672.000-696.975 MHz) for each channel (10 groups with 100 channels each)
ACT function for transmitting selected frequency to pocket transmitter TXS-606HSE/2, tie clip microphone transmitter TXS-606LT/2, desktop microphone transmitter TXS-606DT/2 or hand-held microphone TXS-606HT/2 via infrared signal
Auto-scan
True diversity system with removable antennas (BNC connection)
Volume and squelch controls for each channel
Each channel with LCD for indicating group/channel, antenna A/B, RF receiving level, AF audio level and additional LED display for indicating audio signal
XLR output for each channel, bal.
6.3 mm output for mixed signal
8 V supply voltage for active antennas or antenna amplifier (e.g. TXS-875B) is available
Robust metal housing
Supplied with power supply
482 mm (19") rack installation, 1 RS

There are restrictions or requirements within the EU!

Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

SOUNDCHECK 04/2012

“The TXS-646 can receive four wireless channels at the same time - the hand-held transmitter provides a warm and powerful sound and stands its ground among the instruments ... the earband microphones allow for unobtrusive miking with both a low susceptibility to acoustic feedback and an excellent speech intelligibility ... the quad wireless system from IMG Stage Line provides a reliable operation at all times, is easy to use and impresses by a crisp sound.”
+ Clear sound
+ Very good price-performance ratio
+ Future-proof frequency range
(Test setup consisted of TXA-646 with TXS-606HT, TXS-606LT and HSE-70A/SK)

Technical data:

General information:	-
Description:	receiver unit
Carrier frequency range:	672.000-696.975 MHz
Audio frequency range:	30-18,000 Hz
Channels:	4
THD:
Dynamic range:	100 dB
RF S/N ratio:	105 dB
Admiss. ambient temp.:	0-40 °C
Specifications receiver:	-
Audio signal receiver:	350 mV/600 O (jack) 25 mV/600 O (XLR, bal.)
Power supply receiver:	via encl. plug-in power supply
Width receiver:	482 mm
Height receiver:	45 mm
Depth receiver:	310 mm
Weight receiver:	2.9 kg
Connections receiver:	4 x XLR, bal., 1 x 6.3 mm jack, unbal.
