LD Systems U306 R - Receiver

This article is currently not available.

€150.73 *

incl. tax, free shipping to Germany
[International shipping costs]

Availability:

Currently not available

Item number: 210904270

EAN: 4049521336331

The U300 series 12-channel UHF receiver operates with FM technology in the frequency band... more

Back to the overview

All information about the product:

"LD Systems U306 R - Receiver"

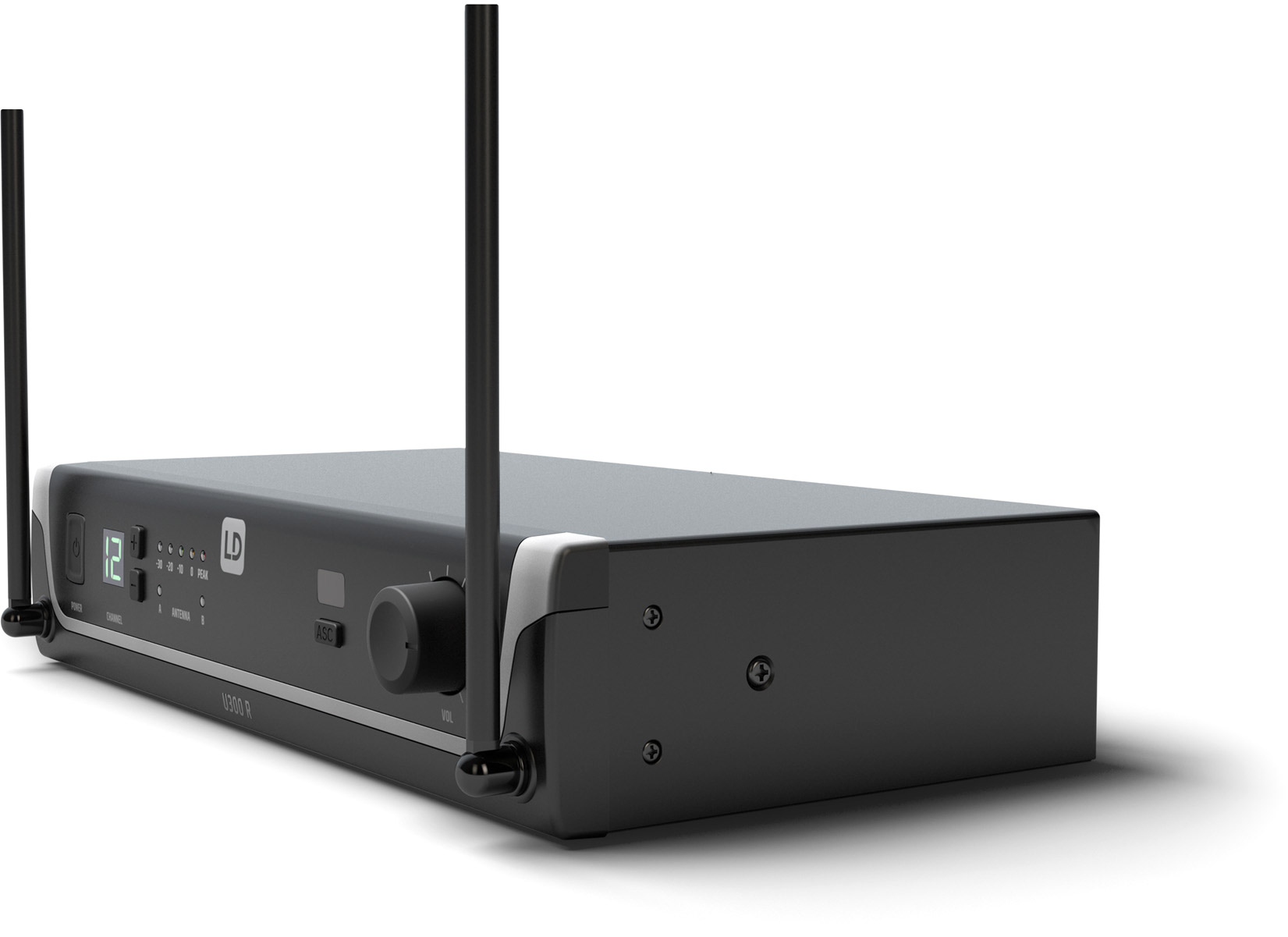

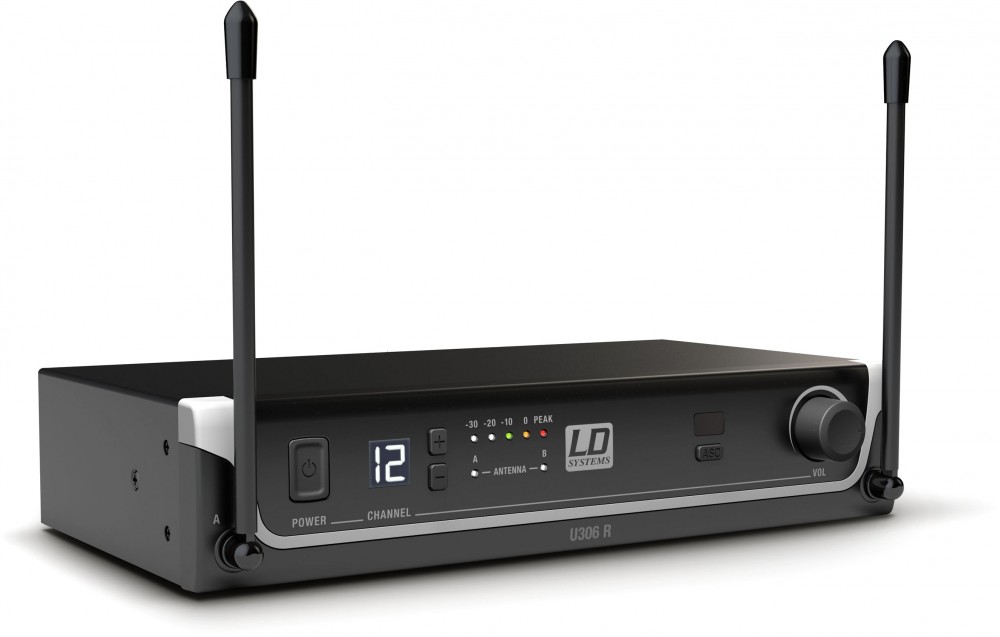

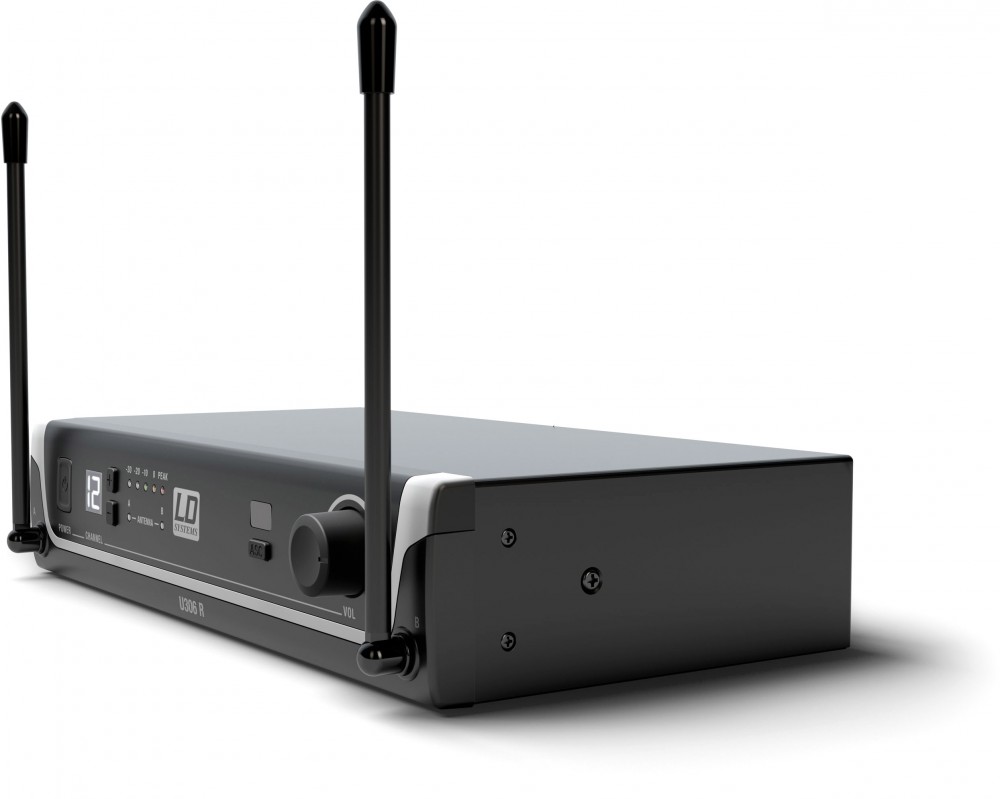

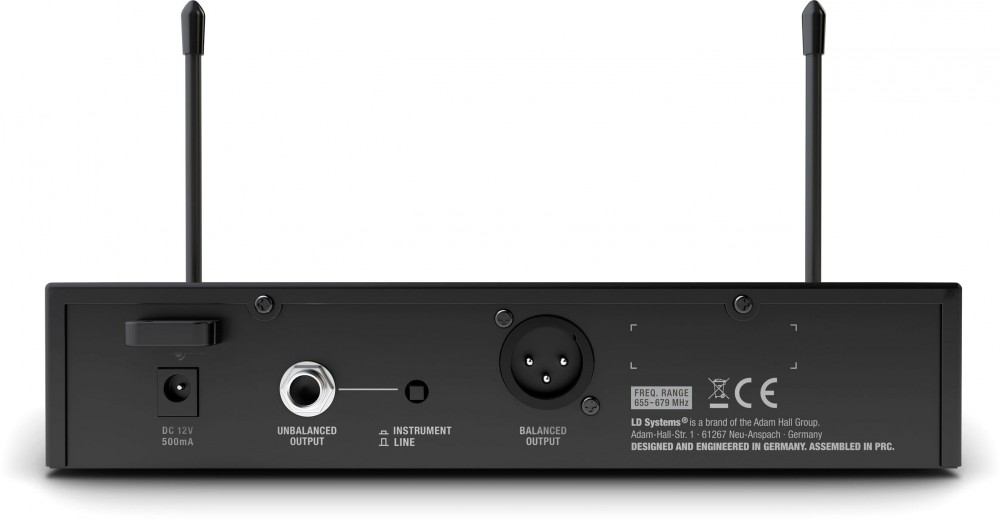

The U300 series 12-channel UHF receiver operates with FM technology in the frequency band 655–679 MHz and features a 25 Hz to 16 kHz frequency response. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection with the handheld transmitter microphone or bodypack from the same series. A squelch with pilot tone ensures disruption-free operation. The U306 receiver features elegant metal housing with a bright LCD channel display, channel selection keys and LEDs that display audio signal strength and active antenna. The rear side features both a balanced XLR and unbalanced 6.35 mm audio output that is switchable to instrument level for directly connecting to guitar and bass guitar amps. Includes a power adapter and balanced XLR cable.

Technical data:

Product type:	Wireless Microphone System Accessories
Type:	Receivers
Modulation Type:	FM
Transmission frequency range:	655 - 679 MHz
Channels:	12
Groups:	1
Antenna inputs:	2 x fixed
Frequency response:	25 - 16,000 Hz
Noise reduction:	Squelch
Transmission optimization:	Pilot tone
Total Harmonic Distortion (THD):
Signal-to-noise ratio:	104 dB
Audio output, balanced:	XLR
Audio output, unbalanced:	6.3 mm jack, switchable unbalanced output level
Max. output level:	+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Controls:	ASC Sync
Controls:	Channel down
Controls:	Channel up
Controls:	Line/Instrument Level
Controls:	Power
Controls:	volume
Indicators:	5 LED VU meters
Indicators:	Antenna A/B
Indicators:	LC display
Operating voltage:	12 V DC - 18 V DC (500 mA), external power supply
Width:	211 mm
Height:	43 mm
Depth:	120 mm
Weight:	0,7 kg
Accessories (included):	2 x AA battery
Accessories (included):	Audio cable
Accessories (included):	Power supply
Other features:	IR frequency synchronisation
