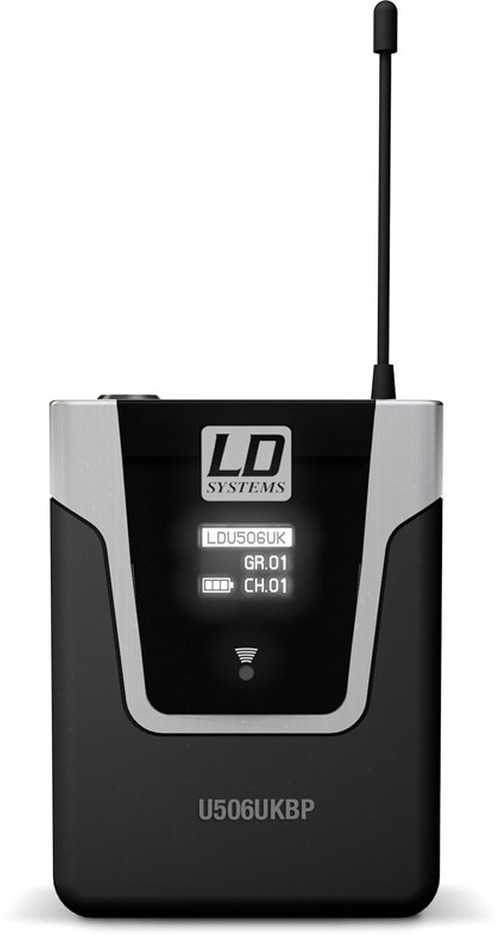

LD Systems U506 UK BP - Bodypack transmitter
- True diversity UHF wireless system
- Shock-mounted dynamic and condenser microphone capsules
- Automatic channel scan
- Easy one-touch infrared frequency syncing
- Pilot tone squelch circuit prevents noise
- Switchable RF transmitter output (2, 10 or 30 mW)
- Rugged enclosures
- High-contrast OLED display
We have developed the U500® Series and incorporated some of your suggestions to provide sophisticated and affordable wireless systems that are tailored to suit the needs of professional users. Whether for voice, instruments or as a wireless conference system, sets from the U500® Series will meet your expectations of quality sound, reliability and ease of operation.
With automatic channel scanning, convenient infrared synchronisation, intuitive menu navigation and an easily-readable OLED display featuring battery status indicator and user name assignment, the U500® Series True Diversity UHF radio systems are ready to use in an instant. The selectable transmit power of up to 30 mW and squelch control with pilot tone ensure optimum audio and transmission quality without artefacts and a free-field range of over 100 m.
Interchangeable microphone capsules enable the hand-held transmitter to be tailored to suit different speaking or singing voices. For direct connection to guitar and bass amps, the outputs of the single and double receiver are switchable to instrument level. The wide frequency range of 30 - 16,000 Hz also handles the lowest bass notes.
U500® vocal and instrument sets are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time.
The U500® conference system can be extended to a maximum of 20 terminals and provides effective communication with excellent speech intelligibility.
Technical data:| Product type: | Wireless Microphone Systems |
| Type: | Bodypack |
| Transmission frequency range: | 606 - 614 MHz |
| Channels: | 96 (8 groups of 12 channels) |
| Groups: | 8 |
| Inputs: | Mini-XLR (3-pin) |
| Frequency response: | 30 - 16000 Hz |
| Signal-to-noise ratio: | >90 dB |
| Rated HF output power: | Variable (2mW, 10mW, 30mW) |
| Controls: | arrow keys (up/down value entry) |
| Controls: | Power On/Off |
| Controls: | select |
| Indicators: | OLED Display |
| Operating voltage: | 2 x AA battery |
| Operating time: | >10 h (with alkaline batteries) |
| Width: | 65 mm |
| Height: | 86 mm |
| Depth: | 23 mm |
| Weight: | 0,09 kg |
| Other features: | detachable antenna |
| Other features: | IR frequency synchronisation |
| Other features: | Pilot tone squelch, switchable gain |
| Other features: | switchable gain |
| Other features: | switchable RF power |
| Other features: | Wireless Microphone System Accessories |
