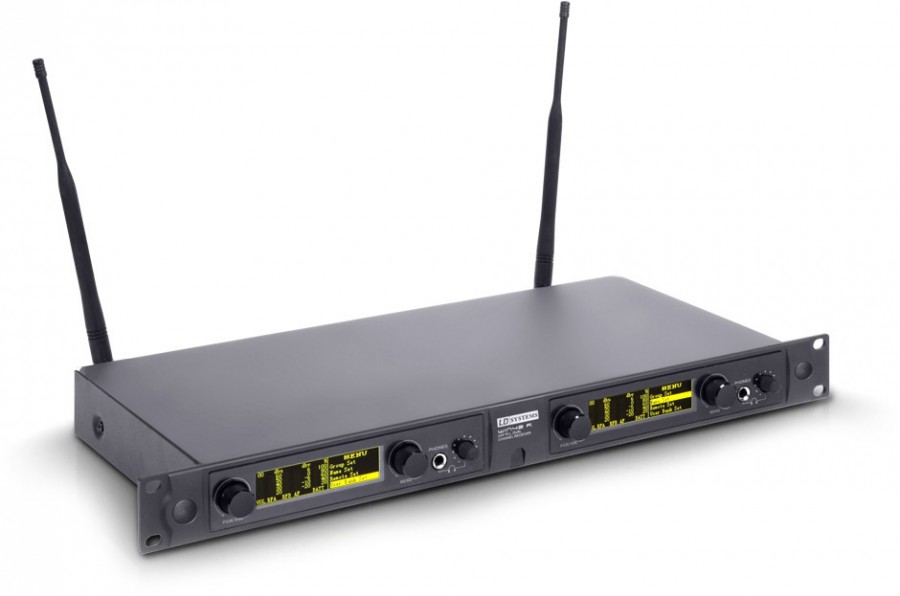

LD Systems WIN 42 R 2 Dual receiver

Due to the changed situation in the area of general frequency allocations for the operation of wireless systems starting in 2015, LD Systems decided to develop the even more flexible and highly professional WIN 42 wireless system. With its outstanding audio quality, the LD Systems WIN 42 UHF system offers numerous potential applications for live performances and permanent installations. The working UHF frequency range is 734 MHz to 776 MHz. Both the handheld microphone and belt pack transmitter versions provide any vocalist, speaker or instrumentalist optimal transmission of his or her performance with the greatest possible freedom of movement. By means of a threaded connection, the microphone head of the handheld transmitter can be swapped quickly and easily (dynamic and condenser capsules). The system has more than 1680 freely selectable frequencies and thus makes it possible to operate up to 20 systems simultaneously. The "channel scan" function assists you in finding and tuning to a transmission frequency without interference. This frequency is then transmitted simply and conveniently from receiver to transmitter via an infrared link. The transmitting power is adjustable in 3 stages (10, 30, 50 mW) directly on the microphone, permitting adaptation to any environment. The rack True Diversity receiver houses numerous system features, for example, a transmitter battery status indicator on the receiver display, an indicator for the (transmitter) "Mute On/Off" function on the receiver display, 4 EQ presets that are switchable at the receiver, and much more. A highly professional system embodying the outstanding value-for-money that is so typical for LD Systems.

• UHF frequency range 734 - 776 MHz
• 1680 frequencies
• 20 groups with 577 fixed frequencies
• user bank with 1680 freely selectable frequencies in 25 kHz increments
• 255 addresses selectable
• channel scan
• true diversity receiver
• interchangeable microphone capsules (dynamic / condenser)

Receiver display

• volume
• radio frequency level antenna A/B
• audio level
• battery status of transmitter
• transmitter sync via infrared
• squelch setting in menu
• equalizer setting in menu
• naming template in menu
• 10 sets storable
• lockable menu
• balanced XLR output, unbalanced 6.3 mm jack
• adjustable output
• adjustable headphone output

Specifications:

Product type:	Wireless Microphone System Accessories
Type:	Receivers
Modulation Type:	FM
Transmission frequency range:	734 - 776,000 MHz
Channels:	2 x 1680
Groups:	2 x 20 groups + 1 user group
Antenna inputs:	2
Antenna connector:	TNC
Frequency response:	60 - 16 Hz
Noise reduction:	squelch
Transmission optimization:	address allocation
THD:	< 1 %
Signal-to-noise ratio:	> 100 dB

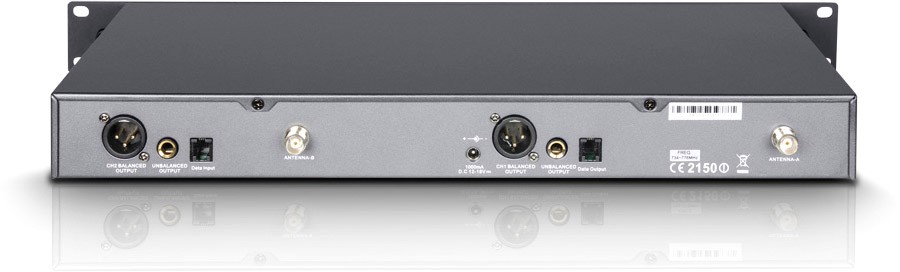

Audio output, balanced:	2 x XLR
Audio output, unbalanced:	2 x 6.3 mm TS
Audio mix output, unbalanced:	6.3 mm Jack
Max. output level:	+ 10 dBu
Headphones ouput:	2
Headphones outputs:	6.3 mm TRS
Controls:	2 x headphones level
Controls:	2 x mains switch / volume
Controls:	2 x menu
Indicators:	2 x multifunction LC display
Operating voltage:	External Power Supply
Operating voltage:	1,000 mA
Operating voltage:	13.5 V DC
Width:	480 mm
Height:	44 mm
Depth:	190 mm
Weight:	2,4 kg
Accessories (included):	2 x antenna
Accessories (included):	2 x TNC adapter
Accessories (included):	batteries
Accessories (included):	power supply
Accessories (included):	2 x TNC cable
Accessories (included):	User's manual
Other features:	channel search function
Other features:	IR frequency synchronisation
