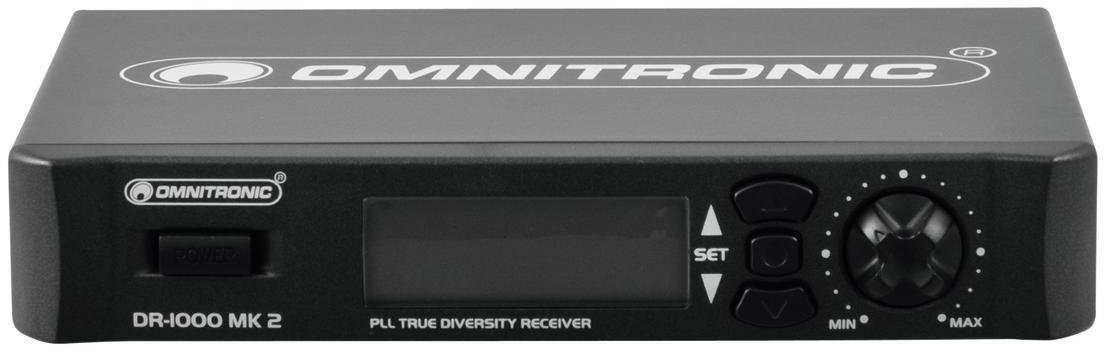

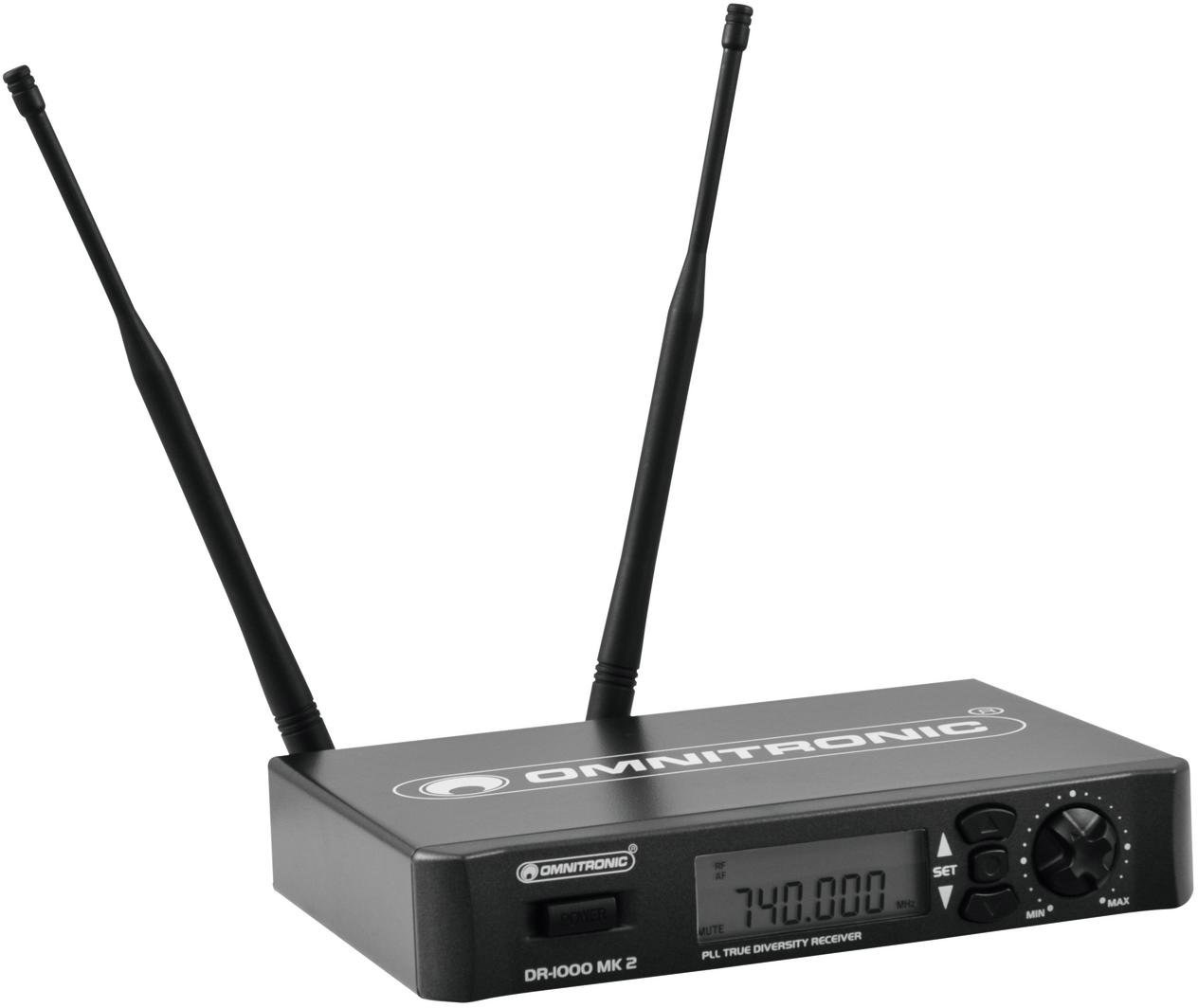

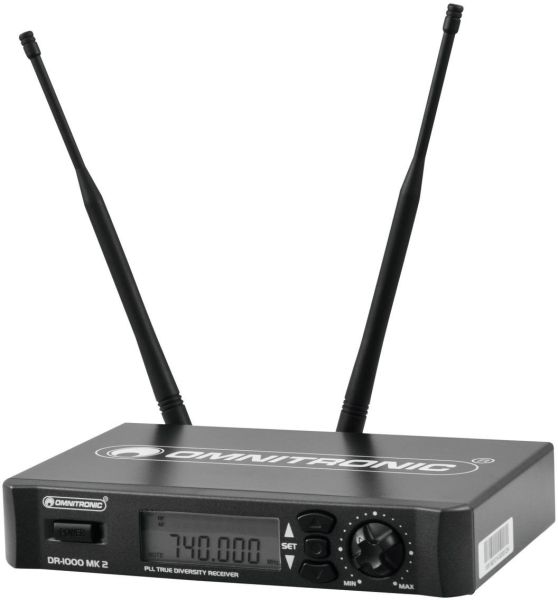

OMNITRONIC DR-1000 MK2 Wireless Receiver

A variety of options with multi-frequency wireless systemsWith the new 1000 series, OMNITRONIC offers future proof microphones in the frequency range UHF 740-764 MHz. Due to the high number of switchable frequencies (192), up to 16 intermodulation free wireless systems can be operated at once. This enables a variety of combinations between several receivers, hand-held microphones, bodypacks with singer headset or moderator headset or lavalier microphone.

Multifrequency wireless receiver, True Diversity

• Multifrequency wireless receiver with UHF pilot tone technology (PLL)
• High-quality true diversity reception
• Operation in the low-interference UHF band
• 192 carrier frequencies switchable in 125 kHz steps (40 frequencies per MHz)
• System expandable to up to 16 receivers with 16 microphones
• Automatic frequency scan
• Output level control
• Lock function for prevents undesired changes to settings
• Mute mode when signal is absent or too weak
• Rugged metal housing
• Optional antenna boosters and antenna distributor for easy setup of several receivers
• UHF 740 - 764 MHz License-free and approved in large parts of Europe
• Operating range up to 100m with line-of-sight
• Desktop console housing
• (19") 48.3 cm rack installation possible

Type:	Receiver
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	6,00 W

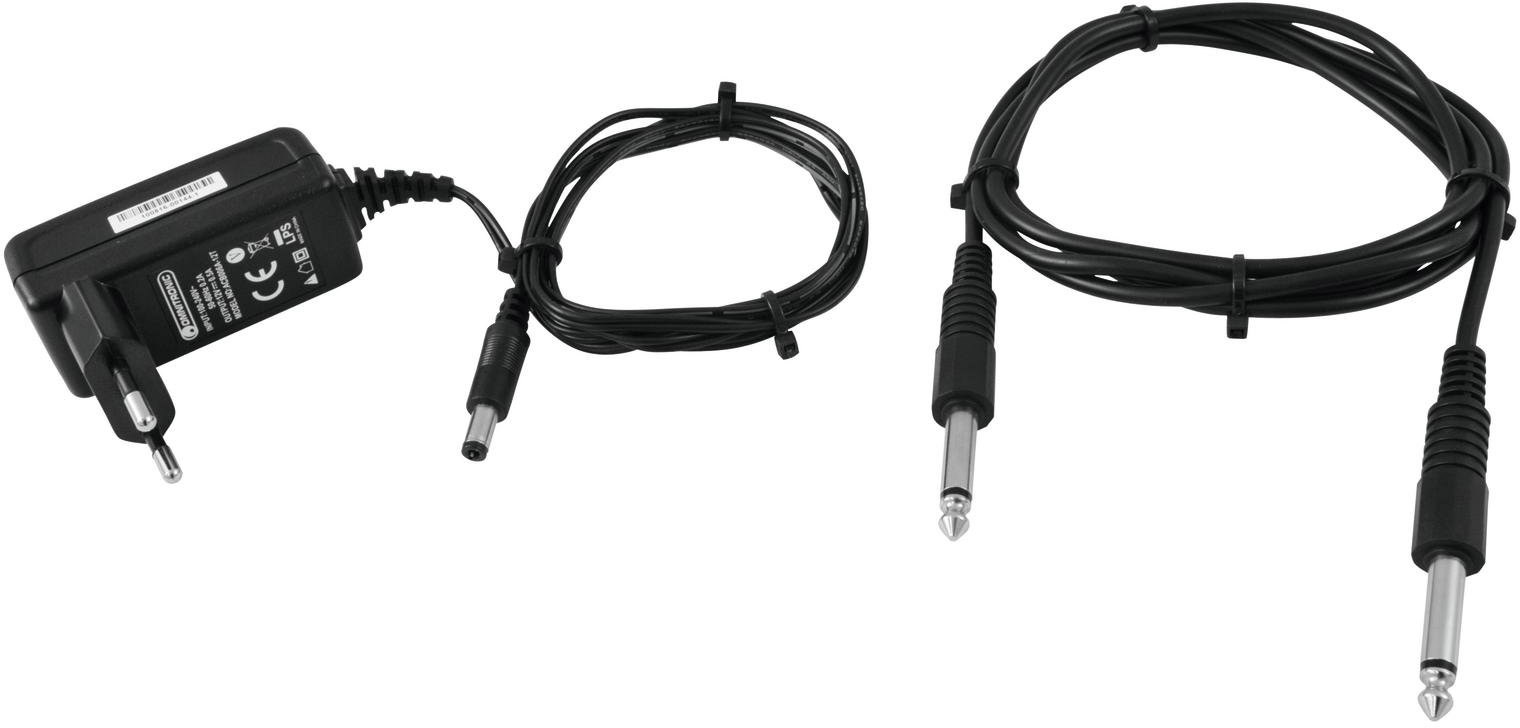

Power connection:	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:	1
Frequency range:	40 - 18000 Hz
S/N ratio:	>105 dB
THD:
Display:	Charge level , antenna A/B , RF signal level , AF audio level; frequency

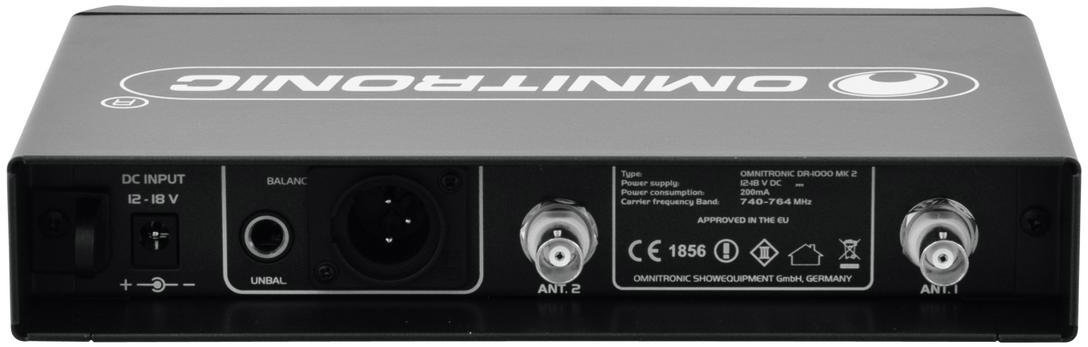

Connections:	Output: Microphone via 1 x 3-pin XLR Output: Microphone via 1 x 6.3 mm jack socket (stereo) mounting version
Frequency band:	UHF 740 - 764 MHz
Frequency selection:	192 Switchable frequencies
Modulation:	FM
Frequency stability:	± 0,0005 %
Range:	Range up to 100m with line-of-sight
Switching bandwidth:	24 MHz
Switch:	On/off switch
Diversity:	True diversity
Housing design:	Desktop console housing (19") 48.3 cm rack installation possible
Dimensions:	Width: 21,3 cm Depth: 15 cm Height: 4 cm
Weight:	1,33 kg
